Waterpik WF-02 Water Flosser For Teeth and Gums Manual

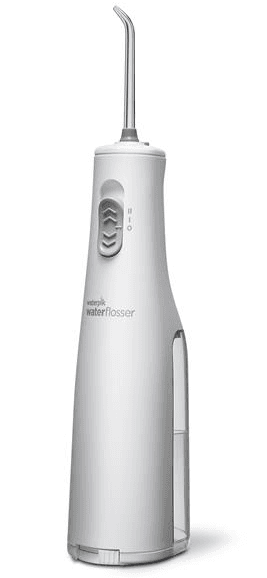

Waterpik WF-02 Water Flosser For Teeth and Gums

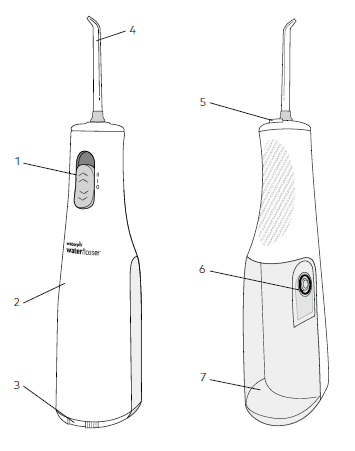

PRODUCT DESCRIPTION

1. Power/pressure switch
2. Power handle
3. Battery door
4. Tip
5. Tip eject button
6. Flip top water inlet
7. Reservoir

TIPS

1. A. Orthodontic Tip*
   • Braces/General use
2. B. Plaque Seeker™ Tip*
   • Implants/Crowns/Bridges/ Retainers/General use
3.  C. Toothbrush Tip*
   • General use
4. D. Classic Jet Tip**
   • General use
5.  E. Tongue Cleaner**
   • Fresher breath

 NOT ALL TIPS INCLUDED IN ALL MODELS

GETTING STARTED

Inserting Batteries

1. Remove water reservoir.
2. Twist battery door left from the locked position to unlocked position and pull battery door away from the unit.
3. Insert 3 AA batteries as shown. Do not use Li-Ion batteries.
4. To replace battery door, line-up arrows, push and twist. Replace batteries when performance is no longer effective. Typical battery life is at least 40 usages.

Important

1. Use Petroleum Jelly to lubricate the battery cap sealing surface at every battery change.
2. Apply a thin even film of Petroleum Jelly to the battery coopering.
3. Apply a thin even film of Petroleum Jelly to the battery compartment sealing surface.

• Filling the Reservoir
  Lift the flip top on reservoir and fill the reservoir with lukewarm water.
• Inserting and Removing Tips
  Insert tip into the center of the Water Flosser handle, pressing down firmly until the tip clicks into place. The colored ring will be flush with the top of the handle if the tip is correctly locked into place. To remove tip from the handle push the tip eject button on the handle.
• Adjusting the Pressure Setting
  You can adjust the pressure setting on your Water Flosser by simply sliding the pressure/power switch on the handle. Slide power switch up 1 click for low (l) pressure and 2 clicks for high (ll) pressure.
• Recommended Technique
  For best results, start with back teeth and work toward the front teeth. Direct the stream at a 90-degree angle to your gum line with tip in mouth. Glide tip along gum line and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.
• When Finished
  Turn the unit off. Empty any liquid left in the reservoir. If desired, the reservoir may be removed from the power handle by sliding the reservoir down towards the base of the unit. To replace the reservoir on the power handle, simply slide it up towards the top of the unit.

NOT ALL TIPS INCLUDED IN ALL MODELS

TIP USAGE

• Orthodontic Tip
  To use the orthodontic tip, gently glide tip along gum line, pausing briefly to lightly brush area between teeth and all around orthodontic bracket, before proceeding to the next tooth.
• Tongue Cleaner Tip
  Set to lowest pressure setting, place tip in the center/middle of your tongue about half way back. Pull forward with light pressure. Increase pressure as you prefer.
• Plaque Seeker™ Tip
  To use the Plaque Seeker™ tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip along gum line, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.
• Toothbrush Tip
  Place the toothbrush tip in mouth with the brush head on the tooth at the gum line. The toothbrush tip can be used with or without toothpaste. Using a light pressure (bristles should not bend) massage the brush back and forth with very short strokes much like you would with a manual toothbrush.

CLEANING AND TROUBLESHOOTING YOUR WATERPIK® WATER FLOSSER

Using Mouthwash and Other Solutions

Your Water pick® Water Flosser can be used to deliver mouthwash and antibacterial solutions. After using any special solution, rinse unit to prevent clogging by partially filling reservoir with warm water and running unit with tip pointed into sink until unit is empty.

Cleaning

Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a sof cloth and mild non-abrasive cleanser. The water reservoir is removable for easy cleaning and is top rack dishwasher safe.

Removing Hard Water Deposits/ General Cleaning

Hard water deposits may build up in your unit, depending on the mineral content of your water. If left unattended, it can hinder performance. Cleaning internal parts: add 2 tablespoons of white vinegar to a full reservoir of warm water. Point the handle and tip into sink. Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water. This process should be done every 1 to 3 months to ensure optimal performance.

AA Battery Care and Disposal

• Alkaline batteries and NiMH rechargeable batteries are acceptable.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the Water Flosser and properly disposed. The supply terminals are not to be short-circuited.
• Do not dispose of batteries in fire.
• The type and quality of AA battery used will impact performance of the product.
• Replace all batteries at the same time with new batteries of the same type and brand.
• Replace batteries when flosser is no longer effective.
• Remove batteries when the appliance will not be used for a long period of time.
• Typical battery life is at least 40 usages.

LIMITED THREE -YEAR WARRANTY

Water Pick, Inc. warrants to the original consumer of this new product that it is free from defects in materials and workmanship for 3 years from the date of purchase. Consumer will be required to submit the original purchase receipt as proof of purchase date and if requested, the entire product, to support a warranty claim.

Water Pick, Inc. will replace at its discretion the product, provided the product has not been abused, misused, altered or damaged after purchase, was used according to instructions, and was used only with accessories or consumable parts approved by Water Pick, Inc. This limited warranty excludes accessories or consumable parts such as tips, etc. Use with improper voltage will damage product and VOID warranty. This warranty gives you specific legal rights. You may also have other rights that vary, depending on the law in your place of residence.
