Waykar PD1201B 296 Pints Large Commercial Dehumidifier User Manual

Waykar PD1201B 296 Pints Large Commercial Dehumidifier

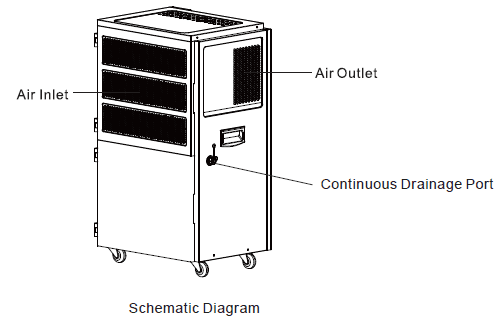

Parts Description

Note: This picture shows the dehumidifier Outline Drawing. Other models may vary a little in shape and size, please prevail in kind.

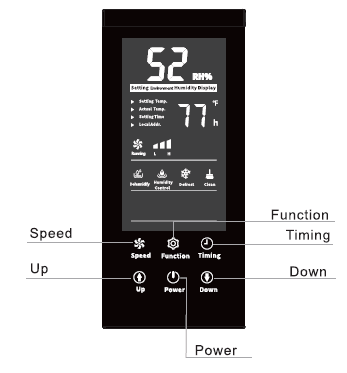

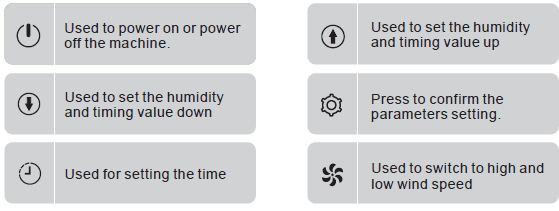

Control Panel

Humidity Setting

• In power-on status, press the “Up” or “Down” button to enter the humidity setting status: The screen will display the “Setting” and “Humidity Display” icon, the unit icon “RH%” will light up, and the large figure ” 52 ” will flash to show the humidity value.
• In the humidity setting status, you can press the “Up” or “Down” button to set the desired humidity within the range of 10- 98% RH. If you press the “function” button or no operation after a few seconds, you will exit the humidity setting status automatically. When the setting humidity is 10 RH%, the machine will be forced to run in continuous working mode.

Timer Setting

• In power-on status, press the “Timing” button, and you will enter the Timer setting mode: The pause button will point at “Setting Time” function, the time unit “h” will light up, and the small figure ” 77 ” will flash to show the setting value. In Timer setting status, press “Up” or “Down”, you can set a time within the range of 1 to 24 hours, which can be set again if invalid.
• If you press the “function” button or no operation after a few seconds, you will exit the humidity Setting status automatically. If the time it’s set to be ” 00 “, this is called an invalid time.

Speed Setting

• Two wind speed modes are available for this machine, You can press the “Speed” button to switch to high or low wind speed.

Parameter Query

• In power-on status, press the “Function” button once, and you will enter the parameter query status. The ” pause button ” will point at “Setting Temp.”, the small figure will display the setting temperature, and the temperature unit will light up. Press the “function” button again, you will be able to query the ambient temperature and the setting time.

Status Description

• When the fan is delayed, the running symbol Fan Mode will flash, and the fan will run. The running symbol “Fan Mode ” will be on, otherwise, it will be off. When the compressor is delayed, the dehumidification symbol  will flash, and if the compressor is running, the dehumidification symbol will be on, otherwise, it will be off.

Operation Instructions

• If the ambient humidity is lower than the setting humidity and the compressor is stopped, the Humidity Control Symbol  will flash, otherwise, it will be off. When the fan speed is set to a high level, the symbol will light up; when the fan speed is set to a low level, the symbol will light up. When the machine needs to be cleaned, the cleaning symbol will flash, otherwise, it is off. When the machine is defrosting, the defrost symbol will flash and then disappear after the defrosting process is complete.

Power off Memory Function

After the device is powered on, it will automatically resume its working status from before it was powered off.

• If the machine is running before a power outage, the machine will automatically enter power-on status and maintain the previous setting parameters.
• If the machine shuts down before the power outage, then the machine will still be in power-off status.

Defrost Function

• When the dehumidifier is running at a lower temperature, the system will automatically determine whether there is a presence of frost. If any frost exists, it will defrost automatically. The fan will run at high wind speed, and the compressor stops when defrosting, and switches back to the previous setting wind speed after that. The compressor can be restarted then.

Temperature Protection Function

• When the ambient temperature is higher than the Default Highest Temperature (113°F), the system will enter high temperature protection, the small figure on the screen will indicate “HH”, and the compressor will stop. When the ambient temperature is lower than the Default Lowest Temperature (39°F), the system will enter the low temperature protection, the small figure on the screen will indicate “LL”, and the whole machine will stop.

Cleaning Reminder

• If the cumulative running time of the fan is ≥ 30 days, the machine can continue to run, but it will keep prompting the “Cleaning” icon, and it will not be able to be removed, even re-powered. In power-off status, long-press the “Speed” button for seconds, then the display screen will show up for once, which means the “Clean” prompt has been released, and the fan’s previous running time has been cleared.

Special Note

• The compressor features a “3 minutes delay protection” function—While the dehumidifier is powered, the compressor can only start again 3 minutes after its last shutdown.

Error & Protection Code

Product Specifications

Cleaning and Maintenance

• Turn off the machine and pull out the plug before maintaining and cleaning the product.
• Clean the dehumidifier body with a soft, damp cloth.
• Do not use detergent, steel wool, chemically treated cloth, benzine, benzene, thinner, or other solvents to clean and wipe the machine.

Clean the filter

• This dehumidifier has a washable filter that blocks most of the airborne dirt, such as dust, smoke, animal dander, mold spores, and pollen.
• It is recommended to check the filter regularly and clean it at least once a month.

Take out the filter

• Use a vacuum cleaner to gently remove dirt from the filter.
• If the washable filter is particularly dirty, rinse it with warm water and a mild detergent, and air dry it thoroughly. Do not let the sun shine directly the filter or dry with other exothermic products, this will deform the filter and its frame.
• Put the filter back into the machine.

This dehumidifier dehumidifies through continuous drainage. Please follow the instructions below to set up the drainage method.

1. The machine is shipped with a drainage hose, Please attach it to the continuous drainage port before use.
2. Ensure that the drainage hose is not bent or knotted during use and can drain smoothly. If any fault occurs, please follow the “Common Troubleshooting” in the manual before notifying the After-sales Service. Do not repair or disassemble the dehumidifier yourself. Improper maintenance may endanger the safety of the user.

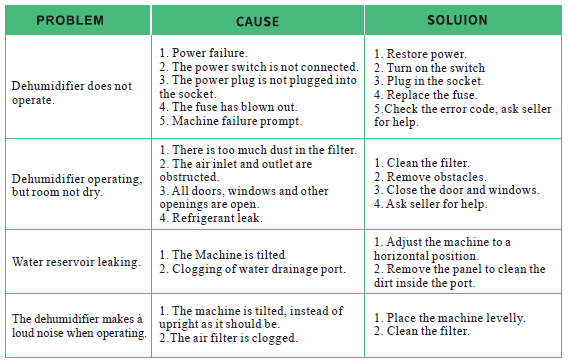

Common Troubleshooting
