WiiM Sound Smart Speaker Instruction Manual

WiiM Sound Smart Speaker

What You’ll Need

To integrate the WiiM Sound with your WiiM system, you’ll need:

• A WiiM Sound
• A smartphone or tablet
• Wi-Fi connection
• (Optional) Ethernet connection
• (Optional) An external audio source

Step-by-Step Setup Guide

Unbox the WiiM Sound

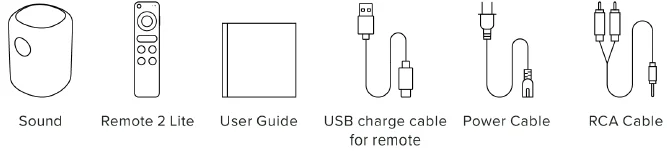

Open the box, and you’ll find the following items inside.

What’s inside

Power on the WiiM Sound

Connect the WiiM Sound to a power source using the provided power cable. The WiiM Sound will automatically power on.

Download the WiiM Home App

Use your smartphone or tablet to scan the following QR code to download the WiiM Home app. The app will be used to set up and configure the WiiM Sound.

Set Up the WiiM Sound through the WiiM Home App

Follow the video tutorial below to complete the setup.

Alternatively, follow the text instructions below to complete the setup:

• Open the WiiM Home app on your smartphone or tablet.

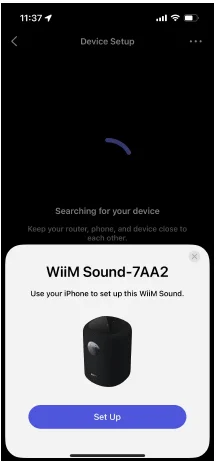

• When your device automatically appears in the app, tap Set Up to start the process.

Note: If your WiiM device doesn’t appear automatically, go to the Devices tab and tap Add Device in the top-right corner to trigger the setup page.

• Follow the on-screen instructions to complete the setup process.

During setup, you’ll complete these main steps:

1. Connect the WiiM Sound to the Wi-Fi network.
2. Check for firmware updates.
3. Pair the WiiM Voice Remote 2. For detailed instructions, see How to Set Up Your WiiM Voice Remote 2 (https://faq.wiimhome.com/en/support/solutions/articles/72000643602)
4. Perform Roomfit correction. For detailed instructions, see How to Perform RoomFit™ to Calibrate Your WiiMSound for Your Room (https://faq.wiimhome.com/en/support/solutions/articles/72000649397)
5. Watch the animation to learn screen gestures.
6. Select the default playback screen. For detailed instructions, see How to Customize Playback Screen on the WiiM Sound (https://faq.wiimhome.com/en/support/solutions/articles/72000649314)
7. Select a wallpaper for the standby screen. For detailed instructions, see How to Customize Standby ScreenWallpaper on the WiiM Sound (https://faq.wiimhome.com/en/support/solutions/articles/72000649293)

Play Music and Enjoy Deep Bass

Now, stream your favorite music and radio stations through the WiiM Home app or your preferred apps over Wi-Fi or Bluetooth, and enjoy seamless, high-quality playback.

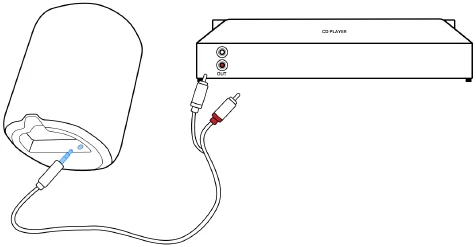

Alternatively, connect an external audio source (e.g., an amplified turntable, CD player, or MP3 player) to the WiiM Sound‘s AUX In port for local playback.

Control the WiiM Sound through Its Touch Screen

Once the WiiM Sound is set up, you can use its touch screen to view the playback information and control the device. For details, see WiiM Sound Display Guide — Features & Gesture Controls (https://faq.wiimhome.com/en/support/solutions/articles/72000649193)

Tips and Troubleshooting

Playback Issues

If you experience playback issues (e.g., network streaming dropouts), see General Troubleshooting Guide for WiiM Playback Issues (https://faq.wiimhome.com/en/support/solutions/articles/72000646272) for solutions.

Wi-Fi Connection

Ensure your Wi-Fi signal is strong in the location where you set up the WiiM Sound for a stable streaming experience.

Ethernet Connection (Optional)

For added stability, you can connect the WiiM Sound to your network with an Ethernet cable instead of Wi-Fi.

Device Not Connecting

If the WiiM Sound is not connecting to your Wi-Fi, try restarting your router and the WiiM Sound. For details, see Troubleshooting: How to Resolve Wi-Fi Connection Issues During WiiM Setup

(https://faq.wiimhome.com/en/support/solutions/articles/72000640508)

(https://faq.wiimhome.com/en/support/solutions/articles/72000640508)
