Wybot Osprey 700 Wireless Pool Cleaner Robot

Thank you for purchasing Wybot™ Robotic Pool Cleaner. Please read through the entire manual before using your new robotic pool cleaner. We are not held liable for any loss or injury caused by improper use. If you encounter a problem with your Wybot™ product, please contact our customer service for assistance.

WYBOT Customer Service:

Email: [email protected]
Web: www.wybotpool.com
Facebook: @WybotPool

Important Precautions

Read and Follow All Instructions

1. Please read the manual carefully and use the cleaner according to the manual. We are not held liable for any loss or injury caused by improper use.
2. Use the accessories recommended or sold by the manufacturer only.
3. Dry the charging port after removing the cleaner from the water, and make sure the cleaner is switched off (the indicator is off) if you want to charge the cleaner.
4. Use the original and authorized power charger only. Do not charge any other devices with this charger.
5. The power line must be connected to a leakage-protected and earthed socket when charging.
6. Do not charge the cleaner if the environmental temperature is above 35℃ (95℉) or below 5℃ (41℉).
7. Do not overcharge the cleaner, as it will reduce battery life.
8. 8. The cleaner should be charged if it needs to be stored for a long time (over 6 months) to maintain battery life.
9. To reduce the risk of electrical shock, do not use the charger if the cord is damaged.
10. Never allow children to ride on it or play with it as a toy.
11. Do not power on the cleaner when it is out of the water.
12. Do not operate the cleaner when there are people in the pool.
13. Always clean and wash the filter tray after use.
14. Only professionals can disassemble the sealed driving kit of the cleaner.
15. Do not operate the cleaner while the pool filter is running.
16. The cleaner should be stored in a cool and ventilated place, away from direct sunshine or any heat source. Never cover it with anything that would cause internal electrical components to overheat.

Introduction

The robotic pool cleaner Osprey 700 is a new type of rechargeable automatic cleaning equipment for swimming pools, cordless and easy to use.

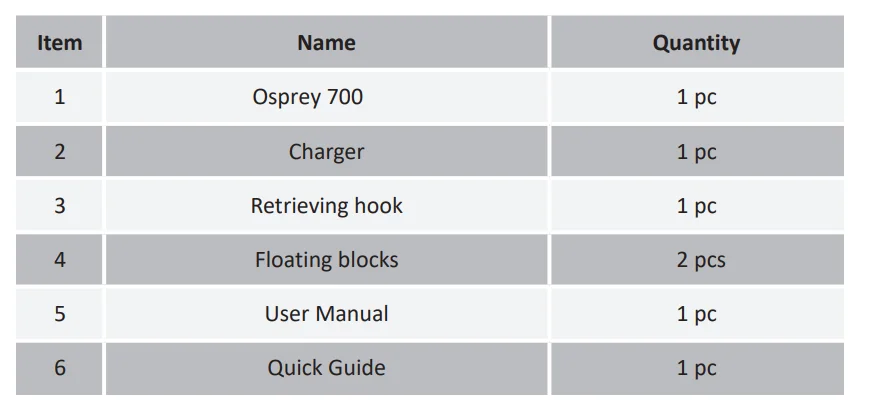

Packing List

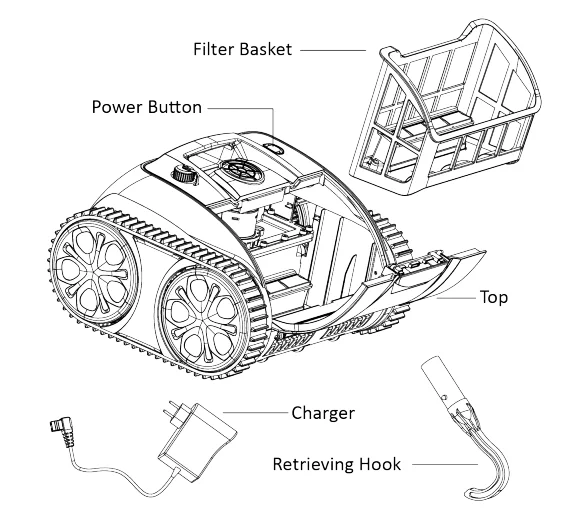

Product Diagram

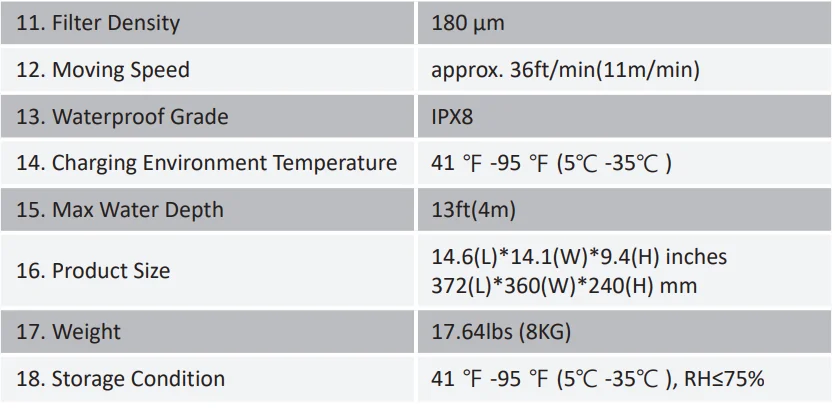

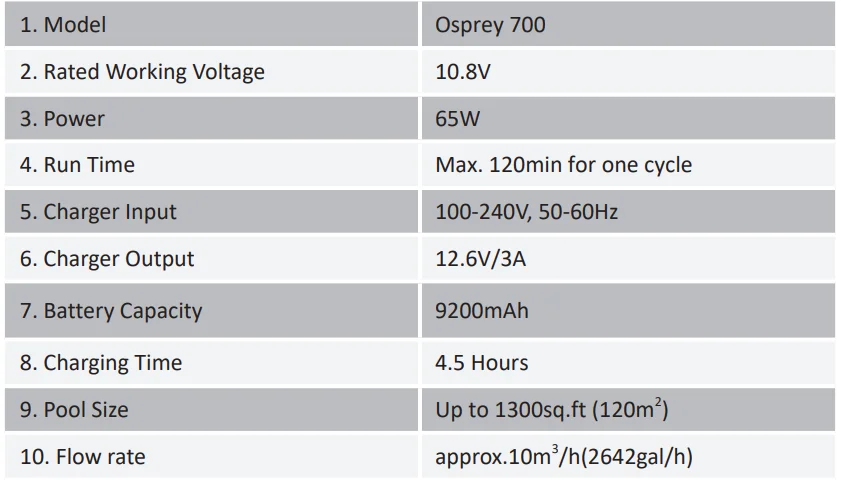

Specifications

Operations

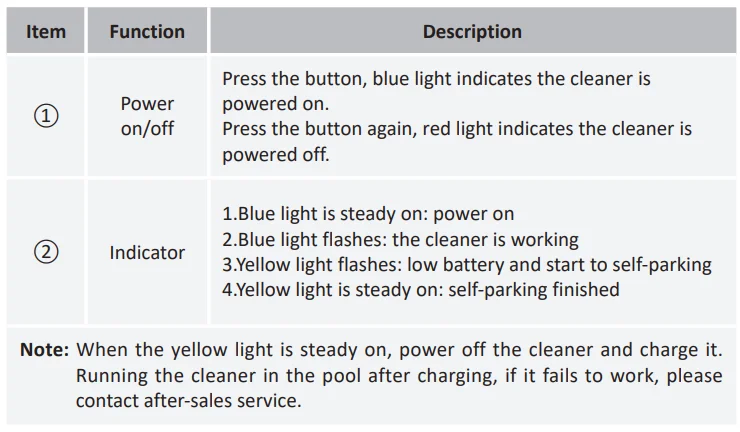

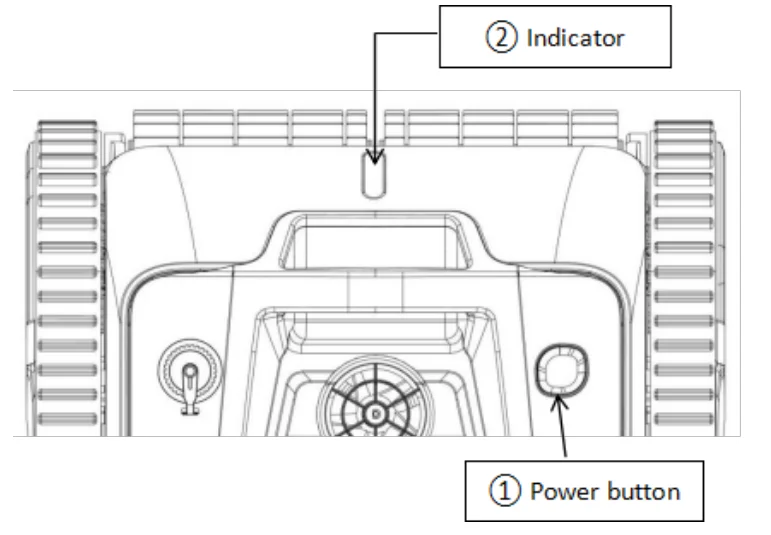

Power Button and Indicator

Attention

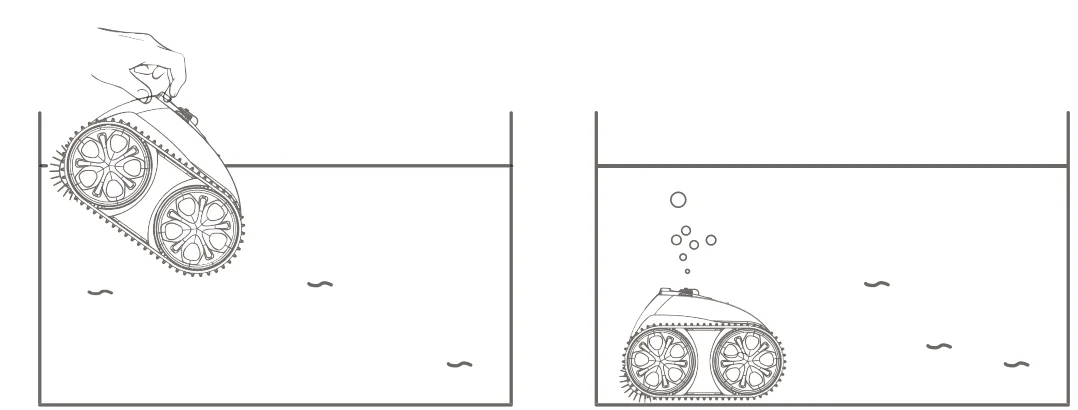

• Put it into the pool with the cleaner bottom towards the wall. Hold on to the robot and power on the cleaner. The cleaner will start working after 20 seconds when emptying trapped air inside (make sure to empty the inside air in order to make the robot work well). Then the cleaner can immerse in the pool floor.

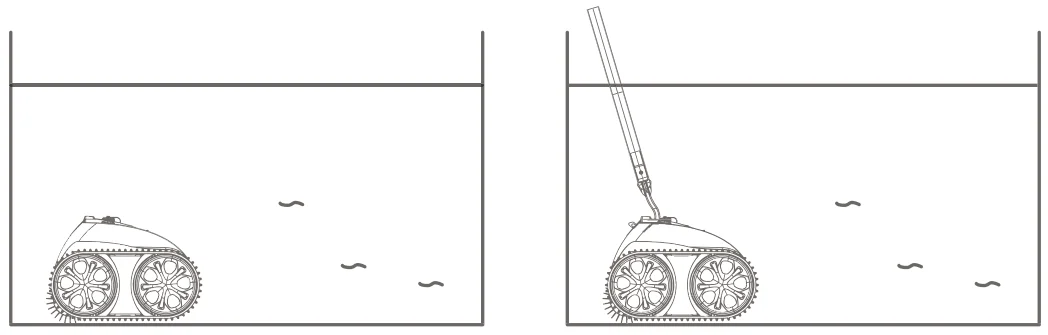

• The cleaner will move to the pool edge when it finishes working, then use the hook to lift it out of the pool.

Filter Cleaning

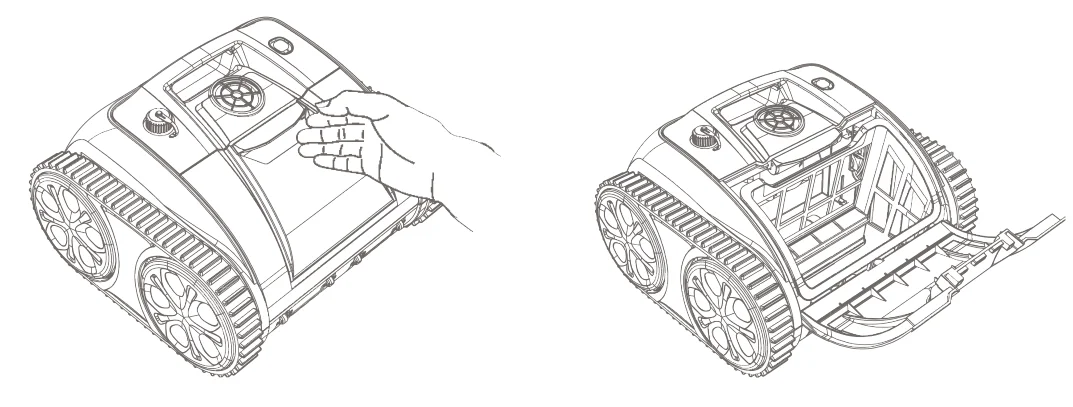

• Open the top cover: Put the robot beside the pool and open the top cover. The filter basket is located as shown in the picture.

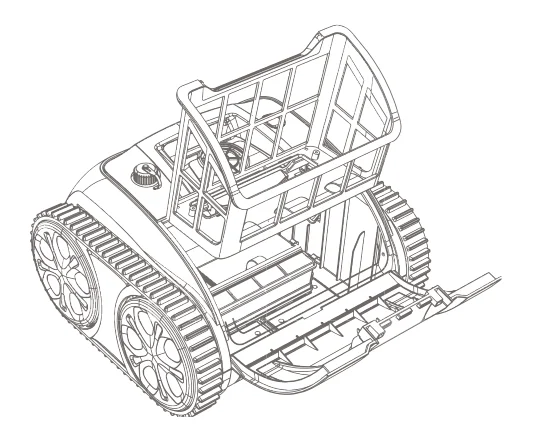

• Take out the filter basket.

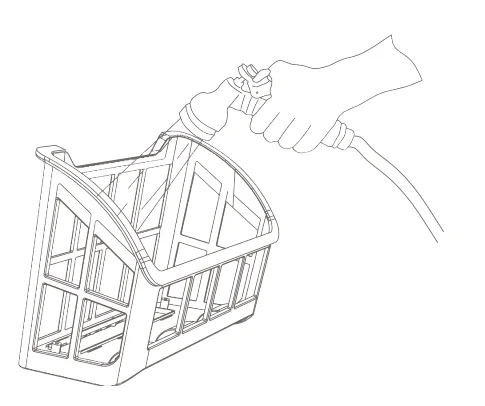

• Wash the filter basket.

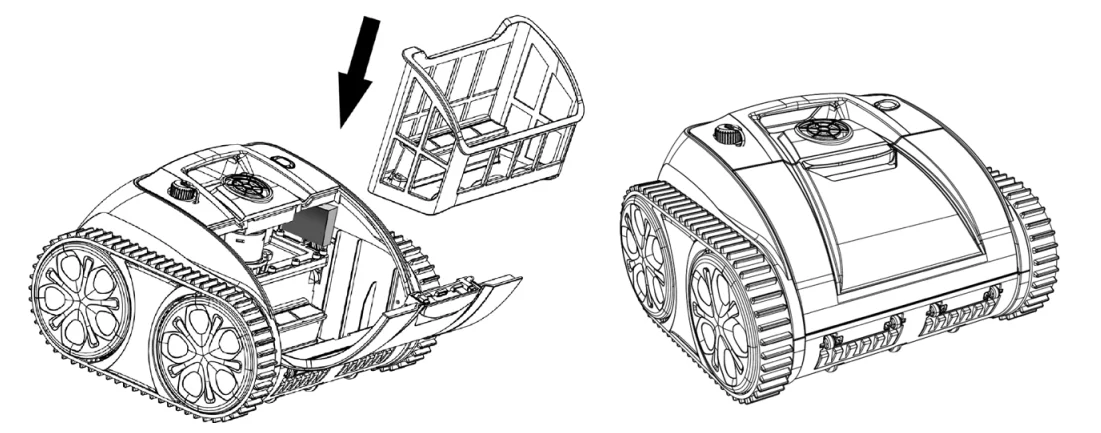

• Reinstall the filter basket in reverse steps.

Charge the Battery

• Remove the cleaner from the pool.
• Make sure the cleaner is powered off (no indicator flashes) and the charging port is dry. Attach the charger to the charging socket. The red light indicates it is charging; the green light indicates it is fully charged.
• LED Indicator
• Red – Charging in Progress
• Green – Fully Charged

Note: Charge the cleaner indoors and at least 3 m (approx. 10 ft) from the edge of the pool.

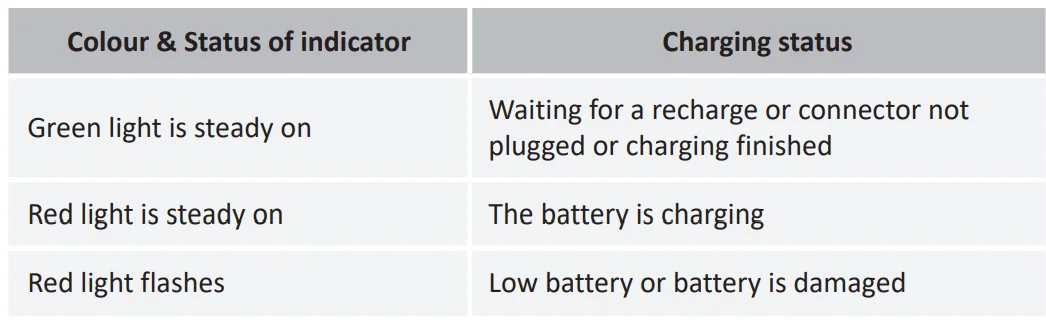

Charger Indicator

Installation of Floating Block

Attention: If your robot is performing well, please ignore these instructions. The following diagrams are limited to the use of the floating blocks when the robot cannot climb the pool walls or is not able to climb walls as it used to.

• Open the filter cover and pick up the filter basket.
• Tear off the protective film on the back of the floater and stick one by one according to the position shown in the figure.
• Install the filter basket and close the filter cover.

Pool Water Condition

Remark: The pool water condition must be within the following parameters:

• pH: 7.0–7.4
• Temperature: 50℉–95℉ (10℃–35℃)
• Salt: Max. 5,000 ppm
• Chlorine: Max. 2 ppm

Warranty

1. This product is covered by the Wybot™ warranty for 24 months (only for the driving kit and control box kit) from the date of purchase. Consumable parts are beyond warranty, which include the filter tray, brush, wheels, and nozzles.
2. This warranty is voided if the product has been altered, misused, or repaired by unauthorized personnel.
3. The warranty extends only to manufacturing defects and does not cover any damage resulting from mishandling of the product by the owner.
4. The order number or record must be presented for any claim or repair during the warranty period.

Environmental Programs, WEEE European Directive

Please respect European Union regulations and help to protect the environment. Return non-working electrical equipment to a facility appointed by your municipality that properly recycles electrical and electronic equipment. Do not dispose of them in unsorted waste bins. For items containing removable batteries, remove the batteries before disposing of the product.
