Yamaha YFM 400 Bigbear Kodiak ATV
SPECIFICATIONS

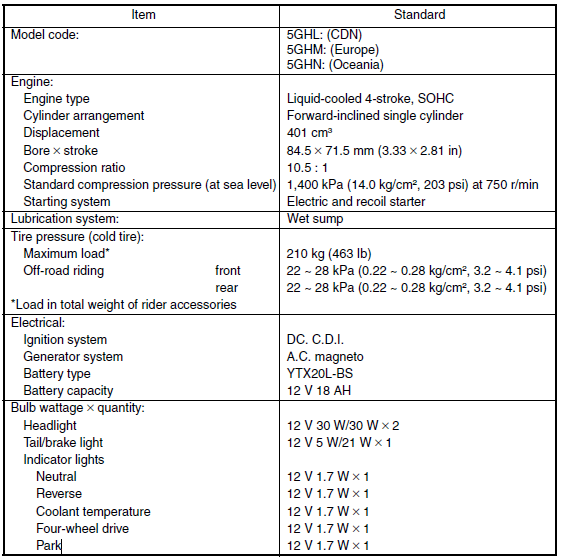

GENERAL SPECIFICATIONS

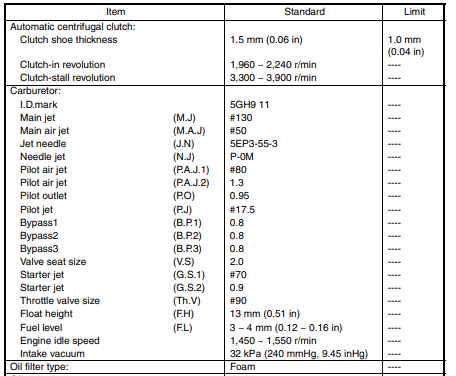

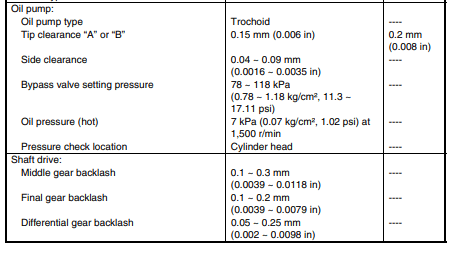

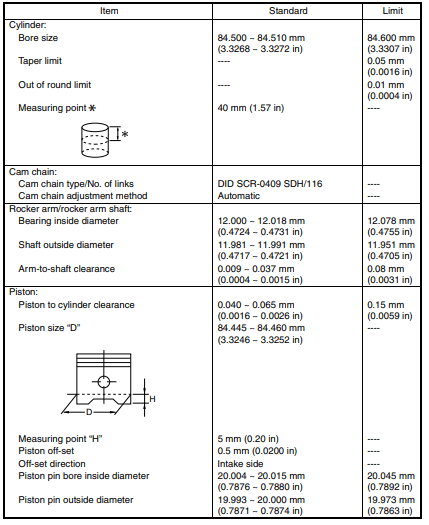

MAINTENANCE SPECIFICATIONS
Engine

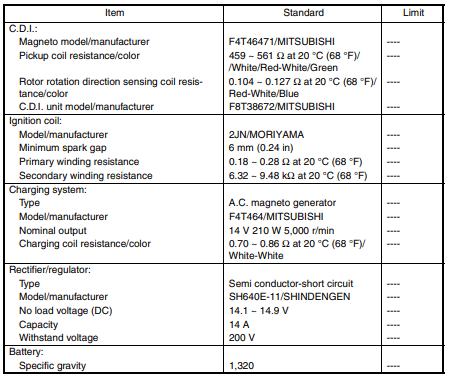

Electrical

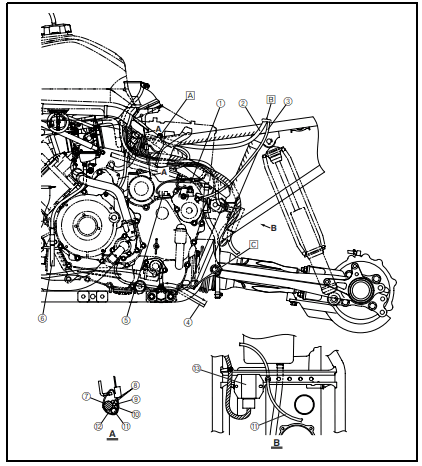

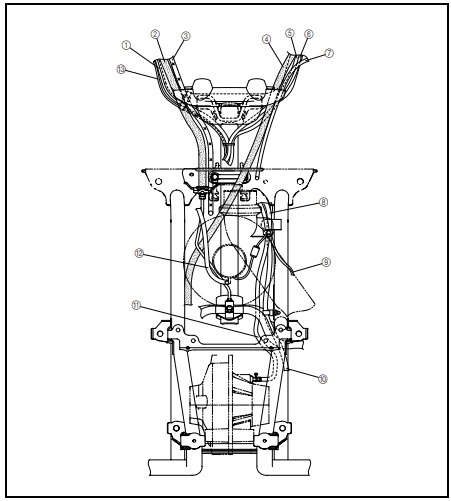

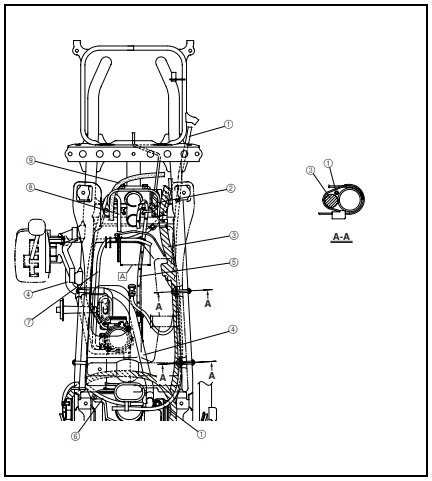

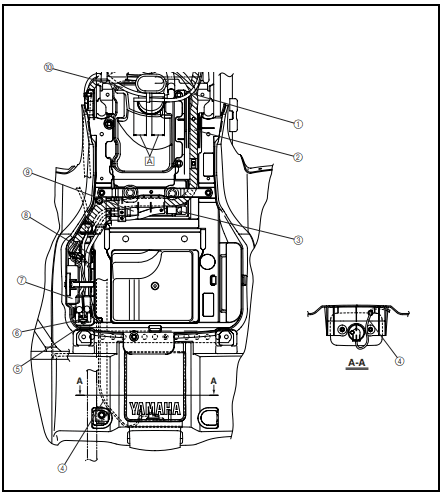

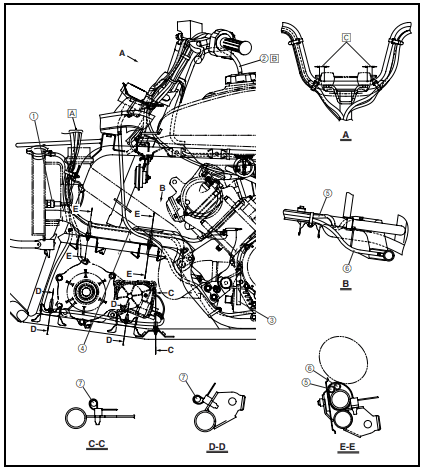

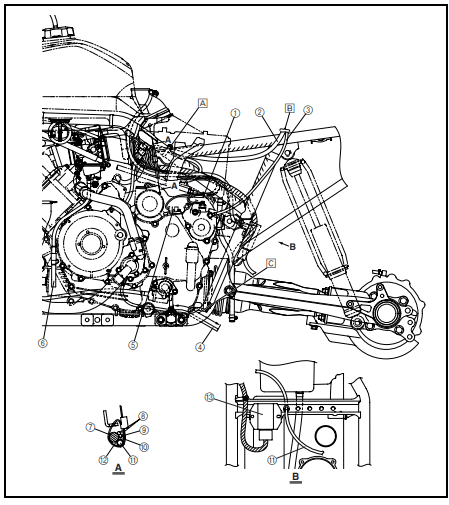

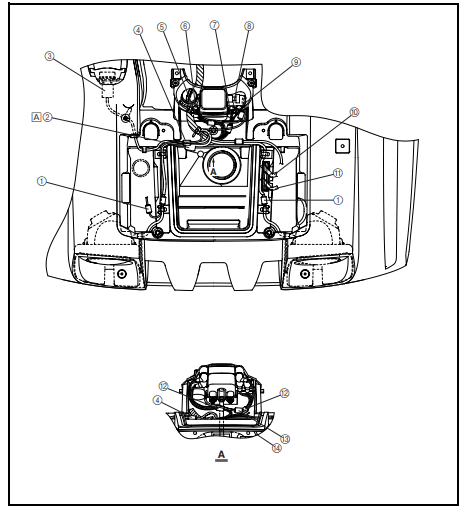

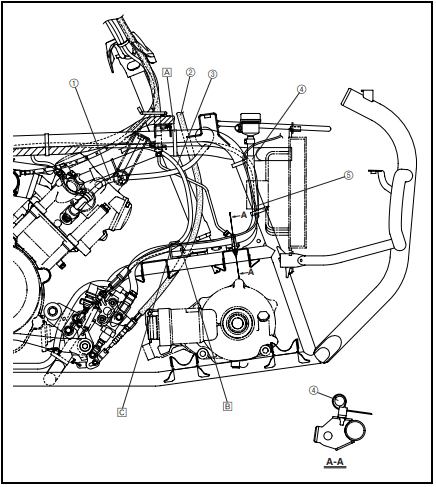

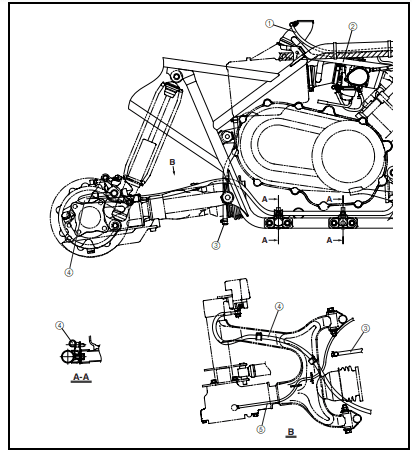

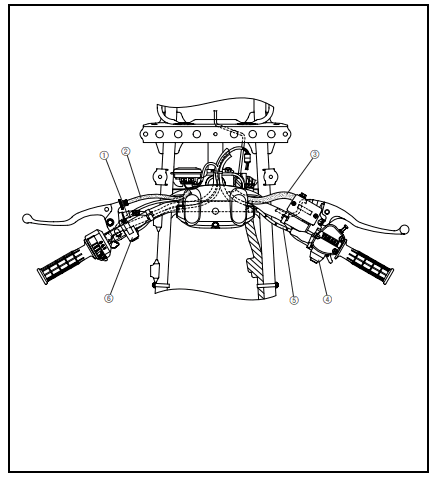

CABLE ROUTING
- Rear brake switch
- Rear brake cable
- Front brake hose
- On command four-wheel drive switch
- Throttle cable
- Home switch
- On command four-wheel drive switch lead
- Front brake hose
- Throttle cable
- Rear brake cable
- Rear brake switch lead
- Handlebar switch
- Starter cable
- Coolant reservoir breather hose
- Sub-wire harness 1 (to fan motor coupler)
- Sub-wire harness 1 (to gear motor and four-wheel drive switch)
- Differential gear case breather hose
- Fan motor breather hose
- Front brake light switch lead
- Headlight coupler
- Circuit breaker
- Terminal
- Terminal coupler
- Engine temperature warning light
- Four-wheel drive indicator light
- Neutral indicator light
- Reverse indicator light
- Parking indicator light
- Coolant reservoir breather hose
- Differential gear case breather hose
- Indicator light coupler
- Main switch coupler
- Ignition coil lead
- A. Connect the headlight lead of the circuit breaker to the headlight on the right side.
- Thermo switch
- Fuel tank breather hose
- Carburetor drain hose
- Speedometer cable
- Coolant reservoir breather
- Coolant reservoir hose
- Sub-wire harness I
- To hole on the front fender.
- Insert the fuel tank into the hole in the handlebar cover
- 10 mm (0.4 in)
- Neutral switch lead
- Starter motor lead
- Negative battery lead
- Water pump breather hose
- Speed sensor
- Carburetor drain hose
- Wire harness
- Sub-wire harness 2
- Ground lead
- AC magneto lead
- Final drive gear case breather hose
- Speed sensor
- Rectifier/ regulator
- Fasten the AC magneto lead Starter With a band.
- TO hole on the rear
- 120 mm (4.72 in)
- Spark plug lead
- Rear brake cable
- Select the lever control cable
- Rear brake roster wire hose
- Rear brake light switch lead
- A. Fasten the radiator inlet hose and fan motor breather hose with a plastic band.
- B.Pass the rear brake cable through the cable guide
- Pass the rear brake reservoir hose, select the lever control cable, and rear brake light switch lead through the cable guide
- Fan motor breather hose
- Cylinder head breather hose
- Air filter case breather hose
- Rear brake hose
- Final drive gear case breather hose
- Fan motor breather hose
- Wire harness
- Positive battery lead
- Taibbrake light
- Main fuse
- Starter relay
- CDI unit
- Fuse box
- Negative battery lead
- Final drive gear case breather hose
- 30 mm(1.18 in)
- Fan motor breather hose
- Front brake hose
- Wire harness
- Cylinder head breather hose
- Throttle cable
- Final drive gear case breather hose
- Air vent hose
- Starter cable
- Rear brake cable
- A. 70 mm (2.76 in)
PERIODIC CHECKS AND ADJUSTMENTS
INTRODUCTION
This chapter includes all the information necessary to perform recommended inspections and adjustments. These preventive maintenance procedures, if followed, will ensure more reliable vehicle operation and a longer service life. The need for costly overhaul work will be greatly reduced. This information applies to vehicles already in service as well as to new vehicles that are being prepared for sale. All service technicians should be familiar with this entire chapter.

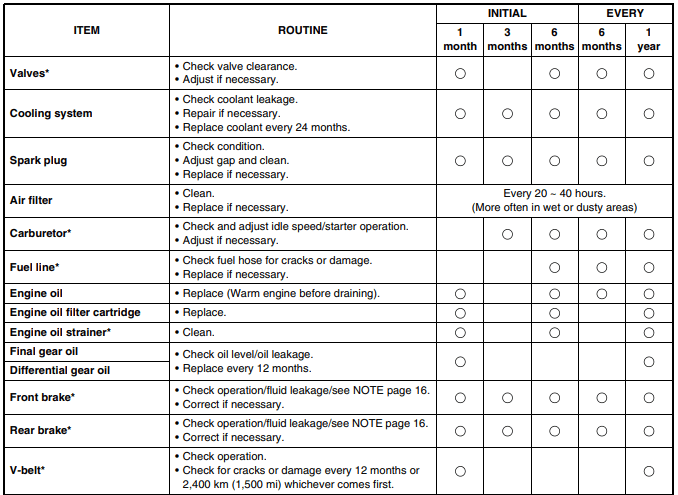

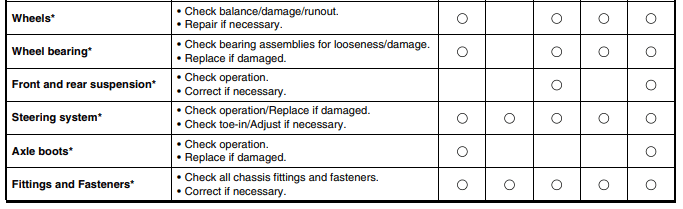

PERIODIC MAINTENANCE/LUBRICATION INTERVALS
CYLINDER HEAD
CYLINDER HEAD INSTALLATION

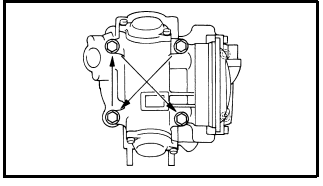

- install:
- Cylinder head
- Bolt (MIO)
- Bolt (M6)
- Install:
- Camshaft sprocket
Installing steps
- Rotate the camshaft to align the camshaft pin 1 with the cylinder head match mark 2.

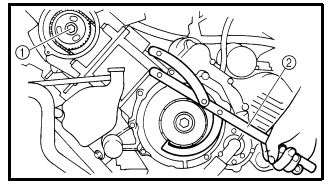

- Turn the crankshaft counterclockwise with a wrench.

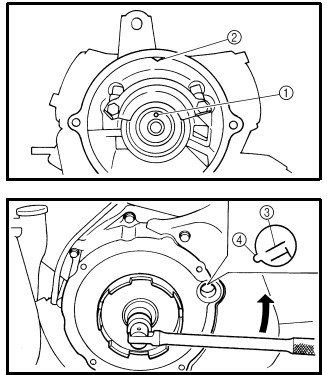

- Align the ‘T” mark O on the rotor with the stationary pointer @ on the crankcase cover. When the “T” mark is aligned with the stationary pointer, the piston is at the Top Dead Center (T.D.C.).
- Force the camshaft clockwise and counter-clockwise to remove the timing chain slack.
- Insert a screwdriver into the timing chain tensioner hole and push the timing chain guide inward.

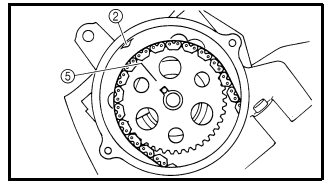

- While pushing the timing chain guide, ensure the camshaft sprocket punch mark 5 is aligned with the cylinder head match mark 2.
- If the marks are aligned, tighten the camshaft sprocket bolt. If the marks are not aligned, change the meshing position Of the camshaft sprocket and timing chain.
Install
- Timing chain tensioner
Installation steps
- Remove the tensioner cap bolt 1, washer 2, and spring 3.
- Release the timing chain tensioner one-way cam 4 and push the tensioner rod 5 throughout ln.
- Install the tensioner 6 with a new gasket into the cylinder.
Tighten
- Camshaft sprocket bolt 1

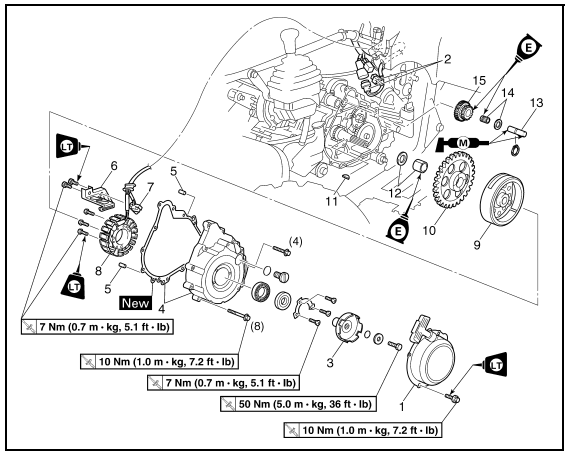

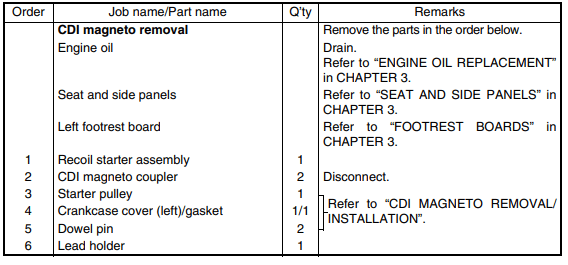

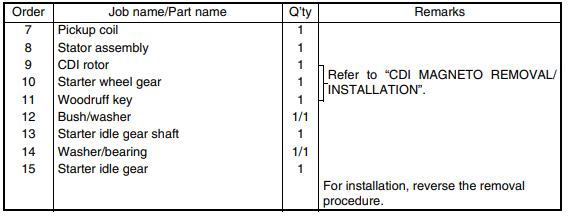

RECOIL STARTER AND CDI MAGNETO

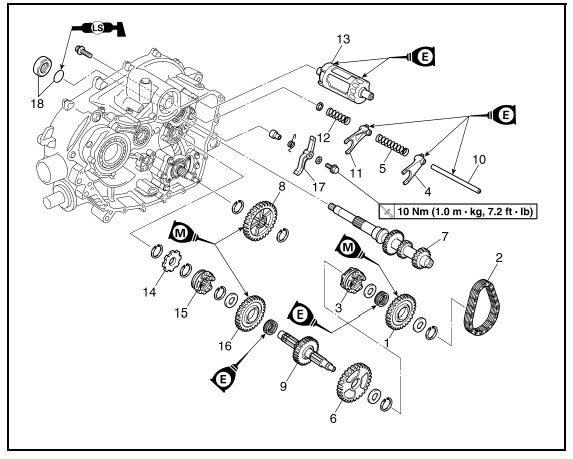

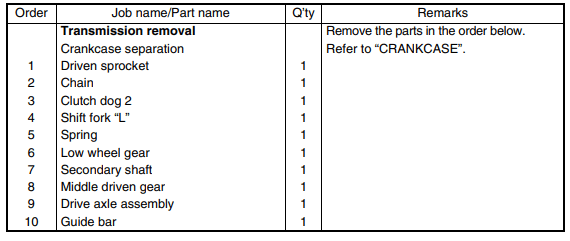

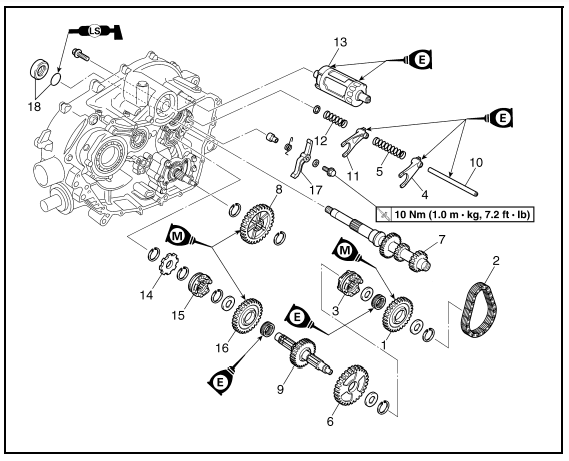

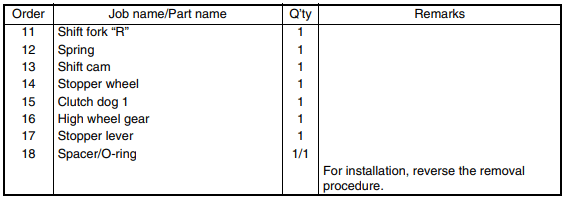

TRANSMISSION

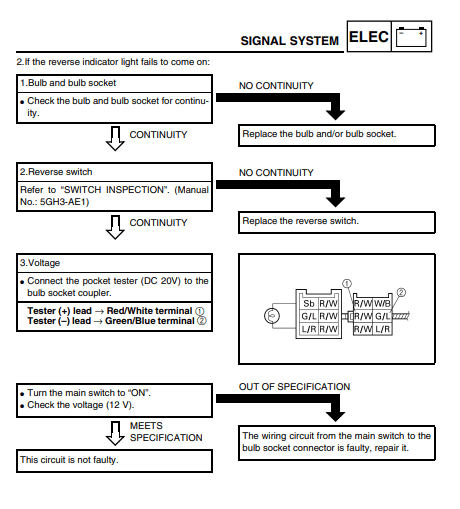

TROUBLESHOOTING

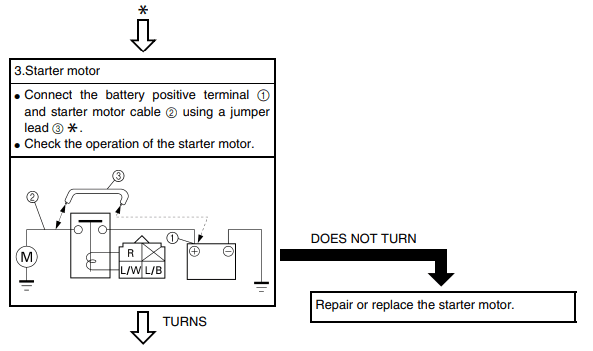

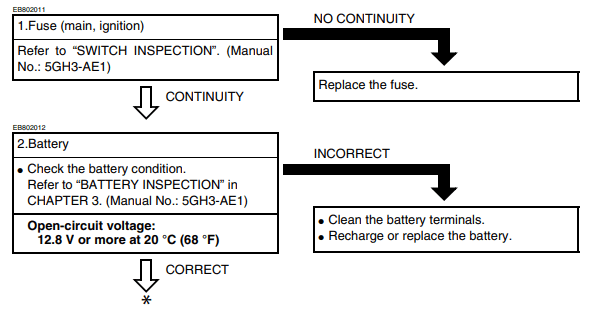

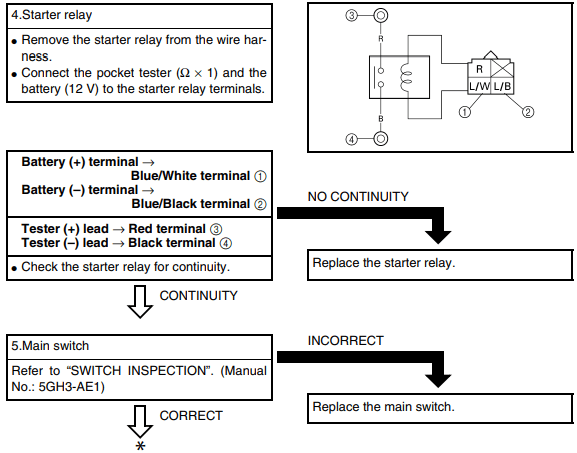

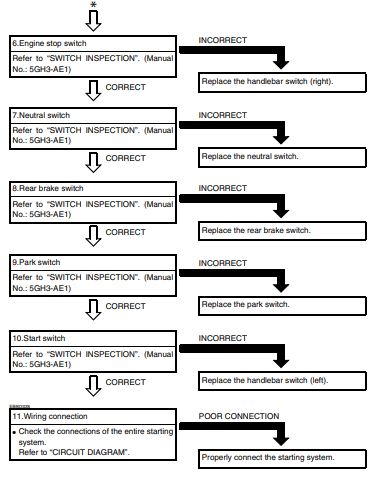

TROUBLESHOOTINGIF THE STARTER MOTOR FAILS TO OPERATE
Check
- Fuse (main, ignition)
- Battery
- Starter motor
- Starter relay
- Main switch
- switch
- Neutral switch
- Rear brake switch
- Park switch
- Start switch
- Wiring connection (the entire system)
- CDI magneto
- Rectifier/regulator
- Main switch
- Battery
- Main fuse
- Starter relay
- Starter motor
- Speed
- CDI unit
- Rear brake switch
- Ignition coil
- Spark plug
- Reverse switch
- Neutral switch
- Circuit breaker (fan motor)
- Thermo switch
- Fan motor
- Four-wheel drive indÉator light
- Coolant temperature indÉator light
- Park switch
- Thermo switch
- Four-wheel drive fuse
- On command four-wheel drive select switch
- Gear motor
- Four-wheel drive switch
- Auxiliary DC jack fuse
- Auxiliary DC jack
- Diode
- Ignition fuse
- Headlight fuse
- switch (left)
- Lights switch
- Engine stop switch
- Start switch
- Headlight
- Signal luse
- Front brake light switch
- Tail and brake light
- Speedometer light
- Rear brake light switch
- Neutral indicator light
- Reverse indicator light
- Park indicator light
- Hour meter (optional)
- Horn switch
- Horn
- For Europe Oceania
