Yuposl YPF01-B001 Mushroom Automatic Pet Feeder User Manual

Yuposl YPF01-B001 Mushroom Automatic Pet Feeder

Table of Contents

IN THE BOX

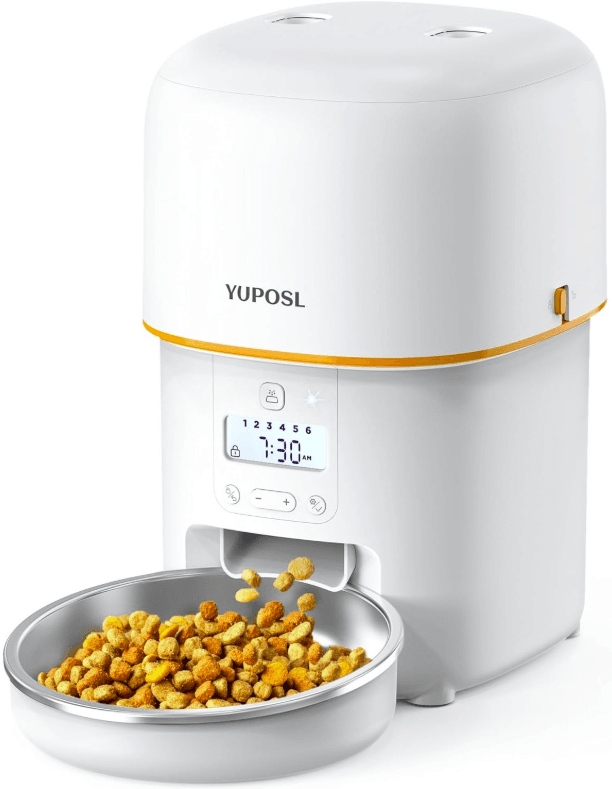

PRODUCT OVERVIEW

Desiccant Holder
Lid Release Button
Lid
Food Tank
Tank Release Button
Indicator
LCD Display
Operation Panel
Food Outlet
Base
Stainless Steel Bowl
Bowl Tray
Cable Slot
Power Port
Battery Compartment
Battery Cover
Anti-skid Pad

DISPLAY & INDICATORS

Indicator Status	Solutions
The red light flashes and the screen D shows	Low battery, please change the battery.
The red light flashes and the screen ‘@ shows 0	Food gets stuck, please remove the food tank and unclog the food outlet.
White light stays on	Working well.

Buttons

Function

Unlock/Return Button

In the locked state, press and hold for 3 seconds to unlock.

In the unlocked state, press and hold for 3 seconds to lock.

In the unlocked state, press once to

return to the last step.

UP/Down Button

In the unlocked state, press Up/Down to choose time, portion, AM or PM.

In the locked state, press Up/Down to check the meal settings.

Buttons

Function

OK/Setting Button

In the unlocked state, press and hold for 3 seconds to start setting the current time and feeding plan. After the plan is set up, press and hold for 3 seconds again to end the setting.

In the unlocked state, press once to confirm the setting and enter the next step.

Manual Feeding

Press once to dispense one portion, press several times to dispense more.

GETTING STARTED

Installation

Press the release button to open the lid, put in the desiccant bag.

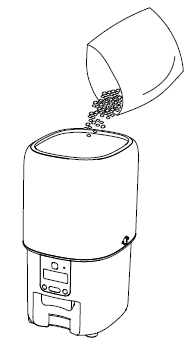

Add food to the tank.
Lock the lid securely.

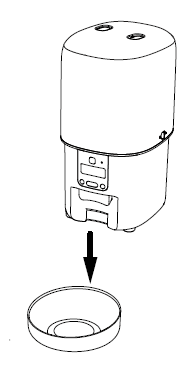

Install the stainless steel bowl and bowl tray.

Power on

Dual Power Modes

Connect the power cable and install the batteries as a backup in case of power cuts.
The feeder can run on batteries alone.

Power off

Unplug the power cable and remove the batteries. Setting the Current Time
Note: The feeder can work well only when the time of the feeder is consistent with the current time.

After the feeder is powered on, press and hold the Setting Button for about 3 seconds, the hour digit flashes, press the Up/Down button to set the hour, and then press the Setting Button to confirm.
The minute digit flashes, press the Up/Down button to set the minute and then press the Setting Button to confirm.

Setting the Feeding Plan

Setting the Feeding Time

After the current time is set, you can set the feeding time of the first meal.
The meal number 1 and the hour digit flash simultaneously, press the Up/Down button to set the feeding time of the first meal, choose AM or PM and then press the Setting button to confirm.

Setting the Feeding Portion

After the feeding time is set, you can set the feeding portion of the first meal.
The meal number 1 and the portion digit flash simultaneously, press the Up/Down button to set the feeding portion of the first meal, and then press the Setting button to confirm. The feeding plan for the first meal is set, and the above steps are repeated to set meals 2-6.

Recommended Feeding Plan

Model	Daily Intake	Meals per Day	Portions per Meal	Per Portion
YPF0l YPF02	1/2 cup	2	6	1/24 cup (10.4ml)
		3	4
		4	3
	1/3 cup	2	4
		3	3 3 2
		4	2
	2/3 cup	2	8
		3	5 5 6
		4	4
	3/4 cup	2	9
		3	6
		4	4 4 5 5
	9/10 cup	2	11
		3	7 7 8
		4	5 5 6 6
	1cup	2	12
		3	8
		4	6
	11/4 cup	2	15
		3	10
		4	7 7 8 8
	11/2 cup	3	12
	11/2 cup	4	9
	11/3 cup	2	16
		3	10 11 11
		4	8
	12/3 cup	3	13 13 14
	12/3 cup	4	10

CLEAN AND CARE

Remove the food tank, stainless steel bowl, and bottom tray.
Rinse the food tank and stainless steel bowl, detergent can be used, wipe dry or air dry the parts before use.
Do not wash the base with water, use a dry or wet cloth to clean.

Notes

Unplug before cleaning.
Do not wash or soak the feeder base in water, as the base contains electronic components.
To keep food from moisture, air dry or wipe dry all parts after cleaning-
For the health of pets, rinse it thoroughly if detergent is used for cleaning.
To keep food fresh, replace the desiccant once a month.

TROUBLESHOOTING

Problems	Solutions
I press the buttons but they don’t work.	Press and hold the Unlock Button for 3s to enter the setting mode.
I forget the meal settings.	In the locked status, press or- to check the settings of each meal.
The food won’t come out.	1) Please make sure the food in the tank is dry, and food size is within 2-15 mm/0.07-0.6 inches in diameter. 2) Check if the chute inside is blocked, if blocked, remove the food tank, and then remove the blockage. 3) Check whether the battery level is low, whether the power adapter is connected, whether power outage occurs when the power adapter is connected and batteries are not installed.
The amount of food in each portion is not the same.	The first few portions may vary, but it doesn’t mean it’s faulty. After about 6 feedings, it should be almost even.

SPECIFICATIONS

Model	YPF01
Input	AC 100-2401/ 50/60Hz
Capacity	2L/67oz
Battery power option	3 x D alkaline batteries
Dimensions	315x254x168mm/12.4x10x6.6in
Weight	1100g/2.4Ibs

Model	YPF02
Input	AC 100-2401/ 50/60Hz
Capacity	4L/135oz
Battery power option	3 x D alkaline batteries
Dimensions	315x314x168mm/12.4×12.3×6.6in
Weight	1200g/2.6Ibs

SAFETY INSTRUCTIONS

Dispose of all packaging materials properly. Some items may be packed in plastic bags; these bags could cause suffocation. Keep them away from children and pets.
Do not use the feeder with pets that are not able to reach the food tray or with any physical disability.
Do not immerse the base part in water at any time as it may damage electronic components like the control panel.
Do not use the feeder outdoors. Check its operation frequently to be sure it is dispensing properly.
Do not use wet, canned or moist food.
Do not disassemble the feeder other than as instructed in this user manual.
