ZAFRO 8000 BTU Portable 4-Modes Air Conditioner Instructions Manual

ZAFRO 8000 BTU Portable 4-Modes Air Conditioner

SAFETY PRECAUTIONS ON SERVICING

• Checks to the area
• Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
• General work area
• All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the work space shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.
• Ventilated area
• Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere

PRODUCT OVERVIEW

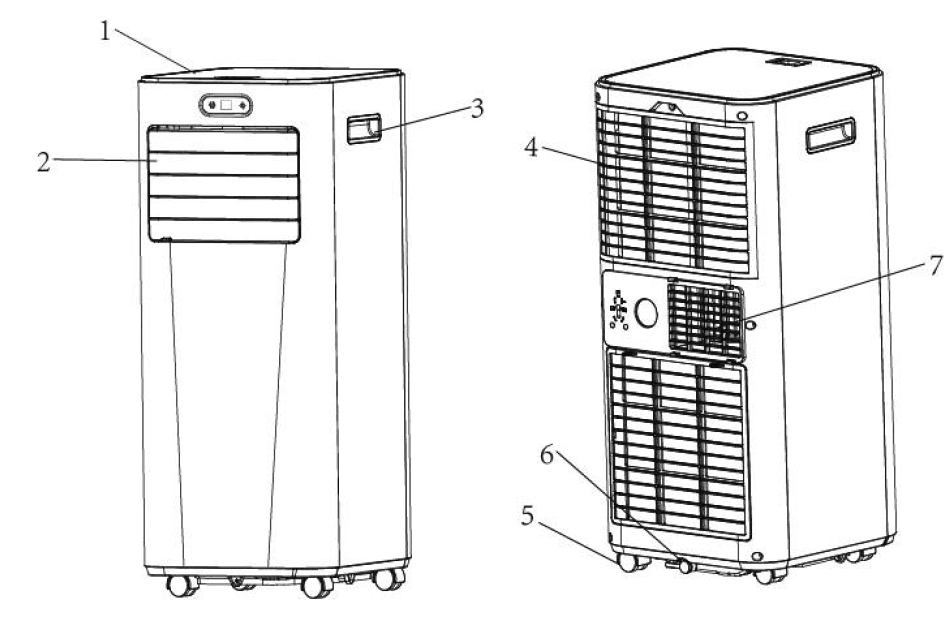

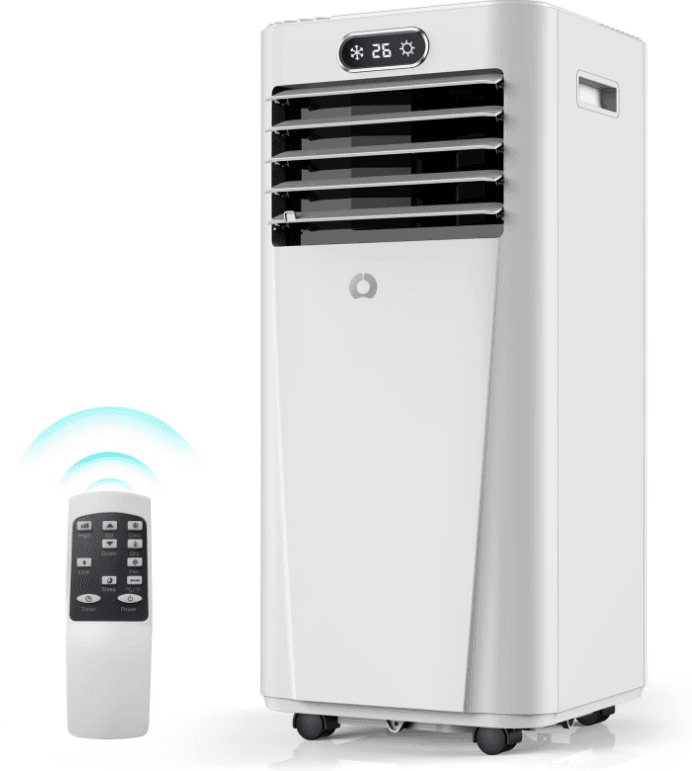

Note: The appearance is only for reference. Please check the real product for detailed information

FEATURES

• High Capacity in a compact size with cooling, dehumidifying, and fan functions.
• Temperature setting and display
• LED Digital display
• Electronic control with a built-in timer, sleep mode
• Self-evaporating system for better efficiency
• Auto shut off when tank full
• Automatic restart in the event of a power outage
• Auto defrosting function at low ambient temperatures
• Remote control
• 2- speed fan
• Casters for easy mobility

INSTALLATION

UNPACKING

• Unpack the carton and take the appliance and accessories out.
• Check the device after unpacking for any damage or scratches on it.
• Accessories:
  • 1. Exhaust hose
  • 2. Hose connector
  • 3. Window kit adapter
  • 4. Remote control
  • 5. Window kit
  • 6. Water pipe
  • 7. User manual

Choose your location

• If tipped more than 45°, allow the unit to set upright for at least 24 hours before starting up.
• Place the unit on a firm, level surface in an area with at least 50cm of free space around it to allow for proper air circulation.
• Do not operate in close proximity to walls, curtains, or other objects that may block the air inlet and outlet. Keep the air inlet and outlet free of obstacles.
• Never install the unit where it could be subject to:
  • Heat sources such as radiators, heat registers, stoves or other products that produce heat.
  • Direct sunlight
  • Mechanical vibration or shock
  • Excessive dust
  • Lack of ventilation, such as a cabinet or bookcase
  • Uneven surface

ATTACH THE EXHAUST HOSE

• The air conditioner requires being vented outside so that the exhaust air can escape the room, which comes from the appliance that contains waste heat and moisture.
• Do not replace or extend the exhaust hose, which will result in decreased efficiency, and even worse, shut down the unit due to low back pressure.

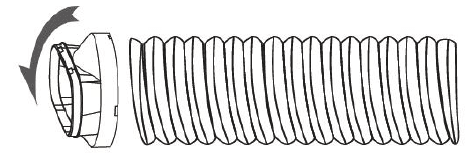

• Step 1: Connect the hose connector to one end of the exhaust hose
• Step 2: Connect the windows kit adapter to the other end of the exhaust hose.

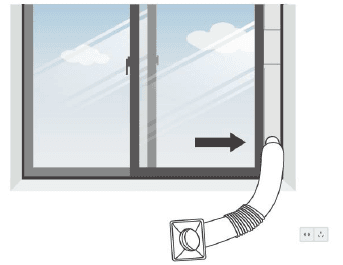

• Step 3: Extend the adjustable window kit the length of your window. Connect the exhaust hose to the window kit.
• Step 4: Close your window to secure the kit in place. It needs to hold the windows kit firmly in place, and secure the window kit with duct tape if required. It is recommended that the gap between the adapter and the sides of the window should be sealed off for maximum efficiency.
• Step 5: Attach the hose connector to the exhaust air outlet of the unit

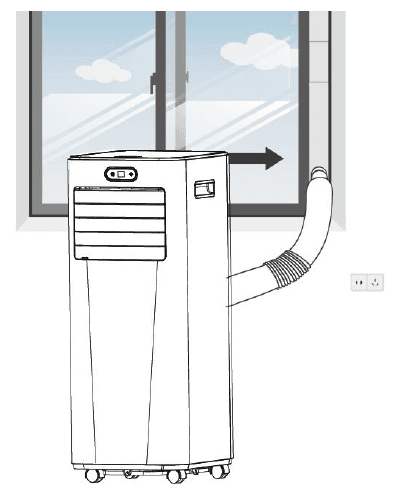

• Step 6: Adjusting the length of the flexible exhaust hose, to make sure the distance between the unit and the window will be more than 70cm, the height from the exhaust hose to the floor will be more than 90cm. And avoid bends in the hose. Then place AC near an electrical outlet
• Step 7: Adjust the louver at the air outlet, and then switch on the unit

OPERATION

CONTROL PANEL AND DISPLAY

1. High Fan Speed
2. Low Fan Speed
3. Timer
4. Dehumidifier Mode
5. Cooling Mode
6. Fan Mode
7. Sleep
8. Lock

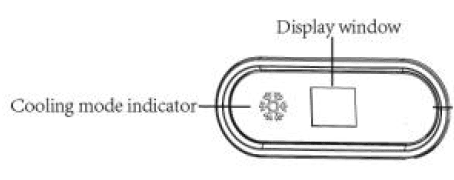

9. Display Window

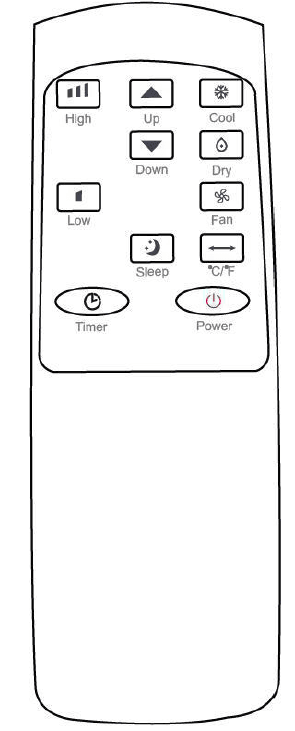

REMOTE CONTROL

SETTINGS

Start-up and Shutdown

• Press POWER to turn on the unit.
• Press MODE button to select the desired operation mode.
• Press POWER again to turn off the power.

Operation mode

• The unit has four operation modes: Cool, dehumidifier, fan, sleep. The unit working temperature under cooling mode is 61℉-95℉.

A. Cooling your room

• Select the cool mode to lower the temperature in your room.
• Press MODE button repeatedly until the COOL indicator lights up.
• Press Up/Down button to adjust the temperature which is displayed on the screen. The temperature can be set between 61℉ and 90℉.
• Press SPEED button repeatedly until the desired fan speed indicator lights up.
• To control the direction of the air flow horizontally, please adjust the inner louver by hand.
• Note： The air conditioner stops if the room temperature is lower than the selected temperature.

B. Ventilating your room

• Press MODE button repeatedly until the FAN indicator lights up. In ventilation mode, the room air is circulated, but not cooled.
• Press SPEED button repeatedly to select the fan speed as desired.

C. Drying your room

• Press the MODE button on the control panel or remote control, and the dry indicator lights up. The fan speed is unable to be selected. The user should connect the hose to the drain outlet at the bottom of the unit.
• Note: In this mode, the fan speed switches over to low speed and cannot be selected.

D. Sleep mode （ this function can only be used with remote control）

• The sleep mode can be activated when in cool mode.

 In cool mode :

• After 1 hour, the preset temperature is increased by 2℉, after an hour, the preset temperature will again be increased by 2℉.
