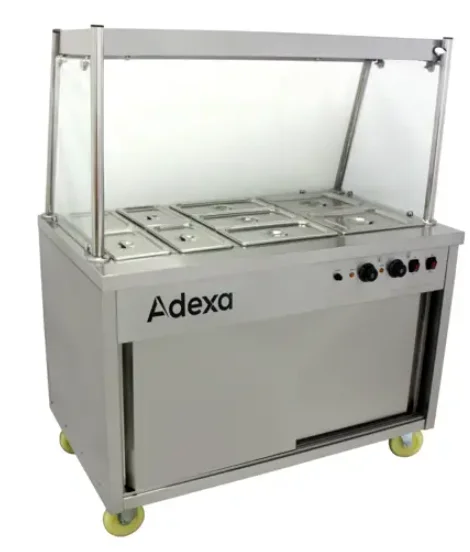

Adexa HYH-5WS Food Warmer Cart
Introduction
The food warmer cart is a new type of electric product that is well-designed and developed by our company. It is made of high-quality stainless steel with a good-looking appearance in an arc glass design. Selecting famous electrical components that are energy-saving, environmentally protective, and safe. It is practical, easy to use, and clean. Equipped with a constant temperature function, it not only has simple operation but also high quality. It is the best choice for hotels, restaurants, and fast food restaurants etc.

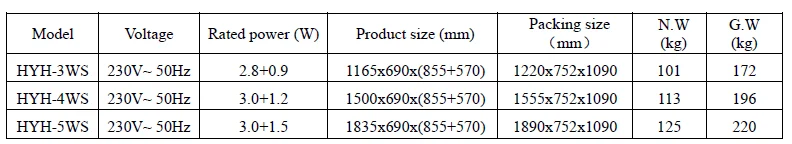

Technical parameters
Use Method
Before use, please check whether the power supply voltage is consistent with the nameplate, and whether the user’s power switch and fuse are in line with the power requirements of the machine. The housing must be grounded reliably.

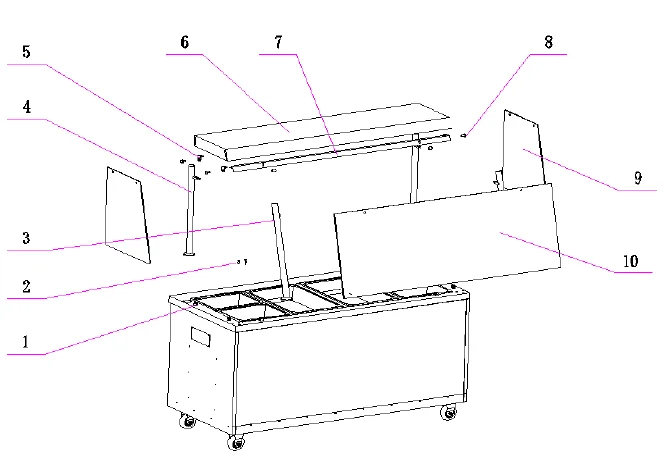

- Glass decorative clamp
- M5*12 Screw
- Front arc tube
- Rear straight pipe
- Left and right glass fixing plate
- Light box
- Front glass fixing plate
- Glass decorative screw arbor
- Left and right glasses
- Front glass
- Fix four supporting tubes on the fuselage with an M5*12 cross-head screw
- Fix the light box with an M5*12 cross round head screw through the mounting hole of the supporting pipe weldment
- Fix glass fixtures ① and ② on the lamp box with M5*12 cross-head screw
- Install the glass decoration clip on the fuselage with an M4*12 cross-head screw.
- Put the glass in the glass decoration clamping slot and fix the glass on the light box with the glass decoration screw.
- The power supply of the lamp box passes through the power supply hole of the ④ rear straight pipe to the fuselage and then connects to the main power supply.
Note: Don’t tighten all the screws until all the fittings are installed in the corresponding position and the appearance is adjusted well.

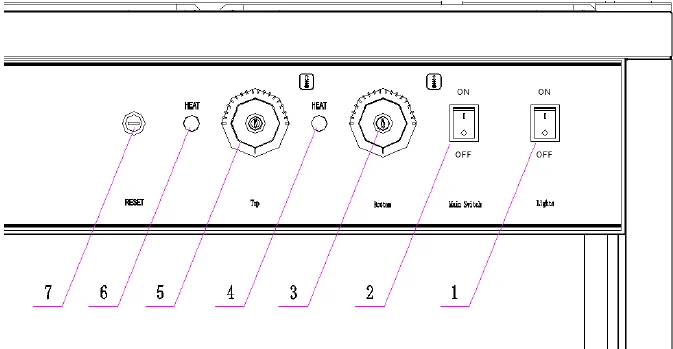

Operating Instruction
- Insulation lamp switch
- Main switch
- Bottom heating switch
- Bottom heating switch indicator
- Bain marie heating switch
- Bain marie heating indicator lamp
- Temperature limiter
- Connect the power cord and ensure normal power is on. Turn on the 1 insulation light switch, and the insulation light on the top light box will light up.
- When using a warm pool, it is necessary to add clean water inside and soak it in a heating tube for about 20 minutes, about 35L of water.
- Turn on the 2 main switches to supply power to the 3 and 5 temperature controllers. At this point, after turning the temperature controllers 3 and 5 clockwise, the indicator lights 4 and 6 will light up; Users can adjust the required temperature according to their own situation. When the temperature reaches the set value, the temperature controller will disconnect the power supply. After cooling to a certain temperature, the temperature controller will automatically turn on the power supply to achieve a constant temperature state!
- After completing the work, rotate the temperature controller counterclockwise to the zero limit position and cut off the power supply to ensure safety.
- If not used for a long time, it is necessary to drain the clean water from the warm pool.
Repairs and Maintenance
Please use a wet cloth to clean after use, or use neutral vinegar to clean if necessary.
At the same time, it is strictly prohibited to directly rinse the dining car with water to avoid damaging the electrical components of the electrical box and causing personal safety accidents.
Notes
- This instruction does not apply to persons who are physically, sensorily, or intellectually deficient or who are experientially and intellectually deficient.
- Inflammable and explosive articles are strictly prohibited around the machine, and in a well-ventilated environment.
- It is strictly forbidden to contact the body and heating pipe with water in order to prolong the service life of the machine.
- When in use, non-staff should not be near the power supply part.
- When not in use, you should unplug the power plug or cut off the power switch in order to avoid accidents.
- All maintenance work must be done after the power supply is cut off.
- If there is a failure, including damage to the power cord, do not disassemble yourself; please inform the professional maintenance personnel to repair or contact the supplier as soon as possible.

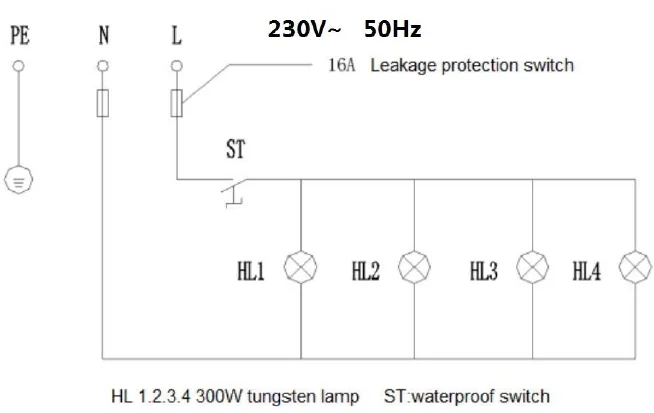

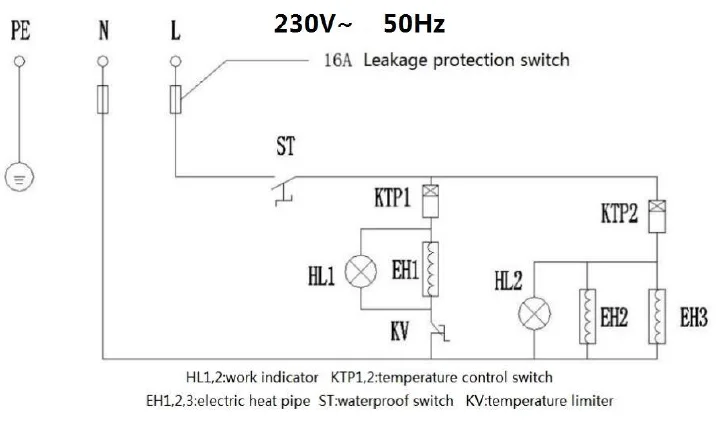

Electrical schematic diagram
Contact Information
Adexa Direct Limited
Swift House, Cosford Lane, Swift Valley Industrial Estate, Rugby, England, CV21 1QN United Kingdom
- Telephone: 01788 222 410
- Email: [email protected]
- URL: https://adexa.co.uk
For more Manuals by Adexa, visit ManualsLibraryy
Adexa HYH-5WS Food Warmer Cart-FAQs
What is the Adexa HYH-5WS Food Warmer Cart used for?
The Adexa HYH-5WS is designed to keep food warm during transport or service, making it ideal for catering, restaurants, and events.
How do I turn on the food warmer cart?
Plug the cart into a power source and switch the main power button to the “ON” position. The heating indicator light will show that the cart is operational.
How do I adjust the temperature?
Use the temperature control knob to set the desired warming level. The cart allows precise temperature adjustment according to the type of food being stored.
Can I use the cart for all types of food?
Yes, the cart is suitable for most cooked foods, including meats, vegetables, and sauces. Avoid placing raw food directly inside the cart.
How do I clean the Adexa HYH-5WS Food Warmer Cart?
Unplug the cart before cleaning. Wipe the interior and exterior with a damp cloth and mild detergent. Do not immerse the cart in water or use harsh chemicals.
Is the cart safe to move while in operation?
Yes, the cart has sturdy wheels for mobility. However, always move it carefully to avoid spilling hot food and ensure it is switched off if tilting is necessary.
How long can food be kept warm in the cart?
Food can be kept warm for several hours depending on the temperature setting. Always check food quality before serving.
What should I do if the cart is not heating properly?
Check that it is properly plugged in, the power switch is on, and the temperature is set correctly. If the problem persists, consult the user manual or contact Adexa customer support.
