Aqara LED Ceiling Light T1M
CAUTION:
If it does not light up after turning on the power, please confirm whether the installation and wiring of the lamp are correct. The light source in this luminaire should be replaced by the manufacturer, its service agent, or a similarly qualified person.
Installation Manual
Warning: Before installing the lamp, power must be disconnected to prevent electric shock.
Installation method A

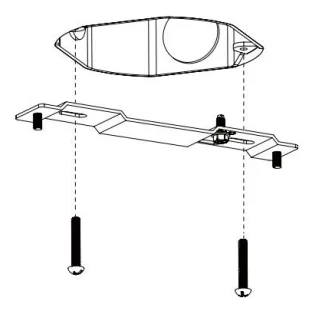

- Turn off the power at the circuit breaker and the light switch. Install the mounting bracket on the junction box using the junction box screws. Ensure that the two mounting bracket screws are pointing away from the ceiling.

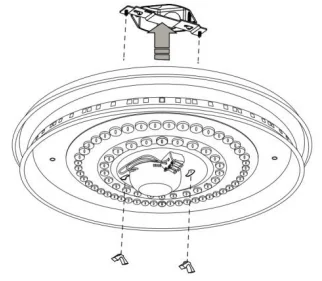

- Place the base on the mounting bracket. Temporarily screw the base of the luminaire to the mounting bracket using the butterfly screws.

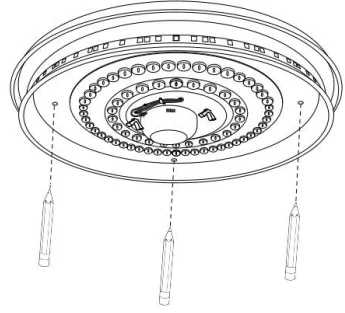

- Mark on the ceiling the 3 locations where the holes will be drilled and remove the base.

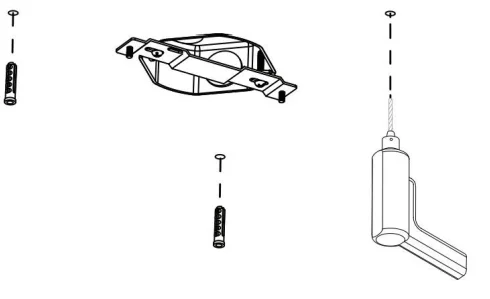

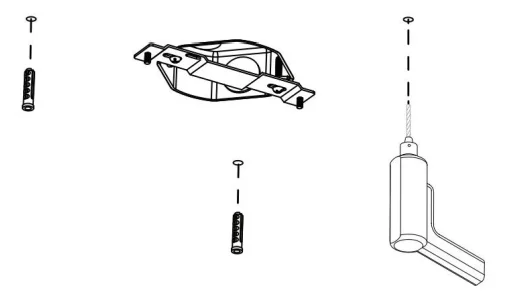

- Drill pilot holes in the ceiling with a drill bit, and push wall anchors into the holes.

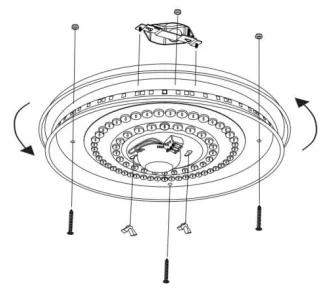

- Slowly place the wires in the connection box. Align the holes in the base of the luminaire with the mounting bracket screws, raise the base, and turn it counterclockwise, locking it into place. Tighten the butterfly screws to fix the light fixture to the ceiling and fasten the 3 retaining screws into the wall anchors.

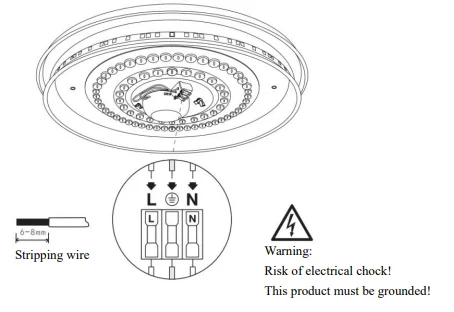

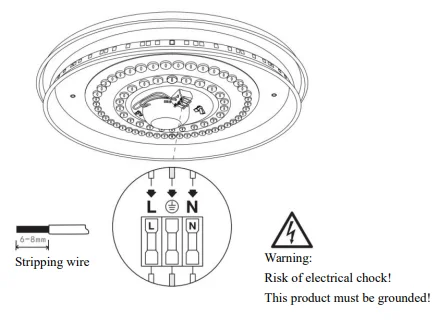

- Strip the wires by 6–8 mm, and connect the live wire, ground wire, and neutral wire to the wiring holes marked with L, ⏚G, and N in the ceiling lamp in sequence.

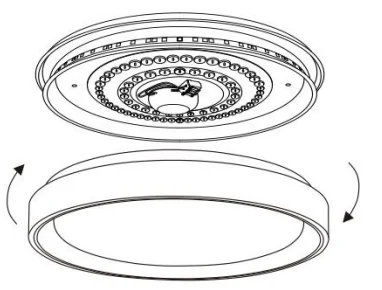

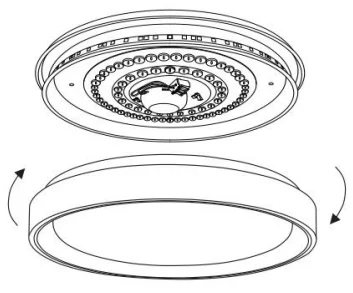

- Hold both sides of the lampshade with both hands, align the base and gently buckle it in, rotate the lampshade clockwise to make it firmly installed with the base, and the installation of the ceiling lamp is completed.
Installation method B

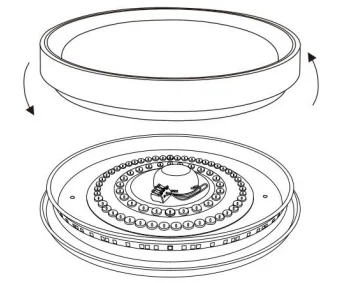

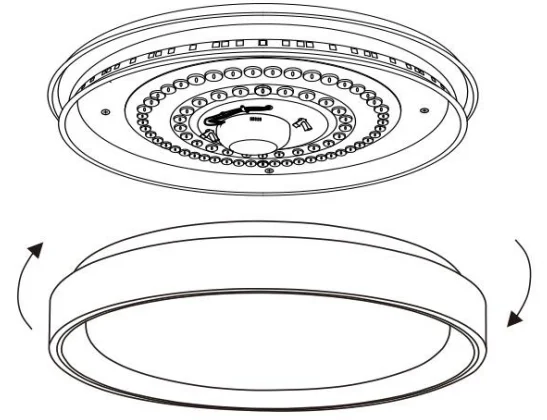

- Cut off the power supply; unpack, take out the accessory package, hold the lampshade with both hands as shown in the figure below, and open the lampshade counterclockwise to take out the base.
- Mark the installation holes on the ceiling according to the installation position of the ceiling lamp with the base, and then drill the holes with an electric drill (the drilling depth is ≥ 40 mm).

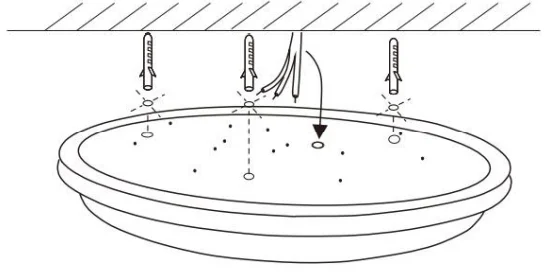

- After drilling the holes, drive the wall anchors into the holes, and lead the wires out of the holes on the base.

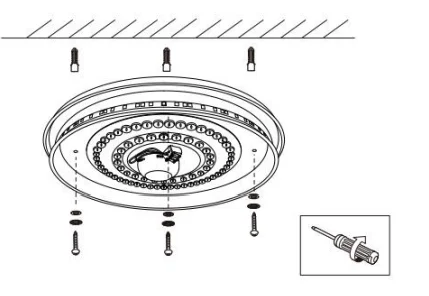

- Align the mounting holes on the wall and fix the luminaire on the ceiling with screws, metal washers, and plastic gaskets, then confirm they are firm and reliable.
- Strip the wires by 6–8 mm, and connect the live wire, ground wire, and neutral wire to the wiring holes marked with L, ⏚G, and N in the ceiling lamp in sequence.
- Hold both sides of the lampshade with both hands, align the base and gently buckle it in, rotate the lampshade clockwise to make it firmly installed with the base, and the installation of the ceiling lamp is completed.
CAUTION: For safety, there is no risk of falling! After completing the installation, please shake the lampshade left and right to ensure the firmness of the ceiling lamp.
Installation method C (For North American Users)

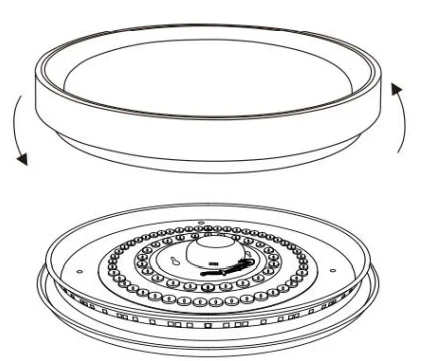

- Cut off the power supply; unpack, take out the accessory package, hold the lampshade with both hands as shown in the figure below, and open the lampshade counterclockwise to take out the base.
- Install the mounting bracket on the junction box using the junction box screws. Ensure that the two mounting bracket screws are pointing away from the ceiling.

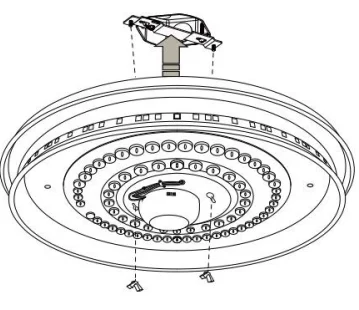

- Place the base on the mounting bracket. Temporarily screw the base of the luminaire to the mounting bracket using the butterfly screws.

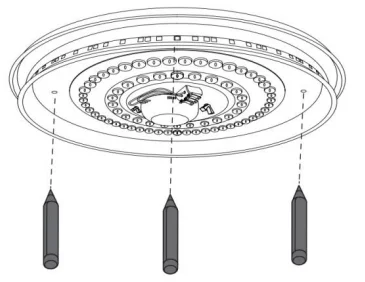

- Mark on the ceiling the 3 locations where the holes will be drilled, and then remove the canopy.
- Drill pilot holes in the ceiling with a 1/4 in (6.5 mm) drill bit and push wall anchors into the holes.

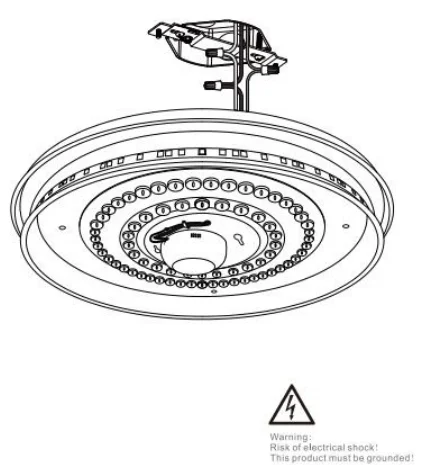

- Connect the white wire from the light fixture to the white supply wire from the junction box using a wire connector. Connect the black wire from the light fixture to the black supply wire from the junction box using a wire connector. Connect the ground wire from the light fixture to the ground supply wire from the junction box using a wire connector.

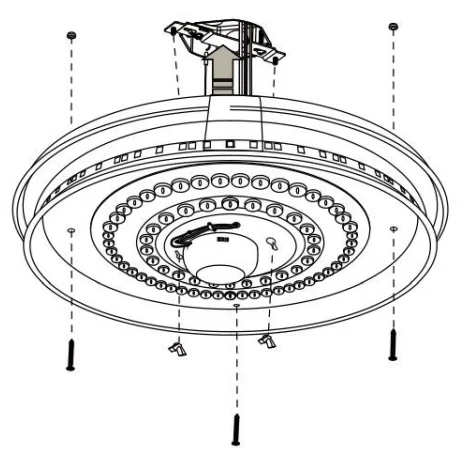

- Slowly place the wires in the connection box. Align the holes in the base of the luminaire with the mounting bracket screws. Tighten the butterfly screws to fix the light fixture to the ceiling and fasten the 3 retaining screws into the wall anchors.
- Hold both sides of the lampshade with both hands, align the base and gently buckle it in, rotate the lampshade clockwise to make it firmly installed with the base, and the installation of the ceiling lamp is completed.
CAUTION: For safety, there is no risk of falling! After completing the installation, please shake the lampshade left and right to ensure the firmness of the ceiling lamp.
Device Installation
For More Manuals By Aqara, Visit ManualsLibraryy.
Aqara LED Ceiling Light T1M-FAQs
What is the Aqara LED Ceiling Light T1M, and what makes it unique?

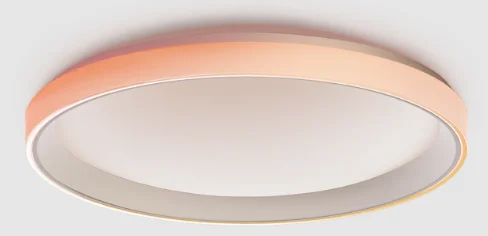

The Aqara LED Ceiling Light T1M is a smart ceiling light that combines a tunable white main light with a colorful RGB side ring. It supports advanced lighting effects, automation, and smart home integration, making it suitable for both functional illumination and ambient lighting in modern smart homes.
Does the Aqara Ceiling Light T1M require a hub to work?
Yes, the Aqara Ceiling Light T1M requires a compatible Aqara Zigbee hub to function fully. The hub enables automation, remote control, and integration with platforms like Apple HomeKit, Alexa, and Google Home, ensuring stable connectivity and access to smart features.
What lighting options does the Aqara T1M offer?
The light provides adjustable white tones ranging from warm to cool (2700K to 6500K) along with a side RGB light featuring up to 16 million colors. This combination allows users to switch between everyday lighting and decorative ambiance depending on mood or activity.
Can the main light and side light be controlled separately?
Yes, the Aqara T1M allows independent control of the main white light and the RGB side ring. Users can adjust brightness, color, and automation settings separately, enabling customized lighting scenes and more flexible control within the Aqara Home app or connected ecosystems.
Is the Aqara Ceiling Light T1M compatible with voice assistants?
The device supports voice control through major platforms such as Apple HomeKit, Amazon Alexa, and Google Assistant. Once connected via an Aqara hub, users can control brightness, color, and power using voice commands for a hands-free smart home experience.
What room size is suitable for the Aqara T1M ceiling light?
The Aqara Ceiling Light T1M is designed for rooms between approximately 5 and 20 square meters. Its brightness and coverage make it suitable for bedrooms, living rooms, or offices, providing both strong illumination and decorative lighting within this size range.
How long does the Aqara Ceiling Light T1M last?
The light features an estimated lifespan of up to 50,000 hours, ensuring long-term reliability and reduced need for replacements. This extended lifespan makes it a cost-effective lighting solution for users seeking durable and energy-efficient smart lighting in their homes.
Can the Aqara T1M be used for smart home automation?
Yes, the T1M integrates seamlessly with Aqara’s ecosystem, allowing users to create automations such as lighting changes based on motion, schedules, or device triggers. The RGB ring can even act as a visual indicator for events like doorbell alerts or security status.
Is the installation of the Aqara Ceiling Light T1M difficult?
Installation is designed to be straightforward, with mounting accessories included in the package. However, users must ensure power is turned off before installation and follow proper guidelines. The light is compatible with various ceiling types, making it suitable for most home setups.
Does the Aqara T1M support energy-efficient operation?
Yes, the Aqara T1M uses energy-efficient LED technology and a Zigbee protocol that minimizes power consumption. It also acts as a mesh repeater, improving network stability while maintaining low idle power usage, making it an eco-friendly choice for smart lighting.
