Arris DG9450 Home WiFi Gateway

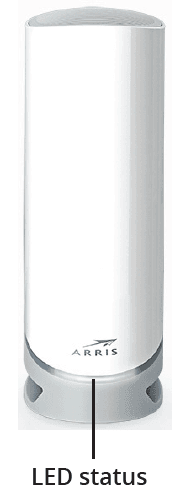

Front view and LED status
LED status
The LED status indicates the power status and operating status of your DG9450.
| Green | Wi-Fi ready |
| Purple | Wi-Fi error |
| Blue | Power on, no Wi-Fi |
| Flashing Blue and Green | Firmware upgrade in progress |
| Flashing Purple | WPS button pressed |

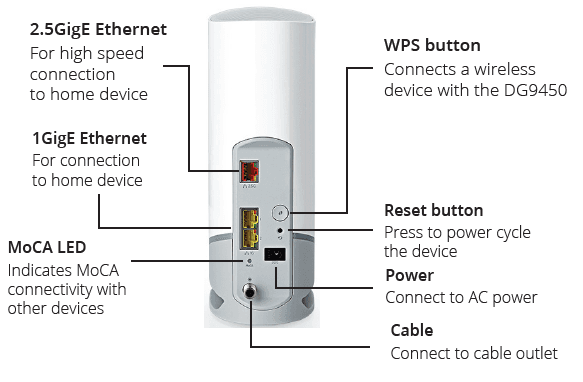

Rear view
Placement and safety information
The device complies with the applicable requirements for performance, construction, labeling, and information when used as outlined below:
Caution: Risk of shock. Mains voltages inside this unit. There are no user-serviceable parts inside. Refer service to qualified personnel only!
- The device shall be cleaned using only a damp, lint-free, cloth. No solvents or cleaning agents shall be used.
- Do not use spray cleaners or aerosols on the gateway.
- When the device is connected to a local computer through Ethernet cables, the computer must be properly grounded to the building/residence AC ground network. All plug-in cards within the computer must be properly installed and grounded to the computer frame per the manufacturer’s specifications.
- Ensure proper ventilation. Position the device so that air flows freely around it and the ventilation holes on the unit are not blocked.
- Do not mount the device on surfaces sensitive to heat and/or damaged by the heat generated by the modem, its power supply, or other accessories.
- Never place the device on top or close to any heat sources such as other electronic devices. Doing so will reduce lifetime and may cause irreparable damage or malfunction.
- The device is designed to stand on a horizontal surface.
- Note that metallic surfaces and objects can interfere with the operation of Wi-Fi wireless technology.
Set up your Wi-Fi connection
Your DG9450 replaces your modem and router to provide high-speed wireless access to the Internet in a single device! Use a coax cable to attach the cable port to your cable outlet or splitter, then connect the power adapter to the power port and plug it into an AC power outlet.
The first time you power on your DG9450, it may take 15-20 minutes to download and upgrade its firmware.
To set up your device (computer, phone, or tablet)

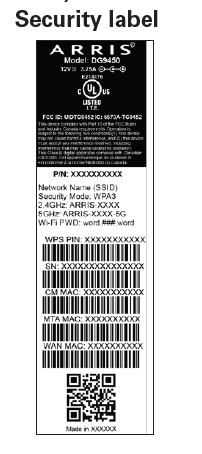

Connect your device’s Wi-Fi using the network name or SSID (ARRIS ####) and the password (Wi‑Fi PWD) shown on the security label on the bottom of your DG9450. Alternatively, you can use the included Ethernet cable to connect to one of the yellow Ethernet ports.
If your device supports WPS (Wireless Protected Setup), you can press the WPS button on the back of your DG9450 and then activate WPS on your device to easily connect your device. For advanced options, proceed to step 2.
Advanced wireless configuration (optional)
If you want to change the default broadcasted SSID name or password or any other advanced configuration, follow these steps:
- On your home device open a browser and go to http://192.168.0.1/ to access the wireless router setup. You may be prompted by a certificate error, this is normal and you can continue safely.
- The default user name is admin, and the default password is the Wi-Fi PWD listed on the product label at the bottom of your DG9450. Your username and password are case-sensitive.
- Enter the user name and password, and click Login.
INNOVATION, SCIENCE, AND ECONOMIC DEVELOPMENT CANADA STATEMENT
This device complies with Innovation, Science, and Economic Development Canada’s license-exempt RSSs. Operation is subject to the following two conditions:
- This device may not cause interference; and
- This device must accept any interference, including interference that may cause undesired operation of the device.
Caution
- The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
- for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250 5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
- for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725- 850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate.
RADIATION EXPOSURE STATEMENT
This equipment complies with Canada’s radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
CANADIAN COMPLIANCE
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations and CAN ICES-003 (B)/ NMB-003(B).
For more manuals by Arris visit, ManualsLibraryy
Arris DG9450 Home WiFi Gateway-FAQs
What is the default login for the Arris DG9450?
The default username is admin, and the password is the Pre-Shared Key found on the modem’s label. For subscribers, use the Wi-Fi password labeled as Wi-Fi PWD.
What do the lights on the Arris DG9450 mean?
Green: Wi-Fi is ready.
Purple: Wi-Fi error.
Blue: Power is on, but Wi-Fi is not active.
Flashing Blue and Green: Firmware is being updated.
What’s the difference between a router and a modem?
A modem connects directly to your ISP for internet access, while a router creates a local network for devices in your home. The Arris DG9450 combines both functionalities.
What do DS and US lights on a modem indicate?
1. US (Upstream) / DS (Downstream) lights flash briefly when connecting to the network.
2. Continuous flashing indicates the modem cannot establish a connection due to poor or no signal.
Why is my Arris modem blinking?
Solid Green: Data transfer at 1 Gbps.
Blinking Green: Data traffic in progress.
Solid Amber: Data transfer below 1 Gbps.
Blinking Amber: Data traffic below 1 Gbps is in progress.
Does the Arris DG9450 support VPN?
Arris modems and gateways do not have built-in VPN support. VPN passthrough can be set up, allowing VPN traffic to pass through the gateway to devices in your home network.
What is the gateway address for the Arris DG9450?
The default gateway address is 192.168.0.1. To access the admin portal, type this IP into your browser. Some devices may require entering the full URL: https://192.168.0.1.
What is the IP address of the Arris SURFboard?
The default IP address is 192.168.0.1. It is used to access the Web Manager, and the DHCP server assigns private IPs ranging from 192.168.0.2 to 192.168.0.254 for devices.
Is there an app for managing the Arris DG9450?
Yes, you can use the ARRIS SURFboard Manager app to manage Wi-Fi settings, monitor connected devices, and set parental controls directly from your mobile device.
