Arris NVG468MQ Frontier WiFi Router User Guide

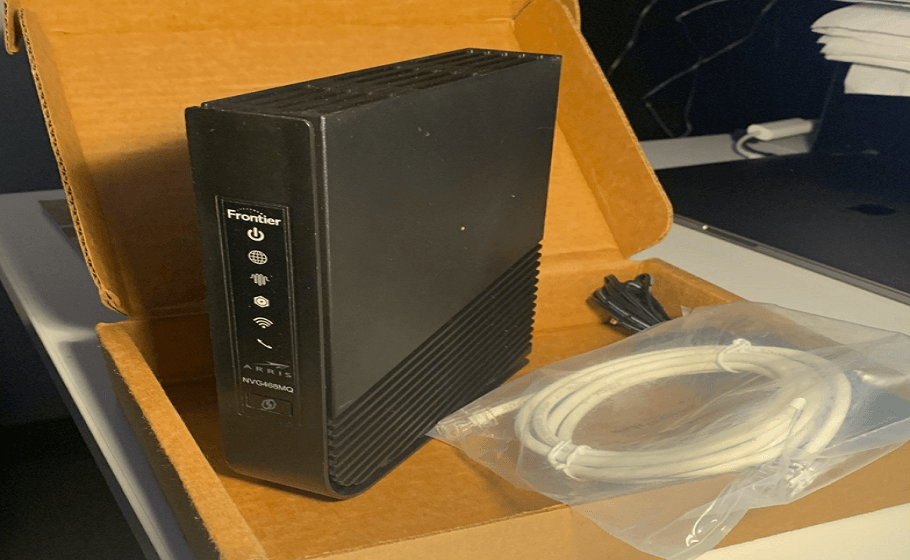

Arris NVG468MQ Frontier WiFi Router

Powering and Initial Cabling

Press the power button on the back of the gateway. The Power indicator will light GREEN to indicate that the gateway is powered correctly. Under normal operation, while the gateway is powering up, LED status is as follows:

• Internet will light solid BLUE to indicate Internet connection is active, solid RED when there is no IP address, and off when there is no Broadband connection.
• Broadband, Ethernet, Wireless, and Phone indicators will be off.
• Ethernet and Wireless indicators will light GREEN to indicate that the Ethernet connection and Wireless service are active.
• Broadband indicator will initially flash GREEN, and upon service connectivity, it will light solid GREEN.
• Phone indicator will light GREEN after the Broadband indicator lights GREEN to indicate that digital phone service is active.
• NOTE: ATTENTION CATV System Installers. Review section 820-93 of the National Electric Code for proper equipment grounding requirements. Section 820-93 specifies the Coaxial cable shield must be connected to the building grounding system as close to the point of cable entry as practical.
• NOTE: On initial setup, it may take several minutes to achieve service connectivity.

ONT Broadband: Use the following procedure to connect the gateway to Optical Network Termination (ONT) Ethernet.

1. Connect an Ethernet cable to the ONT Broadband port on the back of the gateway.
2. Connect the other end of the Ethernet cable to the incoming ONT connection.

MoCA: Use the following procedure to connect the gateway to a Cable line.

1. Connect a F-Connector terminated coaxial cable to the Cable Line terminal on the back of the gateway.
2. Connect the other end of the coaxial cable from the gateway to the cable service connection.

Digital Phone Service: Use the following procedure to connect the gateway to a digital phone line.

1. Connect the supplied RJ11 terminated phone cable to the Phone port on the back of the gateway.
2. Connect the phone cable to a phone or fax machine.
   • NOTE: Use a RJ-14 to RJ-11 splitter to connect two phone lines.

Ethernet: Use the following procedure to make an Ethernet connection on the gateway.

1. Connect the supplied RJ45 terminated Ethernet cable to one of the Ethernet ports on the back of the gateway.
2. Connect the Ethernet cable to the Ethernet port on a local computer.

Access the Web Management Interface

1. Open a web browser, such as Firefox, Chrome, or Microsoft Internet Explorer, from the computer connected to the gateway.
2. Type the following address in the address bar of the browser to open the Access Code Required Screen: http://192.168.254.254

Access the Web Management Configuration Pages

NOTE: When applicable, select the appropriate language button in the lower right corner of the Access Code Required Screen to continue in the selected language.

To access the Web Management configuration pages:

1. Provide the Device Access Code, a unique code printed on a label on the base of the gateway.
2. Select Continue.
   • NOTE: The terms Device Access Code and Password are sometimes used interchangeably.

Broadband Configure Interface

The NVG468MQ has a Broadband Configuration screen for initial configuration. Use the Broadband Configuration screen to configure the gateway to use
DHCP Client or PPPoE for the broadband IP interface:

• If the proper connection type is not determined, use the DHCP option from the pulldown menu and select Finish.
• If it is known that PPPoE is required, then select it and enter the user name and password, then select Finish. When the connection is successful, the Home Screen opens.
• If there is a failure in the connection, the notice “WAN connection was not successful – Please reenter your broadband configuration” appears on the Broadband Configuration screen.

Main Page

The Main page provides an overview of the connection and home network status. From this screen, other detailed status and configuration screens can be accessed including the following:

• Main – network status/configuration
• Wireless – network status/configuration, including security settings
• Network — status of all devices in the LAN Host Discovery table
• Firewall – status/configuration
• Advanced – advanced settings and configuration, including the Reboot (Factory Reset) options
• Status – system status/configuration

Main Page

Add a Wireless Device to the Gateway

• On the wireless device, use the Wireless setup option to find the available wireless network names. The Wi-Fi Network Name for the gateway is printed
  on the bottom label along with the Wi-Fi Password.
• NOTE: Optionally, WiFi Protected Setup (WPS) can be used to allow wireless devices with WPS support to join by pressing the WPS button on the front panel and following the wireless device instructions provided. The WiFi Configure screen provides access to enable or disable the WPS, and can also be used to change the default wireless network name and password.

Declaration of Conformance

WARNING: This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Adequate measures include increasing the physical distance between this product and other electrical devices. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
United States: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
   • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
   • Reorient or relocate the device.
   • Increase the distance between the equipment being interfered with and the device.
   • Connect the device to an outlet on a circuit different from the outlet to which the equipment being interfered with is connected.
   • Consult the retailer or an experienced radio/TV technician for help.

United States: This device complies with 47 CFR Part 68 of the FCC Rules. Operation is subject to the following four conditions:

1. The Federal Communications Commission (FCC) has established Rules which permit this device to be directly connected to the telephone network. Jacks are used for these connections. This equipment should not be used on party lines or coin phones.
2. If this device is malfunctioning, it may also be causing harm to the telephone network. If the telephone company requests information on what equipment is connected to their lines, inform them of:
   • The telephone number to which this unit is connected.
   • The ringer equivalence number. [OXB] (Indicated on the label)
   • The USOC jack required. [RJ11C)|
   • The FCC Registration Number. [XXXUSA-XXXXX-XX-E] (Indicated on the label)
   • The Ringer Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the REN’s of all devices on any one line should not exceed five (5.0). If too many devices are attached, they may not ring properly.

NVG468MQ Ethernet and FTTH Gateway Quick Start Guide

Introduction

• Use this Quick Start Guide to install, configure, and perform basic troubleshooting for the ARRIS™ NVG468MQ Ethernet and FTTH Gateway.

Power Supply Installation

• Connect the power supply cord to the power connection on the gateway. Plug the power supply into an appropriate electrical outlet.
• WARNING: The power supply must be connected to an outlet with a protective earth connection. Do not defeat the protective earth connection.
• Product Ventilation
• The gateway is intended for residential use. Position the gateway in an upright vertical position and locate it where temperatures remain within a range
  of 32° – 104°F (0° – 40°C) and where heat from the unit itself is not trapped, requires at least two inches (2″) of clearance on all sides except bottom.

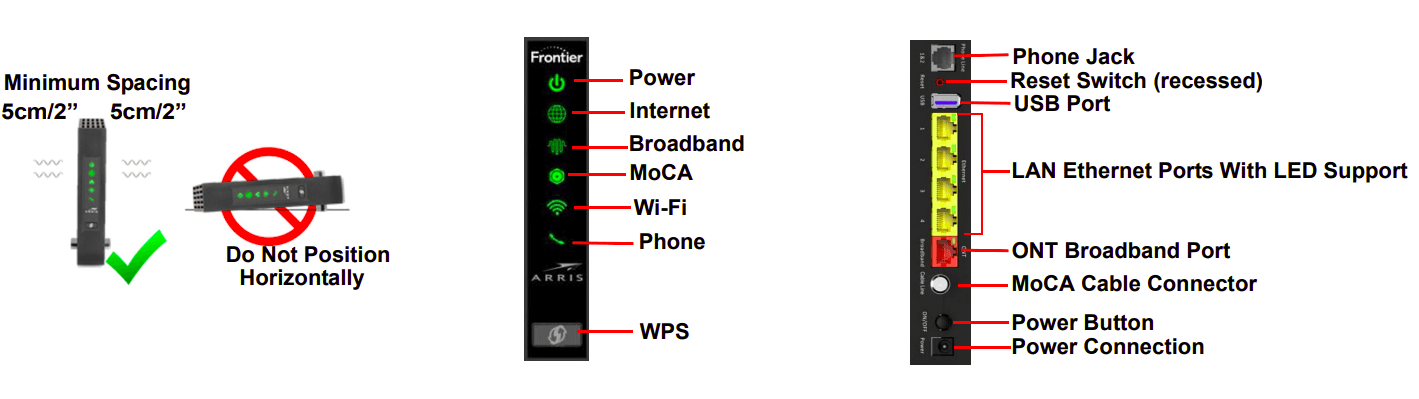

• Gateway Positioning, Status Indicator Lights and Port Configuration
• Proper positioning of the gateway is essential for proper cooling. Colored LEDs on the gateway indicate the status of various port activity.
