COOSPO BK467 Cadence Speed Sensor for Cycling

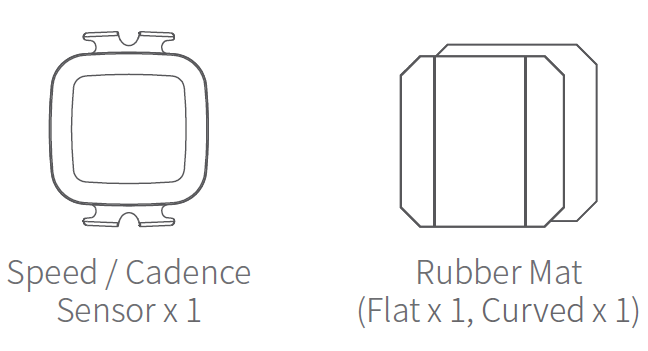

Standard Accessories
Product Introduction
BK467 measures speed or cadence in real time, and it sends speed or cadence data to the app or bike computer. This user manual will help you to use the product better, Please keep it for reference.

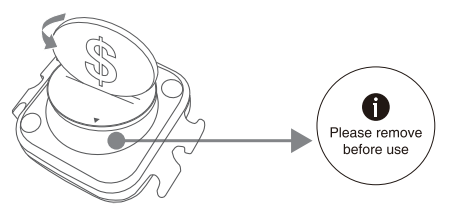

Remove the Insulation Sheet
- Twist the battery cover with a coin in the OPEN direction, open the battery cover, and remove the battery.
- Take out the insulating sheet
Function and Operation
BK467 has speed mode and cadence mode. You can switch the mode by rebooting.
Mode switching
- Twist the battery cover with a coin in the OPEN direction, open the battery cover, remove the battery, and install it again. After that, twist the battery cover in the CLOSE direction, and close the battery cover.
- After the battery is installed, there will be a light on. Red light indicates speed mode, and blue light indicates cadence mode.
Installation
- Installation for speed mode
Buckle the curved rubber mat onto the back of the sensor, then bind the sensor with the large rubber band onto the wheel axle.

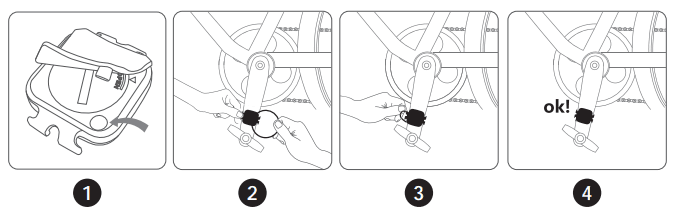

- Installation for cadence mode
Buckle the flat rubber mat onto the back of the sensor, then bind the sensor with the small rubber band onto the pedal crank.
Specifications
- Weight: 9.5 g
- Battery Life: 300 hours
- Battery Type: CR2032 220mAh
- Waterproof: IP67
- Wireless: Bluetooth & ANT+
- Max Speed: 120 km/h
- Max Cadence: 300 rpm
- Color: Black
- Working Temperature: -10℃ ~ 50℃
- Size: 41 x 34 x 10 mm
Applicable Smart Phones
IOS 7.0 or above, iPhone 4s model or above
Android 4.3 or above with Bluetooth 4.0
IOS 7.0 or above, iPhone 4s model or above
Android 4.3 or above with Bluetooth 4.0Compatible Apps
CoospoRide, Wahoo, Openrider, Zwift, MAP MY RIDE+, or other Apps with speed/cadence feature.
Disclaimer
- The information contained in this manual just for reference only. The product described above may be subject to alteration owing to the manufacturer’s continuing research and development plans, without making an announcement in advance.
- We shall not make any statement or warranty about this manual.
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver. Reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Contact your local government or a retailer for additional information.
- Do not open or modify the product.
- Do not disassemble or attempt to service this product.
- This product is safe under normal and reasonably foreseeable operating conditions.
- If the product is operating improperly, call COOSPO support.
- The product must be returned to the manufacturer for any service or repair.
