ATTACK SHARK R6 Wireless Gaming Mouse
Thank you very much for purchasing our ATTACK SHARK product, and hope it can bring you a new operation and feeling. At the same time, we look forward to getting your valuable suggestions on our products, and we will continue to provide you with better products and services.
Product Description
- Product model: R6
- Product interlace type: USB-Type-C
- Product connection method: USB, 2.4G, Bluetooth
- Product optical sensor: Pixar PAW3950
- Main control IC: Nordic 52840
- Transmission frequency: 2402MHz—2480MHz
- Rate of return (HZ): 2.4G mode: 125/ 250/ 500/ 1000 (default) 2000/ 4000/ 8000HZ (driver adjustable/mouse combination button switch), Wired mode: 125/ 250/ 500/ 1000HZ default (driver adjustable/mouse combination button switch), Bluetooth mode: 125H
- Frame rate (IPS): 750 IPS
- Maximum acceleration (G): 50G
- DPI value and corresponding color: 1200 (red) -2400 (green) -3200 (blue) -5600 (yellow) -8000 (cyan) -42000 (purple) driver switchable/- mouse combination button switch
- Charging current: ≈150mA
- Charging voltage: 4.25V-5.25V
- Product weight: ≈42±1g
- Product size: 117*61.6*38mm
- Data cable interface (length): Type-C/ 1.6 meters
- Wireless transmission distance: 10 meters
- Switch brand and service life: Omron’s optical micro switch 80 million times.
- Support operating systems: XP, Win7, Win8, Win10, Win11, Mac OS, Android, Linux, etc.
- Sleep mode current: 60uA

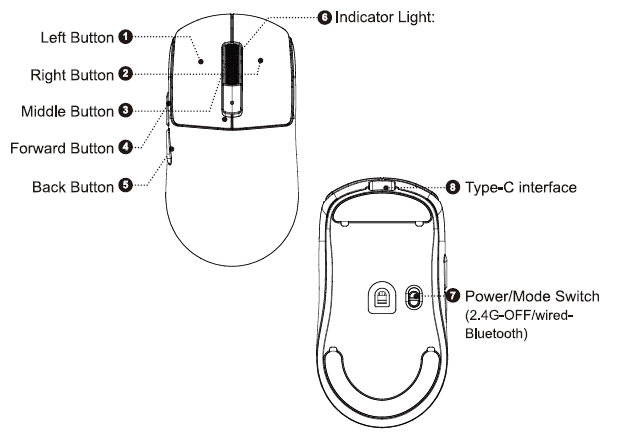

Button Function Description
Indicator Light:
- Power indicator light: Charging (pink breathing), low voltage (red light flashing quickly), full (green light always on)
- DPI indicator light: 1200 red – 2400 green (default) – 3200 blue – 5600 yellow – 8000 light blue – 42000 purple (turns off 5 seconds after switching)
- Mode indicator: 2.4G (red), BT (blue)
- Switching report rate indicator: flashing ice blue
Combination button function
- (5+2) Back button + right button long press for 1 second to switch DPI
- (4+2) Forward button + right button long press for 1 second to switch return rate
- (1+2+3) Left button + middle button + right button long press for 3 seconds to pair 2.4G mode and Bluetooth mode
Tips:
- Sleep mode: The mouse enters sleep mode after stopping working for 30 seconds
- Sleep wake-up method: mobile wake-up
- Hardware connection: Insert the product USB plug into the USB 1.1 or above version port (when the product is used for the first time, the automatic hardware installation prompt will pop up in the lower right corner of the computer)
Connection Mode

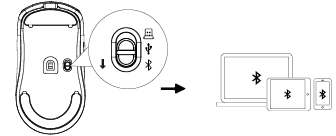

Bluetooth connection method:
- The power switch must be in the Bluetooth mode, and the Bluetooth mode light is blue.
- Press and hold the left, middle, and right buttons for about three seconds at the same time, the Bluetooth mode light will flash blue quickly, turn on the Bluetooth of the mobile phone or other devices that need to be paired to search, and when “R6 Mouse” appears, connect in time.
- After the connection is successful, the blue code light will be on for about 1 second and then go out.

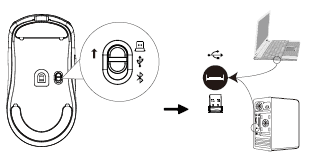

2.4 G Connection method:
- Turn the power switch to 2.4 G.
- Press and hold the left, middle, and right buttons for three seconds at the same time, and the code mode light will flash red quickly; plug in the receiver in time.
- After the code is successfully paired, the mode light will be on for about one second and then go out.
Wired mode connection method:
Use the TYPE-C cable provided to connect to the computer. When the cable is plugged in, the mouse will default to wired mode. When the mouse is moved, the computer screen pointer moves, and the mouse can be used normally.
Precaution
- It is forbidden to immerse the mouse in liquid or spray the mouse with liquid.
- It is forbidden to use the mouse in high-temperature and high-humidity environments.
- Do not place the mouse in an open flame.
- Violence against pressing the mouse is prohibited.
- Do not disassemble the mouse
Packaging List
- Mouse*1
- 2.4 G receiver*1
- Cable*1
- Instruction manual*1
