Axxera AVM211NAV Multimedia Receiver User Guide

Axxera AVM211NAV Multimedia Receiver

Safety Information

Please read all instructions carefully before attempting to install or operate.

Due to its technical nature, it is highly recommended that your Axxera AVM211NAV be installed by a professional installer or an authorized dealer. This product is only for use in vehicles with a 12VDC negative ground.

To prevent damage or injury

• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
  Do not install the unit in a spot exposed to direct sunlight, excessive heat, or the possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• You cannot view the video while the vehicle is moving. Find a safe place to park and engage the parking brake.
• If you experience problems during installation, consult your nearest Axxera dealer.
• If the unit malfunctions, reset the unit as described on page 10 first. If the problem persists, consult your nearest Axxera dealer or call tech assistance @ 1-866-382-5476.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use a stiff cloth or volatile solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual. Normal brightness will return after using the monitor for a while.
• When extending the ignition, battery, or ground cables, make sure to use automotive-grade cables or other cables with an area of 0.75mm (AWG 18) or more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Preparation

Before You Start

• Disconnect the negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt, or excessive vibration.

Getting Started

• Insert the supplied keys into the slots as shown.
• Connect the wiring harness as shown on page 6. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately).
• Reconnect the negative battery terminal, and test for correct operation.
• Snap the trim ring into place (if required).

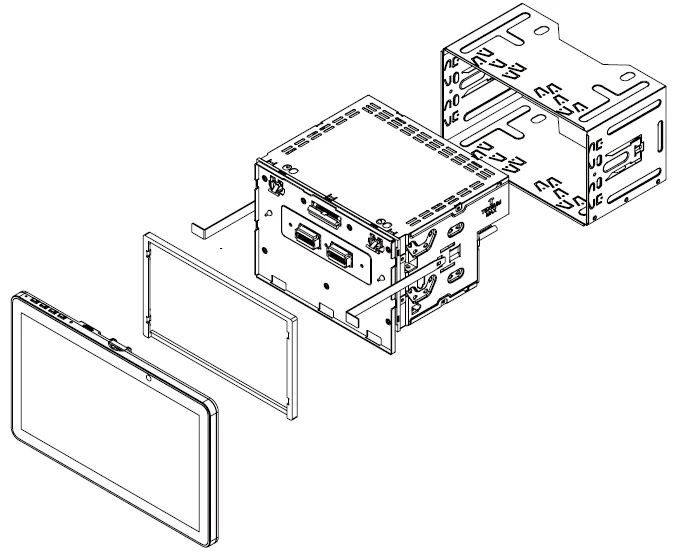

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

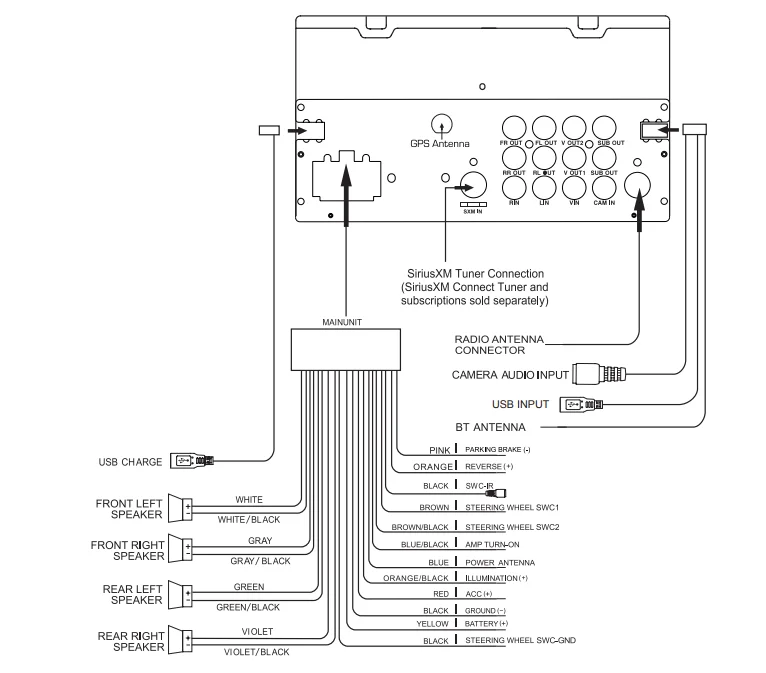

Wiring Diagram – Inputs/Outputs

Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10-amp blade-type fuse located on the back of the unit.

Wiring Notes

Rear camera input

A rear-view camera (not included) can be used with the Camera input.

SiriusXM

For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner (SiriusXM Connect tuner and subscription sold separately).

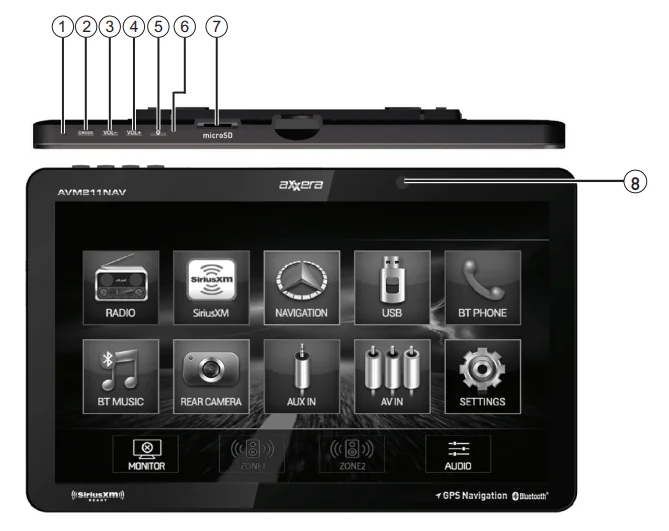

Control Locations

1. Mircophone
2. Power / Mode
3. Volume Down
4. Volume Up
5. Camera
6. Reset
7. MicroSD Card (Navigation)
8. IR Sensor

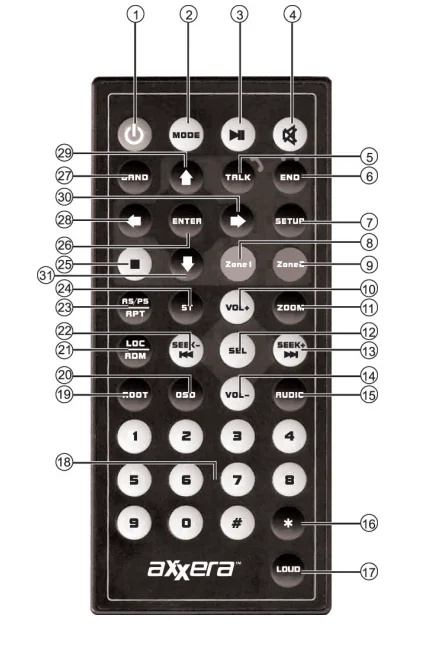

1. Power
2. Mode
3. Play / Pause
4. Mute
5. Talk
6. End Call
7. Setup
8. Zone 1
9. Zone 2
10. Volume Up
11. Zoom
12. Select
13. Seek Up / Next Track
14. Volume Down
15. Audio
16. * Key
17. Loudness
18. Number Keys
19. Root
20. OSD (On Screen Display)
21. Local / Random
22. Seek Down / Previous Track
23. AS/PS / Repeat
24. Stereo
25. Stop
26. Enter / Direct Tune
27. Band
28. SiriusXM Skip Backward
29. SiriusXM Channel Up
30. SiriusXM Skip Forward
31. SiriusXM Channel Down

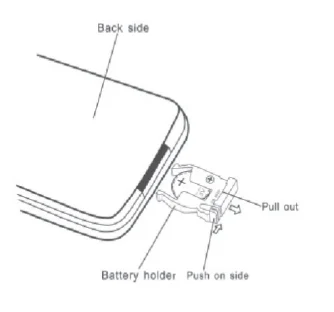

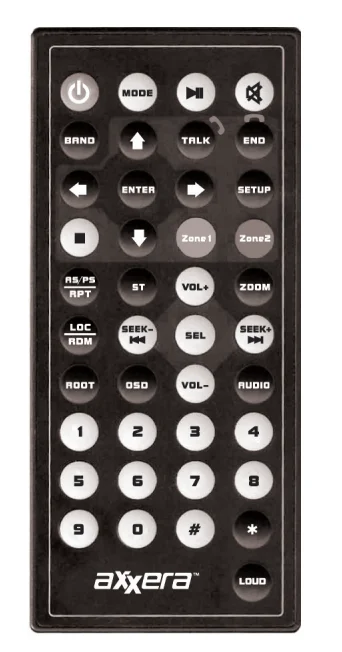

Remote Control Preparation

• Remove battery insulation tape.
• To insert or replace the battery, remove the battery holder.
• Remove the battery from the battery holder.

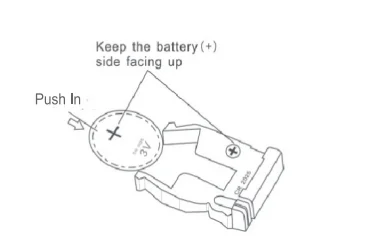

• Install the new battery. Make sure to keep the (+) side up.
• Insert the battery holder.

Notes:

• The remote control uses one 3-volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer.
• Remove and dispose of the battery properly.
• Do not store the battery with metallic objects or materials.

General Operation

• Power On/Off: Press to turn the unit on. Press and hold to turn the unit off.
• Mode: Press MODE to access available input modes: Radio, SiriusXM, Navigation, USB, Bluetooth Phone, Bluetooth Music, Rear Camera, AV In, and Settings. Modes of operation are indicated on the display and/ or the monitor. USB device must be connected/inserted to appear in the mode selection string.
• Volume: Press the Volume + or Volume – on the top of the front panel, the Volume pop-up window will show up on the screen. Press the Volume Button on the top of the front panel or swipe left and right on the volume on the pop-up window directly to adjust the volume level lower or higher(0~42).
• Mute: Press the volume + or volume – on the top of the front panel. The volume pop-up window will show up on the screen. Press the speaker icon in the volume pop-up window to turn mute on or off. When the volume pop-up window disappears on the screen, and the unit is in mute state, press the screen to cancel the mute.
• USB Port: Connect a USB device to the rear USB port to play MP3 files or view JPG photos.
• MicroSD Slot: The  MicroSD slot is for navigation use only. Use of any other MicroSD card may cause damage to the unit.
• Using AV Input: Connect an optional audio/video source to the rear auxiliary input[Red/White/Yellow RCA connectors].

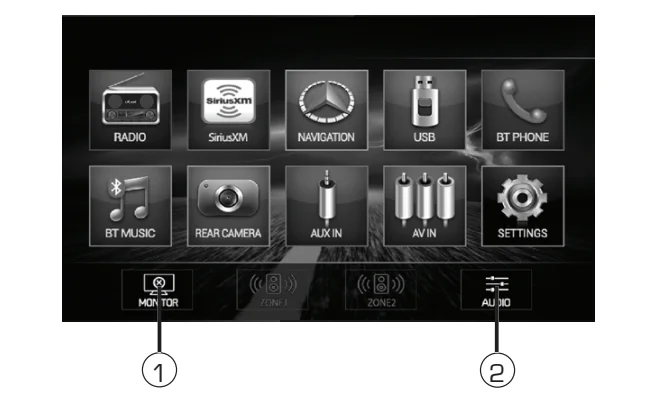

• Main Menu: From any operational mode, press the house icon in the top left corner to access the Main Menu screen.
  1. Adjust screen brightness or put the monitor into standby mode.
  2. Access audio settings such as EQ, Surround Sound Settings,s and Field Settings (Balance and Fader).
• Speaker Zone 1: Press the Zone 1 button to turn on/off the sound from this zone
• Speaker Zone 2: Press the Zone 2 button to turn on/off the sound from this zone.

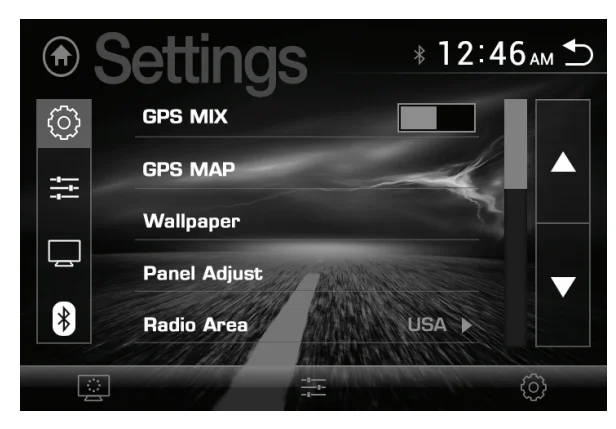

• Setup Menu:
  From the Main Menu screen, press Settings in the bottom right corner to access the Setup Menu and select from the following categories: General, Audio, Video, and Bluetooth.
  • General:
    • OSD Language – Select English as the language for the on-screen display.
    • Wallpaper – Select between three available wallpaper options.
    • Panel Adjust – Select to calibrate the touch screen.
    • Radio Area – Select your current geographic area: Europe, USA, South America, Russia, and Asia.
    • Time Setting – Adjust the current time (hours and minutes) and choose between a 12-hour and 24-hour clock.
    • SWC – Select to program steering wheel controls.
    • Beep – Select to turn the audible beep on or off.
    • Camera – Select to turn the rear camera on or off.
    • Version- Select to view information about the unit.
    • Restore Default- Select to restore the unit to default settings.
  • Audio:
    • Sound Effect – Select to access the three sound effect sub-menus.
      • EQ – Select from any preset equalization curve (Classic, Rock, Pop, Jazz, Beat, Flat) or use custom settings (User).
      • Subwoofer – Select the desired Subwoofer frequency and volume.
      • Loudness – Turn the Loudness setting On or Off.
      • Loudness Cutoff Frequency – Select the desired frequency as a cutoff for the Loudness setting.
  • Video:
    • Aspect Ratio – Select the desired aspect ratio: 4:3PS, 4:3LB, or 16:9.
    • Adjust – Select to adjust levels of Brightness, Contrast, Hue, Saturation,n and Sharpness.
    • Panel – Select to choose backlight settings: 10s, 20s, 3,0s or Off.
  • Bluetooth:
    • Auto Connect – Turn the auto connect feature on or off.
    • Auto Answer – Turn the auto answer feature on or off.

Operation

AM/FM Tuner Operation

Radio Operation

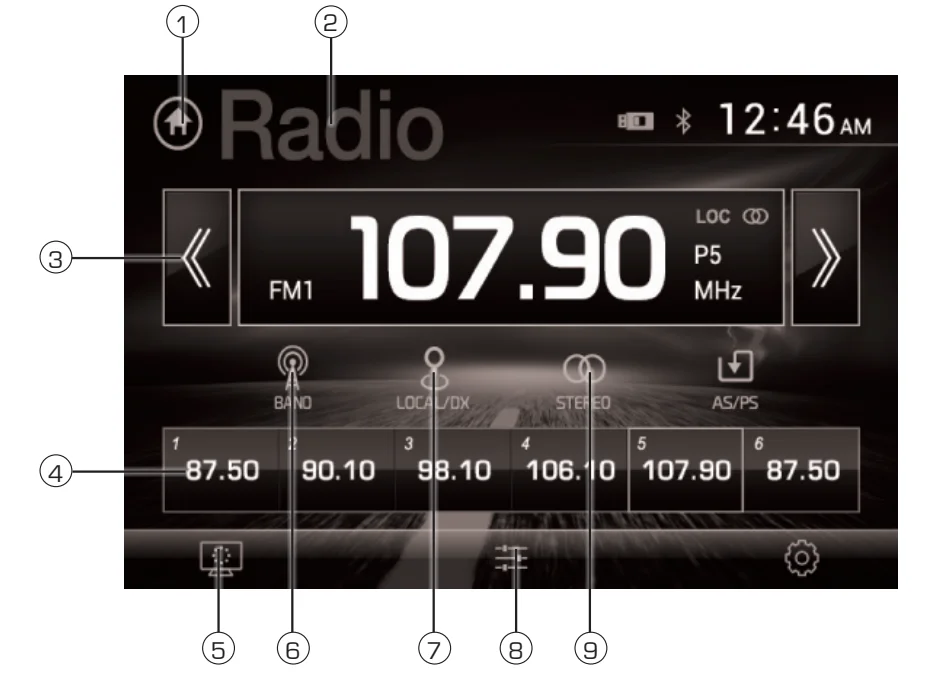

Select the Radio icon from the Main Menu screen.

1. Main Menu: Press to return to the Main Menu screen.
2. Current Mode Indicator: Displays current mode of operation.
3. Tune Frequency Down: Press momentarily to tune the unit down one step at a time. Press and hold to tune down by seeking the next strong station.
4. Preset Stations: To store a preset station, tune the unit to the desired station, then press and hold the desired preset button to store the current station in that preset spot. Up to 18 FM and 12 AM stations can be stored in memory. Momentarily press any preset station to play it instantly.
5. Screen: Press to adjust screen brightness or put the monitor into standby mode.
6. Band: Press to select between three FM and two AM bands.
7. Local / Distance: Press to toggle between LOCAL and DX (distance) tuning.
8. Audio: Press to access audio settings such as EQ, Surround Sound Settings,s and Field Settings (Balance and Fader).
9. Stereo / Mono: Press to toggle between Stereo and Mono tuning.

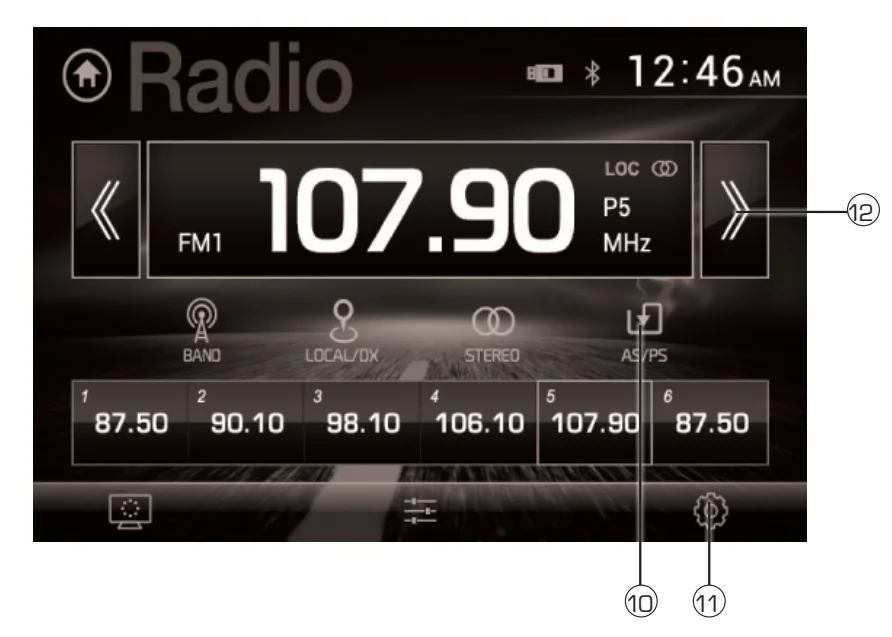

10. AS/PS: Press and hold to automatically store the six strongest stations in the current band as presets. Press briefly for a preset scan, which will scan all preset stations and play 10 seconds of each. Press again to cancel the scan and continue playing the current station.
11. Settings: Press to access the Settings Menu.
12. Tune Frequency Up: Press momentarily to tune the unit up one step at a time. Press and hold to tune up by seeking the next strong station.

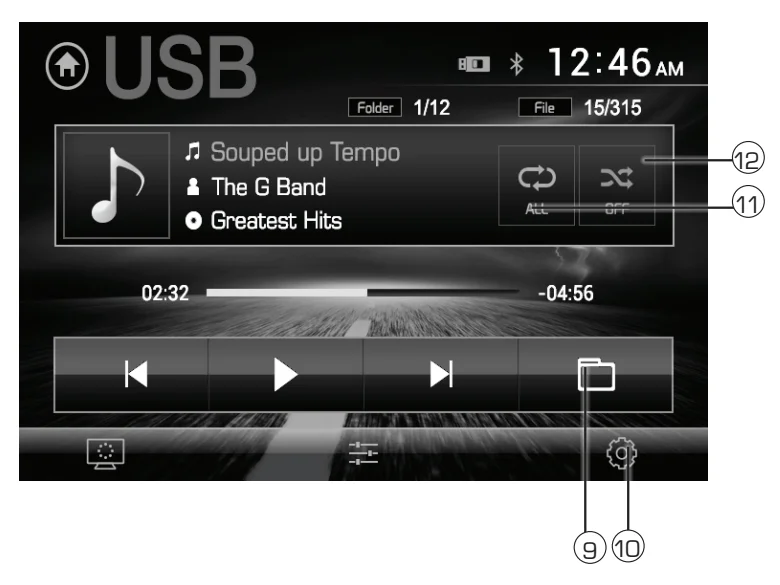

USB Operation

MP3 or JPG Operation

To play MP3 files from a USB device, insert the device and playback will begin automatically. To return to USB playback from another mode of operation, select the corresponding icon from the Main Menu.

• USB Playback – Insert a USB device into the USB slot on the front of the unit.

1. Main Menu: Press to return to the Main Menu screen.
2. Current Mode Indicator: Displays current mode of operation.
3. File Information: Displays information about the current file.
4. Screen: Press to adjust screen brightness or put the monitor into standby mode.
5. Tune / Track Down: Press momentarily to tune the unit down one step at a time. Press and hold to tune down by seeking the next strong station.
6. Play / Pause: Press to play or pause playback.
7. Audio: Press to access audio settings such as EQ, Surround Sound Settings,s and Field Settings (Balance and Fader).
8. Tune / Track Up: Press momentarily to tune the unit up one step at a time. Press and hold to tune up by seeking the next strong station.
9. Folder Search: Press to access the directory of folders and files. Use the up/down arrows to scroll through the folder list, then press on the name of the desired folder to access it. Use the up/down arrows to scroll through the file list, then press on the name of the desired file to access it.
10. Settings: Press to access the Settings Menu.
11. Repeat: Press to tuthe rn Repeat feature.
12. Random: Press to turn the Random feature on.

Bluetooth Operation

• Preparation: Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process.
• Pairing a New Device: The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “Axxera AVM211NAV”. The Bluetooth passcode is “0000”. The unit can be in any mode of operation when pairing is performed.
  Note: On certain phones, pairing may need to be done more than once if there are connectivity issues.
• Connecting a Paired Device: Most Bluetooth devices support the auto-connect feature and will connect automatically if the device is in range when the unit is powered-on. If your device was previously paired but does not connect, enter the Bluetooth setup menu and ensure that Auto Connect is On.

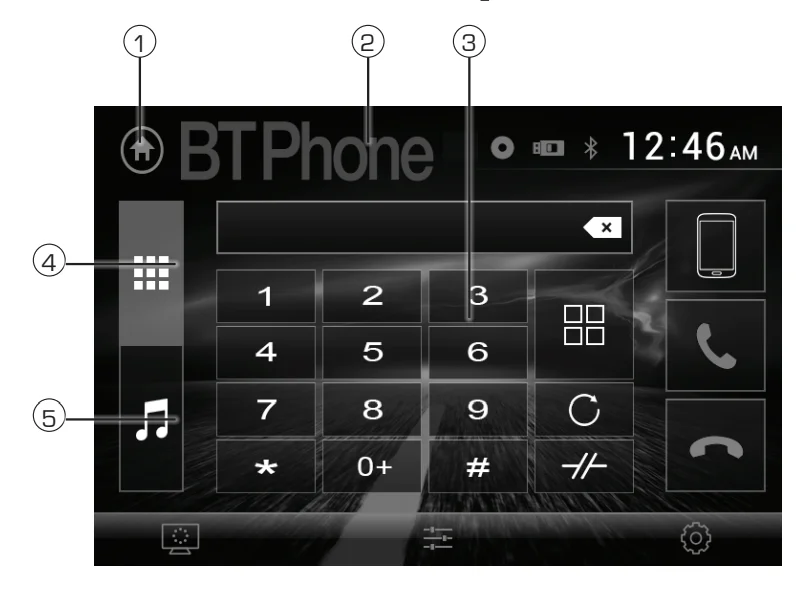

• Bluetooth Phone: To access the phone, select Bluetooth Phone from the Main Menu.

1. Main Menu: Press to return to the Main Menu screen.
2. Current Mode Indicator: Displays current mode of operation.
3. Phone Keypad: Use the phone keypad to dial the desired phone number. Alternatively, numbers can be dialed directly from the phone.
4. Phone: Press to display the keypad and dial a number.
5. Music: Press to play music using the Bluetooth connection.

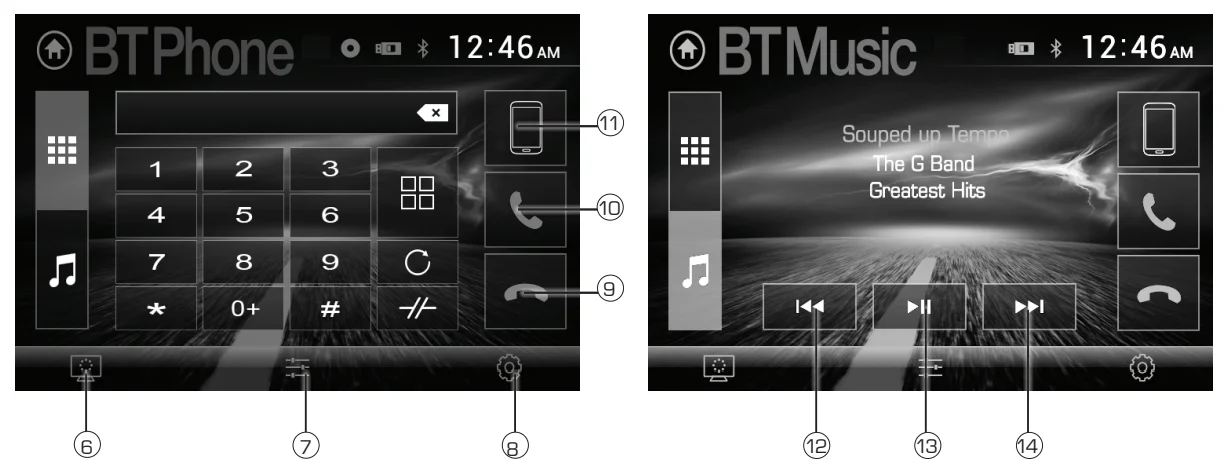

6. Screen: Press to adjust screen brightness or put the monitor into standby mode.
7. Audio: Press to access audio settings such as EQ, Surround Sound Settings, and Field Settings (Balance and Fader).
8. Settings: Press to access the Settings Menu.
9. End Call: Press the end of the current call.
10. Make a Call: Press to connect or answer a call.
11. Bluetooth Music: To use your Bluetooth connection to play music from your device, press #5 or select Bluetooth Music from the Main Menu.
12. Previous File/Track: Press to go back to the previous file or track.
13. Play / Pause: Press to pause or resume playback.
14. Next File/Track: Press to advance to the next file or track.

SiriusXM® Satellite Radio Operation

SiriusXM® Radio

Only SiriusXM® Satellite Radio brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy, and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

Activating SiriusXM® Radio

After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. After you can hear the Preview channel, tune to Channel 0 to find the Radio ID of your tuner. The Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging.

Note: SiriusXM Radio ID does not include the letters I, O, S, or F.

In the USA, activate online or by calling SiriusXM Listener care:

• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

• Visit www.siriusxm.ca/activatexm
• Call XM Customer Care at 1-877-438-9677

Activation typically takes 10-15 minutes, but may take up to one hour. It is recommended to leave your vehicle on until the “Subscription Updated” message appears. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.

Once activated, you can tune to channels in your subscription plan.

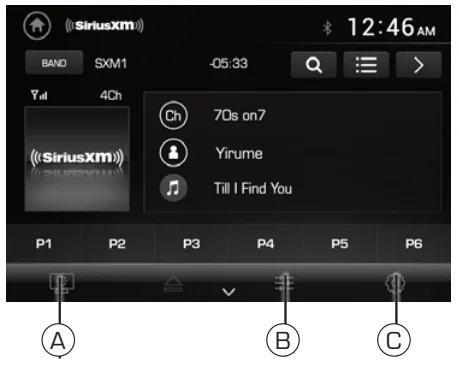

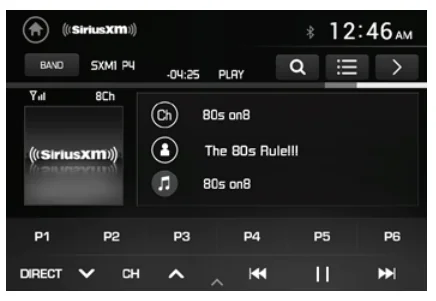

Accessing SiriusXM® Radio

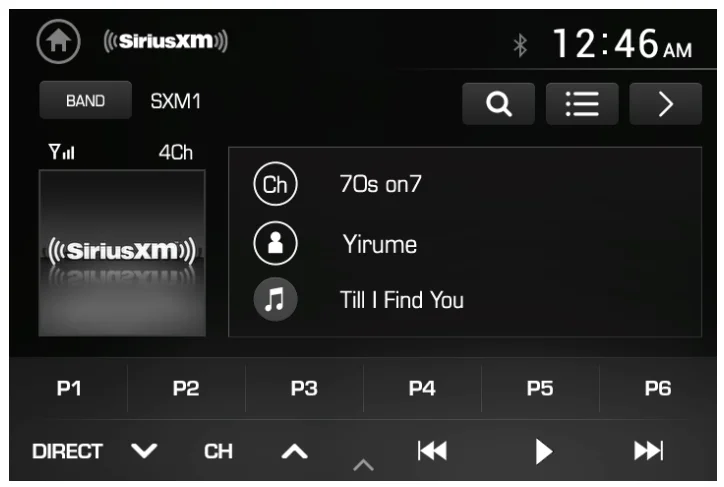

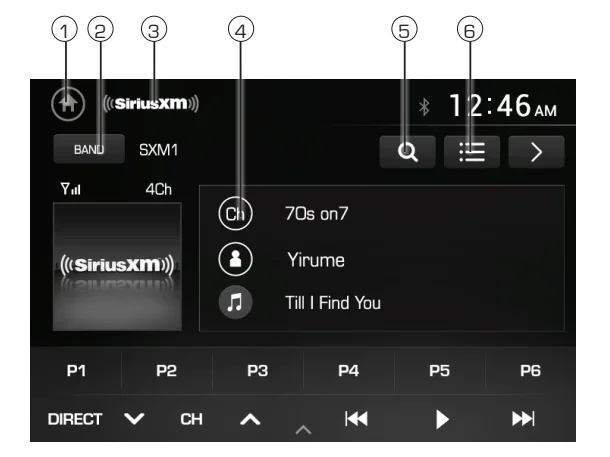

From the Main Menu, touch the SiriusXM icon to access SiriusXM mode and begin operation.

1. Main Menu: Press to return to the Main Menu screen.
2. Band:  Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to six preset channels. (Preset channels are accessed from the List icon.)
3. Current Mode Indicator: Displays the current mode of operation.
4. Program Information: Displays program information such as channel name, artist name, and song title.

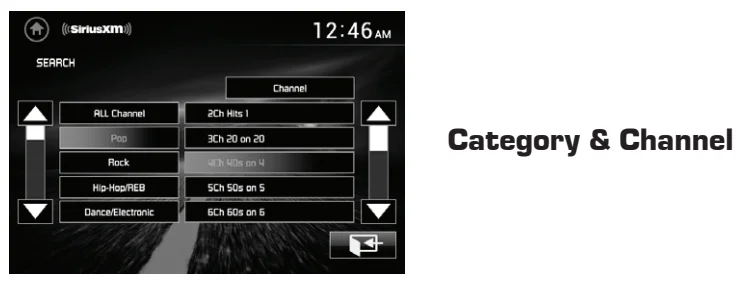

5. Search: Press to enter search mode, then press Channel to choose between the following search options: Channel, Artist, Song Title, or Info. Use the up/down arrows on the left side to navigate categories, and use the up/down arrows on the right side to navigate channels, artists, song titles,s or info.

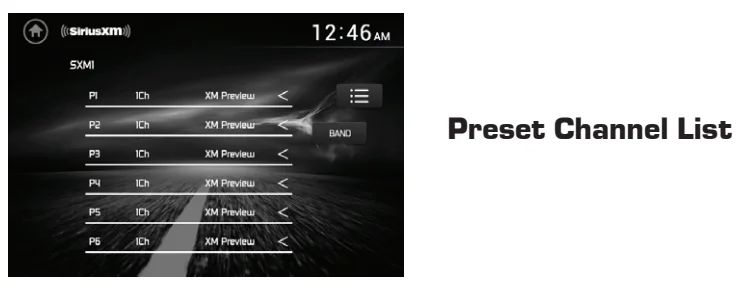

6. Preset Channel List: Press to display a list of preset channels in the current band.

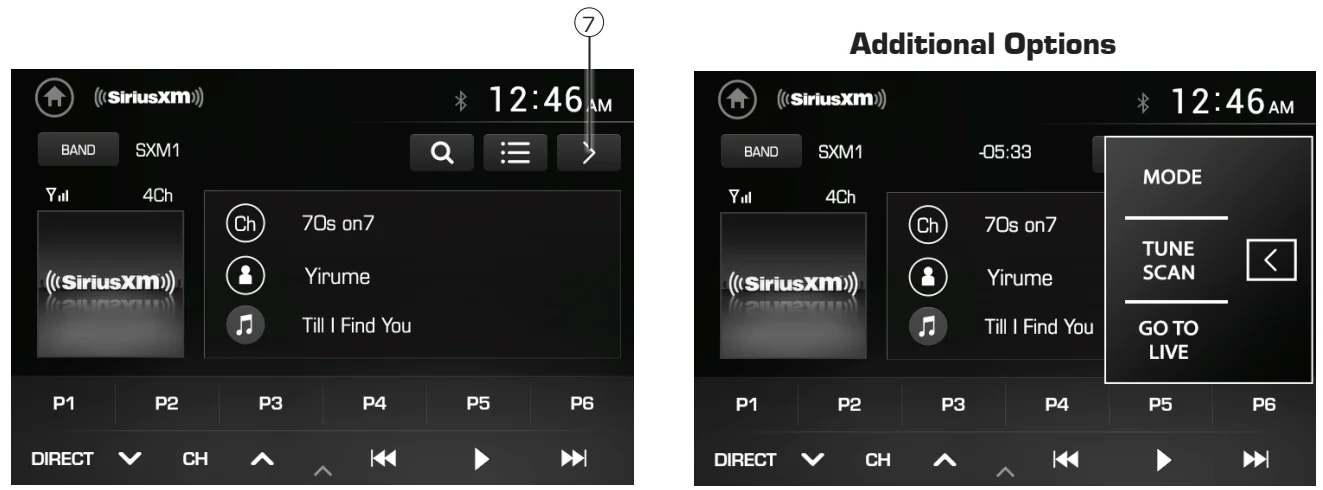

7. Additional Options: Press to display/adjust the options Mode, Tune Sc, and Go to Live:
   • Mode – Press to access and adjust the following options:
     • Parental Code – When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
       Press “Change” to change the parental code. Follow the prompts to enter the current code, then enter and confirm the new code. The default code for the unit is “0000”.
     • Parental Control – The Parental Control feature allows you to limit access to any SiriusXM channels, including those with mature content. Select a Parental Control option: Off (turns Parental Control o,ff) Mature (locks all mature channels), or User (allows the user to lock specific channels using the Parental Lock Channel feature).
       Enter the Parental Code when prompted to confirm the change.
     • Parental Lock Channel – Press “SET” to select specific channels to lock. Press “All Clear” to clear all locked channels.
     • Channel Skipping – If Parental Control is set to User, press “SET” to select channels to skip. Press “All Clear” to clear locked channels.
     • TuneStart™ – Press “ON” or “OFF” to enable or disable TuneStart.
       With TuneStart enabled, when the user tunes to a Smart Favorite channel that predominantly plays music selections, the unit plays the current track from the start so the user can enjoy the full track rather than joining the channel live broadcast (typically somewhere in the middle of the track).
   • TuneScan™ – Press “ON” or “OFF” to enable or disable TuneScan. With TuneScan enabled, when the user initiates the TuneScan function, the unit plays samples from the start of multiple buffered songs from each of the Smart Favorite channels that predominantly play music selections. This gives the user easy access to a large sampling of music content, and they can enjoy hearing a full song when stopping the scan on a song of interest.
   • Go to Live – Press to resume play of live broadcast while in Replay mode. See page 19 for information on Replay mode.

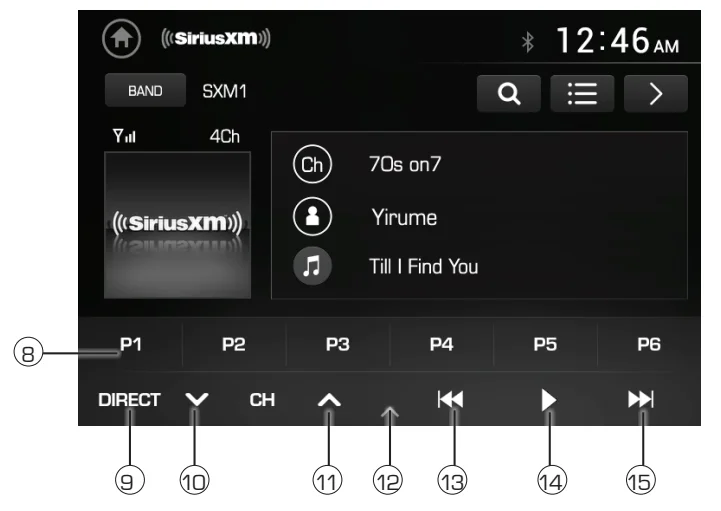

8. Preset Buttons: Press and hold any preset button (1-6) to save the current station as a preset. Press the desired preset button to begin playback of the corresponding preset channel.
9. Direct: Press to display the screen for direct channel access. Press the desired channel number, then press Enter. Playback of the desired channel will begin.
10. Channel Down: Press to go back to the previous channel.
11. Channel Up: Press to advance to the next channel.
12. On-Screen Controls: ReplayReplay is a feature that allows the user to pause, rewind, and replay content from the active channel. During Replay, the Replay bar will appear towards the top of the screen and display replay time in red and time to live in yellow. The time to live play will also be displayed as a number above the Replay bar.



    • Press to display the following controls at the bottom of the screen.
      • A. Press to adjust screen brightness or put the monitor into standby mode.
      • B. Press to access audio settings such as EQ, Surround Sound Settings, and Field Settings (Balance and Fader).
      • C. Press to access the Settings Menu.
13. Tune / Track Down: Press to enter Replay mode. Once in Replay mode, press to skip to the previous track or press and hold to fast reverse.
14. Play / Pause: Press to pause and replay content from the active channel.
15. Tune / Track Up: Press to skip to the next track. Press and hold to fast forward. Press repeatedly to “catch up” and resume live play. Selecting Go to Live under Additional Options will also resume live play.

Troubleshooting

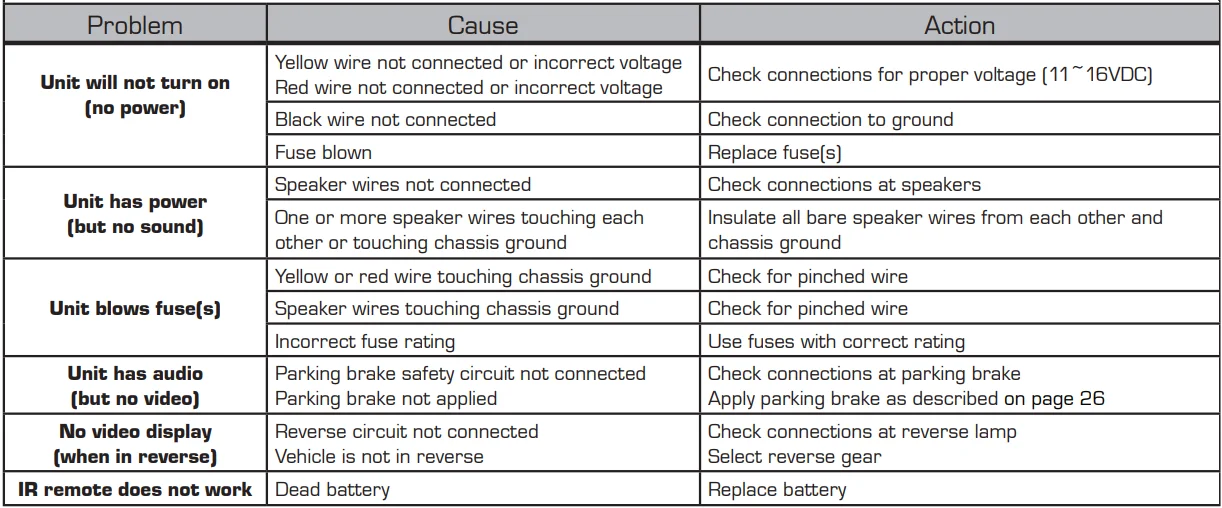

General

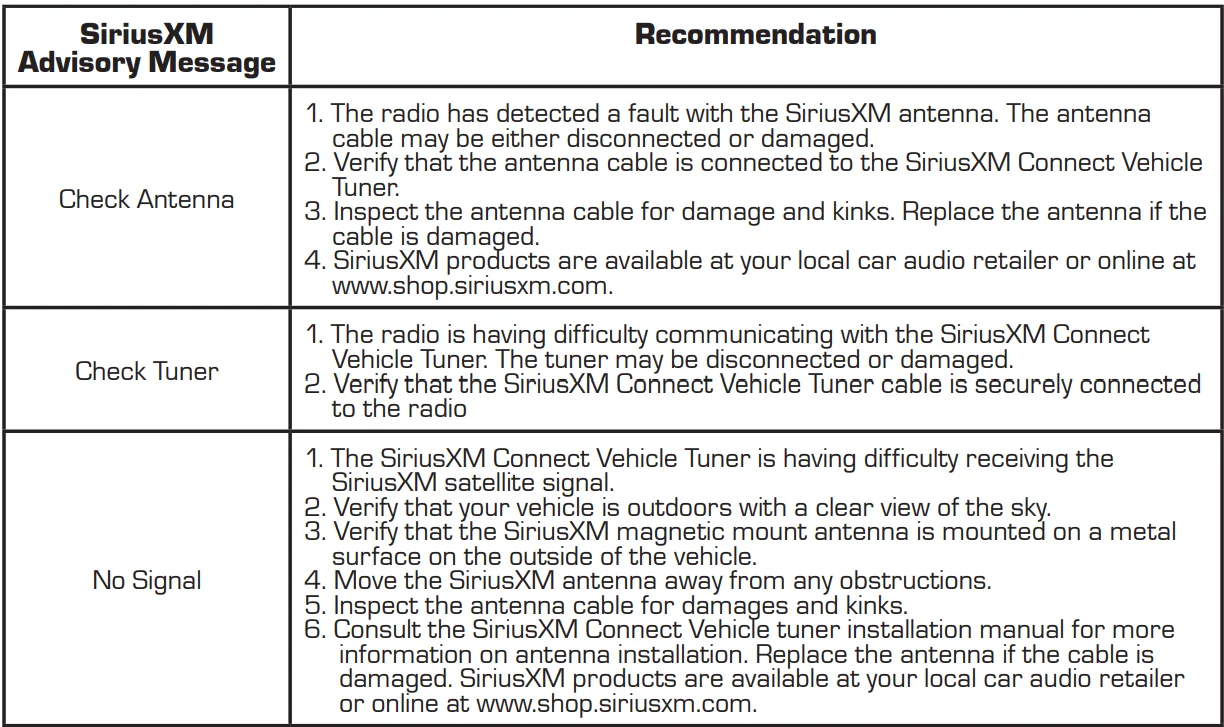

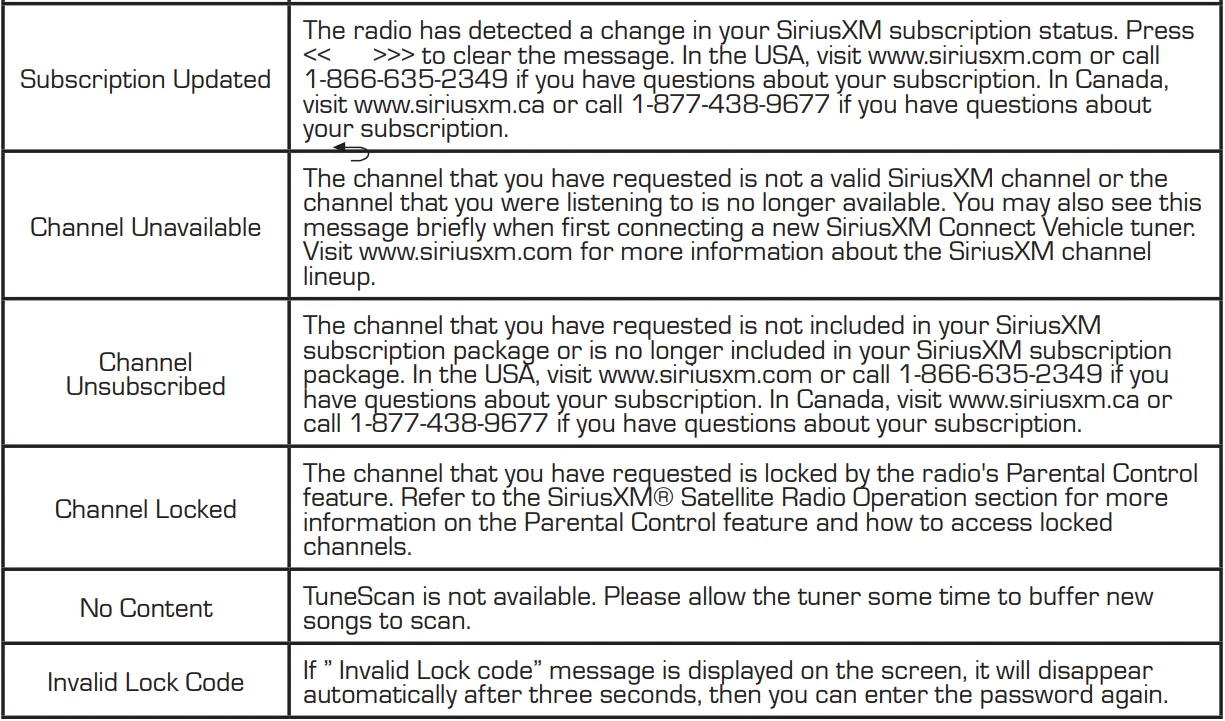

SiriusXM Troubleshooting

Specifications

• FM Tuner:
  • Tuning range: 87.5MHz-107.9MHz
  • Usable sensitivity: 10dBf
  • 50dB quieting sensitivity: 20dBf
  • Stereo separation @ 1kHz: 38dB
  • Frequency response: 30Hz-13kHz
• AM Tuner:
  • Tuning range: 530kHz-1710kHz
  • Usable sensitivity: 24uV
  • Frequency response: 30Hz-2.3kHz
• Front USB:
  • Compatibility: High Speed USB 2.0
  • USB Class: Mass storage class
• Monitor:
  • Panel size: 10.1” diagonal measurement
  • View angle (up/down/left/right): 50/70/70/70
  • Resolution: 800 (H) x 480 (V)
  • Brightness (cd/m2): 250
  • Contrast ratio: 450:1
  • Pixels: 1,152,000
• General:
  • Speaker output impedance: 4 ohms
  • Line output voltage: 4 volts RMS
  • Line output impedance: 200 ohms
  • Chassis dimensions: 7″ x 7″ x 4″ (W x D x H)

Design and specifications subject to change without notice.

For more manuals by Blogs, visit ManualsLibraryy

Axxera AVM211NAV Multimedia Receiver- FAQs
