Beautiful 9-qt Trizone Air Fryer User Manual

Beautiful 9-qt Trizone Air Fryer

Safety

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles or knobs. Use oven mitts or potholders.
3. To protect against electric shock, do not immerse the cord, plugs, or appliance in water or other liquids.
4. This appliance may be used and cleaned by children aged 8 and older or by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, ONLY IF they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance.
6. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Bring it to a qualified technician for examination, repair or electrical or mechanical adjustment.
   NOTE: DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF. THIS WILL VOID THE WARRANTY.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. To disconnect, pressand pull the active fryer basket out of the air fryer body. Remove plug from wall outlet.
14. Do not use the appliance for anything other than its intended use.
15. When using the crisping tray(s), make sure they are properly inserted into the air fryer basket before cooking.
16. Make sure the crisping tray is in place before adding food to be air-fried.
17. Always make sure the air fryer basket is fully inserted and locked into the front of the Air Fryer before operation.
    WARNING: The air fryer will not operate unless the air fryer basket is fully closed.
    CAUTION: After hot air frying, roasting, broiling, baking, or reheating, the fryer basket, crisping trays (if used), and the cooked foods are hot. Extreme caution must be used when handling the hot Air Fryer basket and crisping trays.

FOR HOUSEHOLD USE ONLY. SAVE THESE INSTRUCTIONS

NOTES ON THE CORD

• A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• B. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
• C. If a long detachable power-supply cord or extension cord is used:
  1. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.
  2. If the appliance is of the grounded type, the extension cord should be a grounded three-wire cord.
  3. The longer cord should be arranged so that it does not drape over the countertop or table top, where it can be pulled on by children or tripped over unintentionally.

PLASTICIZER WARNING

CAUTION: To prevent Plasticizers from migrating from the finish of the countertop or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the countertop or table top. Failure to do so may cause the finish to darken; permanent blemishes may occur, or stains can appear.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.

Instructions

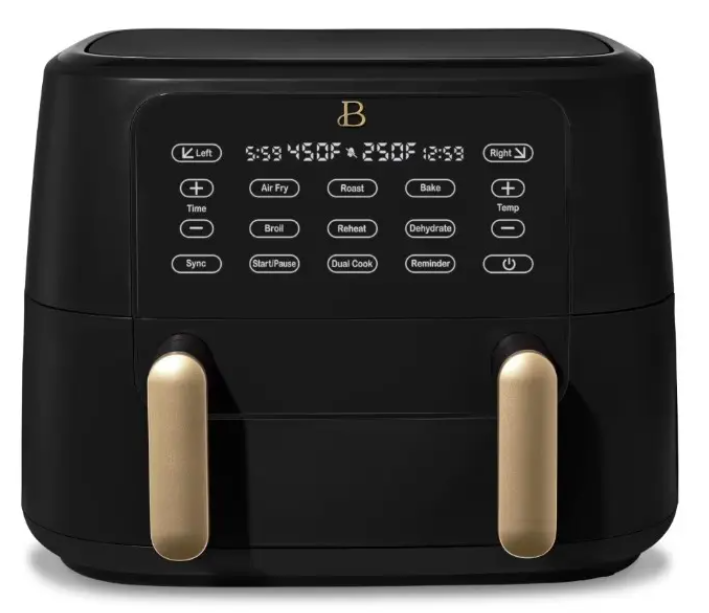

Getting To Know Your 9qt TriZone™ Air Fryer. The product may vary slightly from the illustration

1. Touch-Activated Display Control Panel
2. 9QT Removable TriZone™ AirFryer Basket
3. Power Cord with Polarized Plug (not shown)
4. Non-Skid Feet (not shown)

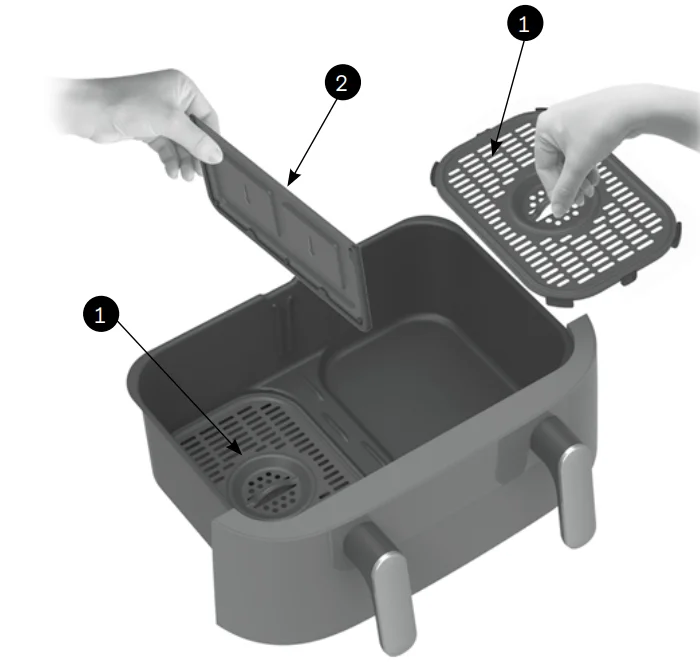

1. 2 Non-Stick Crisping Trays
2. Basket Divider

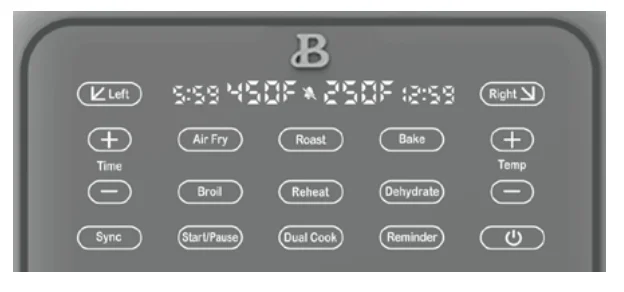

Touch-Activated Display Control Panel

A screen that only shows up when you need it.

Thebutton and any FUNCTION button will illuminate when active and vanish when not in use. Steady high heat combined with convection air, ensures crispy results with a minimum or no oil. This Beautiful™ TriZone™ Air Fryer can be programmed for precision TIME and TEMPs. No need to hover in the kitchen. When TIME expires, the Air Fryer turns OFF automatically.

1. ON/OFF
2. Dual Digital TIME/TEMP Display
3. LEFT / RIGHT Zone Control
4. AIR FRY
5. ROAST
6. BROIL
7. BAKE
8. REHEAT
9. DEHYDRATE
10. TEMPERATUREand
11. TIMEand
12. REMINDER
13. SYNC
14. DUAL COOK
15. START/PAUSE

• When the Air Fryer is plugged in, a tone will sound, the control panel will illuminate for 1 second. Thebutton will illuminate and then pulse slowly on and off.
• Whenis pressed, a tone will sound, the 6 preset functions: AIR FRY, ROAST, BAKE, BROIL, REHEAT, DEHYDRATE and the DUAL COOK icons will illuminate and remain active for 5 minutes.
• When in operation, pressto turn the whole unit off.
• The sound function can be muted/unmuted by pressing thebutton for 3 seconds.

• When the pulsingis pressed, a tone will sound, and the 6 preset functions: AIR FRY, ROAST, BAKE, BROIL, REHEAT, DEHYDRATE, and the DUAL COOK button will illuminate. Press any preset FUNCTION button to continue.
• When any of the 6 preset FUNCTION buttons (AIR FRY, ROAST, BAKE, BROIL, REHEAT, DEHYDRATE) has been pressed, a tone will sound and the default TIME and TEMP will illuminate and continue to flash on your screen.
• Press TIMEorto increase or decrease cook TIME.
• Press TEMPorto increase or reduce TEMP in 5 degree increments.
• Press and holdorcan quickly adjust the TIME and TEMP.
  NOTE: By DEFAULT, the 9Qt TriZone™ Air Fryer is set up to use the whole 9Qt basket (with divider removed).
• When the DUAL COOK button has been pressed, a tone will sound and the LEFT and RIGHT buttons will illuminate and the DEFAULT LEFT button will continue to flash on your screen notifying you to program the LEFT Zone (left side) first, followed by the RIGHT zone in order to cook 2 different foods at once.
• Press the LEFT or RIGHT button to program the Left or Right zone. While LEFT or RIGHT flashes, press any preset FUNCTION button to continue.
  NOTE: LEFT or RIGHT zones may be programmed independently, at any time before or during operation.NOTE: Be sure to add the basket divider if you are going to use DUAL COOK (Left and Right zones) of the TriZone™ air fryer basket. See instructions to add the basket divider. (Figure 1)
• The LEFT or RIGHT button will illuminate steadily on the screen when active. To adjust or add programming at any time, press the appropriate LEFT or RIGHT zone control button. When the button begins to flash, TEMP/TIME can be adjusted.
• Press TIMEorto increase or decrease cook TIME.
• Press TEMPorto increase or reduce TEMP in 5 degree increments.
• Press and holdorcan quickly adjust the TIME and TEMP.

• Press REMINDER to turn this feature ON. The Reminder button will flash when selected.
• For all preset FUNCTION selections except BROIL, REHEAT and DEHYDRATE, 5 tones will sound at 2/3 of the cook time, to remind you to shake the basket.

• With the basket divider in place, program each zone independently with its own cook times and temperatures.
• The default for DUAL COOK is to program the LEFT zone first, then RIGHT
  TIP: Do not set two extreme opposing temperatures in each zone. Even with the basket divider in place, the temperature from the hotter zone can affect the cooking temperature in the other zone.

• Both LEFT and RIGHT zones must be programmed first.
• Press SYNC to ensure both zones will complete cooking together.
• HOLD will appear on the display as the TriZone™ Air Fryer synchronizes the final cook times.
  NOTE: Once cooking has started SYNC function will not be operable.
• DEHYDRATE is not an option when you select SYNC.

• Pressto START the cooking process or to PAUSE any operation.

Before Using for the First Time

Remove all packing material and labels from the inside and outside of the Air Fryer. Check that there is no packaging underneath and around the fryer basket and crisping trays.

1. Your 9qt TriZone™ Air Fryer is shipped with 2 crisping trays and
   the basket divider packaged inside the TriZone™ air fryer basket.

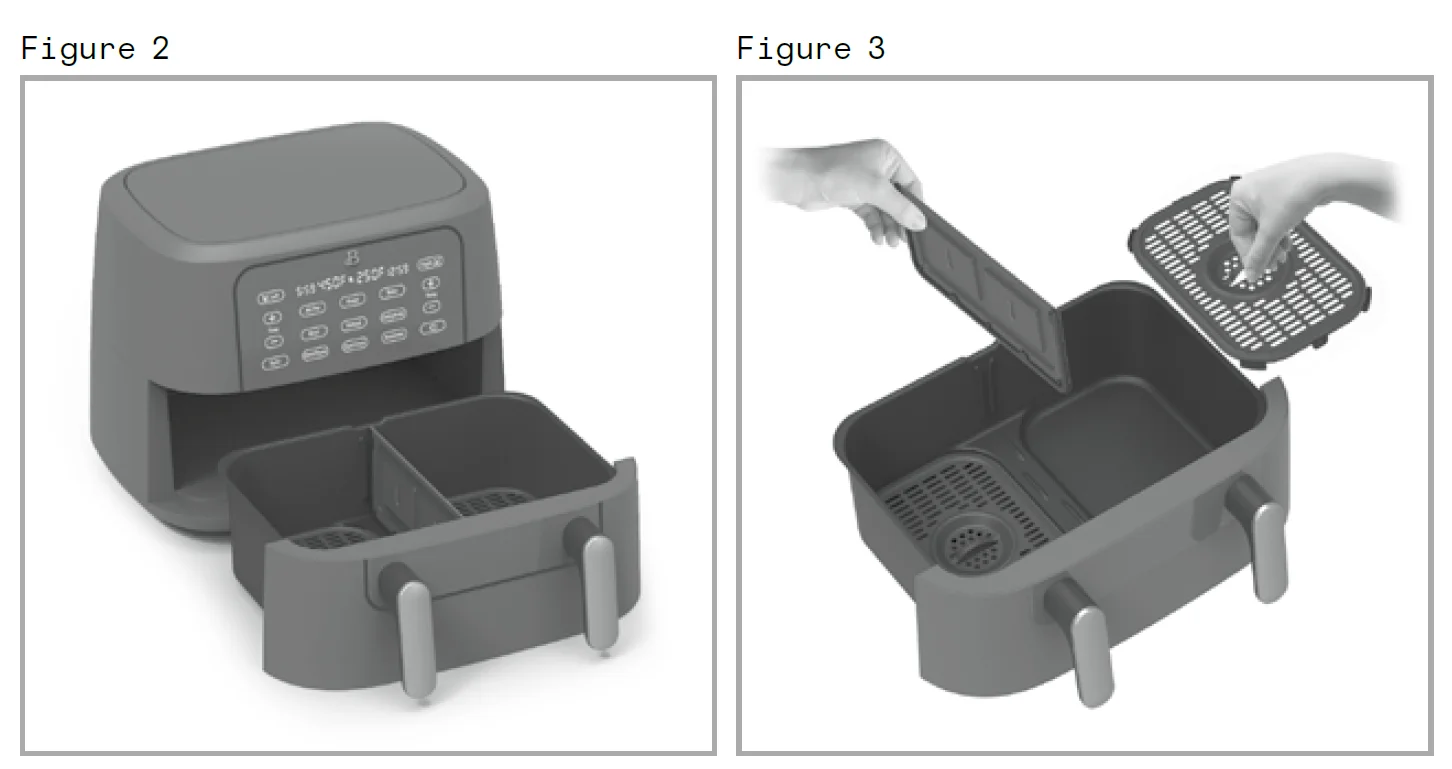

2. Firmly grasp the fryer basket handles to pull fryer basket out of the main body.
3. Grasp the basket divider and crisping tray handle and lift to remove from the basket. (Figure 1)
4. Wash the fryer basket, crisping trays, and basket divider in hot,
   soapy water.
5. DO NOT IMMERSE THE AIR FRYER BODY IN WATER. Wipe the Air Fryer body with a damp cloth. Dry all parts thoroughly.
6. Replace the crisping trays in the fryer basket. With the handle facing up, insert each tray so that the rubber corners fit and lock securely into each basket.
   NOTE: If you plan on using only ONE zone (one side) when using DUAL COOK, be sure to place the divider firmly in the middle of the air fryer basket.

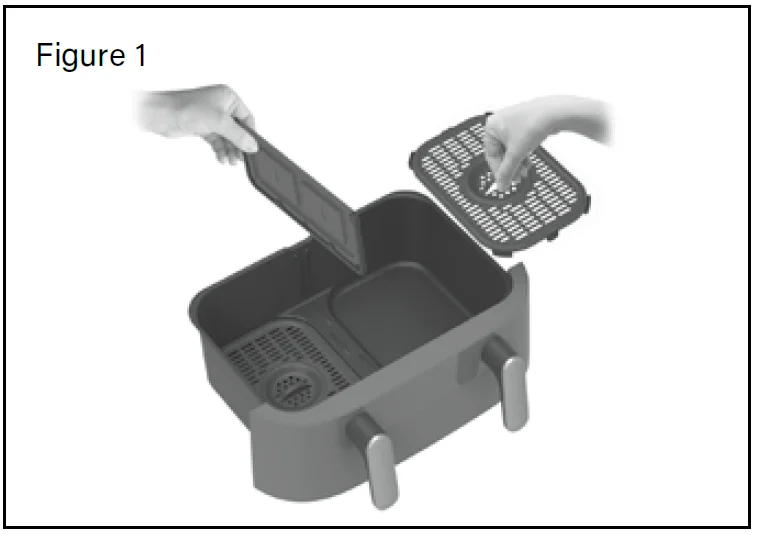

   NOTE: Refer to Figure 1 for directions to insert the basket divider. Follow the arrow direction on the basket divider to ensure that you insert the basket divider the correct way.
7. Due to base unit’s gracious front curve, the air fryer basket must be properly inserted.
   NOTE: During first use, the TriZone™ Air Fryer may emit a slight odor. This is normal and will not affect flavor.

Operating Instructions

IMPORTANT! The maximum food capacity recommended for the Air Fryer basket is 9 quarts or 7.5 lbs. of food. Using the full basket will enable you to feed up to 9 people.

WARNING! This TriZone™ Air Fryer should not be used to boil water.
WARNING! This TriZone™ Air Fryer should never be used to deep fry foods.

1. Place the TriZone™ Air Fryer on a flat, stable, heat-resistant work area, close to an electrical outlet. (Figure 2)
2. If needed, add crisping tray(s) and insert basket divider (add basket divider only if you are planning to use ONE zone or using DUAL COOK (both LEFT and RIGHT zones). See “Before Using for the First Time” for a detailed description.
   (Figure 1)
3. Place food into the fryer basket. Do not overfill. To ensure proper cooking and air circulation, NEVER fill any fryer basket more than 2/3 full. When air frying fresh vegetables, we do not recommend adding more than 4 to 6 cups of food to the fryer basket. (Figure 4)
   NOTE: Up to 6 cups of ingredients may be dehydrated as food will shrink to a fraction of its original volume. Place a single layer of ingredients into the empty air fryer basket. Create a second layer by placing the crisping tray into the basket over the ingredients. Add food on top of the crisping tray.
4. Insert the assembled fryer basket into the front of the TriZone™ Air Fryer. Always make sure the fryer basket is fully inserted and fully closed before operating.
   NOTE: By default, the air fryer uses its full capacity. Please remove the basket divider. If you plan on using Dual Cook or only a Single Zone, please insert the basket divider to control the temperature in the left or right zone.

6 Preset FUNCTIONS: AIR FRY, ROAST, BROIL, BAKE, REHEAT, and DEHYDRATE

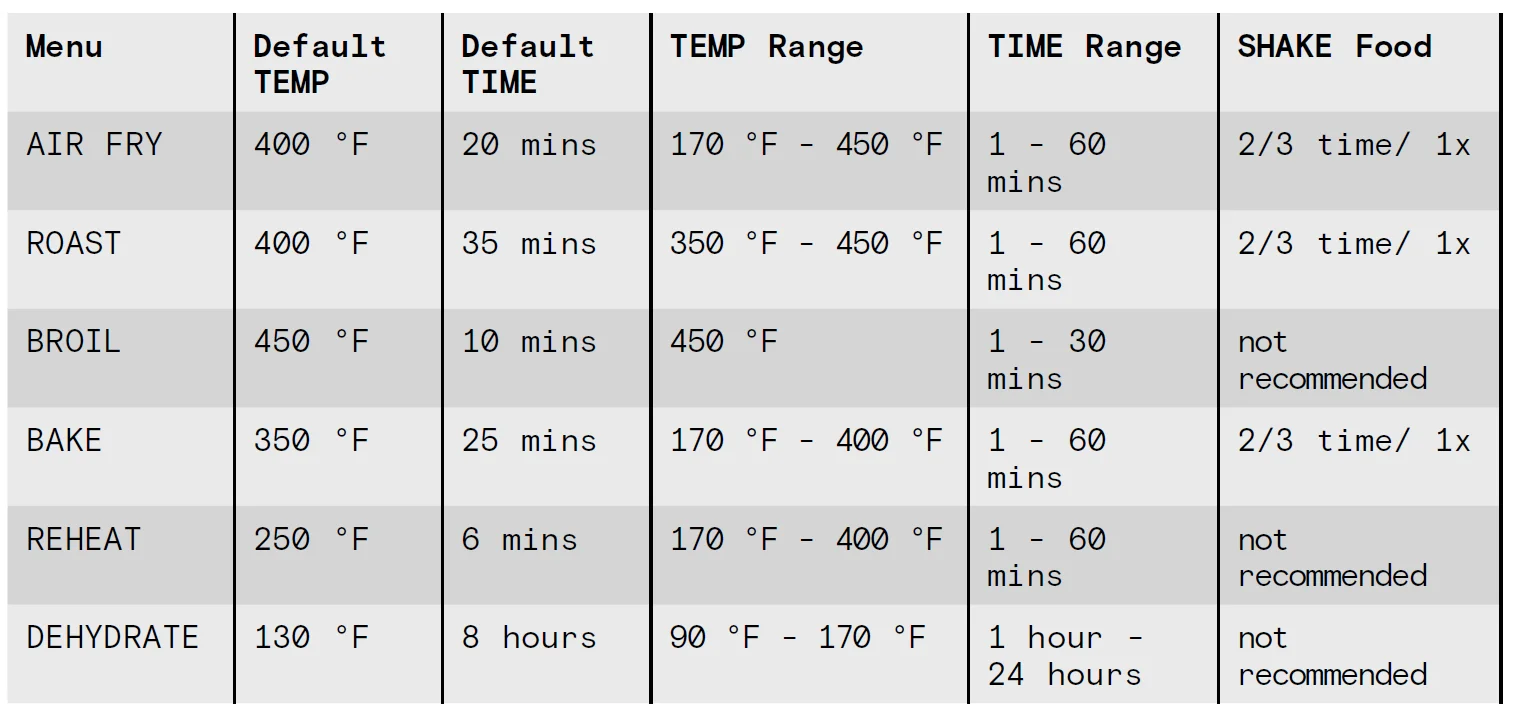

Preset TEMPS & TIMES Chart

MANUAL OPERATION

Consult the PRESET TIMES & TEMPS chart for minimum and maximum programming options.

1. To change default TIME before or during cooking, simply press the andandbuttons to adjust the TIME or press theandbuttons to adjust the TEMP.
2. When the desired TIME and TEMP appear on the digital display, press START/PAUSE to turn the Air Fryer ON. The target TIME will begin to count down.
3. When the remaining TIME reaches 00:00, will appear and 2 tones will sound as the Air Fryer automatically turns OFF.
   NOTE: The quantity, density, weight of food will alter the total cooking time necessary. Remember, frying smaller batches will result in shorter cooking times and higher food quality.
4. To adjust the air frying TIME or TEMP during operation use TIME or TEMP or to advance or decrease TIME or TEMP as you cook.

TriZone™ Mode: Using the Full Basket without Basket Divider (Using both zones without basket divider)

1. Plug cord in the wall outlet. An audible tone will sound and the control panel will illuminate. Thebutton will illuminate and slowly pulse.
2. Pressagain. The 6 presets AIR FRY, ROAST, BROIL, BAKE, REHEAT, DEHYDRATE and DUAL COOK will light up as default for TriZone™ Mode (using both zones and entire basket simultaneously).
3. Select one of the 6 presets FUNCTIONS. A tone will sound. All other function buttons and DUAL COOK will vanish when not in use. The default TEMP and TIME, and START/ PAUSE will illuminate and begin to flash. Theandbuttons for TEMP and TIME adjustments will also illuminate. If you wish to select another preset, you can go back by pressing.
   NOTE: REMINDER will ONLY illuminate when you select AIR  FRY, ROAST, and BAKE functions. REMINDER is not an option when you select BROIL, REHEAT, or DEHYDRATE.
4. You can now adjust the temperature by pressing theoron the right side of the screen and adjust the time by pressing theoron the left side of the screen.
   TIP: You have the option of using the Reminder feature if you select AIR FRY, ROAST or BAKE. Press REMINDER to set a reminder to shake or flip your food at 2/3 the cooking time for even air frying n the surface of the food.
5. Press START/PAUSE, and the unit will begin working. The timer will begin to count down. The right side of the display will indicate the temperature, and the left side will display the remaining time.
   NOTE: At any time during operation, you can adjust the time or temperature by pressing the respectiveorbuttons.
6. Pressing START/PAUSE will pause the cooking. Pressing it again will restart the cooking.
7. Pressbutton, the unit will stop and return to standby mode.

Dual Cook: Using both Zones (LEFT and RIGHT side) with Basket Divider

1. Plug the cord into the wall outlet. An audible tone will sound, and the control panel will illuminate. Thebutton will illuminate and slowly pulse.
   NOTE: Insert the basket divider into the middle of the air fryer basket as well as adding both crisping trays (crisping trays optional).
   NOTE: Refer to Figure 1 for directions to insert the basket divider.
   Follow the arrow direction on the basket divider to ensure that you insert the basket divider the correct way.
2. Pressagain. The 6 preset functions, AIR FRY, ROAST, BROIL, BAKE, REHEAT, DEHYDRATE, and DUAL COOK buttons will illuminate.

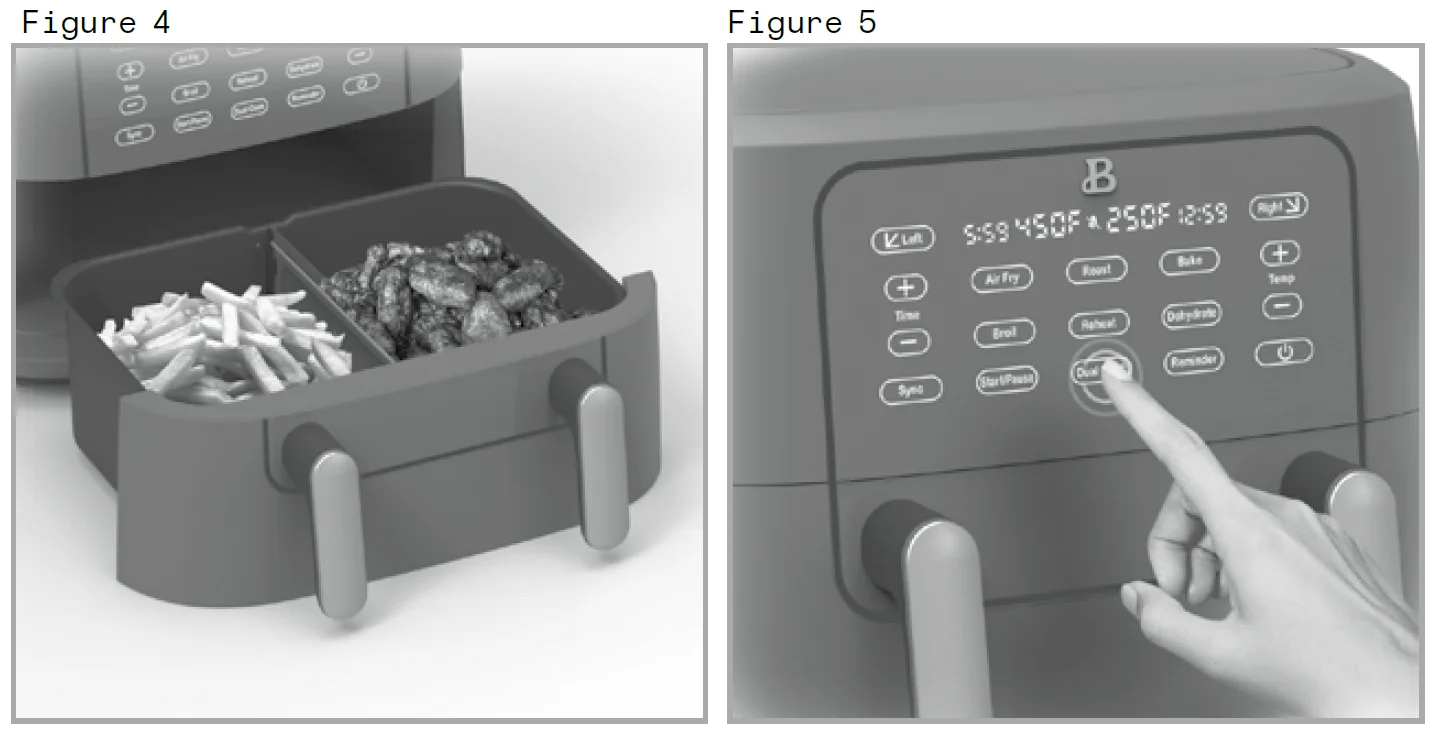

3. Select DUAL COOK (Figure 5). A tone will sound. Both the LEFT and RIGHT buttons will illuminate on your screen and the default LEFT button will begin to flash.
4. You are now ready to program the LEFT zone. Select one of the 6 presets FUNCTIONS. A tone will sound. All other function buttons will vanish when not in use. The default TEMP and TIME, START/PAUSE and LEFT button will illuminate and begin to flash. Theandbuttons for TEMP and TIME adjustments and SYNC will also illuminate on your screen. If you wish to select another preset, you can go back by pressing.
   NOTE: REMINDER will ONLY illuminate when you select the AIR FRY, ROAST, and BAKE functions. REMINDER is not an option when you select BROIL, REHEAT or DEHYDRATE.
5. To adjust the temperature of the LEFT zone, press theoron the right side of the screen. To adjust the TIME, press theandon the left side of the screen.
   TIP: You have the option of using the REMINDER feature if you select AIR FRY, ROAST, or BAKE functions. Press REMINDER to set a reminder to shake or flip your food at 2/3 the cooking time for even air frying on the surface of the food.
   TIP: You also have the option of pressing SYNC to sync the finish cooking time of the other basket if both your foods follow different recipes & different cooking times.
6. Press the RIGHT button on the screen to program the RIGHT zone and follow the same steps as points 4 through 5: i.e., select a preset and adjust the time and temperature for the RIGHT zone.
7. Press the START/PAUSE button to begin operation. Pressing it again will pause the cooking cycle for both LEFT and RIGHT zones.
   NOTE: At any time during operation, you can adjust the time or temperature by pressing the respectiveor. You will need to select the LEFT or RIGHT zone first.

Air Fry Technique

Please consult the Air Fry / Roast Cooking Chart and/or follow package directions for suggested TIME and TEMP.

1. Always pat food dry before cooking to encourage browning and avoid excess smoke.
2. To assure even cooking/browning, ALWAYS open the air fry basket halfway to 2/3 through the cooking time and check, turn or shake foods in the fryer basket. Some recipes may call for brushing or spraying oil halfway through cooking. Adjust TEMP or TIME if needed.
   WARNING: Extreme caution must be used when handling any hot fryer basket or crisping tray. Avoid escaping steam from the fryer basket and the food.
   CAUTION: Always use oven mitts when handling the hot air fryer basket.
   CAUTION: Hot oil can collect at the base of the basket. Use caution when removing cooked foods.
3. To avoid excess smoke, when cooking naturally high-fat foods, such as bacon, chicken wings or sausages, it may be necessary to empty fat from the fryer basket between batches.
4. To ensure crispiness, make sure the skin or exterior surface of your food is dry! Air fry small batches of freshly breaded foods. Create more surface area by cutting food into smaller pieces. Press breading onto food to help it adhere. Refrigerate breaded foods for at least 30 minutes before frying.
5. To improve crispiness, dust poultry skin or the exterior surface lightly with corn starch. Spray with oil.

Limited Two-Year Warranty

Sensio Inc. dba Made by Gather hereby warrants that for a period
of TWO YEARS from the date of purchase, this product will be free
from mechanical defects in material and workmanship, and for 90 days in respect to non-mechanical parts. At its sole discretion, Sensio Inc. dba Made by Gather™ will either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. The warranty is only valid for the original retail purchaser from
the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty.

Exclusions:

The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper
voltage or current, improper routine maintenance, use contrary to the
operating instructions, disassembly, repair, or alteration by anyone
other than qualified Sensio Inc. dba Made by Gather™ personnel.
Also, the warranty does not cover Acts of God such as fire, floods,
hurricanes or tornadoes. Sensio Inc. dba Made by Gather™ shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in time to the duration
of the warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specific legal rights which may vary by state, province and/or jurisdiction.
