BEGA 24625K3 Ceiling Mounted Compact Downlight

Instructions for use

Application

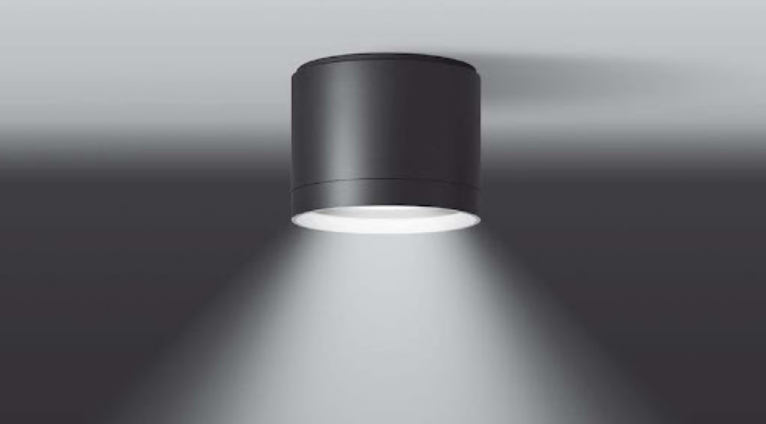

Compact downlight with symmetrical wide beam light distribution.

Product description

• Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology
• Colour: graphite or white
• Safety glass with optical structure
• Optical silicone lens · BEGA Hybrid Optics®
• Reflector surface made of pure aluminium

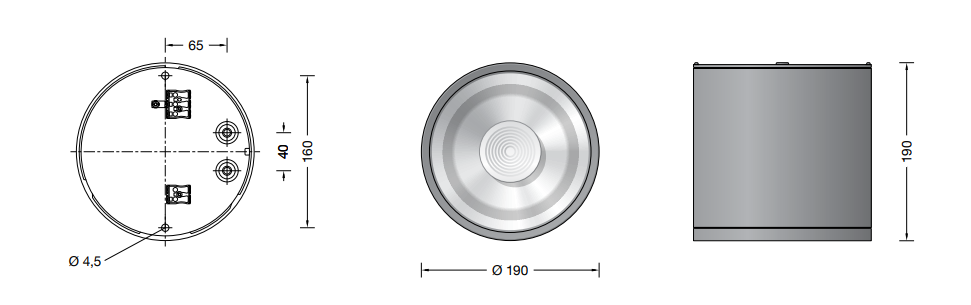

• 2 mounting holes ø 4.3 mm
• Distance apart 160 mm
• 2 cable entries for through-wiring of mains supply cable ø 7-12 mm,
• max. 5 x 2,5@
• Connection terminal 2.5@
• Earth conductor connection BEGA Ultimate Driver®
• LED power supply unit 220-240 V x 0/50-60 Hz
• DC 176-264 V
• DALI-controllable
• Number of DALI addresses: 1
• Basic insulation is provided between the mains and control cables
• BEGA Thermal Control®
• Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
• Safety class I
• Protection class IP 65
• Dust-tight and protection against water jets
• Impact strength IK09
• Protection against mechanical impacts < 10 joules
• – Safety mark
• – Conformity mark
• Weight: 2.6 kg
• This product contains light sources of energy efficiency class(es) D

Overvoltage protection

The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.

To achieve an additional protection against e. g. transients, etc, c. We recommend separate overvoltage protection components. You can find them on our website at www.bega.com.

Safety

The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician. The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Lamp

• Module connected wattage 35.7 W
• Luminaire connected wattage 38.2 W
• Rated temperature ta = 25 °C
• Ambient temperature ta max = 50 °C

24 625 K3

• Module designation LED-0785/830
• Colour temperature 3000 K
• Colour rendering index CRI > 80
• Module luminous flux 6010 lm
• Luminaire luminous flux 4037 lm
• Luminaire luminous efficiency 105,7 lm / W

24 625 K4

• Module designation LED-0785/840
• Colour temperature 4000 K
• Colour rendering index CRI > 80
• Module luminous flux 6165 lm
• Luminaire luminous flux 4141 lm
• Luminaire luminous efficiency 108,4 lm / W

Lighting technology

Half beam angle 86°

Installation

Pass the power connecting cable through the cable entry in the mounting plate. Fix the mounting plate with enclosed or any other suitable fixing material onto the mounting surface. Be sure to use the gasket rings supplied. Make the earth conductor connection and the electrical connection. For digital control, please use the connecting terminal DA, DA. In case this terminal is not used, the luminaire will be operated at full light output.

In order to guarantee the maximum service life of the electrical components, the enclosed desiccant pouch must be placed in the luminaire. Remove the desiccant pouch from the foil packaging and place it in the position marked by the red information label immediately before finally closing the luminaire.

Make an earth conductor connection between the luminaire housing and the mounting plate. Push the plug into the coupler as far as it will go. Make sure that the gasket is positioned correctly. Insert the luminaire housing into the mounting plate and turn it as far as it will go.

Cleaning Maintenance

Clean luminaire regularly with solvent-free cleansers to remove dirt and deposits. Do not use high-pressure cleaners.

Replacing the LED module

The designation of the LED module is noted on a label in the luminaire.

The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by qualified persons using standard tools. Disconnect the system.

LEDs are high-quality electronic components! Please avoid touching the light output opening of the LED directly during relamping. Remove luminaire housing from the mounting plate by turning it counterclockwise. Disconnect the plug-in devices. Undo the retaining screw (wrench size 2.5 mm) in the luminaire housing. Remove the trim ring along with the glass and reflector from the luminaire housing by turning it counterclockwise.

Replace the LED module. Please follow the installation instructions for the LED module. Screw the trim ring along with the glass and reflector into the luminaire housing by turning it clockwise. Tighten the retaining screw in the luminaire housing firmly.

Make an earth conductor connection between the luminaire housing and mounting plate. Push the plug into the coupler as far as it will go. Make sure that the gasket is positioned correctly. Insert the luminaire housing into the mounting plate and turn it as far as it will go.
