BERIBES WH202A Over Ear Bluetooth Headphones User Manual

BERIBES WH202A Over Ear Bluetooth Headphones

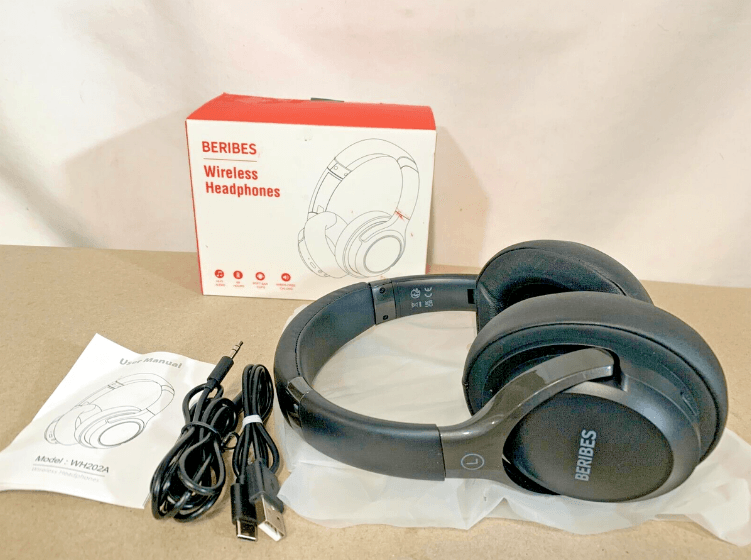

Package List

• Wireless headphones*1
• Audio cable*1
• Charging Cable*1
• User Manual*1
• Headphones Carrying Pouch x1

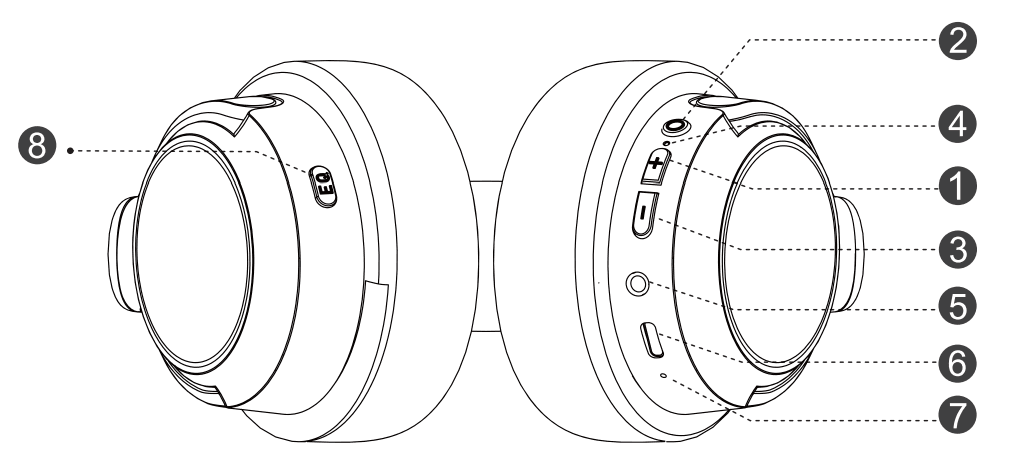

Diagram

1. Volume Up/Next Track
2. Multi-function button
3. Volume Down/Previous Track
4. LED indicator
5. 3.5mm audio interface
6. Type-C charging interface
7. Microphone
8. EQButton

Specification

Power On/Off

Power on: Long press the 11MFB11 button for 2 seconds to flash blue light.
Power off: Long press the 11MFB11 button for 4 seconds to flash a red light.

How to Pair

When the headset is power off, press and hold the Multi-function Button turn it on, and wait for the indicator light to flash alternately in blue and red to enter the Bluetooth pairing mode. Turn on the Bluetooth of the mobile phone and find 11WH202A11 to connect.

Media Playback & Volume Functions

Call Functions

To connect the WH 202A to the second device:

1. After you have connected the headphones to the first device, click MFB button to turn off the headphone temporarily. Turn on the headphone again, and long press MFB button to enter pairing mode.
2. On your second phone, go to Settings> Bluetooth List, find WH202A and connect the headphones to your second phone.
3. Go to the Bluetooth list of first phone again, reconnect the WH202A under My Device.
4. Then, the headphone will built connection with two devices, you can change the headphone connection between the two smartphones back and forth.

Clear Paired Device

Long press the “MFB” button and the Volume”-” button simultaneously 4s,until the red and blue lights flash 2 times at the same time.

Charge the Headphones

• Charging: The Red LED Light Is On
• Fully Charged: The Blue LED Light Is On(Charging for 2.5 hours).

FCC STATEMENT:

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference,
2. This device must accept any interference received,including interference that may cause undesired operation.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

NOTICE:
Note: This equipment has been tested and found to comply with these limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/1V technician for help.

ISEDC RSS Warning:

This device complies with Innovation, Science and Economic Development Canada Compliance licence-exempt RSS standard (s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference,including interference that may cause undesired operation of the device.

CAUTION:

1. To reduce the risk of electrical shocks, fire, etc
   1. Do not disassemble or modify the equipment.
   2. Do not allow flammable, water or metal objects to enter the equipment.
2. Avoid using the headphones
   1. In places with high humidity or excessive dust
   2. In places where the temperature is extremely high (over 40 °C or 104 °F) or low temperature (below 5 °C or 41 °F).

PRECAUTIONS FOR USE:

• Do not use any USB cable other than the one provided.
• Do not use the supplied USB cable with any other devices.
• Store earplugs in a safe place out of the reach of children to avoid possible accidents or dangers.
