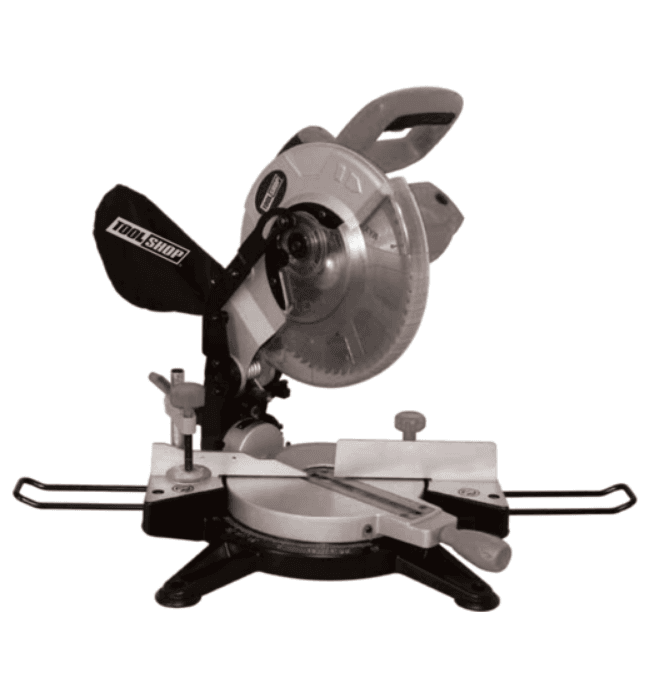

Tool Shop 240-2077 Single Bevel Corded Operators User Manual

Tool Shop 240-2077 Single Bevel Corded Operators

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THIS TOOL

1. KEEP WORK AREA CLEAN. Cluttered areas can cause injuries.
2. CONSIDER WORK AREA ENVIRONMENT.
   • Don’t use power tools in damp, wet, or poorly lit locations. Don’t expose tools to the rain. Keep the work area
3. KEEP CHILDREN AND BYSTANDERS AWAY. away from the work area. Don’t let them handle machines, tools or extension cords.
4. GROUNDED TOOLS MUST BE PLUGGED INTO AN OUTLET THAT IS PROPERLY INSTALLED AND GROUNDED.
5. OBSERVE PROPER PRECAUTIONS REGARDING DOUBLE INSULATION.
6. GUARD AGAINST ELECTRIC SHOCK.
7. DO NOT MISUSE THE CORD.
8. WHEN WORKING OUTDOORS, USE AN OUTDOOR-RATED EXTENSION CORD.
9. DO NOT EXPOSE ELECTRICAL POWER TOOLS TO MOISTURE.
   • wet conditions can cause water to enter the tool and lead to electric shock.

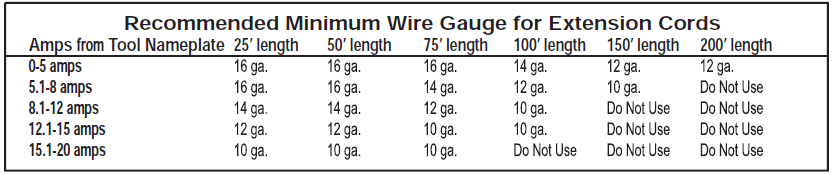

10. ENSURE THE EXTENSION CORD YOU USE IS OF SUFFICIENT GAUGE FOR ITS LENGTH.
11. STORE IDLE EQUIPMENT.
12. DON’T FORCE THE TOOL. It rate for which it was intended.
13. USE THE RIGHT TOOL.
    • Don’t force a small tool or attachment to do the not intended.
14. DRESS PROPERLY.
15. USE EYE PROTECTION.
16. SECURE WORK.
17. DON’T OVERREACH.
18. MAINTAIN TOOLS.
19. AVOID UNINTENTIONAL STARTING. Be sure the switch is in the OFF posi
20. DO NOT USE THE TOOL IF IT CANNOT BE SWITCHED ON OR OFF.
21. DISCONNECT THE PLUG FROM THE POWER SOURCE BEFORE MAKING ANY ADJUSTMENTS.
22. STAY ALERT.
23. CHECK FOR DAMAGED PARTS.
24. REPLACEMENT PARTS.
25. SERVICE AND REPAIRS.

SAFETY PRECAUTIONS FOR COMPOUND MITER SAW

1. WOOD ONLY.
2. DAMAGED OR WARPED SAW BLADES SHOULD NOT BE USED.
3. USE ONLY WITH GUARD IN PLACE.
4. REPLACE THE TABLE INSERT WHEN WORN.
5. CONNECT YOUR MITER SAW TO A DUST COLLECTING DEVICE IF POSSIBLE.
6. USE A SAWBLADE SUITED TO THE CUTTING JOB AND MATERIAL TO BE CUT.
7. ALWAYS CHECK AND MAKE SURE TO REMOVE ANY ADJUSTING KEYS OR WRENCHES BEFORE TURNING THE TOOL ON.
8. ALWAYS USE THE BLADE WRENCH TO TIGHTEN THE SAW BLADE ONTO THE ARBOR.
9. THE MATERIAL SHOULD BE PLACED FIRMLY AGAINST THE FENCE AND TABLE
10. ALWAYS USE TABLE EXTENSIONS AND CLAMPS TO
11. DO NOT START THE SAW WITH THE BLADE IN CONTACT WITH ANY SURFACE.
12. IF MAKING A CUT USING ONE HAND TO HOLD THE SAW,ENSURE THE FREE HAND IS CLEAR OF CUTTING AREA.

SPECIFICATIONS

• Voltage: 120 volts AC, 60Hz
• Current rating: 9 Amps
• Blade Speed: 5,800 RPM(No-Load Speed)
• Blade Diameter: 7-1/4″ 24 tooth carbide tipped
• Arbor Size: 5/8″
• Positive Miter Stops: 0, 15, 22.5, 30 & 45 degree
• Miter Angle: 45 degree Left/ 55 degree Right
• Bevel cuts up to 45 degree Left
• Power Cord: 6 ft.
• Weight: 21.3 lbs
• Cutting Capacity:
  • 90 degree Cross Cut 2″ x 12″
  • 45 degree Miter Cut 2″ x 8″
  • 45 degree Bevel Cut 1-1/8″ x 12″
  • 45 degree Miter/Bevel Cut 1-1/8″ x 8″

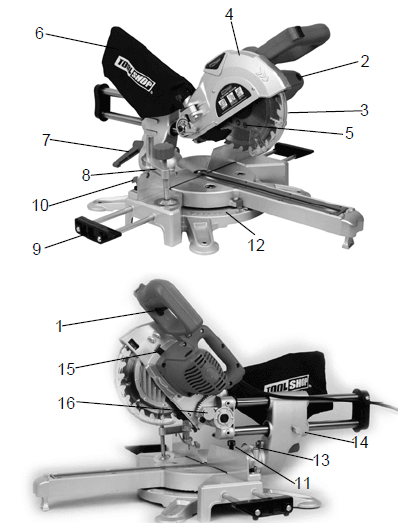

FUNCTIONAL DESCRIPTION

1. Trigger Switch
2. Brush Cover
3. Lower Blade Guard
4. Upper Blade Guard
5. Saw Blade
6. Dust BagBevel Lock Lever
7. Hold-Down Clamp Assembly
8. Table Extension
9. Table Extension Lock
10. Miter Lock knob
11. Miter Scale
12. Bevel Scale

OPERATING PROCEDURES

CAUTION! Be sure the saw is disconnected from its power source before making any repairs or performing maintenance!

CLAMPING WORKPIECE

• Mount the hold-down clamp on one side of fence. Insert shaft of the hold-down clamp into the mounting hole and tighten the hold-down clamp retainer screw to affix the shaft of the hold-down clamp.
• Adjust position of the hold-down clamp bracket according to the workpiece thickness and shape. Tighten the screw to fix the bracket in place.
• Make sure that when the handle is lowered, beveled or angled in any position, no part of the tool contacts the hold-down clamp.

WARNING: For safe and accurate cuts, fix workpiece firmly into cutting position with hold- down clamp, otherwise the tool and workpiece may be damaged.

START UP

USING YOUR SAW

After unpacking, reading the instructions, attaching the machine to the workbench, and checking that all attachments are correctly installed, you can use your saw. Be sure to wear the appropriate protective equipment.

1. Check to ensure everything is correctly attached, screws are fastened, and all adjusting keys and wrenches are removed.
2. Connect the saw to power.
3. Unlock the saw from its various storage and shipping positions.
4. Pressing the trigger lock button, then squeezing the trigger switch in the handle, while holding the trigger lock button down, will start the saw The cutting head should be in the raised position and the blade fully enclosed in the guard before starting the miter saw.
5. To begin cutting, lower the cutting head. The lower blade guard opens automatically.
6. After cutting, allow the head to come back up. The guard will close automatically.
7. The saw will stop when vou release the trigger switch in the handle.

MODES OF USE

• Chop cut: The head is locked in the upright position. The table rotation is locked at 0°. This is a good setting for 90° crosscuts.
• Miter cut: The head is locked in the upright position. To unlock the table rotation, unscrew the miter lock knob(#11 in page 4). Move the table rotation to the left or right up to 45° left & 55° right. Quickly locate 0°, 15°, 22.5°, 30° and 45° left or right by the detent clicks at these angle settings. Tighten the miter lock knob at the desired angle.
• Bevel cut: To unlock the head angle (bevel) adjustment, loosen the bevel lock handle at rear of the saw. Lock it when the blade is tilted at the desired angle. The table rotation is locked at 0°.
• Compound cut: Unlock and move the table rotation to the left or right as in miter cuts above. Using the lever at the back of the saw, unlock the head and bevel it to any position from 0° – 45° left, then lock it in place.

MAINTENANCE

ALIGNING MITER AND BEVEL

Miters and bevels have been set at the factory. However, use may affect settings. Please use the following procedures when your tool needs adjustments.

• Aligning Miter Angle

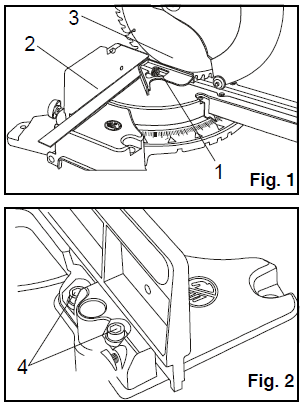

  •  Lower the head assembly and push in the lock pin to lock in the lower position. Make sure table is in 0° detent and tighten miter lock knob. Place a combination square (1) against the fence (2) and next to the blade (3) as illustrated. Locate the square properly so it does not contact the tooth of saw blade. The saw blade should contact the full length of the square. (Figure 1)
  • If blade does not fully contact the square, follow the fence alignment procedure.
• Fence Alignment
  • The head assembly should remain in lowered position.
  • Using the supplied hex wrench, loosen the hex cap screws (4)(Figure 2) behind fence (2). (Figure 1)
  • Adjust fence until blade and the fence has full contact with the square.
  • Tighten hex cap screws.
  • NOTE: The combination square is not included and can be purchased at anv hardware store.
• Aligning Bevel Angle

0° Blade Aligning

1. 1. Rotate table to 0° position and lock in place.
   2. Lower the blade and engage the lock pin.
   3. Use a combination square to check blade squareness to table. Place the square on the table and press it against the blade. If the blade does not contact the full length of the square follow the alignment procedure.
      • Loosen bevel lock handle.

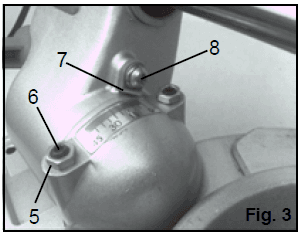

      • Using an 11/32″ open-end wrench to loosen the hex lock nut (5) and then using a 1/8″ hex wrench to adjust the hex screw (6) up or down. (Figure 3)
      • When you have established the vertical stop correctly, tighten the hex lock nut (5) down to hold the setting.
      • Adjust bevel indicator (7). Loosen screw (8) and align indicator (7) to the 0° mark Tiahten screw (Fiqure 3)

45° Blade Aligning

1. Rotate table to 0° position and lock in place.
2. Lower the blade and engage the lock pin.
3. Loosen bevel lock handle and tilt the head assembly to 45° bevel. The bevel indicator should be on the 45° mark, the 45° bevel stop should be in full contact with the 45° bevel stop screw, and the blade should contact the full length of the combination square.
4. If the blade is not 45°with the table, adjust 45°bevel stop.
   • Loosen bevel lock handle.

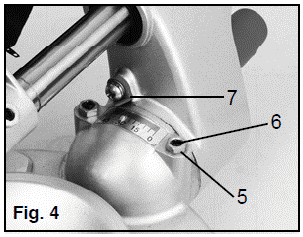

   • Using an 11/32″ open-end wrench to loosen the hex lock nut (5) and then using : 1/8″ hex wrench to adjust the hex screw (6) up or down. (Figure 4)
   • When you have established the 45° stop correctly, tighten the hex lock nut down to hold the setting.
   • Check that bevel indicator (7) is pointing to the 45°mark on the bevel scale. If not, first recheck the blade squareness to the table and 0° bevel indicator alignment. Then, repeat the 45° blade alignment and make appropriate adjustments.

REPLACING SAW BLADE

• When replacing the saw blade,make sure the new saw blade has a diameter of 7-1/4″, RPM rating of at least 7,000, and arbor hole of 5/8″ diameter.
• When mounting the new saw blade, the direction arrows on the blade correspond with the arrow on the upper guard.(See Figure.5)
• Put the saw in the upper position.

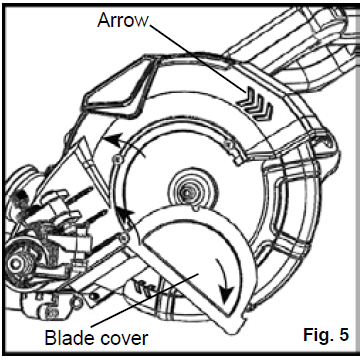

• Use supplied Phillips screwdriver to loosen screws and lower the side blade cover. (See Figure. 5)

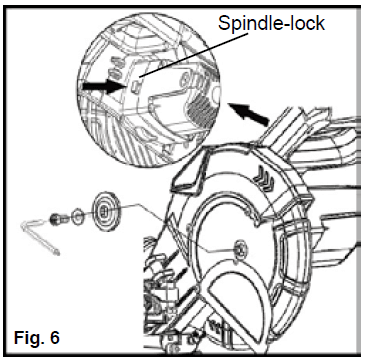

• Press and hold the spindle-lock button, and rotate the blade at the same time until it locks into position. Use supplied Allen wrench to take
  out the blade bolt and washer. (See Figure. 6)

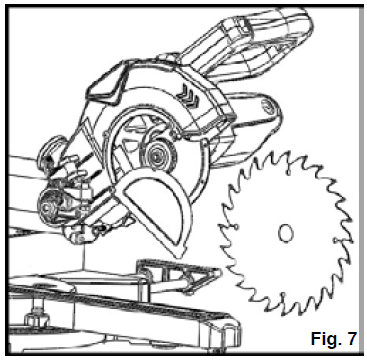

• Install a new 7-1/4” TCT blade. Assembly is reverse order of disassembly, reattach and tighten all hardware.(See Figure. 7)

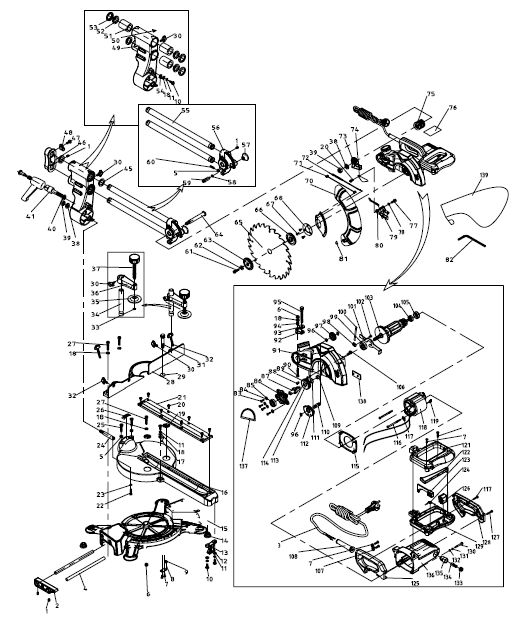

SCHEMATIC DRAWING

TOOL SHOP® 1-YEAR LIMITED WARRANTY

This TOOL SHOP® brand power tool carries a 1-Year Limited Warranty to the original purchaser. If the tool fails within one (1) year from the date of purchase, simply bring this tool with your original sales receipt back to your nearest MENARDS® retail store. At its discretion, TOOL SHOP® agrees to have the tool replaced with the same or similar TOOL SHOP® product free of charge, within the stated warranty period, when returned by the original purchaser with original sales receipt. Notwithstanding the foregoing, this limited warranty does not cover any damage that has resulted from abuse or misuse of the Merchandise.

This warranty:

1. excludes expendable parts including but not limited to blades, belts, bits, light bulbs, and/or batteries;
2. shall be void if this tool is used for commercial and/or rental purposes; and
3. does not cover any losses, injuries to persons/property or costs.

This warranty does give you specific legal rights and you may have other rights, which vary from state to state. Be careful, tools are dangerous if improperly used or maintained. Seller’s employees are not qualified to advise you on the use of this Merchandise. Any oral representation(s) made will not be binding on seller or its employees. The rights under this limited warranty are to the original purchaser of the Merchandise and may not be transferred to any subsequent owner. This limited warranty is in lieu of all warranties, expressed or implied including warranties or merchantability and fitness for a particular purpose. Seller shall not be liable for any special, incidental, or consequential damages. The sole exclusive remedy against the seller will be for the replacement of any defects as provided herein, as long as the seller is willing or able to replace this product or is willing to refund the purchase price as provided above. For insurance purposes, seller is not allowed to demonstrate any of these power tools for you.

For questions / comments, technical assistance or repair parts –
Please call toll free at: 1-866-915-8626 (M-F 8am – 5pm E ST)

SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
