Bissell 2252 CleanView Swivel Upright Bagless Pet Vacuum User Guide

Bissell 2252 CleanView Swivel Upright Bagless Pet Vacuum

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR UPRIGHT VACUUM.

Always connect to a polarized outlet (one slot is wider than the other). Unplug from the outlet when not in use and before conducting maintenance. When using an electrical appliance, basic precautions should be observed, including the following:

• Do not leave the vacuum cleaner when it is plugged in. Unplug from the outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Do not use for any purpose other than described in this User’s Guide. Use only the manufacturer’s recommended attachments.
• Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run the appliance over the cord. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Turn off all controls before plugging or unplugging the vacuum cleaner.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may
  be present.
• Do not use a vacuum cleaner in an enclosed space filled with vapors given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Use only on dry, indoor surfaces.
• Keep the appliance on a level surface.
• Do not carry the vacuum cleaner while it is running.
• Unplug before connecting or disconnecting the Pet TurboEraser® Tool.

WARNING

• Before using your vacuum, make sure the dirt container is in the locked position and that all filters, both pre- and post-filters, are in place. DO NOT operate your vacuum without these filters.
• Plastic film can be dangerous. To avoid the danger of suffocation, keep away from children.
• Do not plug in your vacuum UNTIL you are familiar with all instructions and operating procedures.
• To reduce the risk of electrical shock, turn the power switch off and disconnect the polarized plug from the electrical outlet BEFORE performing maintenance or troubleshooting checks.

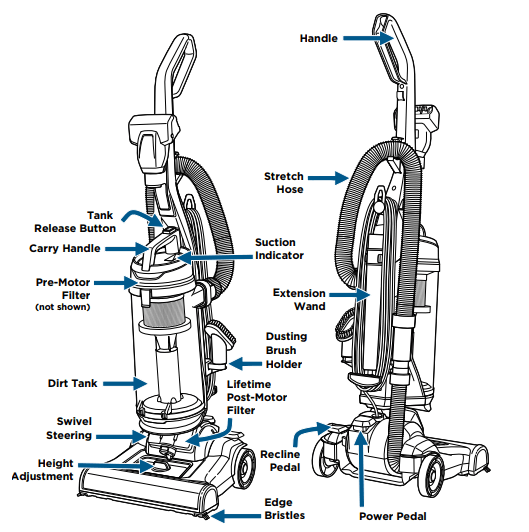

Product View

WARNING: Do not plug in your vacuum until you are familiar with all instructions and operating procedures.

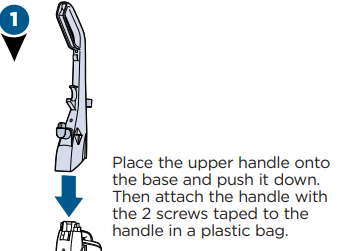

1. The only tool you will need to assemble your vacuum is a Phillips screwdriver.

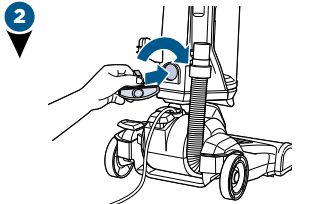

2. Insert the lower cord wrap and turn it to the right to lock it in place.

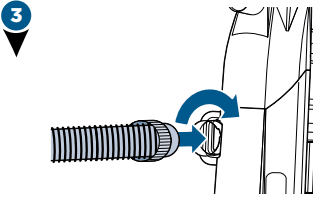

3. Insert the hose end into the back of the vacuum and twist right to lock it in place.
4. Wrap the hose up and around the hose wrap on the handle. Slide the end of the hose into the vacuum base.

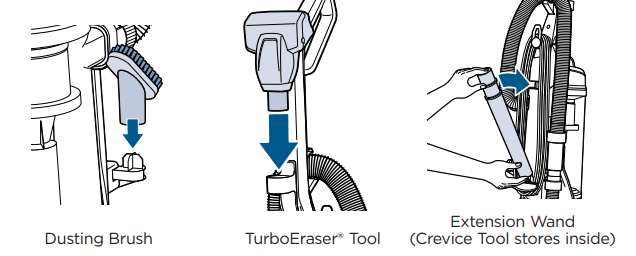

5. Now, put your accessory tools on the vacuum and you’re ready to go!

NOTE: The Powerfoot will not suction properly unless the hose is firmly attached.

Power On & Settings

1. Press the red power button with your foot to turn the vacuum ON and once again to turn your vacuum OFF.
2. Press the recline pedal and pull the handle back towards you.
3. Turn the dial on the foot of the vacuum to the desired setting. If the dial is difficult to turn, tilt the vacuum back slightly to take the weight off the foot while turning.

Empty the Dirt Tank

WARNING

1. To reduce the risk of electric shock, turn the power switch off and disconnect the polarized plug from the electrical outlet before performing maintenance or troubleshooting checks.
2. Press the tank release button and pull out to remove the dirt tank.
3. Hold the dirt tank over a trash container. Press the bottom release button to empty. Once empty, close the lid.
4. Twist the cyclone left and pull down to remove it from the tank.

NOTE: The dirt tank may be washed in warm water with a mild detergent. Make sure it is completely dry before replacing.

Clean the Pre-Motor Filter

WARNING

1. To reduce the risk of electric shock, turn the power switch off and disconnect the plug from the electrical outlet before performing maintenance or troubleshooting checks.
2. Remove the carbon and foam filter from the lid. Hand wash in warm water and rinse well; mild detergent may be used if desired.
3. Allow the filter to air dry completely before placing it back into the tank lid. The carbon filter should be on top of the foam filter.
4. Return the tank to the vacuum and press firmly until you hear “click.

Replace Brush & Belt

WARNING

To reduce the risk of electric shock, turn the power switch off and disconnect the plug from the electrical outlet before performing maintenance or troubleshooting checks.

1. Unplug the vacuum, turn it over, and unscrew six (6) Philips head screws to remove the bottom cover. Lift the brush straight out.
2. Clean debris from the brush roll. Inspect by placing it on its end and spin. The brush roll should spin freely, multiple times by one flick. If it doesn’t, replace the brush roll. Check the belt for wear or cuts and replace it if necessary.

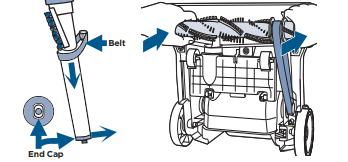

3. Replace the brush roll and belt by looping the belt over the motor shaft and the brush roll. Line up the end caps and pull the brush forward into place. This will stretch the belt. Return the bottom cover and replace the screws.

Maintain the TurboEraser® Tool

1. Twist the gray collar counterclockwise until the slot appears, then separate the face plate.
2. Remove brush roll, belt, and paddle wheel. Inspect for damages and replace if necessary.
3. To reassemble, align two clips on each end of the paddle wheel with a belt on and pop it back into place. Place the brush roll with the belt back in. The faceplate will not close properly if all parts are not aligned correctly.

Clearing a Clog

1. Remove the hose from the back of the vacuum by twisting it to the left. Remove any debris that may have gotten clogged.
2. Check the foot hose on the back of your vacuum down towards the bottom. If necessary, remove the screw from the foot hose and check for clogs.
3. Check the air passageway on the bottom of your vacuum. Remove the bottom cover and the brush. Remove any debris.

Troubleshooting

Parts & Supplies

For Parts and Supplies, go to www.BISSELL.com and enter your model number in the search field.

Warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Care by email, telephone, or regular mail as described below.

Limited Three-Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for three years any defective or malfunctioning part. See the information below on “If your BISSELL product should require service”. This warranty applies to products used for personal, and not commercial or rental services. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User’s Guide is not covered. BISSELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES THAT MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE THREE-YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE. Some states do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you.

Call: BISSELL Consumer Care 1-800-237-7691
Monday – Friday 8 am – 10 pm ET
Saturday 9am – 8pm ET
Sunday 10 am – 7 pm ET

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

Service

If your BISSELL product should require service:
Contact BISSELL Consumer Care to locate a BISSELL Authorized Service Center in your area. If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Care.

Website: www.BISSELL.com

E-mail: www.BISSELL.com/email-us

Please, do not return this product to the store.

Other maintenance services not included in the manual should be performed by an authorized service representative. For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.
