BIZEWO DH-CS09 Dehumidifier for Home User Manual

BIZEWO DH-CS09 Dehumidifier for Home

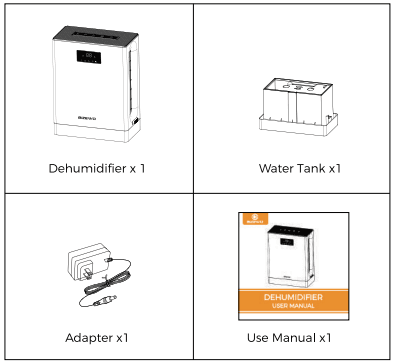

PACKING LIST 1

SAFETY WARNINGS

1. Read all instructions before using this dehumidifier.
2. Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire. Electric shock. Or injury to persons.
3. To avoid the risk of electrical shock, fire, or injury to people. Always turn the appliance OFF. Unplug the power cord from the electrical outlet and empty the water tank before handling. cleaning or servicing the appliance.
4. The appliance is not to be used by persons (including Children) with reduced physical abilities. sensory or mental capabilities, or lack of experience and knowledge. unless they have been given supervision or instruction.
5. Children must be supervised so as not to play with the appliance. Children those of less than 3 years, should be kept away unless continuously supervised.
6. Always place the appliance in an upright position on a flat, stable surface
7. The appliance must have a minimum SOCM clearance around all sides
8. Do not cover or obstruct in any way the air inlets and outlets of the appliance.
9. Dispose of water collected from the dehumidifier. This water is not drinkable.
10. DO not use this appliance near water or in the immediate surroundings of a bath. a shower or a swimming pool.
11. DO not allow water Or Other liquids to run into the appliance, as this could create a fire and/or electrical hazard.
12. DO not use outdoors. This appliance is intended for indoor use household use and similar applications.
13. Never insert fingers or metal Objects into the vents and openings of the appliance.
14. DO not push any Objects in the air inlet and outlet grills as this may cause an electric shock. Fire or damage the appliance.
15. DO not use this appliance with an external programmer. timer switch or any Other device which would switch the device on automatically unless this has already been pre-built into the appliance by the manufacturer.
16. Do not kink or wrap the power cord and plug around the appliance, as this may cause the insulation to weaken or split. particularly where it enters the appliance.
17. DO not remove the water tank when the appliance is in use, this may cause water to leak.
18. DO not operate the appliance with the water tank removed.
19. DO not operate the appliance if there are signs of damage to the appliance. power cord. Or any of the accessories.
20. The appliance should only be used with the adapter supplied
21. If the supply cord is damaged. It must be replaced by the manufacturer. It’s a service agent or a similarly qualified person to avoid a hazard.
22. DO not attempt to repair or adjust any electrical or mechanical elements in the appliance. Doing so may be unsafe and Will void your warranty.
23. Ensure that the mains supply (including voltage, frequency, and power) Complies with the rating label of the appliance.

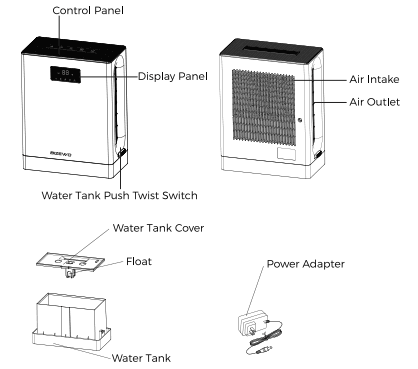

PRODUCT OVERVIEW 5

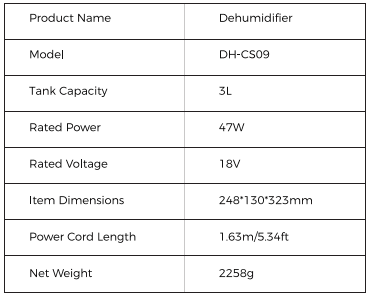

SPECIFICATION

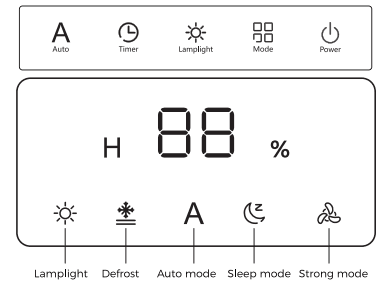

PANEL OVERVIEW 7

OPERATION INSTRUCTIONS

Before, please ensure all parts are completed and undamaged prior to the product is powered on with one short “BEEP”. The product display value lights up, “….” and continues to flash. The product is in standby mode.

1. Power Button
   When the dehumidifier is plugged in. Tap the Power Button to turn on the device. The appliance Will Start working with one short “BEEP”. Tap the Power Button again to turn OFF the device.
2. Timer Button
   Touch the Timer button. When the product starts, 8H timing. The indicator of the 8H lights up. Touch the button again to switch to 12H timing. The indicator of the 12H lights up. and the timing interval(OH-8H-12H-24H-36H 48B) continues to cycle. When the device is on, tap the ” Timer button” to select O, 8, 12, or 24. 56 or 48 hours timer off.
3. Light Button
   When the dehumidifier starts working, the ambient light will come on and gradually change to 7 colours. Press “Light Button ” again to lock in the desired colour, and finally press to switch off the light
4. M0de
   When the dehumidifier starts to work. The default mode is the strong mode, and at the same time,e the water tank lights up with colorful gradient LED light, and the product starts to operate After operation. Touch the ” Mode Button” to switch to sleep mode. Sleep mode to turn off the water tank atmosphere lamp: Touch switches to powerful mode again, in this cycle
   • Tap this button to choose Turbo Mode or Sleep Mode
   • Turbo Mode. They will work at high speed
   • Sleep Mode, the Fan will mark the low speed
5. Auto Button
   Touch the ” A ” button;
   Enable the automatic dehumidification mode: The initial humidity is 40%. Touch the A button again. The setting humidity can be adjusted. humidity adjustment range: (40%-45%-50%-55%-60%-65%-70%)
   Note
   • 1 In automatic mode, the machine will stop working when it reaches the set humidity and resume working when the humidity rises.
   • 2. The comfortable humidity range for the human body is between 45% and 55%.
6. Defrost Indicator
   If the internal is frozen, the defrost function will automatically trigger to protect the unit the icon ” “will light up. After defrosting, it disappears. A dehumidifier will work again, the icon
7. Memory Function
   Once powered on and started running, the dehumidifier can recover the mode setting, automatic constant humidity, and lighting before shutdown.
8. Overflow Protection
   When the bucket is full of water. The machine will turn off automatically. The Atmosphere lamp will flash a red light. After you empty the water from the bucket, the Atmosphere lamp will turn off. After being put into the tank, the machine needs to be restarted to work.

HOW TO EMPTY THE WATER TANK 11

When the tank is full, the atmosphere lamp will flash red, and the unit will turn off.

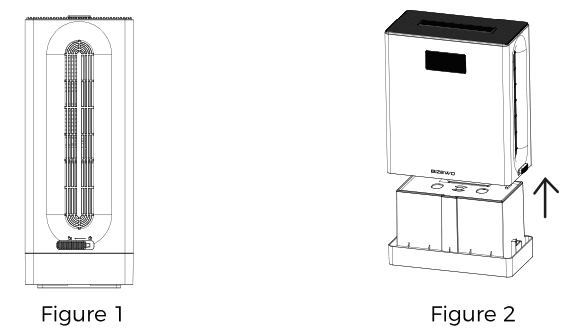

1. In the shutdown state, first fix the product and push the switch to the unlocking mark, as shown in Figure I.
2. Pull the shell upward by hand as shown in Figure 2.

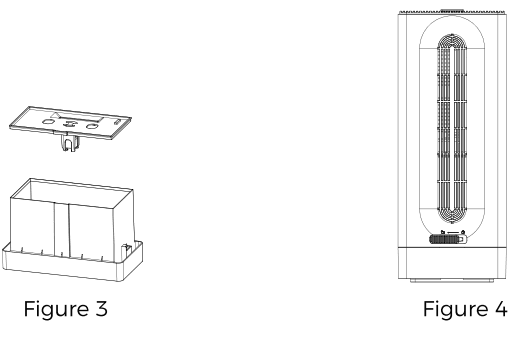

3. After opening the tank cover, drain the stored water, as shown in Figure 3.
4. Reinstall the housing and push the switch to the lock mark, as shown in Figure 4.

Note

1. Do not remove the floater from the water tank. If the floater in the water tank is removed. The sensor may not be able to determine the water level stored in the tank properly, which may lead to water overflow leaks from the water tank.
2. After cleaning the water tank, insert it seamlessly into the body and keep the two sides of the dehumidifier locked to rein in water spills.

HOW TO INSTALL THE WATER TANK COVER 13

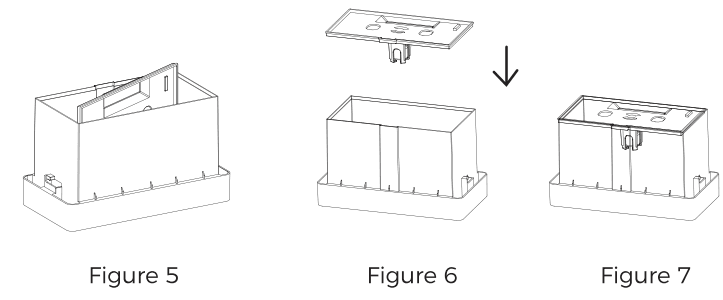

1. Open the package and take out the water tank cover, as shown in Figure 5.
2. Align with the bulge of the water tank, and install the water tank cover, as shown in Figure 6.
3. Install the water tank cover, as shown in Figure 7.

CLEANING AND MAINTENANCE

WARNING: Turn the dehumidifier OFF and remove the plug from the wall outlet before handling or cleaning it.

General Exterior Cleaning

• Clean the exterior of the appliance, removing any dust or light debris by wiping it with a soft, dry cloth.

Water Tank Cleaning

• WARNING: Never leave water in the water tank when the appliance is not in use. The water tank should be cleaned at least every week. If the water tank is dirty, just use cold water to clean it. Do not use detergent, steel wool, chemically treated dust cloth, gasoline, or benzene. Thinner or other solvents. Otherwise, it may damage the water tank and cause it to leak.

Storage

1. Ensure the appliance and water tank are clean and dry before storage.
2. To store your product out of season, we recommend using the original or a similar size box.
3. Do not kink or wrap the power cord and plug around the appliance, as this may cause the insulation to weaken or split, particularly where it enters the appliance.
4. Store the appliance in a safe, clean, and dry place when not in use.

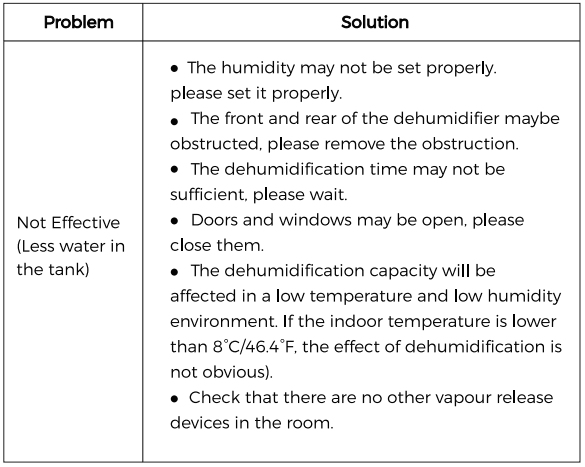

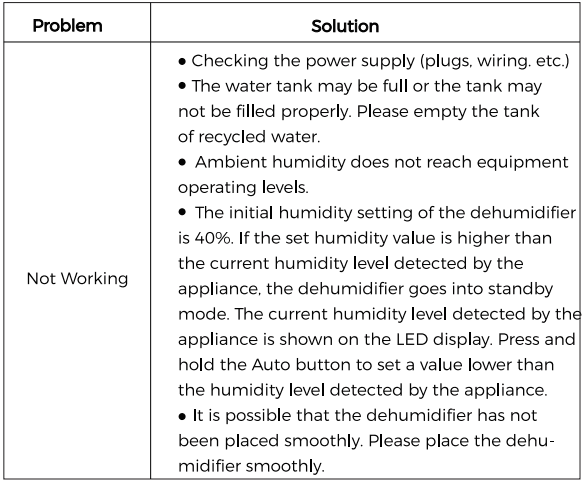

TROUBLESHOOTING

If you encounter any of the following problems during the use of the dehumidifier, please do not worry and find the solution in the category index.

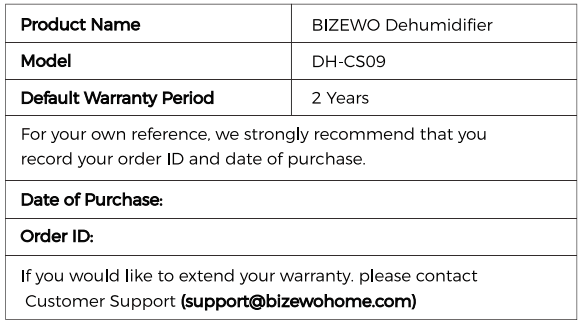

WARRANTY 17
