Black and Decker IR1350S Professional Steam Iron User Manual

Black and Decker IR1350S Professional Steam Iron

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING.
• Use iron only for its intended use.
• To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
• The iron should always be turned to the minimum (min) setting before plugging or unplugging from the outlet. Never yank the cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Do not allow the cord to touch hot surfaces. Let the iron cool completely before putting it away. Loop cord loosely around iron when storing.
• Always disconnect the iron from the electrical outlet when filling with water or emptying, and when not in use.
• Do not operate iron with a damaged cord, or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to a qualified service person for examination and repair, or call the appropriate toll-free number on the cover of this manual. Incorrect reassembly can cause a
  risk of electric shock when the iron is used.
• Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended while connected or on an ironing board.
• Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down or use the surge of steam-there may be hot water in the reservoir. Avoid rapid movement of iron to minimize hot water spillage.
• The iron must be used and rested on a stable surface.
  • When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
  • The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

SAVE THESE INSTRUCTIONS

• This product is for household use only.
• POLARIZED PLUG
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• TAMPER-RESISTANT SCREW
  • Warning: This appliance is equipped with a tamper-resistant screw to prevent the removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.
  • Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

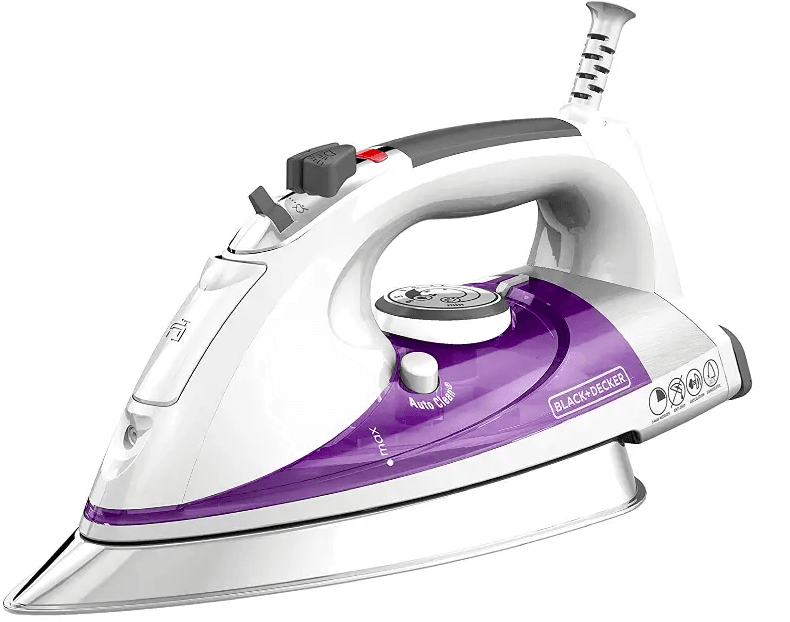

The product may vary slightly from what is illustrated

1. Spray nozzle
2. Water-fill cover
3. Variable steam selector
4. Steam button
5. Spray button
6. Power indicator light
7. Comfort Grip® handle
8. 360° pivoting cord
9. Heel rest
10. Fabric-select dial
11. Water tank
12. Auto Clean® button
13. Soleplate

How to Use

• This product is for household use only.

GETTING STARTED

• Remove any labels, stickers, or tags attached to the body or soleplate of the iron.
• Please go to www.prodprotect.com/applica to register your warranty.
  • Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.
  • Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.
  • Tip: If unsure of a garment’s fiber, test a small area (on an inside seam or hem) before ironing.

FILLING WATER TANK

1. With iron on a flat surface with soleplate down or tilted at a 45-degree angle, open the water-fill cover.
2. Using a clean measuring cup, pour water into the opening until the water reaches the MAX level mark on the side of the water tank. Do not overfill.

AUTOMATIC SHUTOFF IN 3 POSITIONS

1. The iron will automatically turn to stand-by mode after 30 seconds of inactivity if left on its soleplate or on its side. If left vertically on its heel rest, it will turn off after 8 minutes.
2. The red power indicator light starts blinking to let you know the iron has stopped heating.
   • Important: The iron will have turned off but will still be hot.
3. Once the iron is picked up, an internal motion sensor is activated and the iron starts heating again.
4. Allow the iron to reheat completely before resuming ironing.

SELECTING FABRIC SETTING

1. Read fabric labels to help determine the fabric type to be ironed.
2. Once you determine the fabric type, ·turn the fabric-select dial to select the appropriate fabric setting.
   • Important: Always stand the iron on its heel when powered on but not in use.

USING VARIABLE STEAM

Note: Be sure the water tank is filled.

1. This iron produces steam at settings 4 through 6. Turn the fabric-select dial to the appropriate setting for your fabric.
2. Push the variable steam selector to the desired amount of steam. The higher the setting selected, the more powerful the steam.
   Note: For no steam, the variable steam selector should be set to the~STEAM

BUTTON

Note: Be sure the water tank is filled.

1. With the water tank filled to the MAX mark, turn the fabric select dial to the appropriate setting (between 4 and 6) and let the iron stand on its heel, and rest for about 90 seconds.
2. Press the steam button to generate a burst of steam. For best performance, leave an interval of 5 seconds between bursts.
   Note: On first use, pump the steam button several times.

HORIZONTAL STEAM IRONING

1. Fill the water reservoir to the MAX Line.
2. Turn the fabric and select the dial to select the desired setting.
3. Set the variable steam selector to the desired amount of steam.
4. When finished ironing, turn the fabric-select dial to the Lowest setting. Make sure the variable steam selector is set to dry~ and unplug the iron.
5. Stand the iron on its heel rest and allow it to cool off.

VERTICAL STEAMING

Use to remove wrinkles or creases from hanging garments or drapes.

1. Turn the fabric-select dial to select the desired setting for the fabric to be ironed.
2. Hold the iron close to but not touching the fabric.
3. Pull the fabric taut with your free hand and press the steam button as you move the iron over the fabric.
   Important: Do not bring iron too close to hand-holding fabric to avoid heat.
4. For best performance, Leave an interval of 5 seconds between bursts.

SPRAY BUTTON

Note: Be sure the water tank is filled.

1. Press the spray button to generate a spray of water.
   Note: On first use, pump the spray button several times.
   Important: Do not spray silk.

DRY IRONING

1. Set the variable steam selector to~.
2. Turn the fabric-select dial to an appropriate setting for your fabric.
3. When finished ironing, make sure to unplug the iron.
   Important: Always stand the iron on its heel rest when powered on or not in use.

Care and Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Make sure the iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water and mild household
   detergent. Never use abrasives, heavy-duty cleansers, vinegar, or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEAN® SYSTEM

To keep the steam vents free of any buildup, follow these instructions about once a month.

1. Fill the water tank well below the MAX Line. Plug in the iron.
2. Select fabric setting 6 on the fabric-select dial and stand the iron on its heel rest.
3. Wait 2 minutes for the iron to heat fully, then unplug the iron.
4. Hold the iron over a sink with the sole plate facing down.
5. Press the Auto Clean® button.
   Important: Be careful, as, after several seconds, hot water and steam will come out of the steam vents.
6. Continue to hold the Auto Clean® button until all the water has emptied. If necessary, move iron side-to-side and front-to-back.
7. When finished, release the button, stand the iron on its heel rest, and plug it in. Heat for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and Let it cool completely.
2. Check that the fabric-select dial is set to~.
3. Store the iron on its heel rest.
