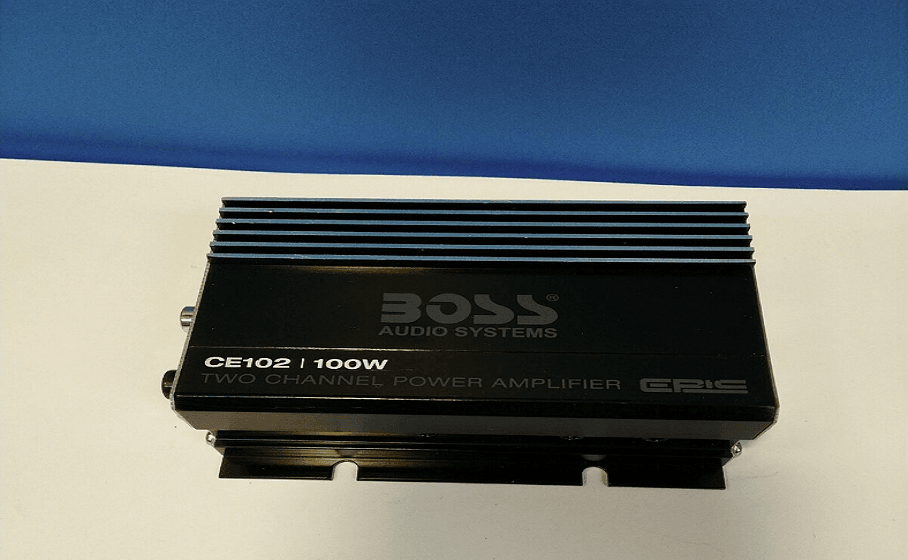

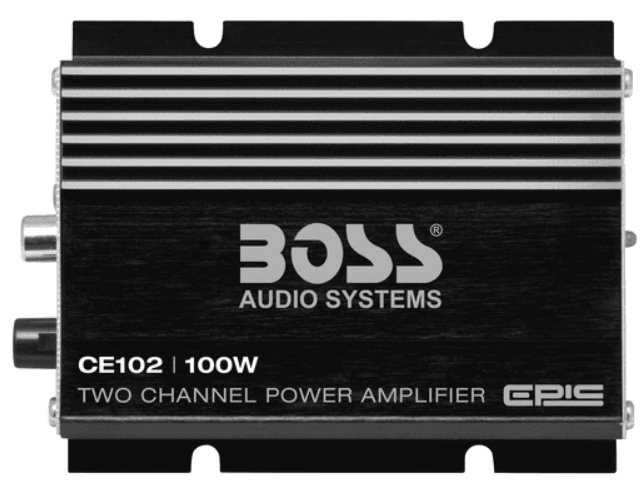

BOSS Audio Systems CE102 2-Channel Car Amplifier
Wiring

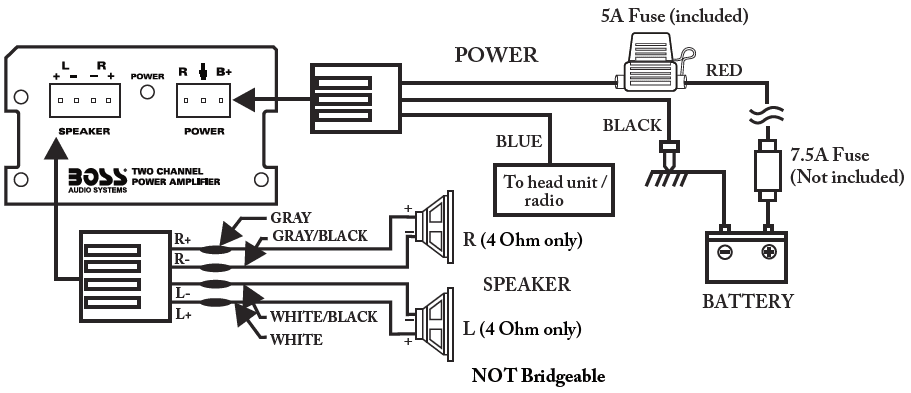

Power lnput＆Output Connection Mode：

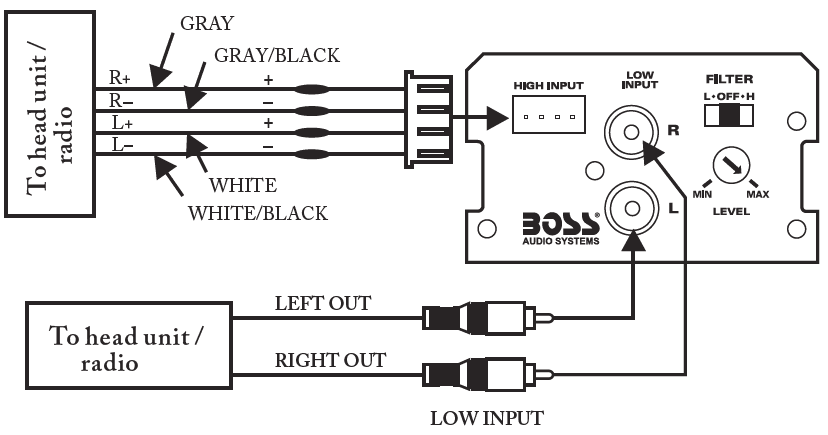

Signal Input Connection Mode:
- Note: Do not connect both the high-level and low-level inputs from your source unit to this amplifier at the same time.
What is Included
When first unpacking this product, check first that the package contains all of the items listed below. If something is missing, please contact our Customer Service (805-751-4853).
- 1 x Power Amplifier
- 1 x Power Harness with 5A Fuse
- 1 x High-Level Input Harness
- 1 x Speaker Wiring Harness
- 4 x Screws/ Spring Washers/ Plain Washers/ Sticky Fastening Pads
- User Manual and Warranty
Common Features
- Frequency Response: 20 Hz – 20 kHz
- 60dB Channel Separation
- 90dB Signal Noise Ratio
- 22K Ohm Input Impedance
- 200m V-6V Input Sensitivity
- THD <0.05%
Specific Features per model.
- 2 Channel Amplifier
- 100W 2 Channel IC Amplifier
- Selectable Crossover: LPF. FULL. HP

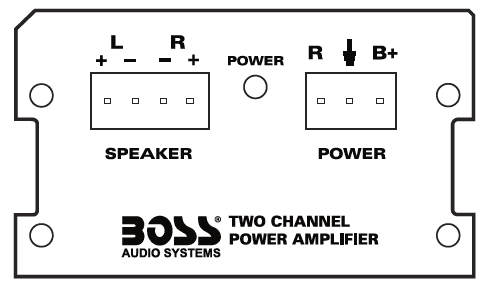

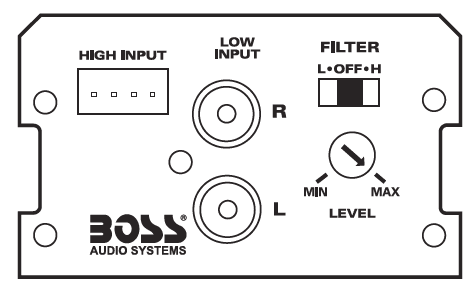

Control & Connection Locations
- Level Adjustment:
- This control adjusts the amplifier’s input sensitivity. Input sensitivity is variable from 200 Millivolts to 6 Volts. Turn the control clockwise to increase sensitivity. Turning the control counter-clockwise will decrease sensitivity. This control is not a volume control for the amplifier. The amplifier can be driven to full power with a wide range of signal levels. A low-level signal will require increased sensitivity for full power. A high-level signal will require decreased sensitivity.
RCA Inputs:
- These inputs are for signal cables from a source unit. Always use high-quality RCA cables.
GND (Chassis ground):
- To avoid unwanted ignition noise caused by ground loops, it is essential that the amplifier be grounded to a clean, bare metal surface of the vehicle chassis.
- +12V (Battery positive):
- Due to the power requirements of the Amplifier, this connection should be made directly to the positive +) terminal of the battery. If needed, use extension wires of a minimum 14 gauge for connection to the battery. For safety measures, install an additional 7.5A in-line fuse (not included) within 8″ (20 cm) of the battery.
- Remote Turn-On Input:
- Connect to the remote turn-on wire of the head unit. The amplifier is turned “ON” remotely when the vehicle’s head unit is turned “ON”.
- Power Indicator LED:
- This Green LED will illuminate when the amplifier is turned “ON

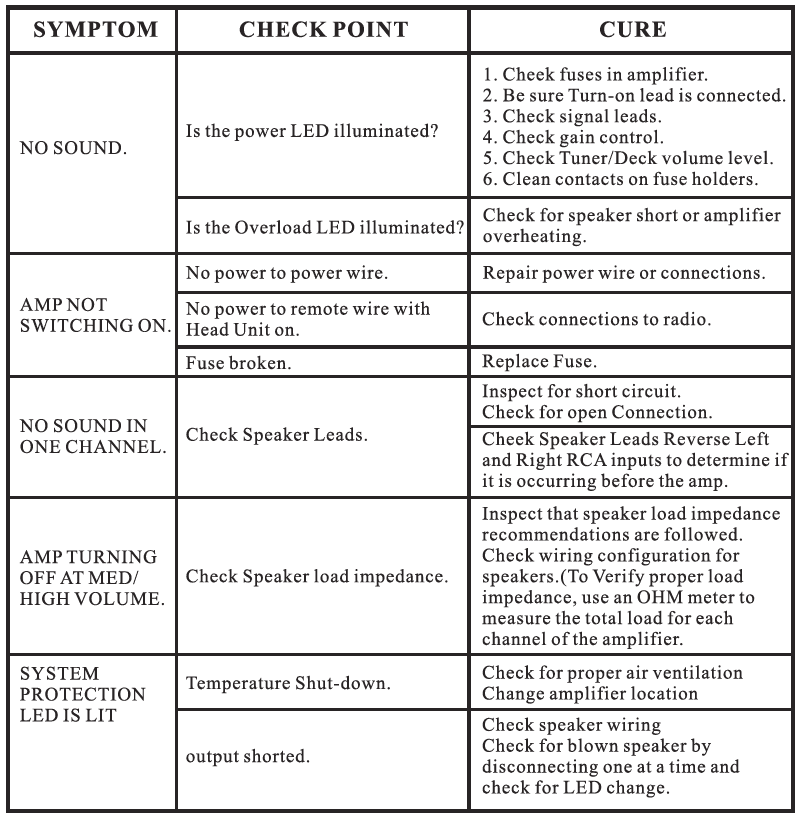

Troubleshooting
