Brandstand CubieWink Mini Charging Alarm Clock User Manual

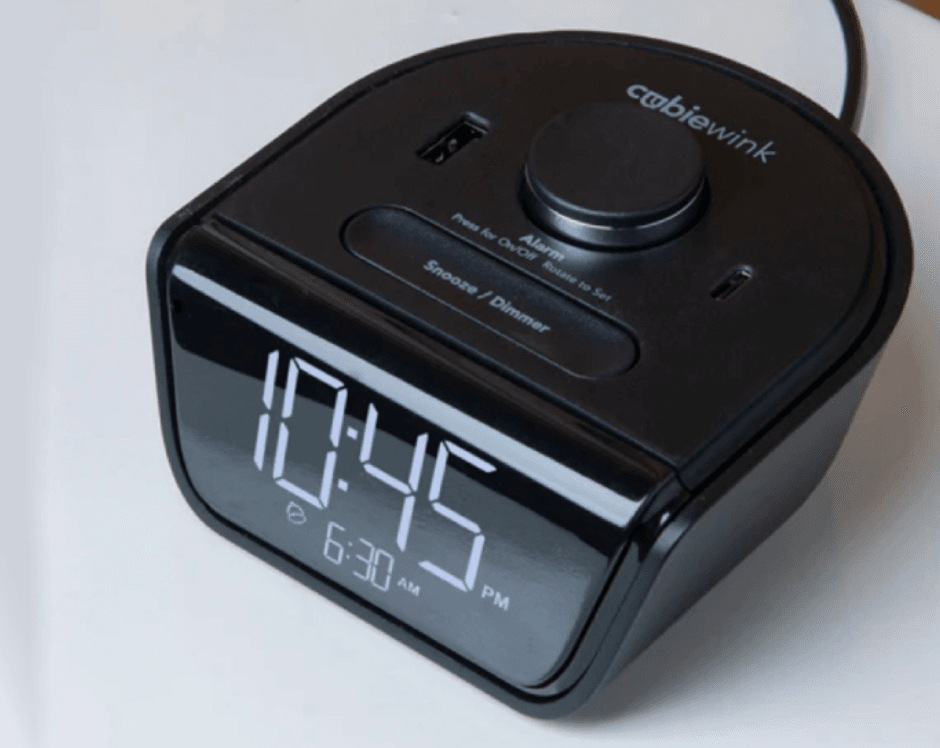

Brandstand CubieWink Mini Charging Alarm Clock

Product Features

• User-friendly alarm clock with single day alarm (optional)
• Convenient connections for USB-powered devices
• Display Dimmer – 3 Levels and OFF
• Auto-Update for Daylight Saving Time
• 24hr /12hr clock switch (under battery door)

Product Description

• Single Day Alarm Clock
• 1USB-A Charging Port
• 1USB-C Charging Port
• 6ft 14AWG Power Cord
• Security C-Clamp with 2 Wood Screws

Technical Specifications

• Continuous Duty Electrical Rating 100-240VAC 0.8A 60/50Hz
• Powered USB Output
  • Single USB-C Output (20W Max): 5V 3A or 9V 2.22A or 12V 1.67A
  • Single USB-A Output (18WMax): 5V 3A or 9V 2A or 12V 1.5A
• Double Port USB-C + USB-A
• Output (15W Max): 5V 3A
• EMI/RFI Filtration 150kHz-1000MHz up to 40db
• Working Temperature 0º C – 45º C
• Power Cord US Version: 6ft 18AWG
• EU/UK Version: 1.8m 2*0.5mm
• Housing Material PC
• Working Surroundings Indoor Mount

Important Safeguards

• Make sure the device is plugged into a suitable local outlet (US version), AC 120V-60Hz, (EU/UK versions) AC250V-50Hz, Saudi is AC 220V-50Hz. Use of incorrect power outlets may result in device malfunction or fire.
• To reduce the risk of fire or electrical shock, do not use this device with a receptacle in which the slot openings do not align with the blades.
• Do not allow children to operate the unit without adult supervision.
• Always ensure the product is unplugged from the electrical outlet before relocating or cleaning it.
• Keep the power cord and product away from heated surfaces.
• The unit should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on or around the product. It should not be used with aquariums or other water-related products.
• Do not place or drop product into water or other liquids. If product falls into water, immediately unplug it from the electrical outlet.
• Do not put any stress on the power cord where it connects to the product as the power cord could fray and break.
• Do not plug/unplug the product into/from the electrical outlet with a wet hand.
• Do not operate the product if it has a damaged or cut power cord or adapter, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if it is dropped in or exposed to water.
• Place unit where there is good air circulation.
• The product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform the servicing.
• No open flames sources, such as candles should be placed on the product.
• Product should only be used indoors and in dry locations.

Important:
This product’s USB outlets cannot be used as a USB hub and does not transmit data. The powered USB outlets on this unit are intended solely for charging devices that can be charged via a USB interface.

Battery Handling and Usage:

WARNING: Only adults should handle batteries. Do not allow a child to use this product unless Battery Compartment Cover is securely attached to the Battery Compartment in accordance with all product usage instructions.

• Follow the battery manufacturer’s safety and usage instructions.
• Keep batteries away from children and pets.
• Do not mix a new and a used battery or mix batteries of different chemistries or sizes.
• Insert the batteries observing the proper polarity (+/-) as indicated inside the battery compartment. failure to properly align the battery polarity can cause personal injury and/or property damage.
• Remove spent or discharged batteries when not using the product for an extended period.
• Never throw batteries into a fire. Do not expose batteries to fire or other heat sources.
• Dispose or recycle spent/discharged batteries in compliance with all applicable laws. For detailed information, contact your local solid waste authority.

Unpacking and Set up:

1. Carefully remove from packaging. Verify that you have all necessary components before you dispose of box and packaging.
   Component List:
   1. CubieWink Main Unit
   2. Security C-Clamp
   3. 2 Wood Screws
2. Place in the desired location.
   Note: This product is designed to be used on a level, stable, flat surface such as a table, desk, shelf or stand, convenient to an AC outlet, out of direct sunlight and awat from sources of excess heat, dust, moisture or vibration.
3. Plug directly into wall AC outlet. Do not plug into another surge protector or extension cord.
4. Secure cord with Security C-Clamp to the back of the nightstand or desk. Wood screws are included.

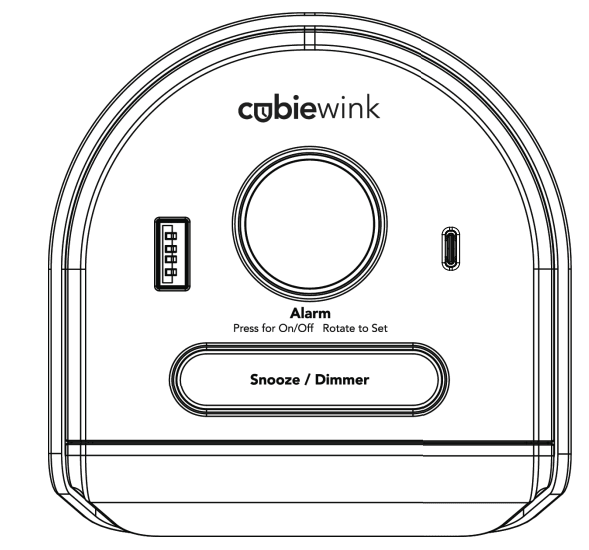

CubieWink- Top View

Setting the Time:

1. Press and hold the SNOOZE/DIMMER button for 6 seconds.

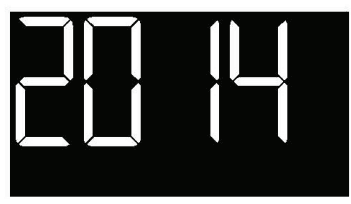

2. Year will begin to flash, adjust by rotating knob, press knob to select.

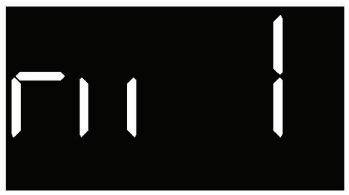

3. Month will begin to flash, adjust by rotating knob, press knob to select.

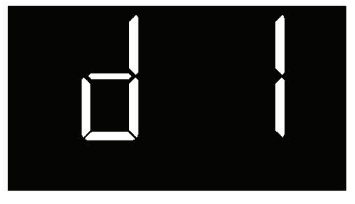

4. Day will begin to flash, adjust by rotating knob, press knob to select.

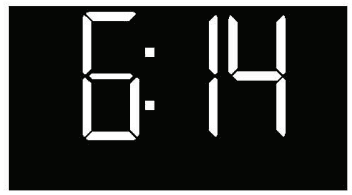

5. Time will begin to flash, adjust by rotating knob, press knob to select.

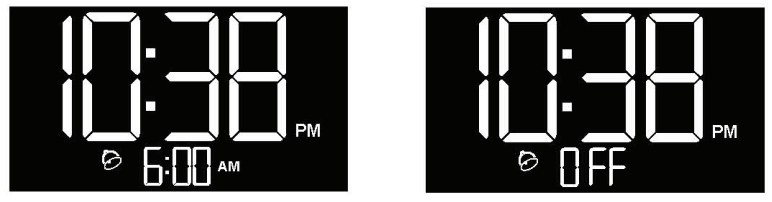

Setting the Alarm:

1. Press knob to turn ON alarm.
2. Alarm time will begin to flash, adjust by rotating knob, press knob to select. (Alarm will automatically set to last selected alarm time after 6 seconds.)
3. Press knob to turn OFF alarm.

Secure Battery Door/Hidden Switches:

Single Day Alarm (Preset to ON)

• ON: Alarm time will reset to 6:00am with every activation of the alarm
• OFF: The alarm time will default back to the last set alarm time with every activation.

Daylight Saving Time (US version preset to ON, EU and UK preset to OFF)

• ON: Time will automatically update +1 or -1 hour based on the pre-set Daylight Saving Time Calendar. Year, Month and Day must be set correctly for this feature to work properly.
• OFF: Time will not automatically update for Daylight Saving Time. Any changes to the time must be manually updated. 24 hour or 12 hour switch (EU and UK version preset to 24hr) The 12/24 hr switch is located under the battery door.

Back Up Battery Function

Two “AAA” Batteries are supplied with the clock. If the AC power supply is interrupted, the internal clock will not be interrupted due to battery back up. Please note – The back up battery will not support the Alarm Settings.

Other Features:

Snooze/Dimmer Button
When in standby mode, press the SNOOZE/DIMMER button to change brightness (off, dimmest, medium, brightest). When the display is turned off, the user can also press and rotate the wheel to turn the display ON. When an alarm is sounding, press the SNOOZE/DIMMER button to go to snooze status, the alarm symbol will flash, and the alarm will resound after 9 minutes.

Gradual Wake
The alarm will sound in a low volume and gradually increase to a higher volume.
