BUNN CSB2G Speed Brew Elite Coffee Maker Owner Manual

BUNN CSB2G Speed Brew Elite Coffee Maker

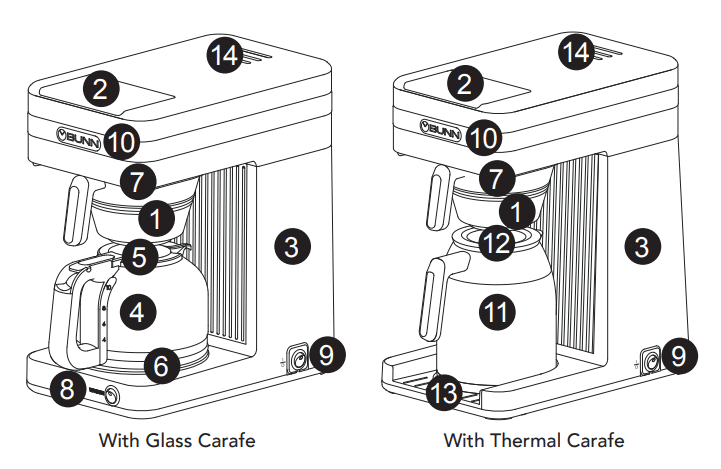

COFFEE MAKER FEATURES

FEATURES

1. Brew Funnel
2. Lid
3. Internal Hot Water Tank
4. Drip-Free Glass Carafe
5. Carafe Lid
6. Warmer Plate
7. Sprayhead
8. Warmer Switch
9. Tank Power Switch
10. Pour-In Bowl
11. Thermal Carafe
12. Thermal Carafe Lid
13. Base
14. Top Cover

SAFEGUARDING

IMPORTANT

Follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• READ ALL THE INSTRUCTIONS IN THIS MANUAL.
• Use caution. This coffee maker produces hot liquids: hot can burn you
• Place and use the coffee maker on a level surface.
• Do not touch hot surfaces. Use handles.
• Do not tip the coffee maker.
• To protect against electric shock, do not place the cord, plugs, or coffee maker in water or other liquids.
• Do not open the lid during brewing.
• Close supervision is necessary when a coffee maker is used around children.
• The internal hot water tank contains hot water. Before cleaning, removing, or replacing parts, press the power switch off, unplug the coffee maker, and let it cool (up to 2 hours).
• Do not operate the coffee maker with a damaged cord or plug, or any other malfunction or damage. Return appliance to an authorized service facility for examination, repair, or adjustment.
• Using an accessory not evaluated for use with this coffee maker may cause injury.
• Use the coffee maker indoors only.
• Do not let the cord hang over the edge of the table or counter.
• Do not place a coffee maker in or near a hot gas or electric burner, in a heated oven, or in any other
  heated area.
• Do not use a carafe on a range top or in a microwave.
• Do not use a coffee maker for any purpose other than its intended use.
• Do not remove the brew funnel or carafe while brewing.
• Do not set a hot carafe on a cold surface.
• Do not use a cracked carafe or a carafe with a loose or weakened handle.
• Do not pour any liquid into the internal hot water tank other than water or vinegar for cleaning, as specified in this manual.
• Do not clean the carafe with cleansers, steel wool pads, or other abrasive materials.
• When the coffee maker is not in use, keep the lid in the closed position.
• To disconnect, turn any control to the OFF position, then unplug from wall outlet.

INITIAL SETUP

DO NOT PLUG IN THE COFFEE MAKER UNTIL STEP 5, OR YOU RISK PERMANENTLY DAMAGING THE MACHINE. Follow the steps on the next page for proper setup.

1. Slide the empty brew funnel into the funnel rails.
2. Fill the carafe with water. Pour Water into the coffee maker.
   NOTE: Keep lid open.
3. Place carafe under funnel. Close lid. Wait 4 minutes while the internal tank fills.
4. Repeat steps 2 and 3, until water flows from the funnel.
5. Plug in the coffee maker.
6. Press the power switch located on the side. (I=ON, O=OFF) Wait 15 minutes for water in tank to heat.

HOW TO BREW

1. Place a BUNN® coffee filter into the brew funnel
2. Scoop ground coffee into the filter
3. Gently shake the brew funnel to level the grounds
4. Slide the funnel into the funnel rails
5. Fill the carafe with water: 20oz for 4 cups, 50oz for 10 cups.
6. Open the lid, and pour water into the coffee maker
7. Position the carafe on the warmer plate (or on the base for Thermal models*)
8. Close the lid**
9. Turn on the warmer switch
10. Wait 4 minutes for the drip-out to complete

*NOTE: Your thermal carafe holds coffee hot for about 2 hours. For best results, preheat the carafe by filling it with hot water, let it sit for 30 seconds, then empty it before beginning to brew.

**NOTE: Opening the lid during the brew will stop water from flowing into the funnel. Coffee will stop flowing out of the funnel when drip-out is complete.

BREWING CHART

BASIC CLEANING

FOR SPEED BREW MODELS: (Excluding Thermal models)

• Wash the brew funnel and glass carafe after each use.
• Both are top rack dishwasher safe.

Important: Separate the carafe lid from the carafe when washing in the dishwasher, and use the top shelf only for both the glass and the lid. If washing by hand, use a mild, non-abrasive dish soap.

• Wipe the outside of the coffee maker occasionally, including the area above the brew funnel.

NOTE: After wiping down, ensure that the warmer switch is in the OFF position.

FOR THERMAL MODELS:

Important: Do not use an abrasive device to clean the carafe, because it will scratch the stainless steel. Occasionally, remove the brew-through valve on the Thermal Carafe lid and clean with mild, non abrasive detergent. To remove the valve, lift at the edge and pull up. Be sure to clean the passage where the valve is located (valve not on all models).

• To remove coffee stains from inside the thermal carafe, place a paper filter in the brew funnel and pour 2 teaspoons of powder dishwasher detergent into the brew funnel.
• Pour one carafe of water into the coffee maker.
• Place the carafe under the funnel and close the lid.
• When the brewing cycle stops, remove the brew funnel and discard the filter.
• Rinse the funnel.
• Allow the carafe to sit for about 15 minutes.
• Use a soft bristled brush to clean the inside and outer rim of the carafe.
• Scrub the carafe pour lip and lid with a soft cloth, warm water and mild detergent.
• When finished, pour out the solution in the carafe.
• Rinse the carafe and the lid.

ROUTINE CLEANING

Routinely clean your coffee maker every 3 months. More frequency may be needed, depending on the mineral content in your water.

Routine cleaning of your coffee maker removes mineral deposits in the internal hot water tank and will prolong the life of your coffee maker. You will need: 1 quart (32oz) of white vinegar, a toothpick and dish soap.

• Slide the brew funnel into the funnel rails.
• Place the carafe under the funnel.
• Open the lid and pour the vinegar into the coffee maker.
• Close the lid. Empty the carafe when liquid stops flowing.
• Flip the tank switch to the OFF position and unplug the coffee maker. Allow the vinegar to sit in the
  coffee maker for at least 2 hours.
• Remove the brew funnel and unscrew the sprayhead. Check the sprayhead holes and clear any deposits with the toothpick.
• Clean the sprayhead with a cloth and dish soap.
• Rinse with water.
• Pour a carafe of fresh water into the coffee maker. Place the carafe under the funnel and reinsert the funnel.
• Close the lid (the water will begin to flush out the vinegar from the internal hot water tank).
• Empty the carafe when the liquid stops flowing.
• Repeat the process of cycling fresh cold water 3 or more times, or until you no longer smell vinegar.
• Remove the funnel and reattach the sprayhead.
• Replace the funnel and place the carafe under the funnel. Plug in the coffee maker. Flip the tank switch to the ON position.
• Allow the water in the tank to reach brewing temperature (which should take about 15 minutes). Your coffee maker is again ready for brewing.

DRAINING THE COFFEE MAKER

WATER IN THE COFFEE MAKER SHOULD BE DRAINED WHEN THE COFFEE MAKER IS:

• Transported
• Shipped
• Stored in an unheated location with a chance of freezing
• Not to be used for an extended period of time

TO DRAIN:

1. Flip the tank switch to the OFF position, unplug the coffee maker and allow it to cool for at least 2 hours.
2. Remove the funnel and the sprayhead, loosening with your fingertips.
3. Grasp the back of the coffee maker and turn it upside down over a sink.
4. Continue tipping the coffee maker until the flow from the sprayhead tube and lid stops.
5. Attach the sprayhead and insert funnel into coffee maker.
6. Return the coffee maker to the upright position.

TROUBLESHOOTING
