Bush WMSAE712EB 1200 Spin Washing Machine

Safety information

Important – Please read these instructions fully before installing or operating your washing machine.

Before use

• If the supply cord is damaged, it must be replaced by the manufacturer, their service agent, or similarly qualified persons in order to avoid a hazard.
• The new hose set supplied with the appliance is to be used, and the old hose set should not be reused.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Pull out its plug from the power socket before cleaning or maintenance.
• Make sure that all pockets are emptied.
• Pull out its plug and cut off the water supply after the operation.
• Pets and children may climb into the machine. Check the machine before every operation.
• The glass door may be very hot during the operation. Keep children and pets far away from the machine during the operation.
• Take care that the power voltage and frequency shall be identical to those of the washing machine.
• Do not use any socket with a rated current less than that of the washing machine. Never pull out the power plug with wet hands.
• To ensure your safety, the power cord plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Packing materials may be dangerous to the children. Please keep all packing materials (plastic bags, foams, etc) far away from the children.
• The installation of this appliance is best carried out by 2 people.

During use

• Do not use a multiple-socket or extension cord.
• Do not use if the power lead is damaged. It must be replaced by the manufacturer, their approved service agent, or similarly qualified person. Customer Helpline: 0345 257 7271.
• Do not insert the plug into the power supply with wet hands.
• Do not touch or use the appliance when barefoot or with wet or damp hands.
• Do not open the detergent drawer during a wash cycle.
• Do not touch the porthole (door) during the washing cycle – it will get hot.
• Never force the machine door open while the machine is running.
• Do not open the door if water is visible through the porthole.
• Do not wash foam rubber or sponge-like materials on a hot wash.
• The machine can reach high temperatures while running. Do not touch the drain hose or wastewater during draining.
• Keep your pet away from your machine.
• Do not use flammable detergents, sprays, or dry cleaning agents in or near the appliance.
• Do not remove or insert the plug in the presence of flammable gas.

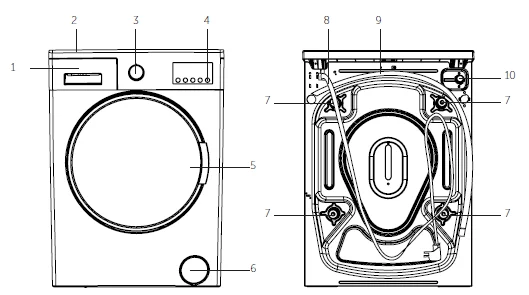

Getting to know your washing machine

You’ll be up and running in no time

1. Detergent drawer
2. Top panel
3. Programme knob
4. Start/Pause button
5. Door
6. Filter
7. Packing bolt x 4
8. Power lead
9. Drain hose
10. Water inlet

Accessories

This machine includes the following accessories. Please install these parts before operating.

• plastic hole plug x 4
• Inlet hose

Installing your washing machine

Bringing it all together

Unpacking your washing machine

Caution: 2 people are required to unpack the washing machine; it is recommended that gloves be worn.

Carefully remove all packaging materials, including the foam base, and dispose of them correctly.

Note: When opened, water droplets may be visible in the drum, etc. This is normal as each appliance is factory tested.

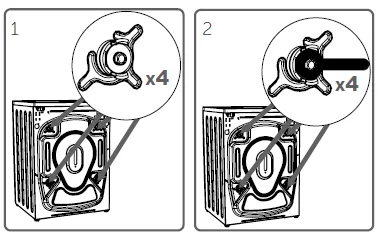

Removing the packing bolts

Important: The packing bolts are designed to support the internal components during transit; these MUST be removed before use.

• Loosen the screws by rotating counterclockwise with a suitable wrench. (1 & 2)

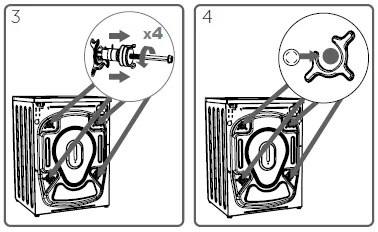

• Remove the bolts by pulling them. (3)
• When the transport bolts have been removed, insert the plastic transport screw taps found in the accessories bag into the holes. (4)

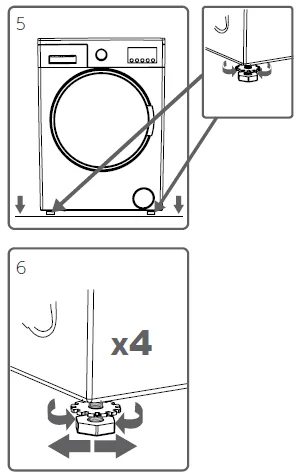

Adjusting the feet

• For your machine to work efficiently with minimum vibration, it should be settled on flat, non-slippery, firm ground.
• You can adjust the balance of your machine by changing the positioning of its feet.
• First, loosen the plastic adjustment nut. (5)
• Adjust by rotating the feet upwards or downwards. (6)
• After the desired position has been reached, tighten the plastic adjustment nut again by rotating it upwards.

Note: Never put cartons, wooden blocks, or similar materials under the machine to balance irregularities in the level of the ground.

Connections

Water inlet hose connections

Important: This washing machine MUST only be connected to a cold water supply.

• Connect the water inlet hose; the angled connection attaches to the water inlet on the back of the washing machine. (7)
• The straight connection attaches to the water supply valve. (8)
• Ensure all seals are in place before connecting.

Important: Only tighten the hose connection nut by hand – do not overtighten.

Drain hose connections

Important: The height of the top of the curve in the drain hose MUST be between 60 and 100cm from the floor. (9)

Important: The end of the water drain hose may be fitted directly to the wastewater outlet hole or a special apparatus mounted on the outlet bracket of the washstand.

Important: Never attempt to extend the water drain hose by adding extra parts.

Electrical

Any electrical work that is required to install this washing machine MUST be carried out by a qualified electrician.

THIS APPLIANCE MUST BE EARTHED

Before making any electrical connections, ensure that:

• The power socket is suitable for the maximum power of the washing machine (fuses in the power circuit must be 13 amp).
• The supply voltage should be the same as that indicated in the technical specifications and the appliance rating plate (located where shown).
• The appliance should be earthed and in compliance with the applicable law.
• Additional earth cables should not be necessary if the plug and socket are earthed. If necessary, an additional earth cable should be attached to the earth terminal on the back of the washing machine and earthed.
• When installed, the power socket must be within easy reach.
• The use of adapters, multiple connectors, or extension cables is not recommended.
• The appliance must be connected to a 220-240 volt 50-cycle AC supply by means of a three-pin socket, suitably earthed and protected by a 13-amp fuse.
• Should the fuse need to be replaced, a 13 amp fuse approved to BS1363/A must be used.
• The plug contains a removable fuse cover that must be refitted when the fuse is replaced. If the fuse cover is lost or damaged, the plug must not be used until a replacement cover has been fitted or the plug is replaced.
• A damaged plug should be cut off as close to the plug body as possible, the fuse should be removed, and the plug should be disposed of safely.

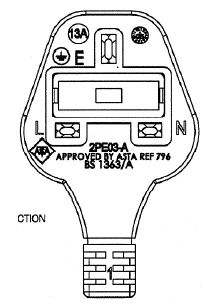

Plug replacement (UK & Ireland only)

Should you need to replace the plug, the wires in the power cable are coloured in the following way:

• Blue – Neutral ‘N’
• Brown – Live ‘L’
• Green & Yellow – Earth ‘E’

The green & yellow wire must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol.

The blue wire must be connected to the terminal that is marked with the letter N.

The brown wire must be connected to the terminal that is marked with the letter L.

If the power lead is damaged, it must be replaced by a qualified electrician.

Functions

Simple everyday use

WASHING SEQUENCE

• Plug your machine into the mains power supply.
• Open the water tap.
• Open the washing machine door.
• Load your items of clothing into the drum, ensuring they are loosely packed.
• Push the door of your machine until you hear the locking sound to close it.

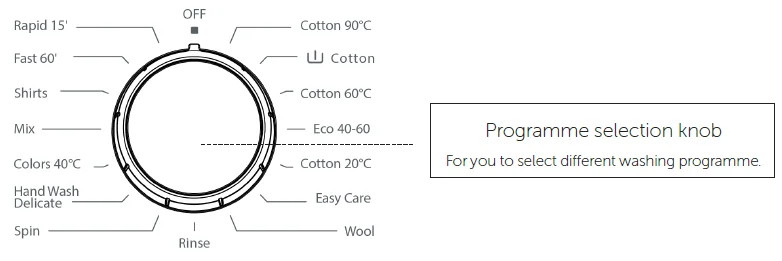

Selecting programme

Select the programme appropriate for your laundry from the programme table (Page 22).

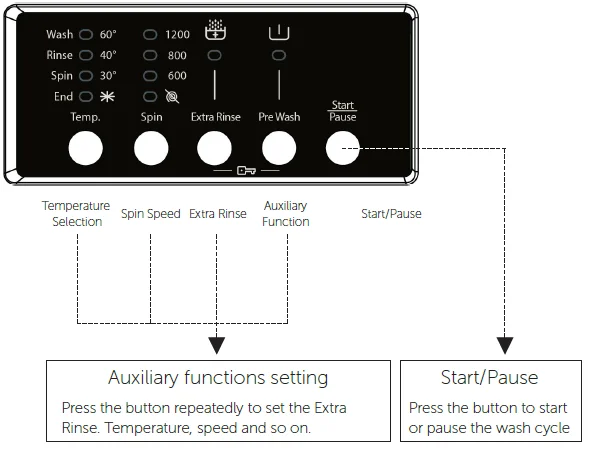

EXTRA FUNCTIONS

Before starting the programme, you can optionally select an extra function.

• Press the button of the extra function you would like to select.
• If an auxiliary function symbol on the electronic display flashes continuously, the extra function you have selected will be activated.
• If an extra function symbol on the electronic display blinks, the extra function you have selected will not be activated.

Reason for non-activation:

• The extra function you want to use in the washing programme you have selected is not applicable.
• Your machine has passed over the stage, during which the extra function you would like to select would be implemented.
• It is not compatible with an extra function you have selected previously.

Temperature Selection

Use the washing water temperature adjustment button to alter the automatically programmed washing water temperature. When you select a programme, the maximum temperature for that programme is automatically selected. To adjust the temperature, press the water temperature adjustment button until the desired temperature is displayed on the digital display.

You can gradually reduce the washing water temperature between the maximum temperature for the selected programme and cold washing selections by pressing the temperature adjustment button.

If you have skipped the washing water temperature you wanted, keep pressing the washing water temperature adjustment button until the desired temperature is displayed again.

NOTE: 90°C is not displayed in the Wash Temperature Indicators section of the display panel. When the temperature value is decreased to 60°, 40°, or 30° (cold washing), temperature levels are adjusted by pressing the temperature adjustment button, and the decreased temperature value is displayed on the display panel.

Spin Speed Selection

You can adjust the spin speed of your laundry with the spin speed setting button.

When you select a new programme, the max. The spin speed of the programme you have selected shall be displayed on the display panel. By pressing the spin speed setting button, you can change the spin speed of the selected programme to its maximum. value.

If you have skipped the spin speed you want to set, you can re-switch to the revolution by keeping the speed setting button pressed.

Extra Rinse

You can add an additional rinse operation to the end of the selected wash programme using this additional function.

To select this function, press the Extra rinse button when the symbol is displayed.

Pre-wash

You can expose your very dirty laundry to a prewashing operation prior to the main washing by using this additional function.

When using this function, you should put detergent in the front washing compartment of the detergent drawer.

Start/Pause button

By pressing the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Pause led on the electronic display will blink.

Child Lock

To avoid the programme flow from being affected if programme buttons are pressed or the programme button is turned on when performing a washing operation in your machine, a child lock is available.

Child lock will be activated when both auxiliary functions 3 and 4 are pressed at the same time for more than 3 seconds. You can see the auxiliary function LEDs on the display when activated.

If any button is pressed while the child lock is active, the Additional Function Leds will blink on the display.

If, while the child lock is engaged and any programme is running, the programme dial is switched to the CANCEL position and another programme is selected, the programme previously selected continues from where it left off.

To deactivate the child lock, press and hold the same buttons used to activate it for 3 seconds, and the ‘CL’ symbol on the display will turn off.

Cancelling Programme

If you want to cancel any programme running:

1. Switch the programme dial to the “CANCEL” position.
2. Your machine will stop the washing operation, and the programme will be cancelled.
3. To get rid of the water accumulated in the machine, switch the programme dial to any programme.
4. Your machine will perform the necessary discharge operation and cancel the programme.
5. You can run your machine by selecting a new programme.

Finishing Programme

Your machine will stop by itself as soon as the programme you have selected finishes.

• “End” led will blink on the display panel.
• You can open the machine’s door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundry.
• Switch the programme dial to the CANCEL position.
• Unplug your machine.
• Turn the water tap off.

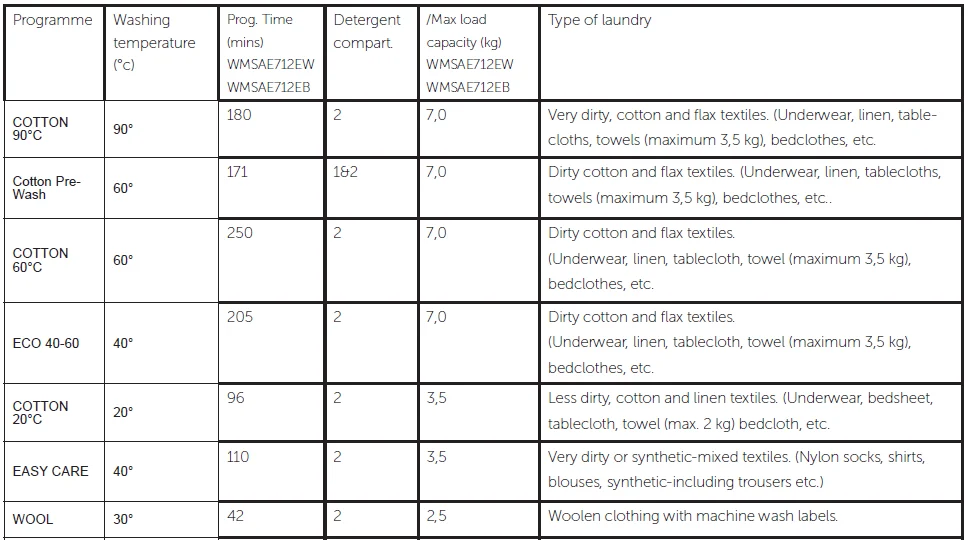

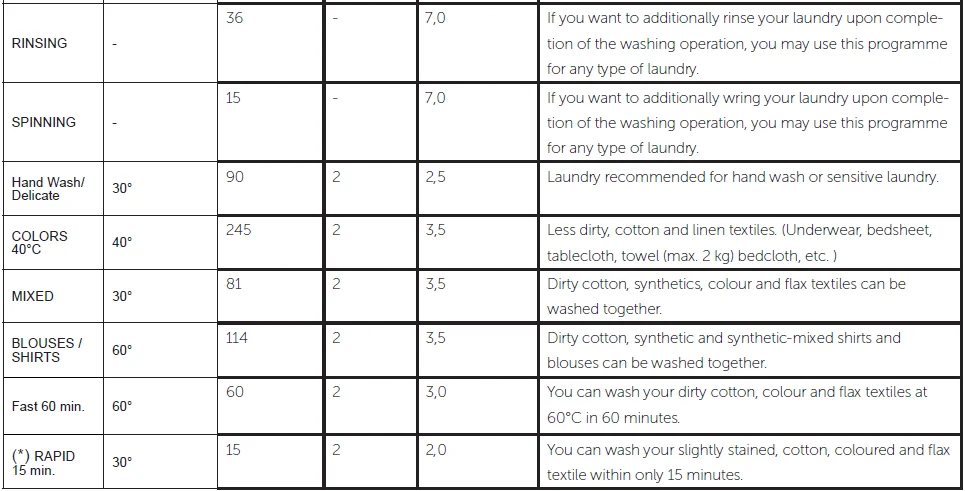

Programme Selection Guide

You can use softeners in all programmes (except spinning and draining programmes), optionally. When you arrange the quantity of the softener, follow the warning of the softener producer. Fill your softener in the (softener) compartment of the detergent drawer.

Due to the short washing time of this programme, we recommend that less detergent be used. The programme may last longer than 15 minutes if your machine detects an uneven load. You can open the door of your machine 2 minutes after the completion of a washing operation. (The 2-minute period is not included in the programme duration).

Note: Durations vary according to wash load (weight and type), tap water, ambient temperature and selected extra functions.

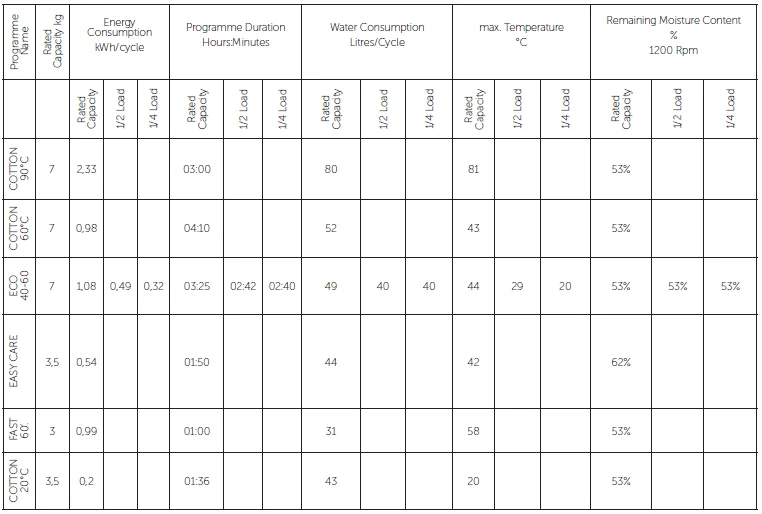

According to regulation 1015/2010 and 1061/2010, the programme 3 and the programme 4 are respectively the ‘Standard 60°C cotton programme’ and the ‘Standard 40°C cotton programme’.

The Eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and this programme is used to assess the compliance with the EU ecodesign legislation.

• The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and for longer durations.
• Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
• Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature.
• It’s recommended to use liquid detergent for the washing programmes at low temperatures. The amount of detergent to be used may vary depending on the amount of laundry and the level of dirtiness of the laundry. Please follow the detergent manufacturer’s recommendations for the amount of detergent to be used.
• The noise and remaining moisture content are influenced by the spinning speed. The higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

Important Information

• Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred, and the automatic foam absorption system has been activated due to too much detergent usage.
• We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning, please use the Drum Clean programme. If your machine does not have the Drum Clean programme, use the Cottons-90 programme. When required, use limescale removers manufactured specifically for washing machines only.
• Never force the door open when your Washing Machine is running. You can open the door of your machine 2 minutes after the completion of a washing operation.
• Never force the door open when your Washing Machine is running. The door will open immediately after the washing cycle has ended.
• The installation and repairing procedures should always be carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

Specifications may vary depending on the machine purchased.
