Cattleman Cuisine LS-GC02F Panini Press Grill Sandwich Maker Manual

Cattleman Cuisine LS-GC02F Panini Press Grill Sandwich

IMPORTANT SAFETY INFORMATION

When using your appliance, basic safety precautions should always be followed, including the following:

1. Ensure that the voltage indicated on the rating plate matches your domestic power supply.
2. If the power cable is damaged, in order to avoid danger, it must be replaced by the manufacturer or its maintenance department or similar professionals.
3. To protect against electric shock, do not immerse the cord, plug or machine in water or any other liquids.
4. Do not touch the hot surface of the grill during or after operation.
5. Use a silicone food tong to take out the food.
6. When the grill machine is not in use, the plug should be pulled out of the socket to avoid electric shock, leakage, and fire caused by aging insulation.
7. The matching grill accessories should be used correctly to avoid fire or injury.
8. The grill should be placed in a dry environment and should not be used outdoors.
9. While the grill is in use, maintain a distance of 20 cm from it at all times.
10. Place the grill on a stable surface when you use it. Do not approach flammable items.
11. When the grill is in operation, be careful when moving the food tray or other accessories to avoid being scalded by hot oil or high-temperature liquids.
12. Do not place any items on the grill. Do not cover it or block the heat dissipation position.
13. The grill can consume food only; do not put large pieces of food or metal items on the grill, as they may cause a fire.
14. This appliance can be used by persons with reduced physical, sensory, or mental capabilities or a lack of experience and knowledge if they have been given supervision or instruction concerning its safe use and understand the hazards involved.
15. This appliance may not be used by children. Keep the appliance and its cord out of reach of children. Ensure children are kept supervised while it is operating, and do not play with the appliance.
16. Children may not clean the grill or carry out any user maintenance on it.
17. This appliance is intended for household and similar use, such as:
    • staff kitchen areas in shops, offices, and other
    • working environments;
    • farmhouses;
    • by clients in hotels, motels, and other residential-type environments;
    • bed-and-breakfast-type environments.

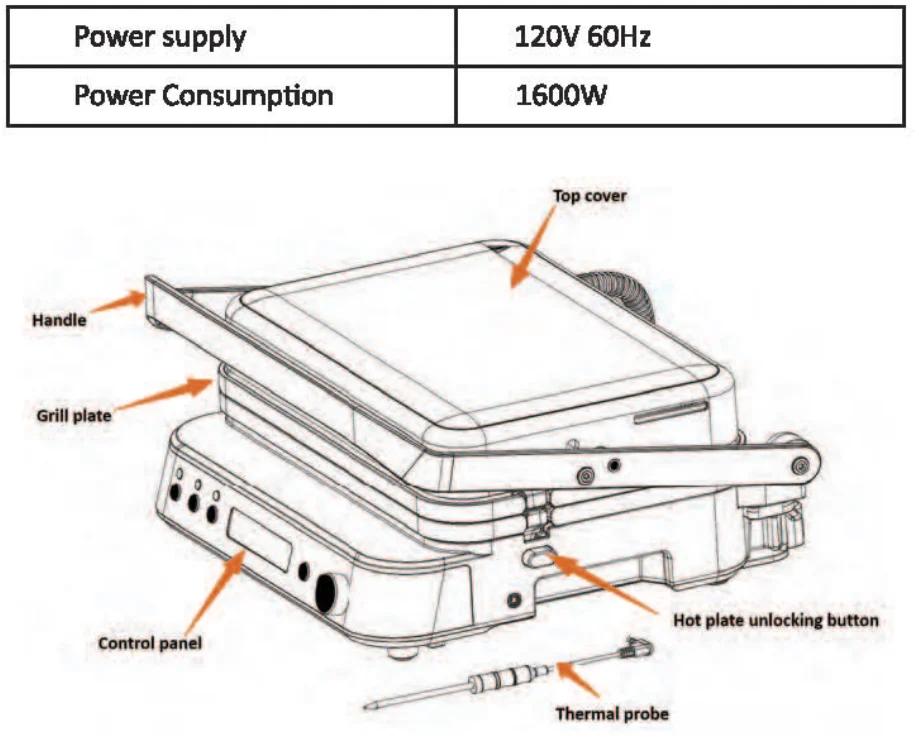

PRODUCT OVERVIEW

Technical data

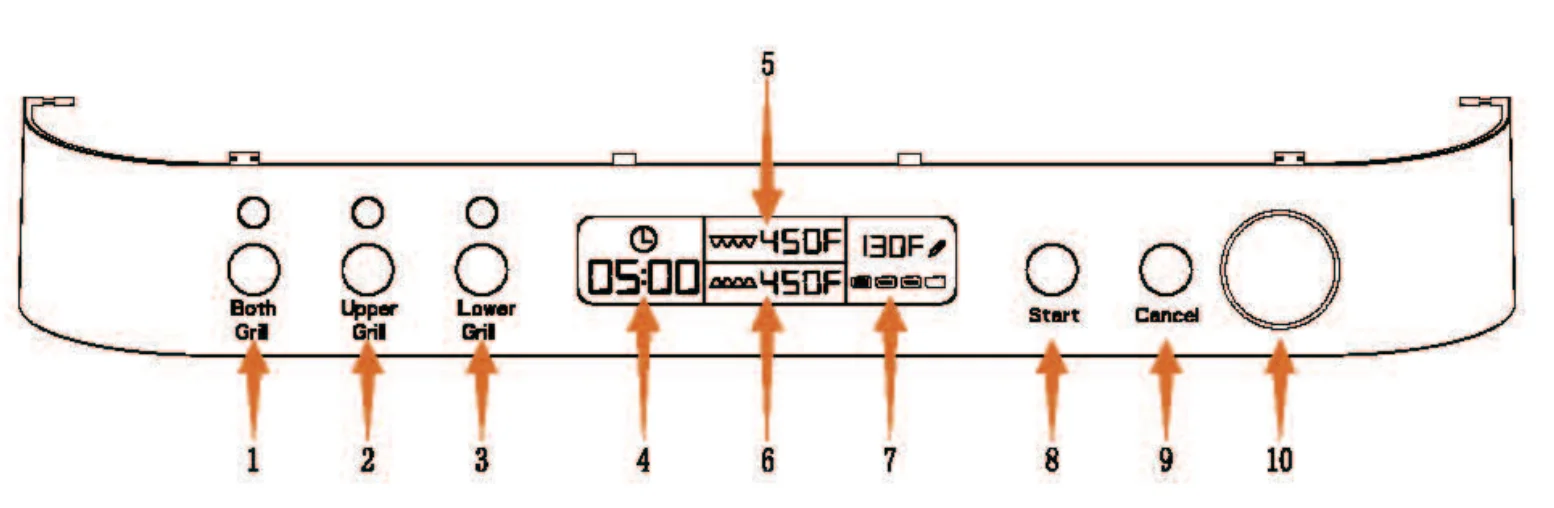

Control panel

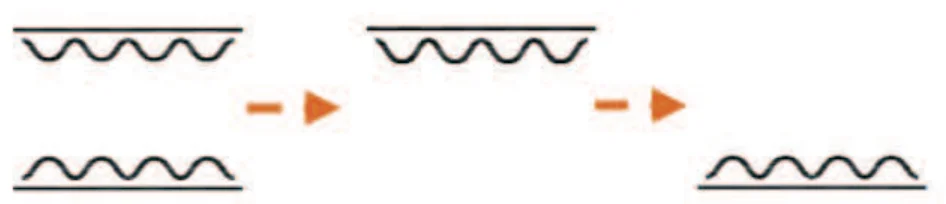

1. Both grill plates are heating together
2. Only upper plate heating
3. Only lower plate heating.
4. Time display
5. Display the temperature of the upper plate
6. Lower plate temperature display
7. Temperature probe display (This Area will be displayed blank if not connected to the probe)
8. Start cooking
9. Stop and cancel cooking
10. Rotating the knob to select the time and temperature

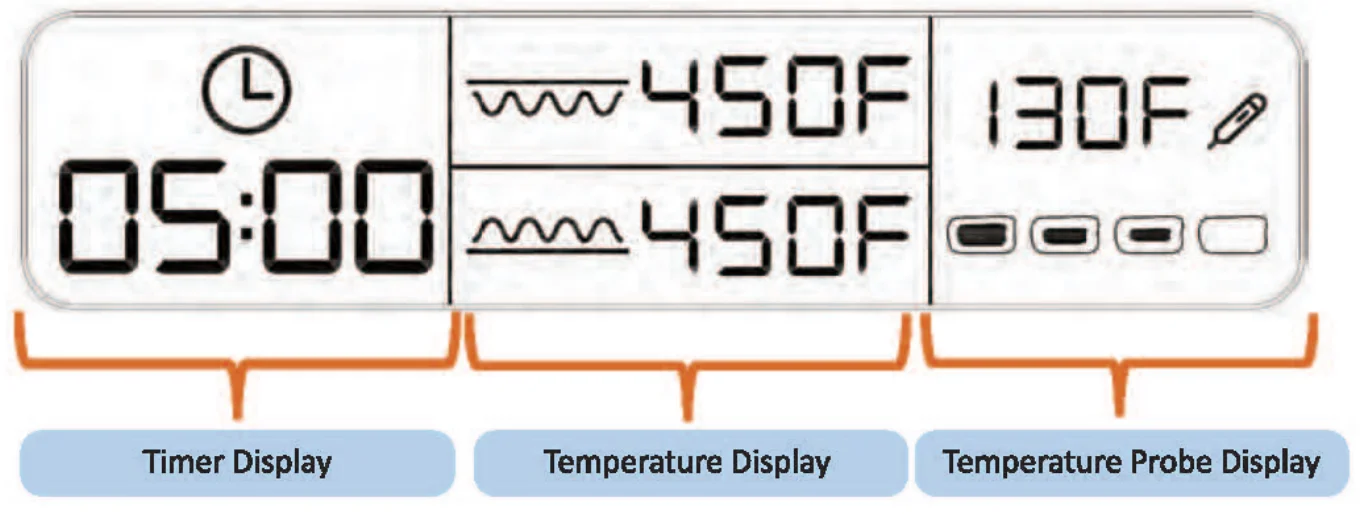

DISPLAY OVERVIEW

Temperature Probe Display:

BEFORE FIRST USE

1. Take the appliance out of the package and remove all the packaging material. Check the appliance to ensure all necessary parts are present.

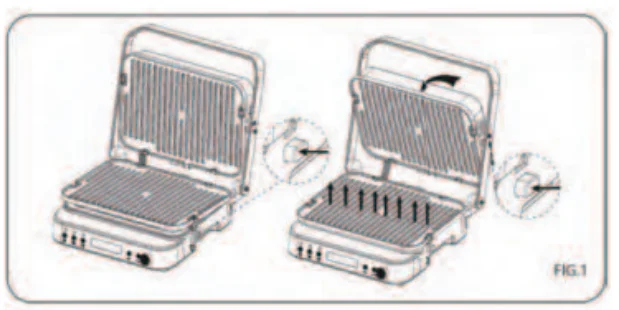

2. Remove the grill plate by pressing the “Unlock” button and taking it out. (FIG.1)
3. Before using it for the first time, clean the grill plate (or the waffle plate, if included) with warm water and a mild cleaning agent, then thoroughly dry the parts.
4. Select the desired cooking surface and insert the grill plate (or the waffle plate, if included), making sure it is properly in place.

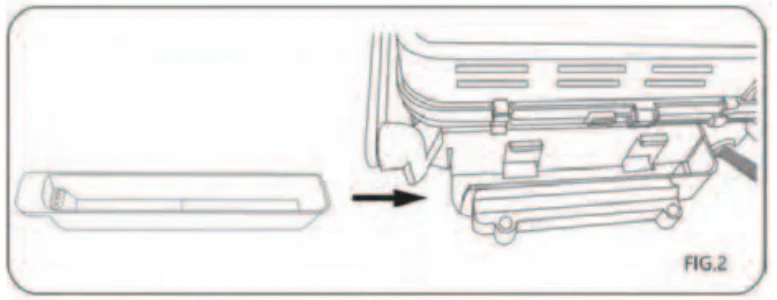

5. Ensure that the drip tray is inserted correctly at the back of the appliance. (FIG.2)

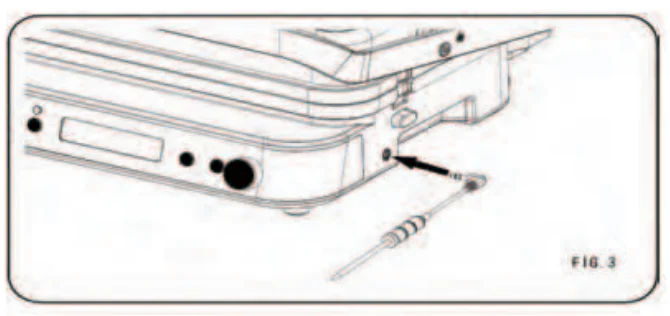

6. Ensure proper insertion of the temperature sensing probe if necessary.(FIG.3)

OPERATION

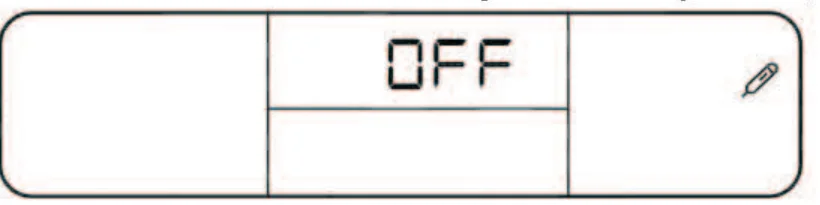

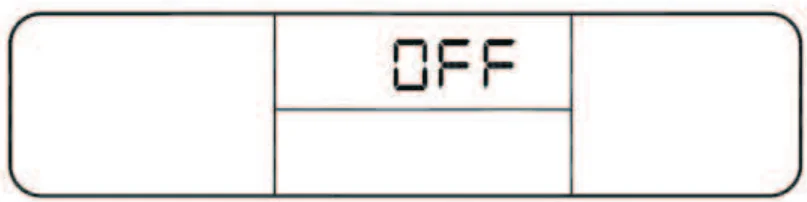

1. Switch on the power supply, the machine “Beeps”. The LCD and all function indicators light on once and then off. The LCDs are “OFF”. When connected with the temperature probe, the probe icon lights on.
2. Select the required cooking function – Both Grill\Upper Grill\Lower Grill- by pressing the corresponding button. The LCD shows corresponding icons.
3. Turn the knob to adjust the time. After setting the time, press the knob; the temperature display flickers, and turn the knob to adjust the temperature.

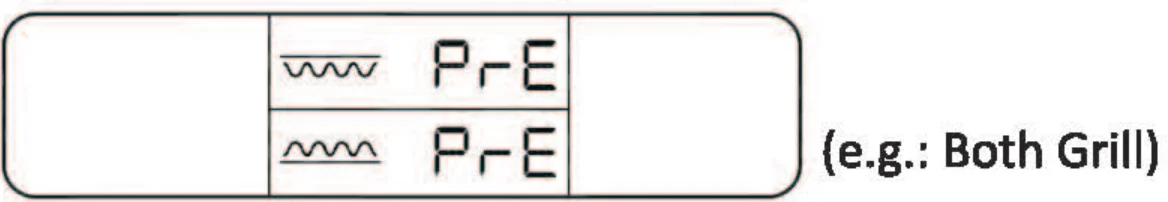

4. For cooking without a temperature probe connected, after the setting is done, press the “Start” button, and the display screen shows “PRE”.After the Pre-heating process is completed, the machine will beep 3 times. “PRE” flashes on the screen to remind you of the completion of the preheating process. Put in the food and press the “Start” button. The unit starts counting down.

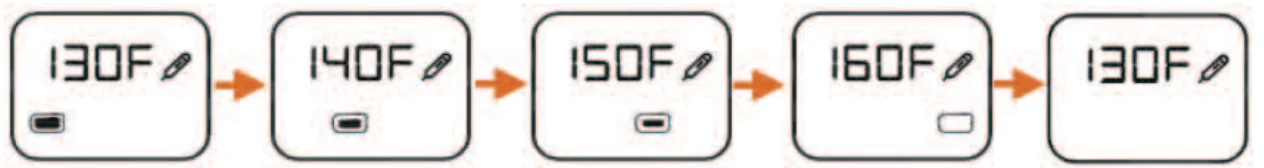

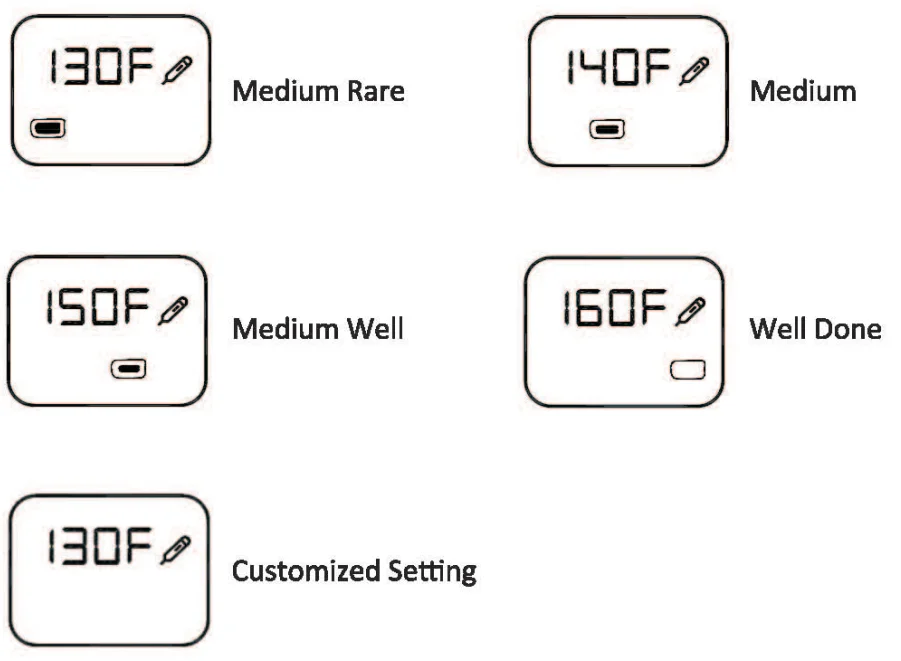

5. For cooking with a temperature probe connected, after setting the appliance heating temperature, press the knob, the probe function flashes, turn the knob to select the food doneness settings, and different food icon flashes with the default temperature when rotating from Rare to Well Done (4 levels of meat doneness are fixed with default temperature), rotate to the last customize function with all food icons off, press the knob and the probe temperature flashes to customize the probe temperature (Temperature can be adjusted at a customized setting). (Ignore this step if the probe is not connected.

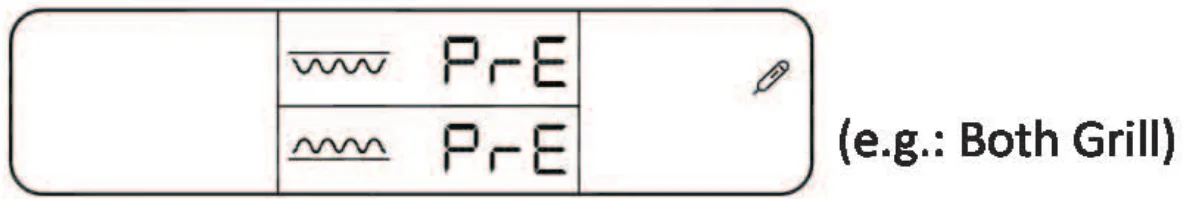

6. Press the Start key to start preheating. When the unit begins to warm up, the display screen shows “PRE”.  After the warm-up is completed, the machine will beep 3 times. “PRE” flashes on the screen to remind of the completion of preheating.
7. Put the temperature probe into the food, and the food temperature is displayed on the LCD. For better cooking results, please ensure the temperature probe is inserted into the center of the food. (Ignore this step if the probe is not connected.)
8. Put the food on the grill plate and press the “Start” button. The unit starts counting down. (If the user does not press the “Start” button within 30 minutes, the unit will go into standby mode and display “OFF”).
9. After the temperature of the probe reaches the selected meat doneness or customized probe function, the machine automatically completes the work and goes to the next step. (Ignore this step if the probe is not connected)

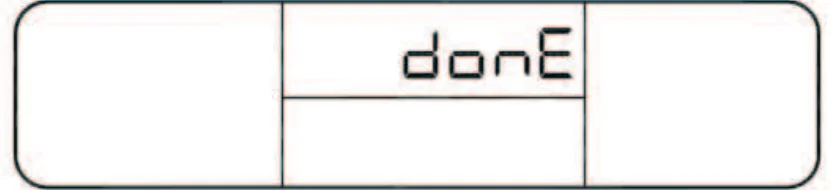

10. After the work is finished, the machine beeps 5 times, and the display screen shows “DONE”.
11. Press button “Cancel” button to go into standby mode “OFF”.
12. Use the handle to lift the lid. Remove the food carefully.
    Attention: Never use sharp mental tongs or a knife, as these can cause damage to the non-stick coating of the grill plates.

Suggestions for using the waffle plate (if included)

1. Suggested temperature and time: 150°C(300°F), 5 minutes.
2. Suggested capacity for each chamber (total 4 chambers): 80ml/chamber.

USE FLAT GRIDDLE MODE

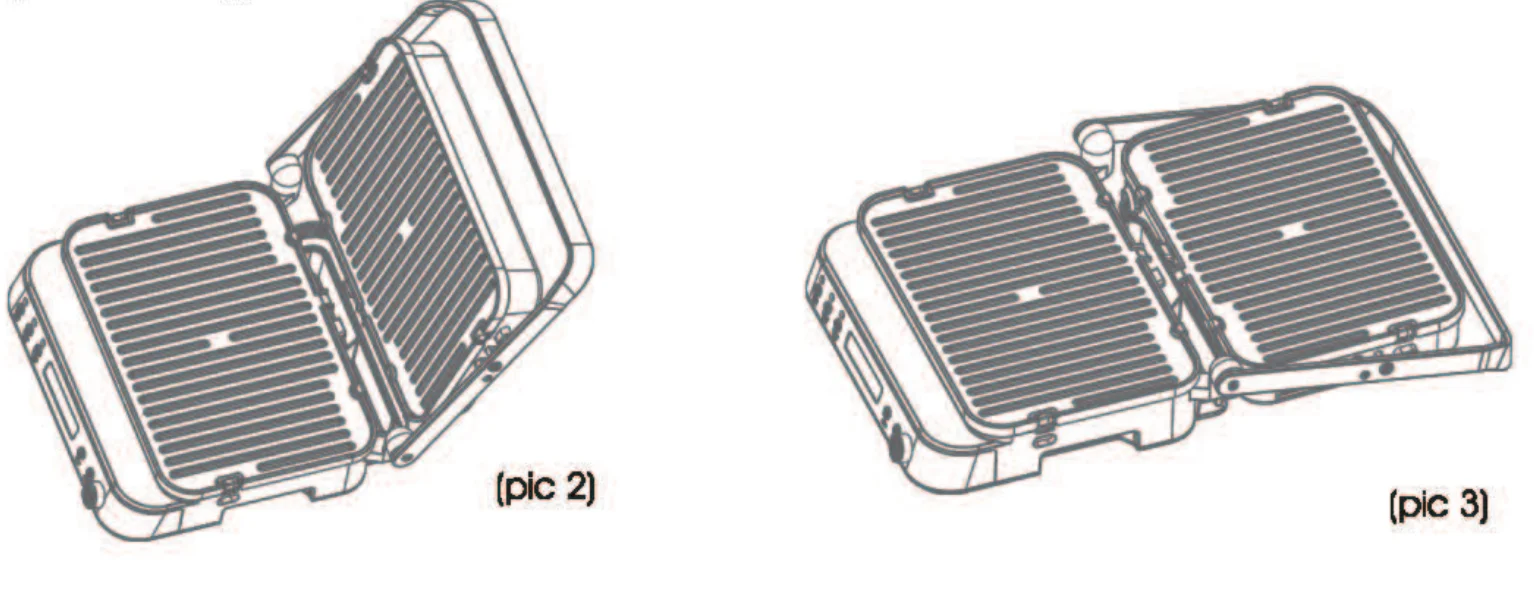

1. When preheating finishes, use the handle to lift the top cover to open position (like pic 2), press the top cover to level with the handle (like pic2), then press the handle &top cover to flat position (like pic3); Pls take care when opening the top cover to flat position, as it’s hot after preheating.

Remark:

• During cooking, you can press the “Cancel” button to exit the current mode and select the desired function.
• During cooking, you can turn the knob to adjust time/temperature; the unit will start cooking at the new time/temperature within 3 seconds.
• The unit could memory the last setting temperature and time. When you turn on the unit and select the desired function, the setting temperature and time of last use will appear on the display.

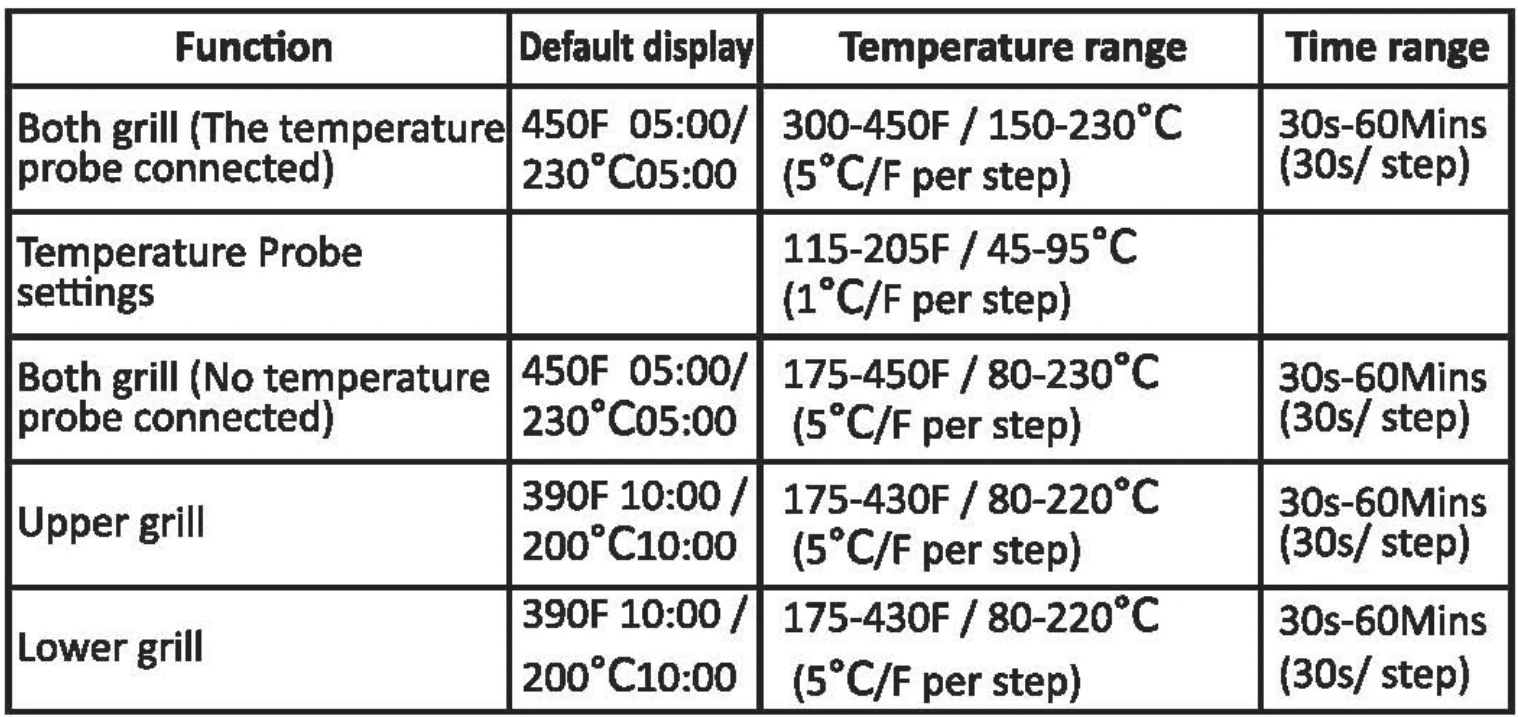

TIME AND TEMPERATURE RANGE

Helpful tips:

1. For satisfactory results, add a little cooking oil or cooking spray to the plates.
2. To reduce the preheating time, close the grill plates during preheating.
3. Only use the handle to open or close the top cover.

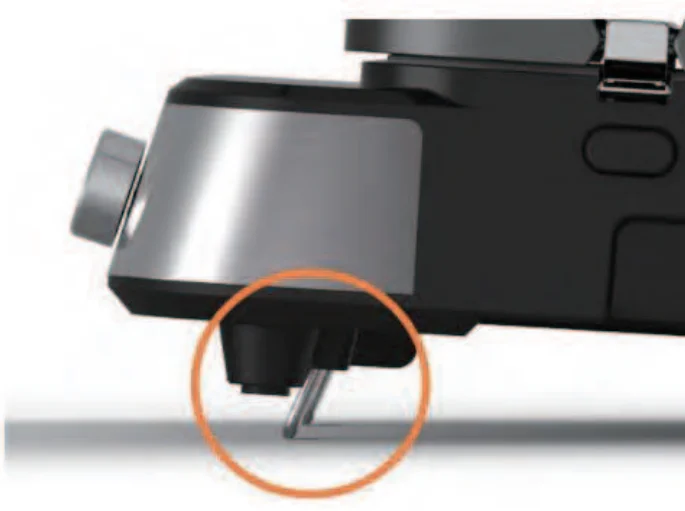

4. There is a foldable bracket on the base; you can lift the bracket when grilling meat for fast oil draining and smokeless cooking.

CLEANING AND CARE

Disconnect the plug from the socket when the appliance is not in use, as well as before cleaning the unit and/or individual parts.

1. Allow the appliance to cool down completely. Caution: The grill is still very hot. It takes a while to cool down.
2. Press the “Unlock” button to remove the plate from the grill.
3. After removing the grill plate, you can clean it in warm soapy water or in the dishwasher.
4. Wear gloves to remove the drip tray at the back of the appliance. Empty the drip tray into a heat-resistant pan, rinse it in warm, soapy water, and dry it thoroughly later.
   Note: Before removing the drip tray, make sure that the temperature of the oil or oil residue is less than 40°C/104°F; otherwise, it can burn.

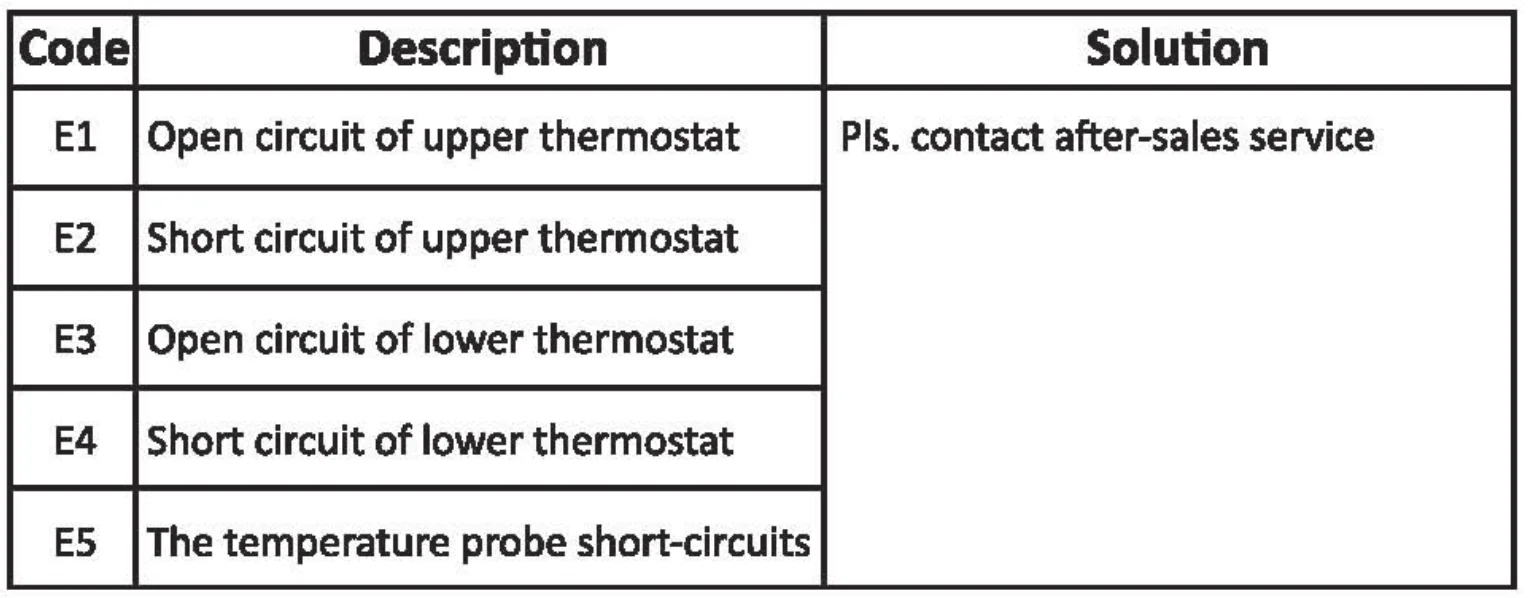

ERROR CODE

WARRANTY SERVICE

The 1-year Limited Warranty is valid for products purchased from our CATTLEMAN CUISINE only, starting from the date of the original retail purchase. We will provide customer service for any defects in quality or materials under normal, non-commercial use.

1. If you have a query about your CATTLEMAN CUISINE appliance, please contact the CATTLEMAN CUISINE customer service email: [email protected].
2. Please inform us of your model name/number, purchase date, order number, machine problem, and your requirement.
3. Your model number can be found on the rating plate. For information on your rating plate, see the inside front cover.
4. Please keep your purchase receipt in a safe place to ensure you have this information.
5. Service under this warranty will not extend the available time of the warranty.
