Chrysler Pacifica 2018 AWD Minivan User Manual

Chrysler Pacifica 2018 AWD Minivan

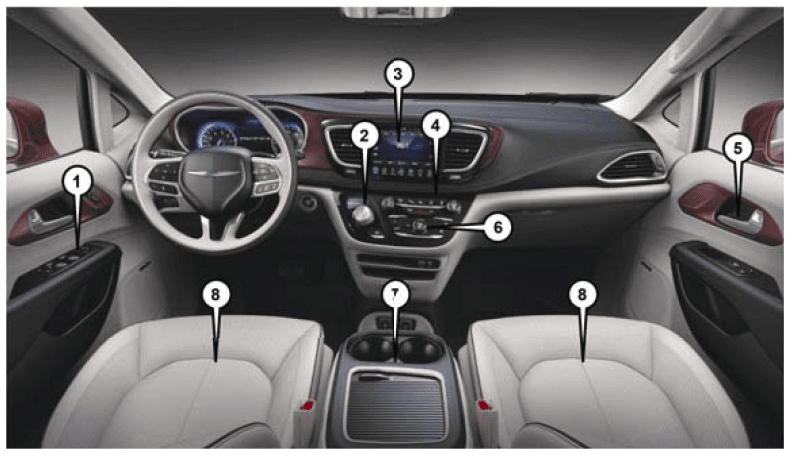

INTERIOR

1. PowerWindow/Door Lock Switches
2. Electronic Gear Selector
3. Uconnect Radio
4. Switch Panel
5. Door handle
6. Climate Control
7. Center Console
8. Seats

GETTING TO KNOW YOUR VEHICLE

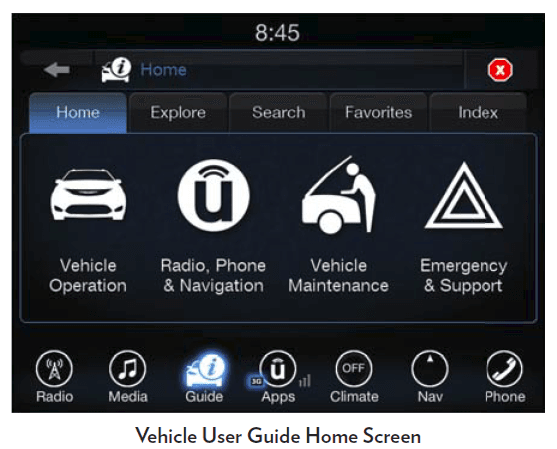

• Once you launch your Vehicle User Guide, you will be able to explore your warranty information and radio manual when and where you need them. Your Uconnect radio will display the Vehicle User Guide on your touchscreen radio to assist in better understanding your vehicle. There’s no app to download, no phone to connect to, and no external device needed for playback. Plus, it’s updated throughout the year, in real-time, so it never goes out of date.

Features/Benefits

• Pre-installed on your Uconnect touchscreen radio
• Enhanced search and browsing capability
• Robust NAV application — If Equipped
• Add selected topics to a fast-access Favorites category
• Icon and symbol glossary
• Warranty information


  •        Operating Instructions	•        Maintenance Schedules
  •        Warranty Information	•        Emergency Procedures
  •        Fluid Level Standards	•        911 Contact and More

KEYS

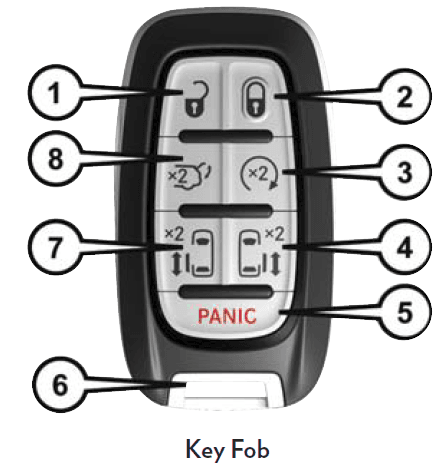

Key Fob

• Your vehicle uses a keyless ignition system. The ignition system consists of a key fob with Remote Keyless Entry (RKE) and a START/STOP push button ignition system. The Remote Keyless Entry system consists of a key fob and Keyless Enter- N-Go feature if equipped.
• NOTE:
• The key fob may not be found if it is located next to a mobile phone, laptop or other electronic device; These devices may block the key fob’s wireless signal.

Emergency Key Feature

• The key fob also contains an emergency key, which is stored in the bottom of the key fob.
• Mechanical Latch To Release Emergency Key
• The emergency key allows for entry into the vehicle should the battery in the vehicle or the key fob go dead. The emergency key is also for locking/ unlocking the glove compartment. You can keep the emergency key with you when valet parking.

Request For Additional Remote Controls

NOTE:

• Only key fobs that are programmed to the vehicle electronics can be used to start and operate the vehicle. Once a key fob is programmed to a vehicle, it cannot be programmed to any other vehicle

REMOTE STARTING SYSTEM — IF EQUIPPED

• This system uses the key fob to start the engine conveniently from outside the vehicle while still maintaining security. The system has a range of 328 ft (100 m).
  The Remote Starting System also activates the Climate Control, vented seats (if equipped) in temperatures above 80° F (26.7° C), and the optional heated seats, and an optional heated steering wheel in temperatures below 40° F (4.4° C).

DOORS

Keyless Enter-N-Go — Passive Entry

• The Passive Entry system is an enhancement to the vehicle’s Remote Keyless Entry system and a feature of Keyless Enter-N-Go. This feature allows you
  to lock and unlock the vehicle’s door(s) without having to push the key fob lock or unlock buttons.
• NOTE:
• Passive Entry may be programmed ON/OFF. Refer to “Uconnect Settings” in “Multimedia” in the Owner’s Manual for further information.
• If wearing gloves on your hands, or if it has been raining/snowing on the Passive Entry door handle, the unlock sensitivity can be affected, resulting in a slower response time.

Power Sliding Side Door — If Equipped

The power sliding door may be opened or closed in several ways:

• Key fob
• Inside or outside handles
• Buttons located:
  • In the overhead console
  • Just inside the sliding door
  • On the outside handle
• Push the button on the key fob twice within five seconds to open, close, or reverse a power sliding door.
• The key fob and the overhead console button will operate the door when the door is locked. All other ways require the sliding door to be unlocked. If the vehicle is equipped with Passive Entry, pressing the button on the outside handle or the Hands-Free feature (if equipped) will unlock and open the sliding door, with a valid Passive Entry key fob within 5 ft (1.5 m) of the door handle

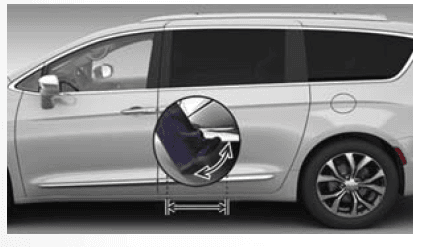

Hands-Free Sliding Doors — If Equipped

• To open the Hands-Free Sliding Doors, use a straight in and out kicking motion under the vehicle in the general location below the door handle(s). Do not move your foot sideways or in a sweeping motion or the sensors may not detect the motion. When a valid kicking motion is completed, the sliding door will chime, the hazard lights will flash and the sliding door will open almost instantaneously. This assumes all options are enabled in the radio settings.

Manual Adjustment (Rear Seats)

Manual Recline — Quad Seats

• To recline, lean forward slightly, lift the lever, and push back to the desired position and release the lever. Lean forward and lift the lever to return the
  seatback to its normal position. Using body pressure, lean forward and rearward on the seat to be sure the seatback has latched

To Unstow Second Row Seats

• For Manual Seats: To unstow the seat from the floor, move the front seat all the way forward using the manual seat adjustment bar.

Removing The Bench Seat

1. Adjust the driver and passenger seats forward to allow room for the bench seat removal.
2. Raise the armrest completely, then lift the recline lever located on the outboard side of the seat to fold the seatback flat against the seat cushion

Head Restraints — Second Row Bench

• The second row bench seat is equipped with adjustable head restraints.
• To raise the head restraint, pull upward on the head restraint. To lower the head restraint, push the adjustment button, located at the base of the head restraint, and push downward.

Power Folding Third Row Head Restraints — If Equipped

• For improved visibility, the third row outboard head restraints can be folded using the Uconnect System.
• Press the “Controls” button located on the bottom of the Uconnect display.
• Press the Head Restraint Fold button to power fold the third row head restraints

EXTERIOR LIGHTS

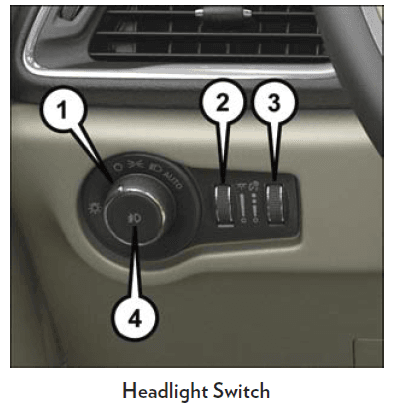

Headlight Switch

• The headlight switch is located on the left side of the instrument panel. The switch controls the operation of the headlights, parking lights, and instrument
  panel lights, interior lights, and the fog lights.

1. Rotate Headlight Switch
2. Ambient Dimmer Control
3. Instrument Panel Dimmer
4. Fog Lamps Button

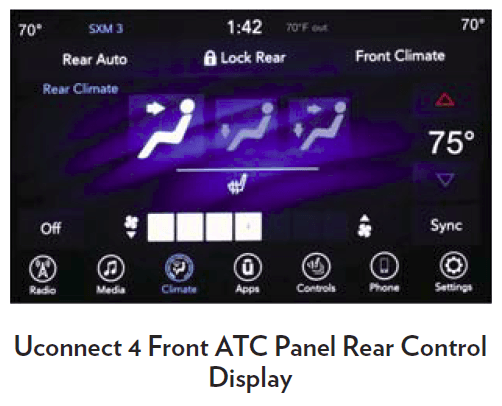

Controlling The Rear Climate Controls From The Front ATC Panel

• The Three-Zone ATC system allows for adjustment of the rear climate controls from the front ATC pane

To change the rear system settings:

• Press the “REAR CLIMATE” button on the touchscreen to change control to rear control mode, the Rear display will appear. Control functions now operate the rear system.
• To return to the Front screen on the Uconnect radio, press the “Front Climate” or “Done” button on the touchscreen

SAFETY

Modes Of Operation

• Three selectable modes of operation are available in the Uconnect System. Refer to “Uconnect Settings” in “Multimedia” in your Owner’s Manual for further information.

Blind Spot Alert Lights Only — Default Setting

• When operating in Blind Spot Alert mode, the BSM system will provide a visual alert in the appropriate side view mirror based on a detected object. However,
  when the system is operating in Rear Cross Path (RCP) mode, the system will respond with both visual and audible alerts when a detected object is present. Whenever an audible alert is requested, the radio is muted.

Tire Pressure Monitoring Low Pressure

Warnings

• The “Tire Pressure Monitoring Telltale Light” will illuminate in the instrument cluster and a chime will sound when tire pressure is low in one or more of the four active road tires. In addition, the instrument cluster will display an “Inflate to XX” message and a graphic showing the pressure values of each tire with the low tire pressure values in a different color.
• Should this occur, you should stop as soon as possible and inflate the tires with low pressure (those in a different color in the instrument cluster graphic) to the vehicle’s recommended cold placard pressure value as shown in the “Inflate to XX” message. Once the system receives the updated tire pressures, the system will automatically update, the pressure values in the graphic display in the instrument cluster will return to their original color, and the “Tire Pressure Monitoring Telltale Light” will turn off. The vehicle may need to be driven for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to receive this information.

Service TPMSWarning

• When a system fault is detected, the “Tire Pressure Monitoring Telltale Light” will flash on and off for 75 seconds and then remain on solid. The system
  fault will also sound a chime. In addition, the instrument cluster will display a “SERVICE TPM SYSTEM” message for a minimum of five seconds and then display dashes (- -) in place of the pressure value to indicate which sensor is not being received.
  If the ignition is cycled, this sequence will repeat, providing the system fault still exists. If the system fault no longer exists, the “Tire Pressure Monitoring Telltale Light” will no longer flash, and the “SERVICE TPM SYSTEM” message will no longer display, and a pressure value will display in place of the dashes. A system fault can occur due to any of the following:
• Jamming due to electronic devices or driving next to the facilities emitting the same radio frequencies as the TPMS sensors.
• Installing some form of aftermarket window tinting that affects radio wave signals

STARTING AND OPERATING

STARTING THE ENGINE

Before starting your vehicle, adjust your seat, adjust both inside and outside mirrors, and fasten your seat belts.

WARNING!

• When exiting the vehicle, always remove the key fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Children should be warned not to touch the parking brake, brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle, or in a location accessible to children, and do not leave the ignition of a vehicle equipped with Keyless Enter-N-Go in the ACC or ON/ RUN mode. A child could operate power windows, other controls, or move the vehicle.
• Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause serious injury or death

SURROUND VIEW CAMERA SYSTEM — IF EQUIPPED

• Your vehicle may be equipped with the Surround View Camera System that allows you to see an on-screen image of the surroundings and top view of your vehicle whenever the gear selector is put into REVERSE or a different view is selected through the “on screen soft buttons”. The top view of the vehicle will show which doors are open. The image will be displayed on the touchscreen display along with a caution note “Check Entire Surroundings” across the top of the screen. After five seconds, this note will disappear. The Surround View Camera System is comprised of four sequential cameras located in the front grille, rear liftgate and side mirrors.

IN CASE OF EMERGENCY

BULB REPLACEMENT

Replacement Bulbs

Interior Bulbs

TECHNICAL SPECIFICATIONS

FLUID CAPACITIES
