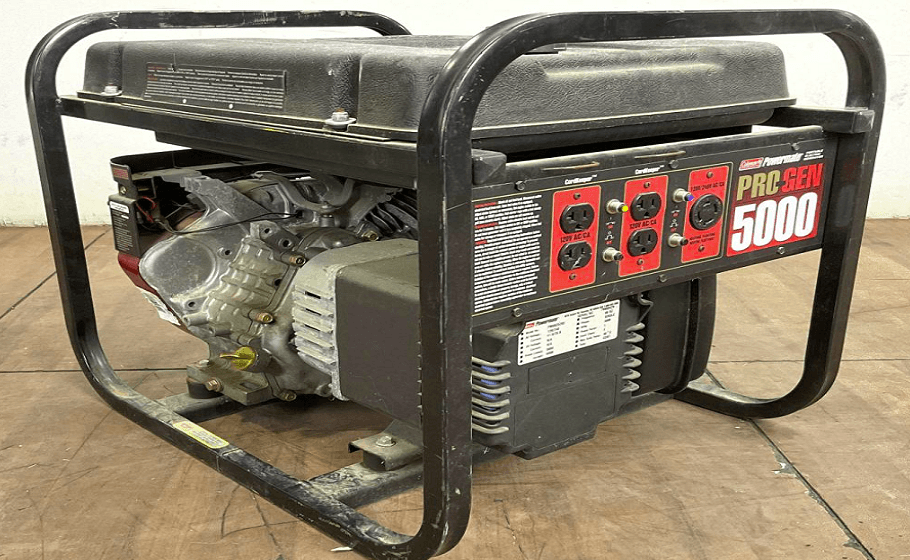

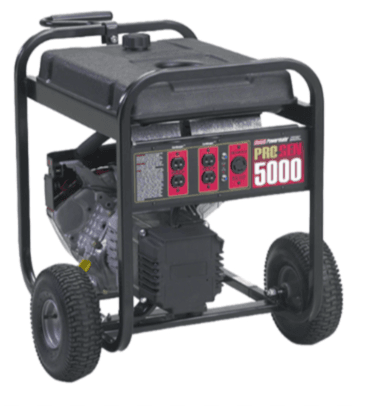

Coleman Powermate PM052400001 Portable Generator
MAJOR GENERATOR FEATURES
- 8 HP Tecumseh engine
- Cast-iron cylinder sleeve
- Receptacles on Endbell

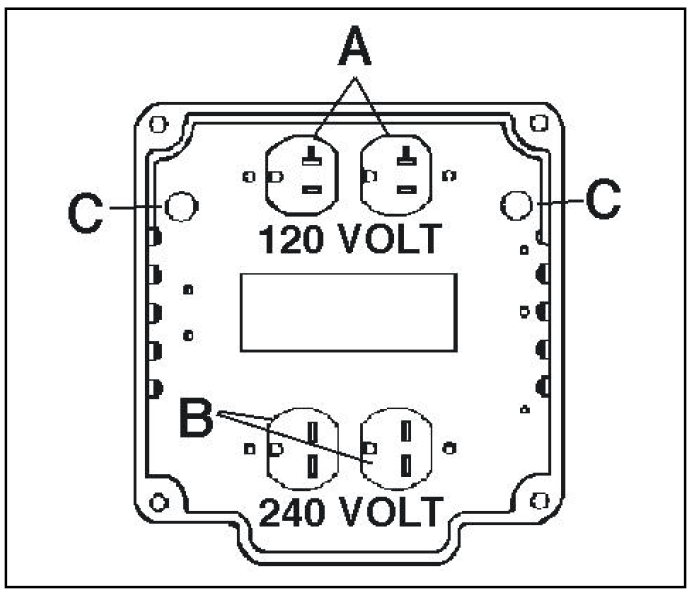

ENDBELL
- A. 120 V, 20 Ampere Duplex Receptacle
- This duplex is split so that 20 amps of current may be drawn from each half of the receptacle. However, the total power drawn must be kept within nameplate ratings. These receptacles may be used along with the 240-volt receptacle provided the generator is not overloaded.
- B. 240 V, 15 Ampere Duplex Receptacle
- A maximum of 15 amps may be drawn from these receptacles provided they are the only receptacles used. However, the current must be limited to the nameplate rating. If these receptacles are used along with the 120-volt receptacles, the total load drawn must not exceed the nameplate ratings.
- C. Circuit Breakers
- The receptacles are protected by an AC circuit breaker. If the generator is overloaded or an external short circuit occurs, the circuit breaker will trip. If this occurs, disconnect all electrical loads and try to determine the cause of the problem before attempting to use the generator again. If overloading causes the circuit breaker to trip, reduce the load.
- NOTE: Continuous tripping of the circuit breaker may cause damage to the generator or equipment. The circuit breaker may be reset by pushing the button of the breaker.
LIMITED WARRANTY (NOT VALID IN MEXICO)
- WHAT IS COVERED: Replacement parts and labor.
- WHAT IS NOT COVERED: Transportation charges to Coleman Powermate, Inc. for defective products. Transportation charges to consumers for repaired products. Brushes, fuses, rubber feet, and receptacles. Damages caused by abuse, accident, improper repair, or failure to perform normal maintenance. Power units or engines are covered exclusively by the warranties of their manufacturer. Sales outside of the United States or Canada. Any other expense including consequential damages, incidental damages, or incidental expenses, including damage to property.
- Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
- IMPLIED WARRANTIES: Any implied warranties, including the Implied Warranties of Merchantability and Fitness For A Particular Purpose, are limited in duration to one (1) year from the date of retail purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
- HOW TO OBTAIN WARRANTY PERFORMANCE:
- Replacement parts and service are available from Coleman Powermate, Inc. Service Centers. Locate your nearest Service Center by calling TOLL FREE 1-800-445-1805. In the unlikely event a Service Center can not be located, you may call Coleman Powermate, Inc. for a return authorization number. Any unit returned WITHOUT an authorization number will be refused.
- To the extent, that any provision of this warranty is prohibited by federal, state, or municipal law, and cannot be preempted, it shall not be applicable. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

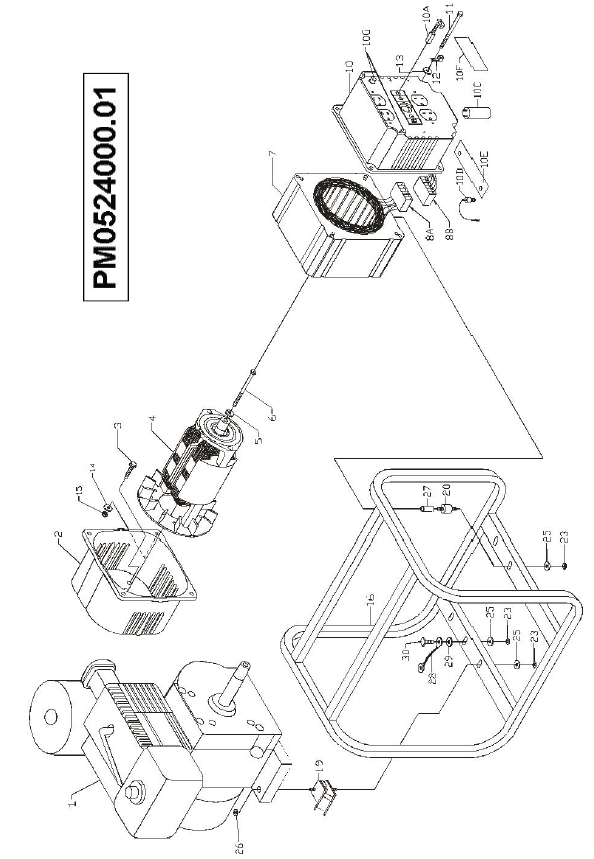

PARTS DRAWING
PARTS LIST
| Ref No. | Part No. | Description |
| 1 | Note A | Engine, 8 hp Tecumseh |
| 2 | 0061754 | Adapter, engine |
| 3 | 0000901.01 | Bolt, Wz 5/16-24 x 5/8 |
| 4 | 0049679 | Rotor, 4.0 KW |
| 5 | Note B | Washer, lock 5/16 |
| 6 | 0041483 | Bolt, hex 5/16-24 x 5 3/4 |
| 7 | 0050469 | Stator, 4.0 KW, 60 Hz |
| 8A | 0034801 | Connector hsg. set, end bell |
| 8B | 0056718 | Connector, stator |
| 10 | 0048838.02 | Endbell, wired complete |
| 10A | 0048844 | Brush, E-4R |
| 10C | 0034819.01 | Capacitor |
| 10D | 0034843.01 | Diode |
| 10E | 0038976 | Heat sink, diode |
| 10F | 0038968 | Cover, brush |
| 10G | 0049071 | Circuit breaker, 20 amp |
| 11 | 0034561 | Bolt, hex hd 1/4-20 x 5 |
| 12 | 0008854 | Lug, ground |
| 13 | Note B | Washer flat 1/4 |
| 15 | 0040832 | Nut, nylon 1/4-20 |
| 16 | 0055223 | Carrier assembly |
| 19 | 0052185 | Isolator, engine |
| 20 | 0049743 | Isolator, stator |
| 23 | 0048736 | Nut, nylon 5/16-18 |
| 25 | Note B | Washer, flat 5/16 |
| 26 | Note B | Bolt, 5/16-18 x 1 1/2 |
| 27 | 0047796 | Spacer, 3/4 |
| 28 | 0049224 | Assy, ground wire |
| 29 | Note B | Washer, star external 5/16 |
| 30 | Note B | Bolt, hex 5/16-18 x 3/4 |
- Note A: Coleman Powermate will not provide engines as replacement parts. Engines are covered through the engine manufacturer’s warranty. Consult the accompanying engine manual or contact our service department for assistance.
- Note B: These are standard parts available at your local hardware store.
- Note C: Contact your nearest Coleman Powermate Service Center for replacement fuel tanks.
- WARNING: To avoid possible personal injury or equipment damage, a registered electrician or an authorized service representative should perform installation and all services. Under no circumstances should an unqualified person attempt to wire into a utility circuit.
- Electrical: For models approved for the City of Los Angeles (PLs), the ampacity of the phase conductors from the generator terminals to the first overcurrent device shall not be less than 115 percent of the nameplate rating of the generator.
