Coleman Powermate Premium Plus 5000 PM0505622 Generator
MAJOR GENERATOR FEATURES
- 10 HP Briggs & Stratton OHV engine
- Low oil sensor
- Receptacles on the control panel
- Electric Start
- CordKeeper™
- 5-gallon plastic fuel tank
- Portability Kit

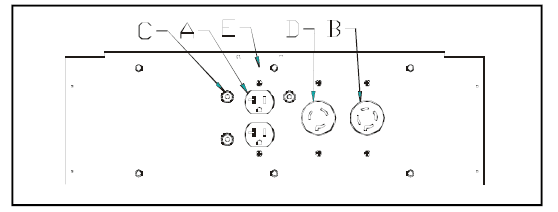

CONTROL PANEL
- A. 120 V, 20 Ampere Duplex Receptacle
This duplex is split so that 20 amps of current may be drawn from each half of the receptacle. However, the total power drawn must be kept within nameplate ratings. These receptacles may be used along with the twist lock receptacle provided the generator is not overloaded. - B. 120/240 V, 20 Ampere Twistlock Receptacle
A maximum of 20 amps may be drawn from the 120/240 volt receptacle provided it is the only receptacle used. However, the current must be limited to the nameplate rating. If the 120/240-volt receptacle is used along with the 120-volt receptacle, the total load drawn must not exceed the nameplate ratings. - C. Circuit Breakers
The receptacles are protected by an AC circuit breaker. If the generator is overloaded or an external short circuit occurs, the circuit breaker will trip. If this occurs, disconnect all electrical loads and try to determine the cause of the problem before attempting to use the generator again. If overloading causes the circuit breaker to trip, reduce the load. NOTE: Continuous tripping of the circuit breaker may cause damage to the generator or equipment. The circuit breaker may be reset by pushing the button of the breaker. - D. 120 V, 30 Ampere Twistlock Receptacle
You may draw a maximum of 30 amps or 3600 watts from this receptacle. If other receptacles are used at the same time, the total power used must be kept within nameplate ratings.
- E. CordKeeper™
The CordKeeper™ is a unique feature used to prevent plugs from being pulled out of the 120-volt receptacles.
ELECTRIC START MODELS
ELECTRIC START WIRING
This model is equipped with a trickle charge system. The 14 AWG (American Wire Gauge) red wire that comes from the engine should be connected to the positive battery terminal (see engine operator manual). The battery is customer-provided. Supplied with your generator are #8 AWG (American Wire Gauge) copper leads. Provide a lead from the push button switch to the positive (+) battery terminal and a lead from the chassis of the generator to the negative (-) battery terminal.

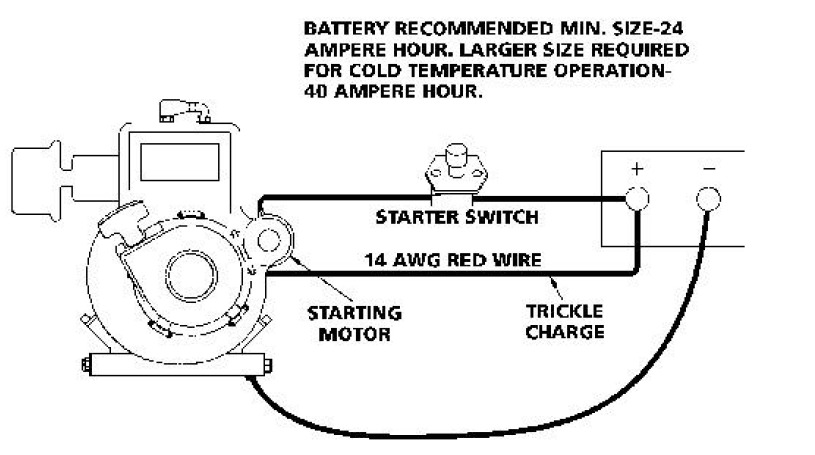

BASIC WIRING DIAGRAM
NOTE: ALL GROUND CONNECTIONS MUST BE CLEANED TO A BRIGHT FINISH
BATTERY KIT PARTS LIST
| Item | Description | Qty. |
| A. | *Bolt, 1/4-20X8” | 2 |
| B. | *Washer 1/4 | 2 |
| C. | Hold Down bar (PN 0036525.02) | 1 |
| D. | *Nyloc nut, 1/4-20 | 2 |
| E. | *Spacer (optional) | 2 |
All parts are standard parts at your local hardware store.
Battery Installation
Coleman Powermate recommends a 12 v battery with at least 235 cranking amps. Model U1L, Lawn, and Garden Battery. Place the battery in the position provided. Then place the bolts through the loops on the Hold-Down bracket.
Place the assembly over the battery place the bolts through the holes on the battery pan and tighten down the Hold-Down assembly with the 1/4-20 nuts provided. Spacers may be added depending on the battery height. Connect the red 8 ga. battery lead to the positive battery post and the black 8 ga. battery lead to the negative battery post with the bolts and nuts provided.

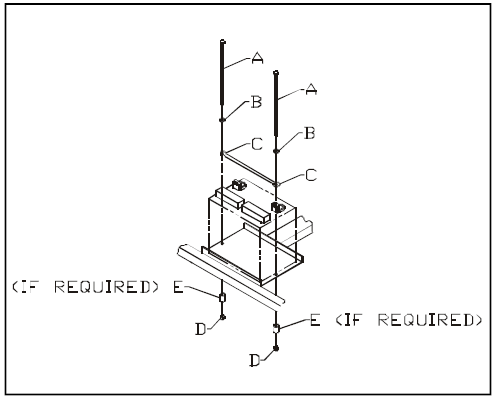

BATTERY INSTALLATION
LIMITED WARRANTY (NOT VALID IN MEXICO)
This product is warranted by Coleman Powermate, Inc. to the original retail consumer against defects in material and workmanship for two years from the date of retail purchase and is not transferable. This two-year warranty applies only to products used in consumer applications. If this generator is used in a commercial application, then the period of warranty coverage is limited to ninety (90) days from the date of purchase.
Please complete and return the enclosed Customer Information Card so that we can reach you in the unlikely event a safety recall is needed. Return of this card is not required to validate this warranty.
WHAT IS COVERED: Replacement parts and labor.
WHAT IS NOT COVERED: Transportation charges to Coleman Powermate, Inc. for defective products. Transportation charges to consumers for repaired products. Brushes, fuses, rubber feet, and receptacles. Damages
caused by abuse, accident, improper repair, or failure to perform normal maintenance. Power units or engines are covered exclusively by the warranties of their manufacturer.
Sales outside of the United States or Canada. Any other expense including consequential damages, incidental damages, or incidental expenses, including property damage. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
IMPLIED WARRANTIES
Any implied warranties, including the Implied Warranties of Merchantability and Fitness For A Particular Purpose, are limited in duration to two (2) years from the date of retail purchase. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
HOW TO OBTAIN WARRANTY PERFORMANCE
Replacement parts and service are available from Coleman Powermate, Inc. Service Centers. Locate your nearest Service Center by calling TOLL FREE 1-800-445-1805. In the unlikely event a Service Center can not be located, you may call Coleman Powermate, Inc. for a return authorization number. Any unit returned WITHOUT an authorization number will be refused.
To the extent, that any provision of this warranty is prohibited by federal, state, or municipal law, and cannot be preempted, it shall not be applicable. This warranty gives you specific rights, and you may also have other rights which vary from state to state.
PARTS DRAWING
PARTS LIST
| Ref No. | Part No. | Description |
| 1 | Note A | Engine, 10 hp OHV ES |
| 2 | 0050236.01 | Adapter, engine |
| 3 | 0000919.01 | Bolt, Wz 3/8-16 x 3/4 |
| 4 | 0049620 | Rotor, 5.0 KW |
| 5 | Note B | Washer, lock 5/16 |
| 6 | 0035055 | Bolt, hex 5/16-24 x 6.63 |
| 7 | 0061821 | Stator, 5.0 KW, 60 Hz |
| 9A | 0056716 | Connector, stator |
| 9B | 0049201 | Connector hsg set panel |
| 10 | 0061812 | Endbell, wired complete |
| 10A | 0050439 | Brush, E-4R |
| 10B | 0048677 | Bridge diode |
| 10C | 0034819.01 | Capacitor |
| 10D | 0048844 | Cover, brush |
| 11 | 0040816.01 | Bolt, hex hd 1/4-20 x 6 |
| 12 | 0008854 | Lug, ground |
| 14 | Note B | Washer, star ext 1/4 |
| 15 | 0040832 | Nut, nylon 1/4-20 |
| 16 | 0056423 | Carrier assembly |
| 19 | 0051094 | Isolator, engine |
| 20 | 0049743 | Isolator, stator |
| 22 | 0048736 | Nut, nylon 5/16-18 |
| 24 | 0053320 | Screw #10-14 x .63 |
| 25 | Note B | Washer, flat 5/16 |
| 28 | 0049224 | Assy, ground wire |
| 29 | Note B | Washer, star external 5/16 |
| 30 | Note B | Bolt, hex 5/16-18 x 3/4 |
| 33 | 0049453.02 | Shield, heat |
| 36 | Note C | Tank assy, complete |
| 36A | 0055340 | Cap, fuel |
| 36B | 0049114 | Fuel valve with bushing |
| 38 | 0058618 | Screw, #10 x 1 |
| 41 | 0030148 | Switch, starter |
| 42 | 0061384 | The panel, wired complete |
| 42B | 0049072 | Circuit breaker, 25 amp |
| 42C | 0048337 | Circuit breaker, 35 amp |
| 47 | 0047796 | Spacer .38 ID |
| 49 | Note B | Bolt, 1/4-20 x .75 |
| 51 | Note B | Bolt, 5/16-18 x 1.25 |
