Commercial Electric CER4742BZ Recessed LED Light
INSTALLATION INSTRUCTIONS – MODEL CER4742
WARNING – RISK OF ELECTRIC SHOCK. DISCONNECT MAIN POWER AT THE FUSE OR CIRCUIT BREAKER BEFORE INSTALLING OR SERVICING THE FIXTURE.
Please read carefully and save these instructions, as you may need them at a later date.
GENERAL: All electrical connections must be in accordance with local and National Electrical Code (N.E.C.) standards. If you are unfamiliar with proper electrical wiring connections, obtain the services of a qualified electrician.

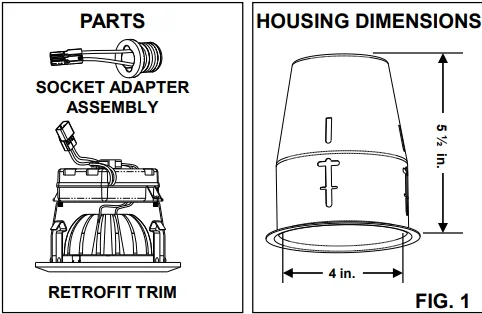

Remove the trim from the box and make sure that no parts are missing by referencing the PARTS illustrations.
THIS RETROFIT ASSEMBLY IS ACCEPTED AS A COMPONENT OF A LED LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE DETERMINED BY CSA OR CANADIAN AUTHORITIES HAVING JURISDICTION.
WARNING – RISK OF ELECTRIC SHOCK. INSTALL THIS TRIM IN RECESSED HOUSINGS THAT HAVE DIMENSIONS SHOWN IN FIG. 1, WHICH INCLUDE THE FOLLOWING LUMINAIRES: COMMERCIAL ELECTRIC MODELS HBR2000R, HBR2000B, HBR2000BICAT; HALO MODELS H99T, H99RT, H99ICT, H99TAT, H99RTAT, H99ICAT; CORDELIA MODLES X2000LICAT, X2000LRICAT, X2000LICATB; CAPRI MODELS R4, RR4; ELCO MODELS EL99A, EL99RA, EL99ICA; JUNO MODELS TC1, TC1R; LITHONIA MODELS L3, L3R; PROGRESS MODELS P832-TG, P830-TG; THOMAS MODEL; PS4, PS4-RM; NORA MODEL NSCIC-40IAT; ELITE MODELS B4, 4R.
ASSEMBLY AND INSTALLATION
INCANDESCENT HOUSINGS

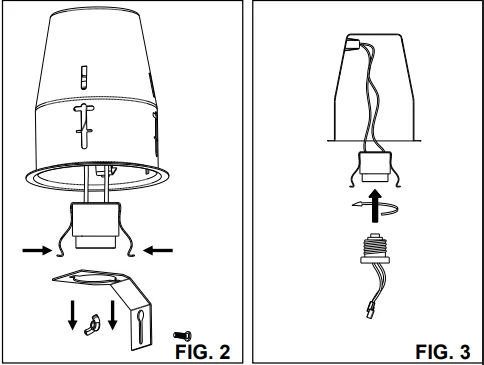

- Unscrew the WING NUT inside the CAN to detach the SOCKET BRACKET from the CAN. Disengage the SOCKET from the SOCKET BRACKET. (FIG. 2)
- Thread the SOCKET ADAPTER into the SOCKET. (FIG. 3)
- Attach the GROUND WIRE to the CAN using the provided self-tapping GROUND SCREW and star washer. Make sure that the GROUND SCREW does not interfere with the entry of the RETROFIT TRIM into the HOUSING.

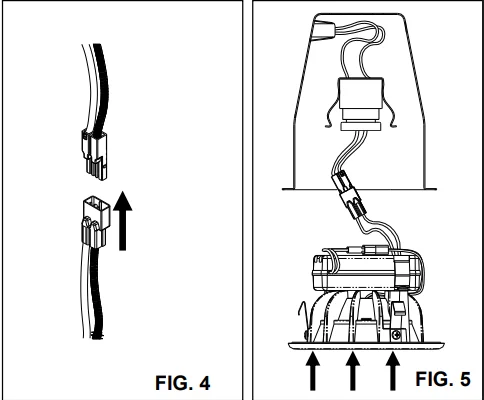

- Plug the FEMALE CONNECTOR of the RETROFIT TRIM onto the MALE CONNECTOR of the SOCKET ADAPTER ASSEMBLY. (FIG. 4)
- Tuck all wires into the CAN and carefully push the RETROFIT TRIM into the CAN. (FIG. 5)
LED HOUSINGS
- Plug the FEMALE CONNECTOR of the RETROFIT TRIM onto the MALE CONNECTOR of the HALO HOUSING. (FIG. 4)
- Tuck all wires into the CAN and carefully push the RETROFIT TRIM into the CAN. (FIG. 5)
DIMMING
Although this product is compatible with most common residential-type dimmers,dimmingperformancedependsondimmer, dimmer setting (for dimmers with brightness range adjustments), wiring method, and the number of LED modules. For best results,setdimmerpositionatmaximumbeforeadjustingtoalowerlightlevel.
Recommended Dimmers (minimum load of four LED modules may be required for optimal dimming performance): Leviton Decora–6631, IPI06, LutronSkylark–S-603PGH, and Lutron Diva–DVWCL-153PDH, CTCL-153PDH, and TGCL-153PH.
DRIVER REPLACEMENT
To replace a malfunctioning driver:
- DISCONNECT MAIN POWER AT FUSE OR CIRCUIT BREAKER.
- PulltheRETROFITTRIMdownfromtheRECESSEDHOUSING.UnplugtheFEMALECONNECTORoftheRETROFITTRIMfromtheMALECONNECTORoftheSOCKETADAPTERAS EMBLY.
- Separate the LED DRIVER CONNECTOR from the RETROFIT TRIM CONNECTOR.
- RemovetheLEDDRIVERSCREWSandseparatetheOLDLEDDRIVERfromtheRETROFITTRIMandreplaceitwiththeNEWLEDDRIVER,securingitinplaceusingtheLEDDRIVERSCREWS.
- Connect the LED DRIVER CONNECTOR to the RETROFIT TRIM CONNECTOR.
- Re-install the RETROFITTRIM into the RECESSEDHOUSING.
THREE-YEAR LIMITED WARRANTY
Commercial Electric® warrants this product to be free from defects in material and workmanship for three years from the original date of purchase by the consumer. This warranty is limited to the counter replacement at the time of purchase, with the original purchase receipt. Commercial Electric® will not be liable for the loss or damage of any kind, incidental or consequential damages of any kind, negligence, use,useorrepairoftheproductclaimedtobedefective. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Misuse, accident, improper installation, or maintenance will also void the warranty.
This device complies with Part 15 of the FCC Rules. Operations are subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,pursuanttoPart15oftheFCCRules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiver antenna.
- Increases the separation between the equipment and receiver.
- Installtheproductontoonacircuitdifferentfromthattowhichthereceiverisconnected.
- Consult with the dealer or an experienced radio/TV technician for help.
CAUTION: Any changes made to the electronics circuit must comply with Part 15 of the FCC Rules and should not be operated.
