Corsair SCIMITAR M65 RGB ELITE Gaming Mouse

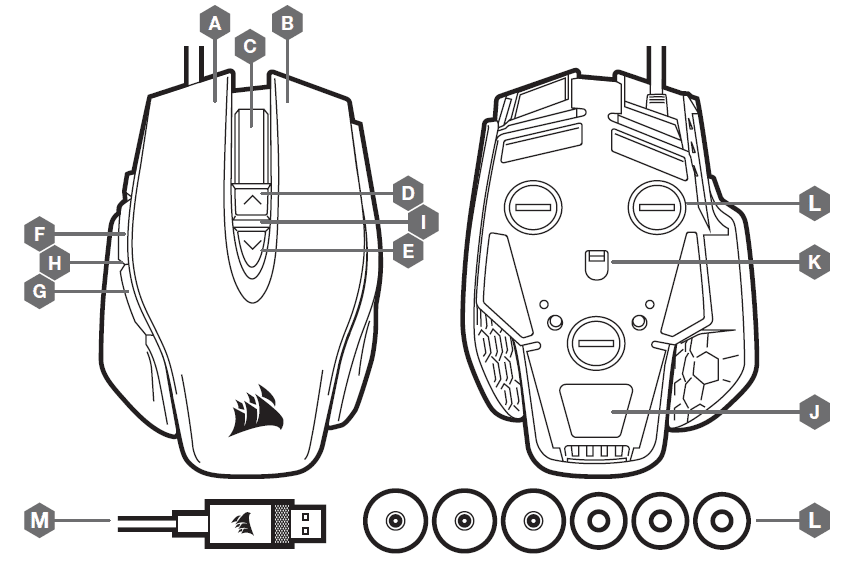

GETTING TO KNOW YOUR MOUSE
All mouse buttons are programmable through software. These represent the default settings.
- A — LEFT CLICK BUTTON
- B — RIGHT CLICK BUTTON
- C — MIDDLE CLICK BUTTON
- D — DPI UP BUTTON
- E — DPI DOWN BUTTON
- F — FORWARD BUTTON
- G — BACKWARD BUTTON
- H — SNIPER BUTTON
- I — DPI LED INDICATOR
- J — PTFE GLIDE PADS
- K — OPTICAL GAMING SENSOR
- L — WEIGHT SYSTEM
- M — USB CONNECTION CABLE
SETTING UP YOUR MOUSE
- Turn on your computer.
- Connect the mouse to an available USB 2.0 or USB 3.0 port on your computer.
- Download the iCUE software from www.corsair.com/downloads.
- Run the installer program.
- Follow the instructions for installation.

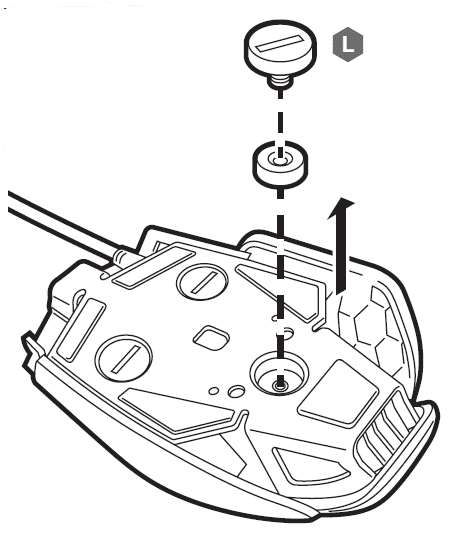

ADJUSTING THE MOUSE WEIGHT SYSTEM
The weight of your M65 RGB ELITE can be customized for your style of play.
- Turn over the mouse and find the three screws (L).
- Remove any of the three screws (use either a screwdriver or a coin of the appropriate width).
- Remove the weight and replace the screw, or remove the screw and weight, depending on your preference.
For use only with NRTL-listed end product and Mouse Rating: 5V 200mA
CAUTION!
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
WARNING:
Changes or modifications not expressly approved by CORSAIR MEMORY, Inc. could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device must not be co-located or operate in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
