Corsair VOID RGB ELITE Wireless Gaming Headset

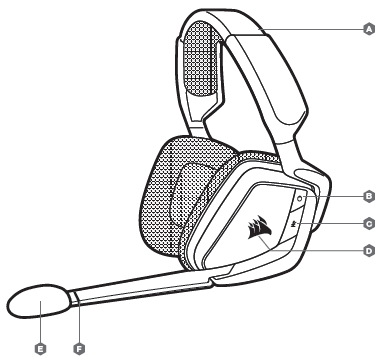

CONTROLS AND FEATURES
- Headband adjustment
- Power button
- Mute button
- RGB light (user programmable)
- Microphone foam windscreen (removable)
- Mic LED (mute)

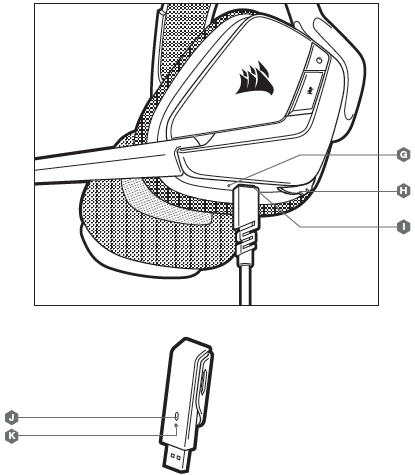

- Status LED (RF, battery)
- Jog dial (volume + EQ)
- Charging port
- Wireless sync LED indicator
- Pairing button (transmitter paired by default)
GETTING STARTED WITH YOUR VOID RGB ELITE WIRELESS HEADSET
Connect the wireless USB transmitter to any working USB port on your PC. The headset is designed to operate at a range of up to 40 feet (12m) from the wireless transmitter, but other wireless devices, electronics, and obstructions such as walls may reduce wireless range.
IMPORTANT: The first time you use the CORSAIR VOID RGB ELITE WIRELESS Headset on a PC, the operating system will automatically install the device driver. After the device driver loads, we recommend you reboot your PC before use. Prolonged listening at high volumes may adversely affect your hearing. Take breaks between sessions and always begin with the volume at the lowest possible level before increasing.
iCUE
Go to corsair.com/support/downloads to download the iCUE Software. Using the iCUE software will enable the full feature set of your headset.
NOTE: If the headset is used without software, some features will be disabled.
- Install the iCUE software on a PC running Windows 7, Windows 8.1, Windows 10, or later.
- After installation is complete, reboot your PC and launch iCUE.
iCUE SOFTWARE CAN BE USED TO
- Choose your RGB color preference and light intensity.
- Select and customize audio equalizer (EQ) settings.
- Adjust the microphone input volume and microphone sidetone.
- Set 7.1 surround sound on or off.
The software’s built-in documentation explains how to use the headset’s features in greater detail.
STATUS LED INDICATIONS
- Single blink red = connected, battery low
- Single blink green = connected, battery normal
- Rapid blink red = disconnected, battery low
- Rapid blink green = disconnected, battery normal
- Solid amber = battery charging
- Solid green = battery charged
- Rapid blink amber = pairing mode
CHARGING
The CORSAIR VOID RGB ELITE WIRELESS Headset must be fully charged before its first use.
- Connect the USB charging cable to any working USB port on your PC.
- Connect the USB charging cable to the CORSAIR VOID RGB ELITE WIRELESS Headset.
The CORSAIR VOID RGB ELITE WIRELESS Headset battery has no “memory effect”, so there is no need to completely discharge it before recharging.
Remember that the USB charging cable requires a high-power (USB 2.0 or better) port. Some USB ports found on older devices do not support USB 2.0.
AUDIO SETTINGS
A short key press (.1-.5 seconds) on the JOG DIAL toggles EQ.
Medium key press (.6-2 seconds) on JOG DIAL toggles 7.1 surround sound.
MIC CONTROL
A short key press (.1-.5 seconds) on the mic mute button toggles mute on and off.
Long key press (2-4 seconds) on the mic mute button toggles the sidetone on and off.
NOTE: iCUE software can also be used to control these features.
FOR OPTIMAL WIRELESS PERFORMANCE
- Place the wireless USB transmitter in an open, unobstructed area.
- Make sure the battery is fully charged before initial use.
- Do not leave the battery fully discharged for long periods. Battery life is maximized by keeping the battery in a partially charged state.
- If RGB lighting effects are unimportant to you, they can be disabled with iCUE to extend battery life.
- Remove the USB charging cable promptly after the headset has been fully charged.
- Keep the headset at room temperature (20-30°C or 68-86°F).
For more Manuals by Corsair, visit ManualsLibraryy
Corsair VOID RGB ELITE Wireless Gaming Headset-FAQs
How do I adjust the volume on my Corsair VOID headset?
You can control the volume using the dial on the earcup. To mute the mic, simply flip the microphone upward.
Can I use the Corsair VOID headset while charging?
Yes, the headset can be used while charging—just plug in the charging cable while keeping the wireless dongle connected.
What is the battery life of the Corsair VOID RGB ELITE?
The headset provides up to 16 hours of battery life and supports up to 40 feet of wireless range.
How do I check the battery level?
A battery status LED near the USB port indicates charge level:
1. Amber (power off): Charging
2. Green (power off): Fully charged
3. Amber (power on): 1–89% charge
4. Green (power on): 90–100% charge
How do I boost the microphone volume?
Open the Corsair iCUE software, select your headset, and use the Mic Boost slider under Device Settings.
Can I charge the headset while playing?
Yes, but keep in mind that charging speed may vary to protect battery health, especially if temperatures are high.
How do I connect the headset to my PC?
Plug the USB wireless dongle into a USB-A port to use the 2.4GHz wireless mode, which is the default connection.
Does the Corsair VOID support Bluetooth?
Yes, it supports both low-latency 2.4GHz wireless and Bluetooth. You can switch between them with the press of a button.
