Cosori CAF-L501 Pro 9-in-1 Air Fryer User Manual

Cosori CAF-L501 Pro 9-in-1 Air Fryer

IMPORTANT SAFEGUARDS

General Safety

• To protect against electric shock, do not immerse the air fryer cord, plug, or housing in water or other liquids.
• Close supervision is necessary when the air fryer is used by or near children.
• Unplug when not in use, and before cleaning. Allow to cool before putting on or taking off parts.
• Do not use your air fryer if it has a damaged cord or plug, if it malfunctions, or if it has been damaged in any way. Contact Customer Support (see page 17).
• Using accessory attachments not recommended by Cosori may cause injuries.
• Do not use outdoors.
• Do not place the air fryer or any of its parts on a stove, near gas or electric burners, or in a heated oven.
• Be extremely cautious when moving your air fryer (or removing the basket) if it contains hot oil or other hot liquids.
• Do not clean with metal scouring pads. Metal fragments can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not use the air fryer for any purpose other than its intended use.

While Air Frying

• An air fryer works with hot air only. Never fill the basket with oil or fat.
• CAUTION: To avoid risk of electric shock, cook only in the removable basket.
• To avoid risk of fire or electric shock, do not place oversized foods or metal utensils into your air fryer.
• Do not overfill the air fryer basket. Heaping amounts of food may touch the heating coils and cause a fire hazard.
• Do not touch accessories during or immediately after air frying.
• Do not place paper, cardboard, non-heat-resistant plastic, or similar materials into your air fryer. You may use parchment paper or foil.
• Never put baking or parchment paper into the air fryer without food on top. Air circulation can cause paper to lift and touch heating coils.
• Always use heat-safe containers. Be extremely cautious if using containers that aren’t metal or glass.
• To avoid risk of fire, do not cover or allow the air fryer to touch flammable materials (curtains, draperies, walls, etc.) when it is turned on.

GETTING TO KNOW YOUR AIR FRYER

• Your Cosori Air Fryer uses rapid 360° air circulation technology to cook with little to no oil for quick, crispy, delicious food with up to 85% fewer calories than deep fryers. With user-friendly, one-touch controls, a nonstick basket, and an intuitive, safe design, the Cosori Air Fryer is the star of your kitchen.

Air Fryer Diagram

• A. Air Inlet
• B. Control Screen
• C. Crisper Plate
• D. Basket
• E. Basket Handle
• F. Basket Release Button
• G. Housing Handles
• H. Air Outlet
• I. Air Outlet Spacer
• J. Power Cord

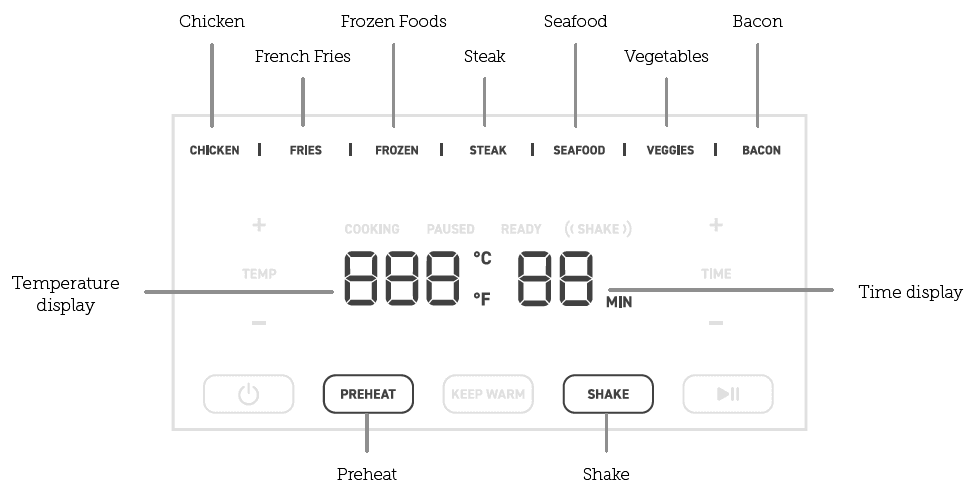

Display Diagram

Control Panel

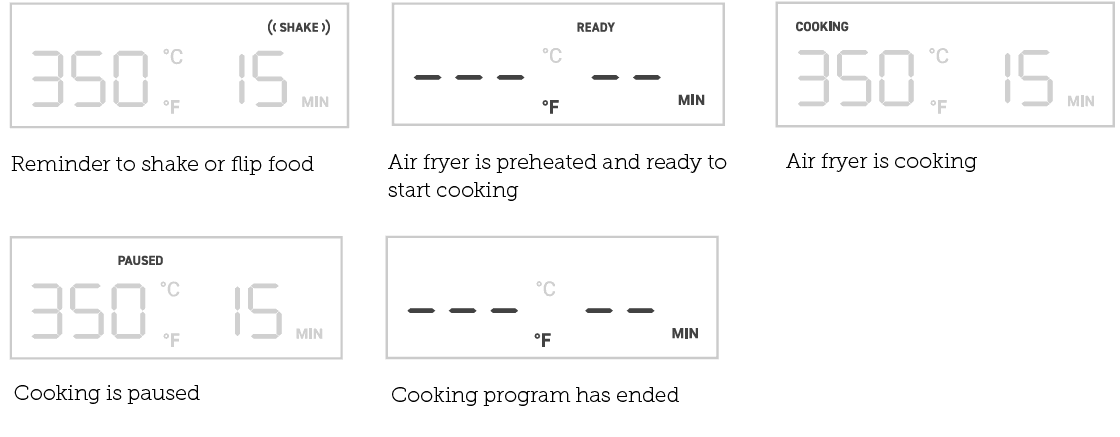

Display Messages

Setting Up

1. Remove all packaging from the air fryer, including any temporary stickers.

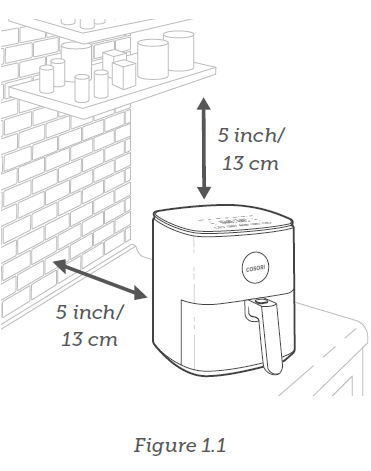

2. Place the air fryer on a stable, level, heat-resistant surface. Keep away from areas that can be damaged by steam (such as walls or cupboards)
3. Hold down the basket release button and pull the handle to remove the basket. Remove all plastic from the basket.
4. Wash both the basket and crisper plate thoroughly, using either a dishwasher or a non-abrasive sponge.
5. Wipe the inside and outside of the air fryer with a slightly moist cloth. Dry with a towel.

Silicone Stoppers

• The crisper plate contains 4 silicone stoppers made of food-safe material. These stoppers keep the crisper plate fitted to the bottom of the basket, prevent the crisper plate from directly touching the basket, and in rare cases, prevent damage to the nonstick coating on the basket.

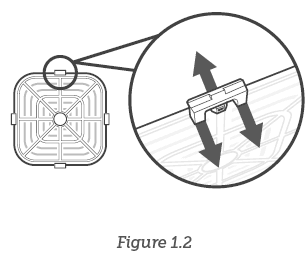

• Only remove the rubber stoppers for cleaning purposes. For easy removal, start from the bottom of the crisper plate and pull out one side of the stopper at a time. [Figure 1.2]

Preheating

We recommend preheating before placing food inside the air fryer unless your air fryer is already hot. Food will not cook thoroughly without preheating.

1. Plug in. Press to turn on the air fryer display.
2. Press PREHEAT. The display will show “400°F” and “4 MIN”.

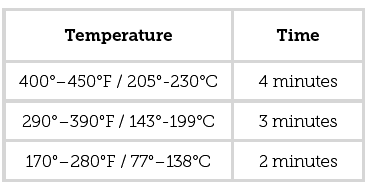

3. Optionally, press the + or – buttons to change the temperature. The time will adjust automatically.
4. Press to begin preheating.
5. When preheating is done, the air fryer will beep 3 times. The display will show the set preheat temperature. [Figure 2.1]

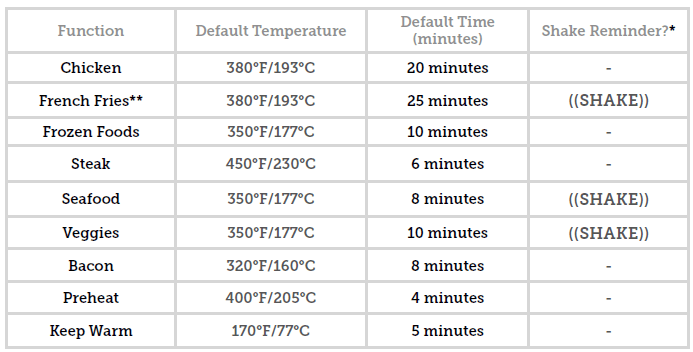

Cooking Functions

Using a cooking function is the easiest way to air fry. Cooking functions are programmed with an ideal time and temperature for cooking certain foods.

1. Press the function button to select the function. The air fryer will automatically change to the function’s default settings.
2. You can change a function’s time (1–60 minutes), temperature (170°–450°F), and Shake Reminder.
3. Press and hold the + or – button to increase or decrease the time or temperature.
4. Add or remove a Shake Reminder by pressing SHAKE.
5. To go back to a function’s default settings, press the function’s button again.

Shaking Food

How to Shake

• During cooking, press and hold the basket release button to take the basket out of the air fryer, and shake, mix, or flip the food.
  • a. To shake food:
    1. Hold the basket just above a heat-resistant surface for safety purposes.
    2. Shake the basket.
  • If the basket is too heavy to shake and there are hot liquids present:

1. Place the basket on a heat-resistant holder or surface.
2. Use tongs to mix or flip the food.
   • When you take the basket out, the air fryer will pause cooking automatically. As a safety feature, the display will turn off until the basket is replaced.
   • When you replace the basket, cooking will automatically resume.
   • Avoid shaking longer than 30 seconds, as the air fryer may start to cool down.

CARE & MAINTENANCE

Note:

• Always clean the air fryer basket and crisper plate after every use.
• Lining the basket with foil (except the crisper plate) may make cleanup easier.

1. Turn off and unplug the air fryer. Allow it to cool completely before cleaning. Pull out the basket for faster cooling.
2. Wipe the outside of the air fryer with a moist cloth if necessary.
3. The basket and crisper plate are dishwasher safe. You can also wash the basket and crisper plate with hot, soapy water and a non-abrasive sponge. Soak if necessary.
4. For stubborn grease:
   • a. In a small bowl, mix 2 US tbsp / 30 mL of baking soda and 1 US tbsp / 15 mL of water to form a spreadable paste.
   • b. Use a sponge to spread the paste on the basket and scrub the crisper plate. Let the basket and crisper plate sit for 15 minutes before rinsing.
     c. Wash the basket with soap and water before using.
5. Clean the inside of the air fryer with a slightly moist, non-abrasive sponge or cloth. Do not immerse in water. [Figure 3.1] If needed, clean the heating coil to remove food debris.
6. Dry before using

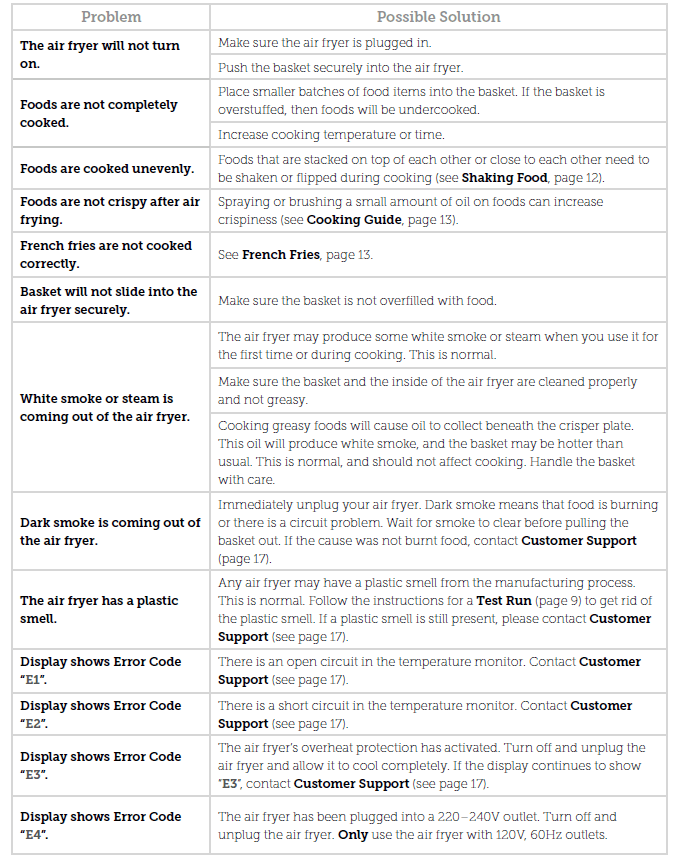

TROUBLESHOOTING
