Costway ES10014US 30 Pints Portable Dehumidifier User Manual

Costway ES10014US 30 Pints Portable Dehumidifier

CAUTIONS

Please read the operating instructions carefully before using your dehumidifier for the first time.

1. Install the unit on a flat and hard floor to diminish vibration or noise.
2. Never immerse the unit in water or other liquids.
3. Never operate the unit if the cable or other connector is damaged, or if something abnormal happens, please call customer service for help.
4. Disconnect the unit from the power supply when it is not in use, or before relocating or cleaning it.
5. Operate the unit only at the voltage specified.
6. The unit is for indoor use only. Don’t use it for other purpose.
7. Do not put heavy objects on the appliance.
8. Do not tip the unit to any side, as spilled water may damage the appliance.
9. Never insert any other object into the unit body to avoid any hazard or unit failure.
10. Do not put the unit close to heat-generating devices or near flammable and dangerous materials.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a similarly qualified person, in order to avoid a hazard.
13. The appliance must be positioned so that the plug is accessible.
14. The appliance shall be installed in accordance with national wiring regulations.
15. The ambient temperature range for the appliance is 41°F-95°F.

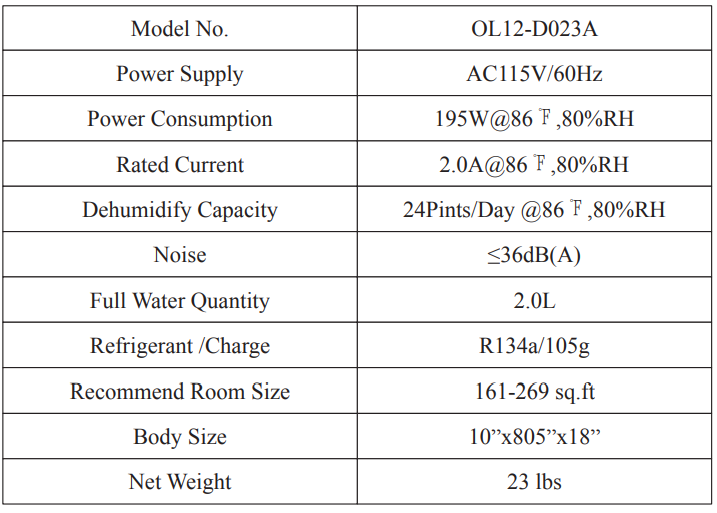

PARAMETERS

FEATURES

• 24 Pints/Day efficient dehumidification
• Three optional modes (AUTO, CNT, SLEEP)
• Compact and modern design
• Extremely quiet operation (36dB(A))
• Auto defrosting

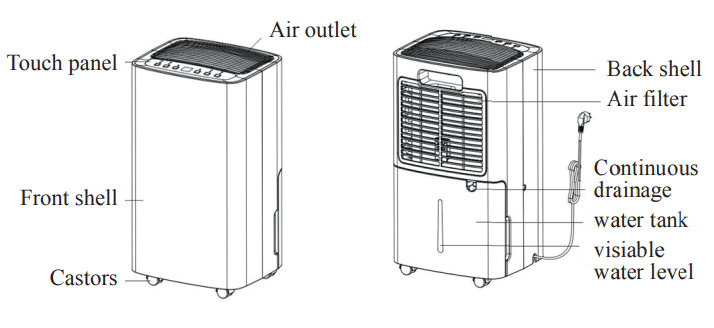

PRODUCT DESCRIPTION

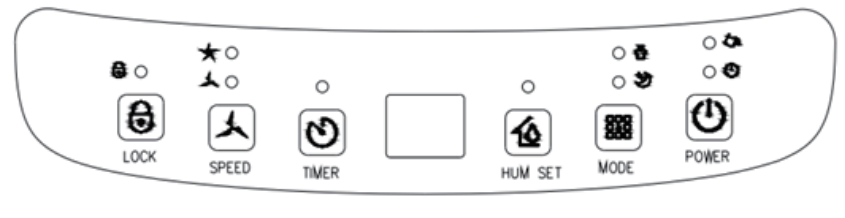

DIGITAL DISPLAY

OPERATIONS

Power

In the standby state, press the power button to turn on, the operation indicator lights up, the default fan speed is high, and the default humidity is 50%. In the power-on state, press the power button to turn off, the running indicator light goes off and the compressor stops immediately, and then the fan shuts down after 30 30-second delay.

Modes

Auto mode – continuously drying mode – sleeping mode cycle, press once to switch the mode from one to another, the corresponding indicator lights up.

• Auto mode: when environmental humidity ≥ set humidity +3%, the fan starts working, and the compressor starts working after 3 seconds. When environmental humidity ≤ set humidity -3%, the compressor stops working and the fan stops working after 30 30-second delay. Both fan speed and humidity can be adjusted under auto mode.
• Continuously drying mode: The machine continues to run, but the humidity can not be adjusted.
• Sleeping mode: Touch the sleep button, the button lights up and starts the sleep function. After no operation for 10 seconds, all indicators turn dark gradually, and the wind speed is automatically switched from high to low. Touch any button to wake up the indicator. Touch the sleep button again to exit the sleep mode. When environmental humidity ≤ 57%, the compressor stops working and the fan shuts down after 30 30-second delay. When environmental humidity ≥ 63%, the fan starts working, and the compressor starts working after 3 seconds. Fan speed and humidity can not be adjusted under sleeping mode.

Timer

Press the timer button to set the 0-12-hour timing function. The interval is 1 hour. Each time you press this button, the value increases by 1 hour, and then the corresponding timing value is displayed on the screen. The setting value is “00” to cancel the timer function. The indicator turns out. After the timer is set and completed, the timer LED is on during the timing period. After the timer is over, the timer LED turns off automatically. In the running state, set the time to turn off the machine; in the standby state, set the time to turn on the machine.

Humidity Set

Touch the humidity button to check the current environment humidity. Touch this button again, and you can set the humidity. The range of target humidity is 30% – 35% – 40% – 45% – 50% – 55% – 60% – 65% – 70% – 75% – 80%. After setting for 3 seconds, the system confirms the input value, and then the machine exits the setting state and returns the current humidity. In the drying mode, the target humidity cannot be changed. Long-press press humidity button for 3 seconds to display the current ambient temperature.

Speed

High wind – low wind cycle, press the button once to switch, and then the corresponding indicator lights up. In the continuously drying mode, sleep mode, and defrosting period, the wind speed can not be changed.

Child-lock

Long-press the wind speed button for 3 seconds to turn on/off the child-lock function.

Water Tank Full Alarm

Water Tank Indicator

• When the tank is full for 5 seconds, it sets the alarm. The water tank indicator turns red and the unit buzzes for 5 times.

Clear the alarm

• When the buzz is on, press any button to stop it. The compressor, fan, and ionizer generator shut down, and all the functions freeze until the tank is emptied and back in the right position.

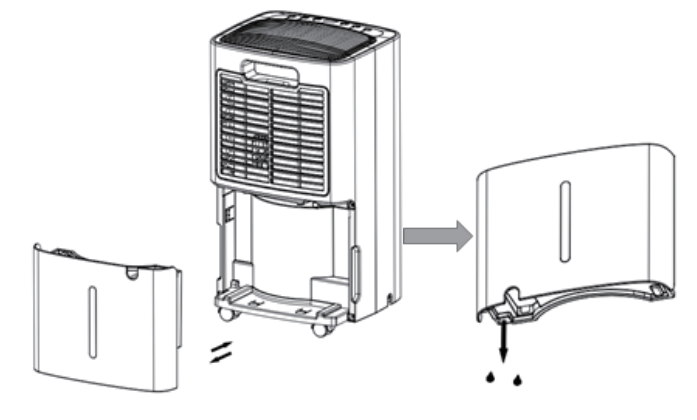

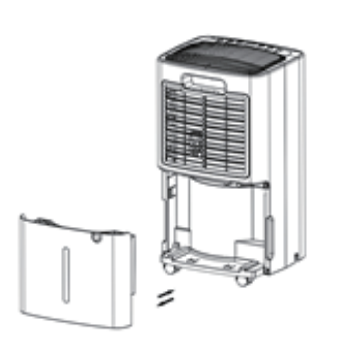

Empty the tank

• Grab the notch at the bottom of the tank and pull it out with both hands. Take it slowly and steadily in case of spilled water.
• Empty the water.
• Put the water tank back in position. The dehumidifier automatically starts working again.

MAINTENANCE

PRECAUTIONS

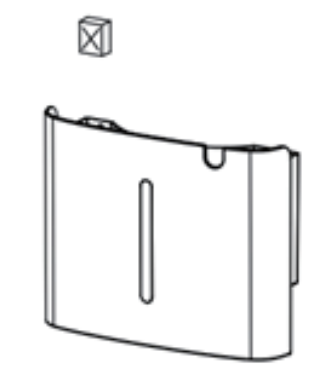

• Do not remove the float from the tank; otherwise, the dehumidifier can not start up.
• Ensure the water tank is in the right position when putting it back; otherwise, the dehumidifier can not start up.

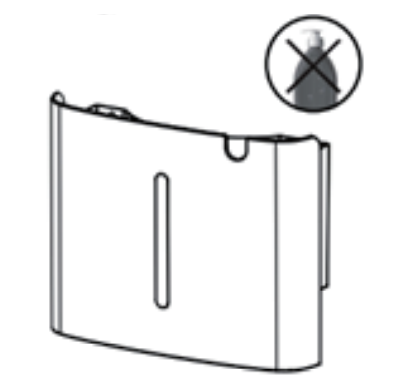

• If the tank is dirty, wash it with cool/warm water. Do not use cleanser, steel balls, chemically treated dust-proof cloth, gasoline, benzene, thinners, or other chemical solvents in case of damage and leakage.

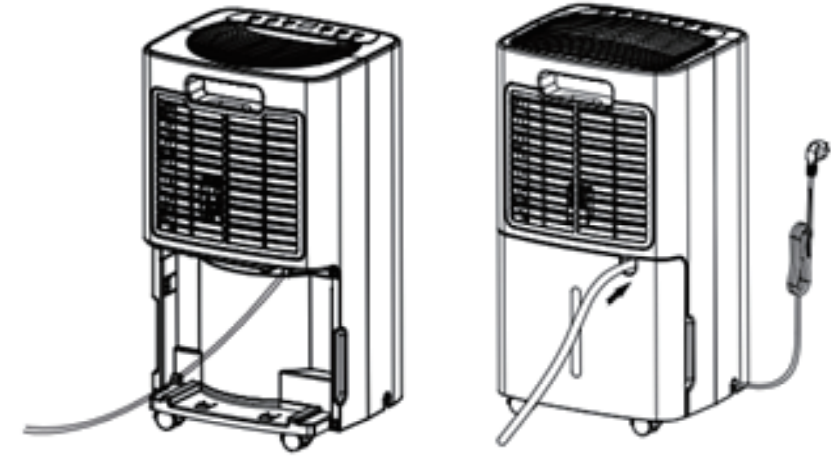

Continuous Drainage

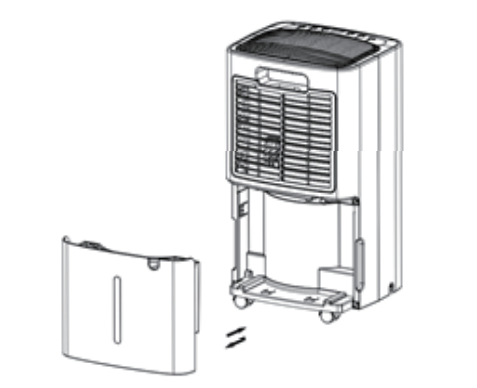

• Take out the water tank.
• Use a water hose (diameter = 9.5mm) to connect the water outlet.
• Pass the water hose through the cutting hole in the tank and put the tank back. For continuous drainage, the end of the hose should not be submerged in water to prevent it from being blocked or damaged.

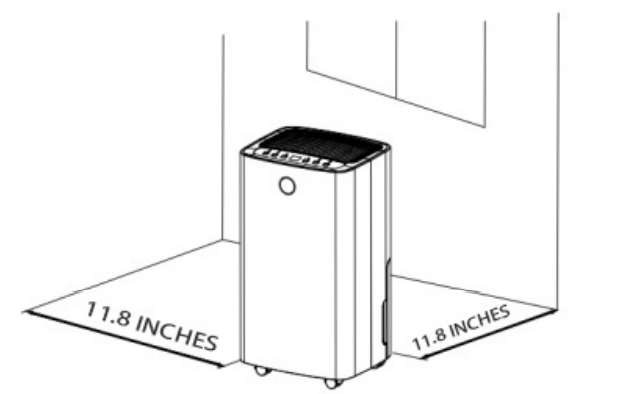

Spacing

• When the dehumidifier is in operation, make sure that the rear of the dehumidifier maintains a minimum spacing of 11.8 inches as shown below.

CLEANING

Body Cleaning

• Use a soft and slightly moist cloth to clean the dehumidifier body.

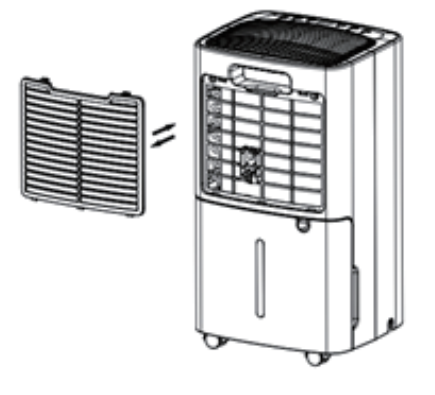

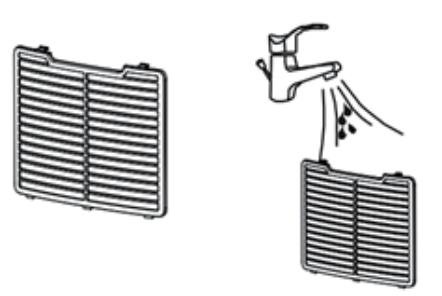

Filter Cleaning

1. Remove the filter frame and take off the filter.
2. Use a vacuum cleaner to gently absorb the dust on the surface. If the filter is very dirty, wash it with water and a soft detergent and dry it thoroughly afterwards.
3. Put the filter back.

STORAGE

When not using the product for a long time and intend to store it, please pay attention to the following steps:

1. Empty the water in the water tank and wipe the water droplets on the bottom of the inside machine.

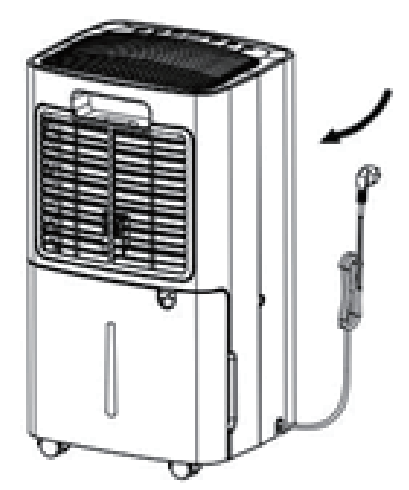

2. Collect the power cord and store it in the dry water tank.
3. Clean the filter.
4. Place the machine in a cool and dry environment.

TROUBLE SHOOTING

FUNCTIONING TEMP.

• 41°F ≤ Ambient Temp. ≤ 95°F
• When the ambient temperature is lower or higher than the functioning temperature, the dehumidifier stops.
• When 41°F ≤ Ambient temp. ≤ 60.8°F, the compressor automatically defrosts at intervals; during defrosting, the compressor stops and the fan keeps running.

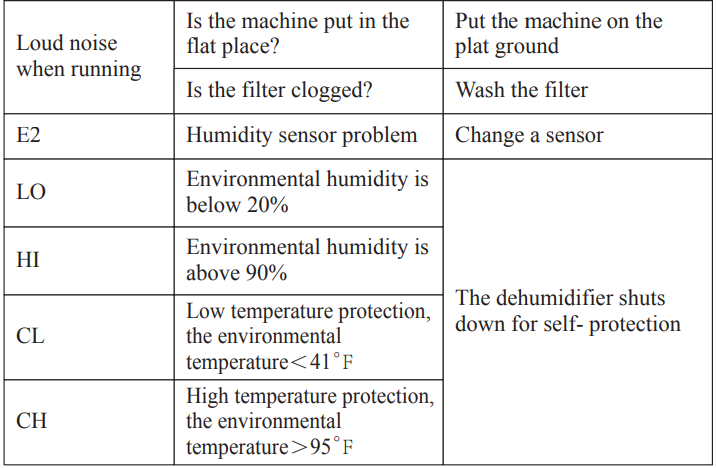

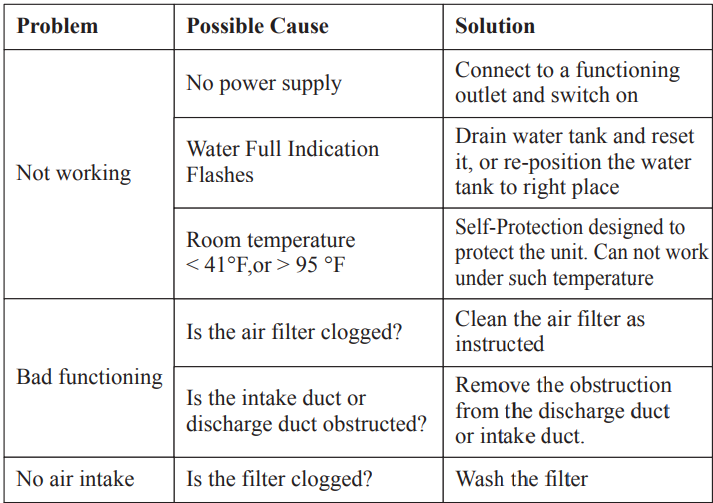

BEFORE CALLING FOR SERVICE

• Before contacting a professional service, please review the troubleshooting list that includes common occurrences that are not the result of a defect in
