Diivoo WT-01 Automatic Water Timer

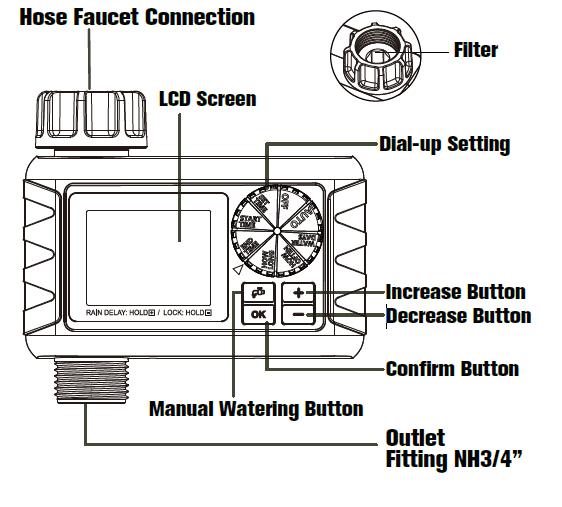

Product Appearance
Attention
- Please set the end time is later than start time.
- The start time of next schedule is the start time of last schedule plus one interval time and one watering time.
- Please make sure the timer is in Auto Run states when set Rain Delay or Children Lock.

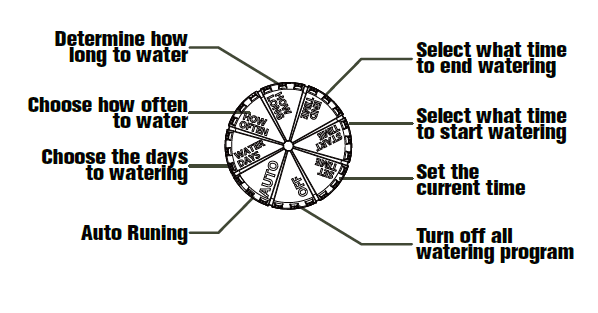

Automatic Watering Program Setting

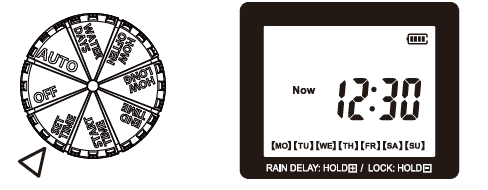

SET TIME
- Turn dial to SET TIME
- Press the (+)(_)to set the current hour and minute. Press OK to confirm.
- Press the (+)(_)to set the current day of the week. Press OK or turn dial to save changes.
START TIME
- Turn dial to START TIME
- Press the (+)(_) to set the time to start watering. Press OK or turn dial to save changes.

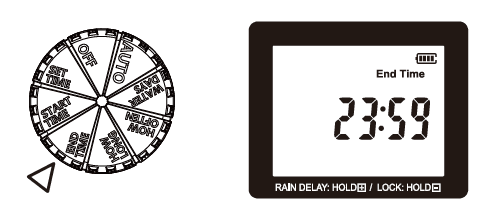

END TIME
- Turn dial to END TIME
- Press the (+)(_) to set the time to end watering. Press OK or turn dial to save changes.

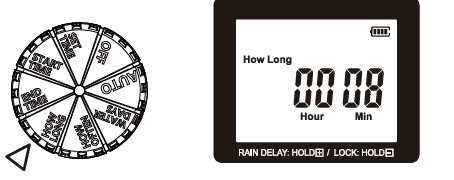

HOW LONG
- Turn dial to HOW LONG
- Press the (+)(_) to select watering duration and press OK button or turn dial to save changes. Watering can be customized to run from 1 min to 23hours 59 mins.
HOW OFTEN
- Turn dial to HOW OFTEN
- Press the (+)(_) to select your watering frequency. Press OK button or turn dial to save changes. The watering frequency ranging from 1min, 5min, 15min, 30min, 1H, 2H…… 23H
WATER DAY
- Turn dial to WATER DAY
- Press the (+)(_) to choose the days to watering. Press OK button or turn dial to save changes.

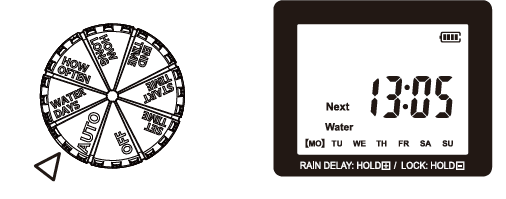

AUTO
Turn dial to AUTO to allow your timer to water as you set the program before.

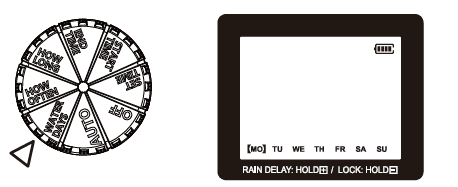

OFF
Turn dial to OFF, the screen shows OFF and the battery level. All program are saved and the timer stop working.
Multi-Function
Manual
Please make sure the timer is in Auto Run state.
- Press the
and press (+)(_) to select watering duration from 1 min to 23 hours 59 mins. - Press OK button or no operation 5s, it will start to watering.
- When you press the button again, the manual watering task ends even if it is watering and the timer will switch back to Auto mode.
and press (+)(_) to select watering duration from 1 min to 23 hours 59 mins.
Rain Delay
Please make sure the timer is in Auto Run state.
- Hold and press + button 5s until the
appears on the screen. - Press (+)(_) button to set the duration of the delay from 1 to 7 days.
- Press OK button or no operation 10s to save changes.
appears on the screen.

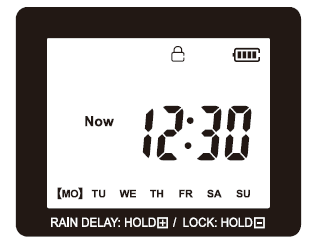

Children Lock
Please make sure the timer is in Auto Run state. Hold and press _ button 5s until the LOCK appears on the screen. If you want to cancel the LOCK , press _ button 5s again.

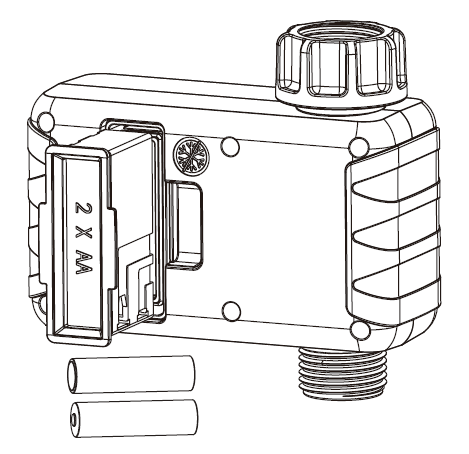

Battery Installation
- Remove the tray on the back of the timer by sliding or pulling it out.
- Insert two AA (1.5V) alkaline batteries and replace the tray.
Specification
| Inlet/Outlet Thread | NH3/4″ |
| Working Water Pressure | 7.25 psi -116 psi |
| Working Temperature | 40.1˚ F-113˚ F |
| Rain Delay Time | 1 day and up to 7 days |
| Watering Duration | 00:01-23:59 |
| Watering Frequency | 1min, 5min, 15min, 30min, 1H, 2H……. 23H |
| Waterproof | IPX5 |
|
Included in the Box | Water Timer, 1/2″ inlet adapter, Threaded connector, 2 x Extra Rubber Washers, Thread Seal Tape, Instruction |
Precautions
Do not use your timer when the air temperature is below 40℉(4.5℃), the timers should be removed from the hose faucet and stored indoors to avoid potential frozen damage.
Filter can trap dirt particles, please clean filter regularly and replace if worn.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Used up or dead batteries must be removed from the timer and disposed of properly.
Please replace batteries when the low battery indicator appears the display. When replacing the power unit, please make sure that the water timer is dry.
Do not use your timer when the air temperature is below 40℉(4.5℃), the timers should be removed from the hose faucet and stored indoors to avoid potential frozen damage.
Filter can trap dirt particles, please clean filter regularly and replace if worn.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Used up or dead batteries must be removed from the timer and disposed of properly.
Please replace batteries when the low battery indicator appears the display. When replacing the power unit, please make sure that the water timer is dry.FAQs
The LCD screen does not display anything when the batteries are installed.
Two batteries loaded are new 1.5V AA alkaline batteries, make sure the batteries are properly placed in the battery box.
Water does not come on at preset time.
Check if:
- Clock should be set to the correct time.
- Start time is set to desired the time.
- Rain Delay is on. OFF mode is on.
- The batteries are low.
- The faucet is turned off.
The hose tap connection/outlet leaks.
Check if:
- The O-ring is connected correctly to the hose tap.
- The connection outlet or water pipe is broken.
The faucet and water pipe has a different thread. - If necessary, please use an appropriate adapter or PTFE tape.
Why is the water valve out of little water?
If your are gravity feed system such as rain barrel system, then it won’t work and will keep low water pressure. Gravity feed has no real pressure when dealing with a rain barrel. It needs pressure measuring.
After-sales Service
The timer have one year warranty, if you have any questions, please feel free to contact via support@diivoosmart.com
The following conditions are not included in the warranty:
- Problems occur due to its use for other purposes, or improper use or use of components not supplied by Diivoo.
- Damages caused by improper use, for example, wrong of power supply, artificial damage, etc.
For more manuals by Diivoo visit, ManualsLibraryy
Also, visit the following:
Diivoo WT-01 Automatic Water Timer-FAQs
How does the Diivoo WT-01 Automatic Water Timer function?
The Diivoo WT-01 connects to your faucet and enables you to schedule watering sessions. You can set the start time, duration, and frequency of watering, allowing for automated irrigation of your garden or lawn.
What is the procedure to install the Diivoo WT-01 Automatic Water Timer?
To install the timer:
Attach the timer to your faucet.
Connect your hose to the timer’s outlet.
Install two new 1.5V AA alkaline batteries into the timer.
Ensure all connections are secure to prevent leaks.
How can I set up a watering schedule on the Diivoo WT-01?
To configure your watering schedule:
Turn the dial to “SET TIME” and press the (+) or (-) buttons to set the current time.
Turn the dial to “START TIME” to set when you want water to begin.
Turn the dial to “END TIME” to set when you want watering to stop.
Turn the dial to “HOW LONG” to specify the duration of watering.
Turn the dial to “HOW OFTEN” to choose how frequently you want watering to occur.
Turn the dial to “WATER DAY” to select the days of the week for watering.
Turn the dial to “AUTO” to activate the programmed schedule.
What should I do if the LCD screen remains blank after installing the batteries?
If the LCD screen doesn’t display anything:
Ensure that two new 1.5V AA alkaline batteries are properly installed.
Confirm that the batteries are correctly placed in the battery compartment.
Why isn’t the water flowing at the scheduled time?
If water doesn’t flow at the preset time:
Verify that the clock is set to the correct time.
Check that the start time is correctly configured.
Ensure that the “Rain Delay” feature is not activated.
Confirm that the timer is not in “OFF” mode.
Check the battery level; replace if necessary.
Ensure that the faucet is turned on.
What should I do if the hose connection leaks?
If there’s a leak at the hose connection:
Check that the O-ring is properly seated in the hose tap.
Inspect the connection outlet or water pipe for any damage.
Ensure that the faucet and water pipe have compatible threads.
If necessary, use an appropriate adapter or PTFE tape to secure the connection.
How can I perform manual watering without disrupting the preset schedule?
To manually water without affecting the programmed schedule:
Press the “Manual” button.
Use the (+) or (-) buttons to set the desired watering duration.
Press “OK” or wait 5 seconds to start manual watering.
Press the “Manual” button again to stop manual watering and return to the automatic schedule.
What is the purpose of the “Rain Delay” feature, and how do I use it?
The “Rain Delay” feature pauses the watering schedule for a set number of days to prevent overwatering during rainy periods.
To activate “Rain Delay”:
Ensure the timer is in “Auto Run” mode.
Press and hold the “+” button for 5 seconds until the rain delay symbol appears.
Use the (+) or (-) buttons to set the delay duration from 1 to 7 days.
Press “OK” or wait 10 seconds to confirm and activate the delay.
How do I activate the child lock to prevent unauthorized changes?
To enable the child lock:
Ensure the timer is in “Auto Run” mode.
Press and hold the “-” button for 5 seconds until the “LOCK” symbol appears.
To deactivate, press and hold the “-” button for 5 seconds again.
What should I do if the timer is not functioning correctly?
If the timer is not operating as expected:
Check the battery level and replace if necessary.
Ensure all connections are secure and free from leaks.
Verify that the timer is set to “Auto Run” mode.
Consult the user manual for troubleshooting steps.
