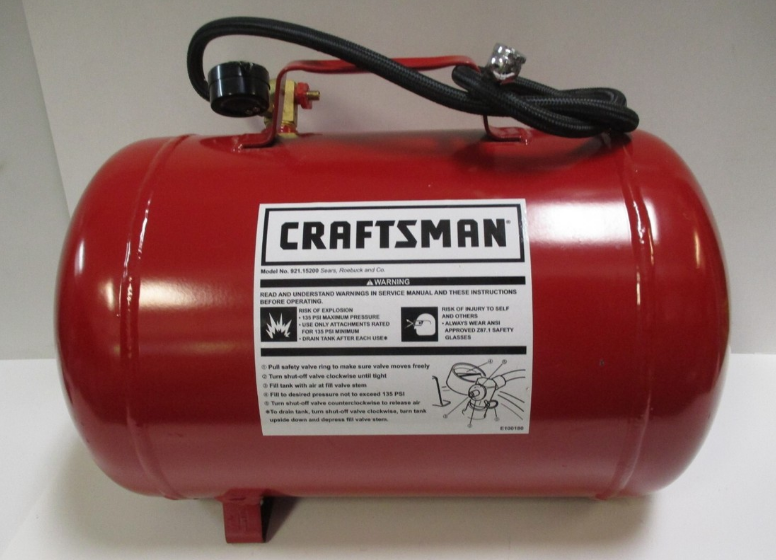

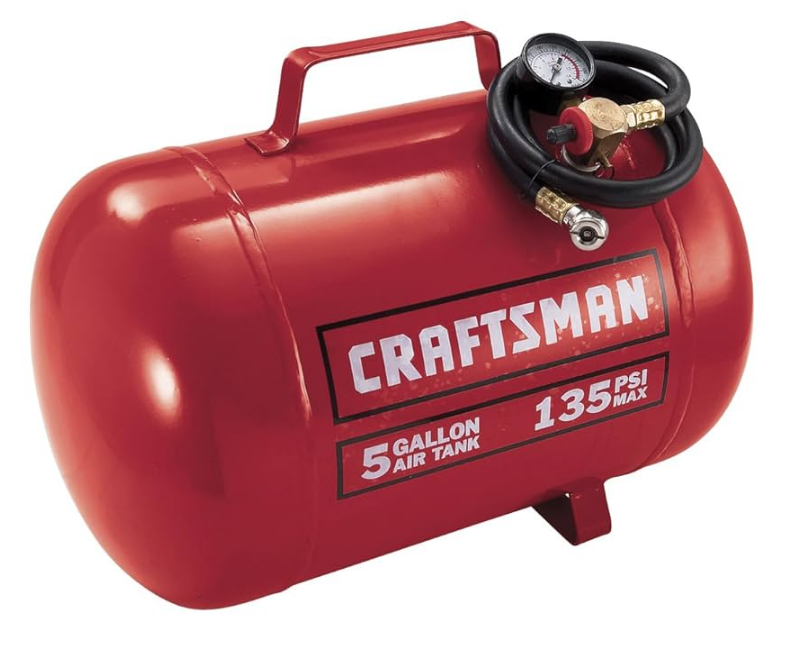

Craftsman 9-15200 5 Gallon Horizontal Air Tank
ONE-YEAR FULL-WARRANTY ON CRAFTSMAN PORTABLE AIR TANK
If this Craftsman Portable Air Tank fails due to the manufacturer’s defects in material or workmanship within one year from the date of purchase, return it to your nearest Sears store in the United States, and it will be replaced free of charge.
If this Portable Air Tank is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Important Safety Instructions and Guidelines
WARNING
The information listed below should be read and understood by the operator. This information is given to protect the user while operating and storing the portable air tank. We use the symbols below to allow the reader to recognize important safety information. Improper operation or maintenance of this product could result in serious injury and/or property damage. Read and understand all of the warnings and safety instructions provided before using this equipment.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Risk of Breathing
Keep children, pets, and others out of the area of operation. This portable air tank does not provide breathable air for anyone or any auxiliary breathing device.
Risk of Bursting
If the tank develops a leak, then replace the portable air tank. Never attempt to repair a tank by welding!
NOTE: Discard the empty tank and DO NOT use after 7 years from the date purchased from Sears by the original owner. This tank is stamped with a “DISCARD AFTER” date if the date is unknown.
Risk of Personal Injury
Compressed air can be hazardous. The air stream can cause injury to soft tissue areas such as the eyes, ears, etc. Particles or objects propelled by the air stream can cause injury.
Operating Procedures
Filling the Portable Air Tank
Take your portable air tank to any source of clean, dry compressed air. A full-service gas station or truck stop is preferable. Modern convenience mart-type filling stations do not have sufficient air pressure available to allow you to get the most from your air tank. It is recommended that you fifillour tank with air until the pressure gauge reads between 95 to 135 psi. The air tank is filled like a car tire by pressing the chuck from the source to the filler valve.
PLEASE NOTE: Tank can be filled and the pressure gauge can be read with the RED ON/OFF KNOB in the OFF position.
Using the Portable Air Tank
Turn the RED ON/OFF KNOB counter-clockwise to the open position to allow air to flow from the tank into the hose. To prevent air from leaking out of the tank between uses, turn the RED ON/OFF KNOB clockwise to the closed position.
Storage
STORING YOUR PORTABLE AIR TANK
Turn the RED ON/OFF KNOB CLOCKWISE to the OFF position when storing your air tank.
WARNING
Failure to remove condensation will cause the tank to rust prematurely.
Always drain the tank of all air after the last use for the day and before repairing or removing any carts.
Point the safety pressure relief valve AWAY FROM YOUR BODY when releasing air. Use the pull ring on the safety relief valve to vent any pressure inside the tank before attempting to service the tank. Safety goggles must be worn at all times for eye protection. To disperse any accumulated condensation inside the tank, begin by reducing the air pressure inside the tank by pulling out on the safety valve and holding until the tank gauge reaches 25 psi. Invert the tank with the manifold facing downward and pull the ring on the safety relief valve. W, as the manufacturer, and you, as the consumer, have no control over the moisture content of air coming from any source. Premature rusting caused by condensation inside the tank is the primary reason for the suggested replacement date stamped on the tank.
- Never attempt to remove any components while the tank is pressurized.
- Never remove or deface the information sticker on the tank.
- Never attempt to fill the tank if any air leak is detected in the tank body. Discontinue use of the air tank immediately.
- Warranty is void if any attempt is made to alter or modify this unit in any way.

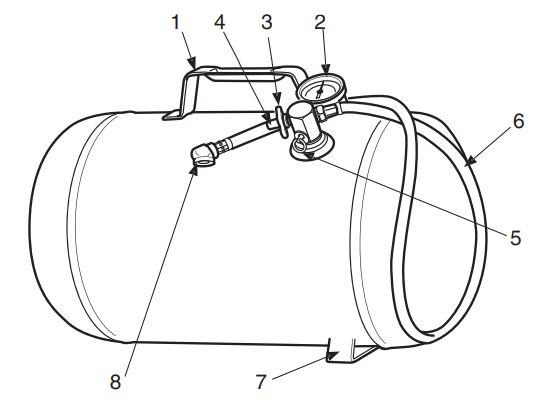

Parts List
- Carry Handle
- Pressure Gauge
Indicates internal air pressure of the ankle. - On/Off Valve
Prevents air from leaking out of the air hose and/or tire chuck when in the off position. - Filler Valve
Fill the tank with compressed air through this point. - Safety Pressure Relief Valve
Prevents the tank from being over-pressurized. - Air Hose
Delivers compressed air from the tank. - Steel Legs
Support the tank in an upright sand stable position. - Tire Chuck
Used ate tires and other items.

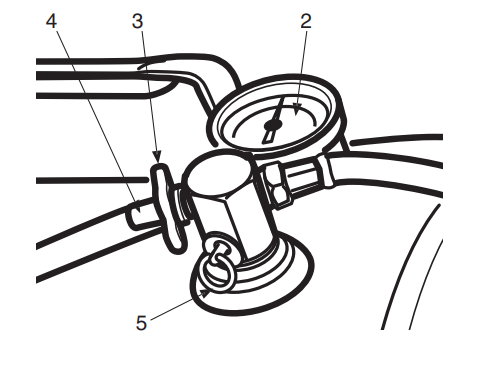

Manifold Enlargement

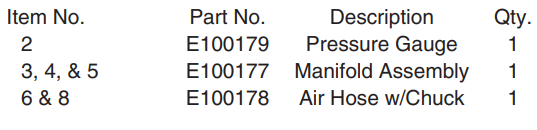

Replacement Parts
For replacement parts, call 1-800-4-MY-HOME® (1-800-469-4663)
