CUCKOO CR-1020F Micom Rice Cooker User Manual

CUCKOO CR-1020F Micom Rice Cooker

IMPORTANT SAFEGUARDS

Read all instructions before using this appliance.
Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electric shock, and/or injury to persons, do not immerse the cord, plugs, or Pressure Cooker Body in water or any other liquid.
Close supervision is necessary when this appliance is used by or near children. This appliance is not intended for use by young children without supervision.
Unplug the cord from the outlet when not in use and before cleaning. Allow the appliance to cool before putting on or taking off parts, and before cleaning the appliance.
Do not operate any appliance if it malfunctions, has a damaged cord or plug, or has been damaged
in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may result in
fire, electric shock, and/or injury to persons.
If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or your service agent.
Do not use outdoors.
Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
Do not place on or near a hot gas, electric burner, or in a heated oven.
Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect,
set all controls to “off”, then remove the plug from the wall outlet.
Do not use this appliance for anything other than its intended use.
Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they
may result in fire or electric shock.
Fire may occur if the appliance is covered or touches flammable material, including curtains,
draperies, walls, etc, while in operation.
To reduce the risk of electric shock, cook only in the provided inner pot.
This appliance cooks under pressure. Improper use may result in scalding injury. Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods. These foods tend to foam, froth, and sputter, and may block the pressure-releasing device.
Before use, always check the pressure-releasing device for clogging.
Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced.
See “Operating Instructions.”
Do not use this pressure cooker to fry in oil.

SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

ADDITIONAL IMPORTANT SAFEGUARDS

WARNING: This appliance generates heat and releases steam during use. Use proper precautions to prevent risk of burns, fire, injuries, or property damage.

Keep hands and face away from the Pressure Release Valve when releasing pressure.
Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
Never open the Lid while the unit is in operation.
Do not use without the inner Pot in place.
Do not cover the Pressure Valve with anything, as an explosion may occur.
Do not touch the inner pot or any heating parts immediately after use. Allow the unit to cool down completely first. This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices, and other working environments;
- farm houses;
- by clients in hotels, motels, and other residential-type environments;
- bed and breakfast type environments.

Specifications

Specifications
Model Name		CR-1010F / CR-1020F
Power Supply		AC120V, 60Hz
Power Consumption Approx	Cook	890W
Power Consumption Approx	Warm	135W
Cooking Capacity	WHITE RICE	2~10cup
	TURBO WHITE RICE	2~6cup
	GABA	2~6cup
	NU RUNG JI	2~4cup
	Mixed/Brown	2~8cup
	THICK PORRIDGE	1~2cup
	THIN PORRIDGE	0.5~1.5cup
Power Cord Length		1.2m
Dimension	Width	28.8cm
	Length	37.8cm
	height	25.9cm
Product weight		4.5kg

SAFETY PRECAUTIONS

Read the following product safety guide carefully to prevent any accidents and/or danger.
‘Warning’ and ‘Caution’ are different as follows.

Warning

Do not use a damaged power cord, plug, or loose socket. •If the sheath of the Power Cord has peeled off or is picked due to carelessness during use of the product, it may cause fire or electric shock. Thus, check the status of the Power Cord, Power Plug, and socket frequently. •If the Power Cord or the Power Plug is damaged, let the manufacturer, the store, or a qualified technician (service technician) change the cord to pre- vent harm. • Please let the designated service center repair the product without fail.	Do not use a rice cooker in a place where dust is trapped or chemical material is located. • Do not use any combustible gas or flammable materials near a product. • It can cause an explosion or fire.
	Do not use it without the inner pot. • It can cause an electric shock or malfunction. • Do not pour rice or water without the inner pot. •If rice or water gets inside the body, do not turn the product over or shake it. Please contact the dealer or service center.
Do not cover the automatic steam outlet with your hand or face. • It can cause burns. Do not cover the steam cap with your hand or face. • Especially be careful to keep it out of children’s reach.
	Do not cover the automatic steam outlet with a duster, a towel, or an apron, etc. • It can cause a fire or a breakdown. • It can cause an explosion due to pressure.
Do not use the cooker near hot things such as stoves, gas stoves, or direct ray of light. • It can cause an electric shock, fire, deformation, malfunction, or discoloration. •Do not put the Power Cord near an electric heating appliance. The sheath of the Cord may melt and cause fire or electric shock. Please check the power cord and plug frequently.
	Do not bend, tie, or pull the power cord by force. • It can cause an electric shock or short circuit, resulting in fire. Please check the power cord and plug frequently.
	Remove external substances on the plug with a clean cloth. • It may cause a fire. Please check the power cord and plug frequently.
Don’t spray or put any insecticides or chemicals. • This may cause a fire. •If cockroaches or any insects get inside the cooker, please call a dealer or a service center.
	Do not change, extend or connect the power cord without the advice of a technical expert. • It can cause an electric shock or fire.
Please be careful with water and chemicals. • It can cause an electric shock, fire, deformation, malfunction, or discoloration. • If water gets into the product, please contact the Customer Service center.
	Do not move the product by pulling the power cord. • An electric short might cause a fire.
Do not open the lid during heating and cooking. • If you open the lid while boiling or steaming, the steam may cause a burn. •Be careful when you open the lid right after cooking. The steam may cause a burn.
	Do not clean the product with water or pour water into the product. • It can cause an electric shock or fire.
Use a single socket with the rated current above 15A. Using several lines can cause overflow or breakdown. •Using several lines in one socket can cause overheating or fire. Please check the power cord and plug frequently. • If there is a foreign substance or moisture on the Power Plug, wipe it off before use. • Use an extension cord with a rated current above 15A.	Do not alter, reassemble, disassemble, or repair. • It can cause an electric shock or fire. •Only a service technician should dismantle or repair the product. Contact the Customer Service center for repairs or malfunctions.
	Do not put a foreign substance, such as a metal stick, into the Steam cap or the product. (Extra caution with children.) • It can cause an electric shock or fire.
Do not use a deformed Inner Pot or an Inner Pot other than the one exclusively for the product. • Using another inner pot can cause an operation error or fire. •When you have dropped the Inner Pot or the Inner Pot is deformed, contact the Customer Service center.
	Do not over-unplug and plug the power cord excessively. • It can cause an electric shock or fire.

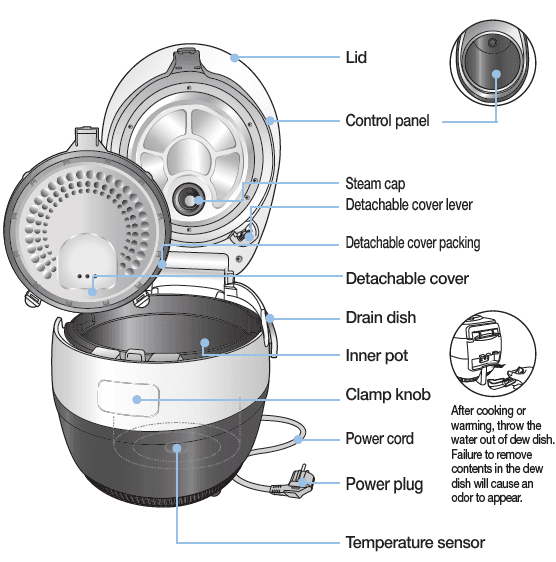

Part Names

Name of each part

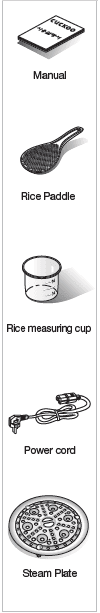

Accessories

How to assemble the steam cap

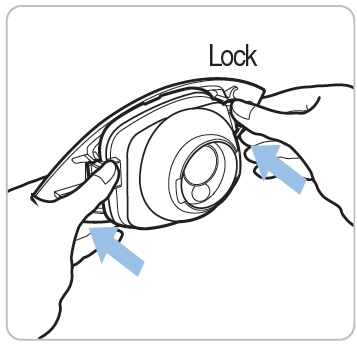

Hold the soft steam cap as seen in the picture.
Insert into the interlocking position.
- To separate it, follow the steps above in reverse order.

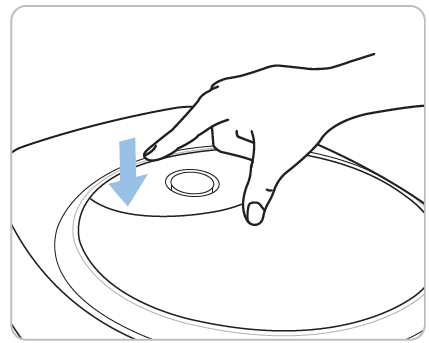

Assemble the soft steam cap to the top of the rice cooker

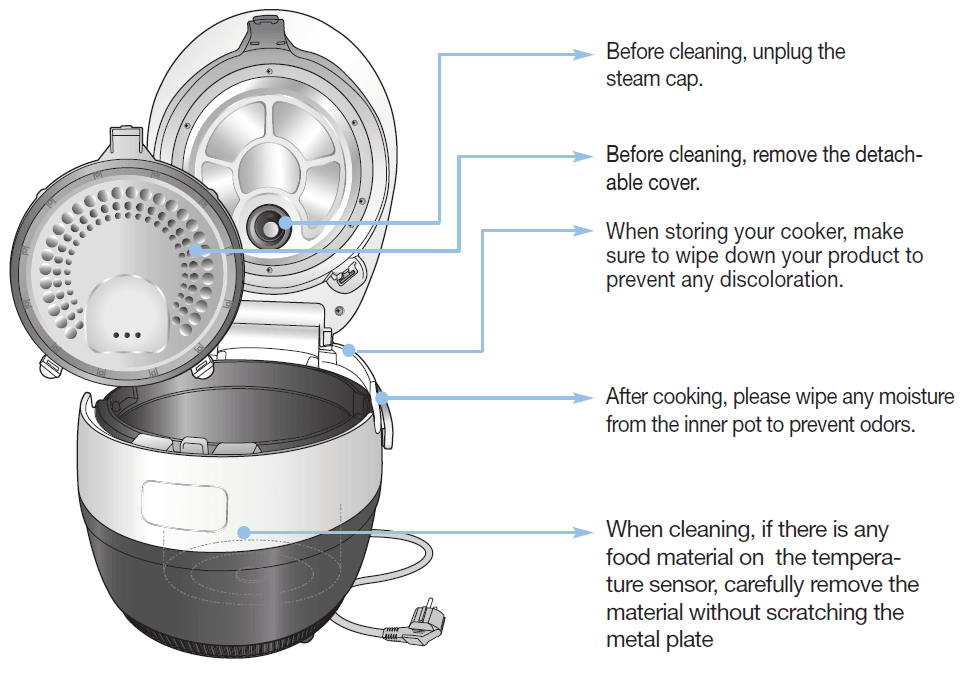

How to Clean and Maintain Your Rice Cooker

Clean your product periodically to maintain upkeep of the rice cooker. (Make sure your product is unplugged when cleaning your product) Wipe the main body and the lid with a dry dishcloth. Do not use any commercial cleaners.

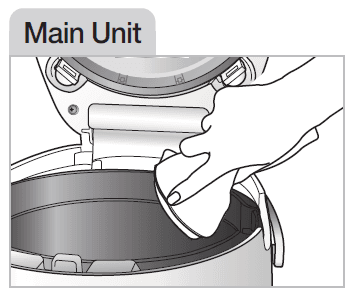

Wipe off all remaining food material and moisture from all areas of the outer and inner pot. **Using a rough sponge, brush or abrasive material may result in damaging the inner pot. Use dish soap with a soft sponge for optimal cleaning.If moisture accumulates on the inner lid, wipe the lid with a dry dishcloththe inner lid, wipe the lid with a dry dishcloth.

Caution when cleaning inner pot The rice water generated while cooking is designed to be collected in the dew dish. After cooking, clean it with a dry cloth

If any material sticks to the temperature detector inside of the inner body, remove it and avoid damaging the metal plate. Wipe food material or moisture from the thermal plate.

How to detach/attach the detachable cover

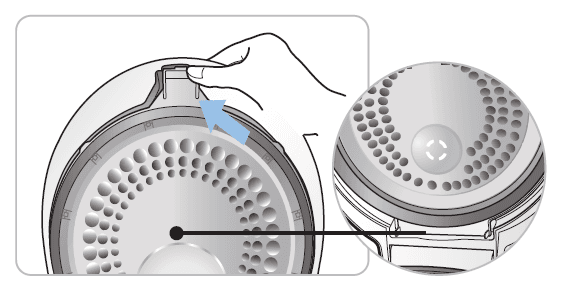

How to detach the detachable cover
- Gently pull the detachable cover towards you by grabbing the tabs at the bottom of the lid

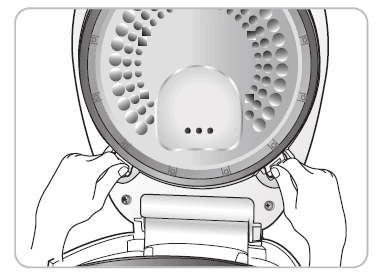

How to attach the detachable cover
- Gently insert the protrusion of the detachable cover into the lid of your rice cooker
- Simply push the cover into the lid until the cover snaps into place.

CAUTION: If you attach the detachable cover in the opposite direction, it may cause damage to your rice cooker.

How to Clean and Maintain Your Rice Cooker

Maintaining Your Rice Cooker

The inner pot contains a non-stick fluorocarbon coating in order to prevent rice from sticking to the pot.

Only use the Rice paddle inside the inner pot.
Do not use any metal utensils or dishware in the product.
Do not use any commercial cleaner.
If you have used seasoning inside the inner pot, wash the product immediately after use.
Some stains may remain during use, but this does not affect the cleanliness.

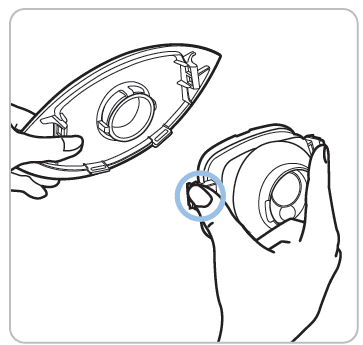

The steam cap

The steam cap should be cleaned after every use. Remove the steam cap by simply pulling it off the lid.

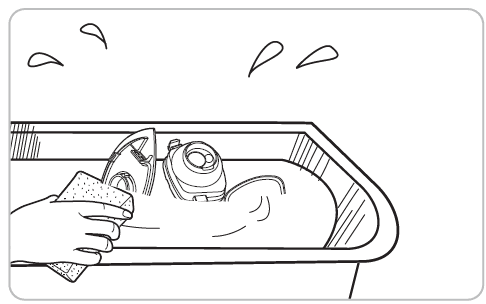

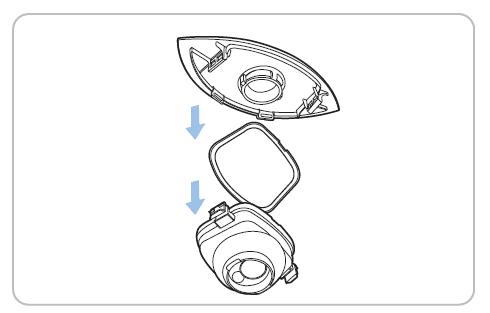

Separate the steam cap into two parts and soak them in lukewarm water. Wash with a sponge or a soft cloth.
Assemble the two parts together until there is a clicking sound.

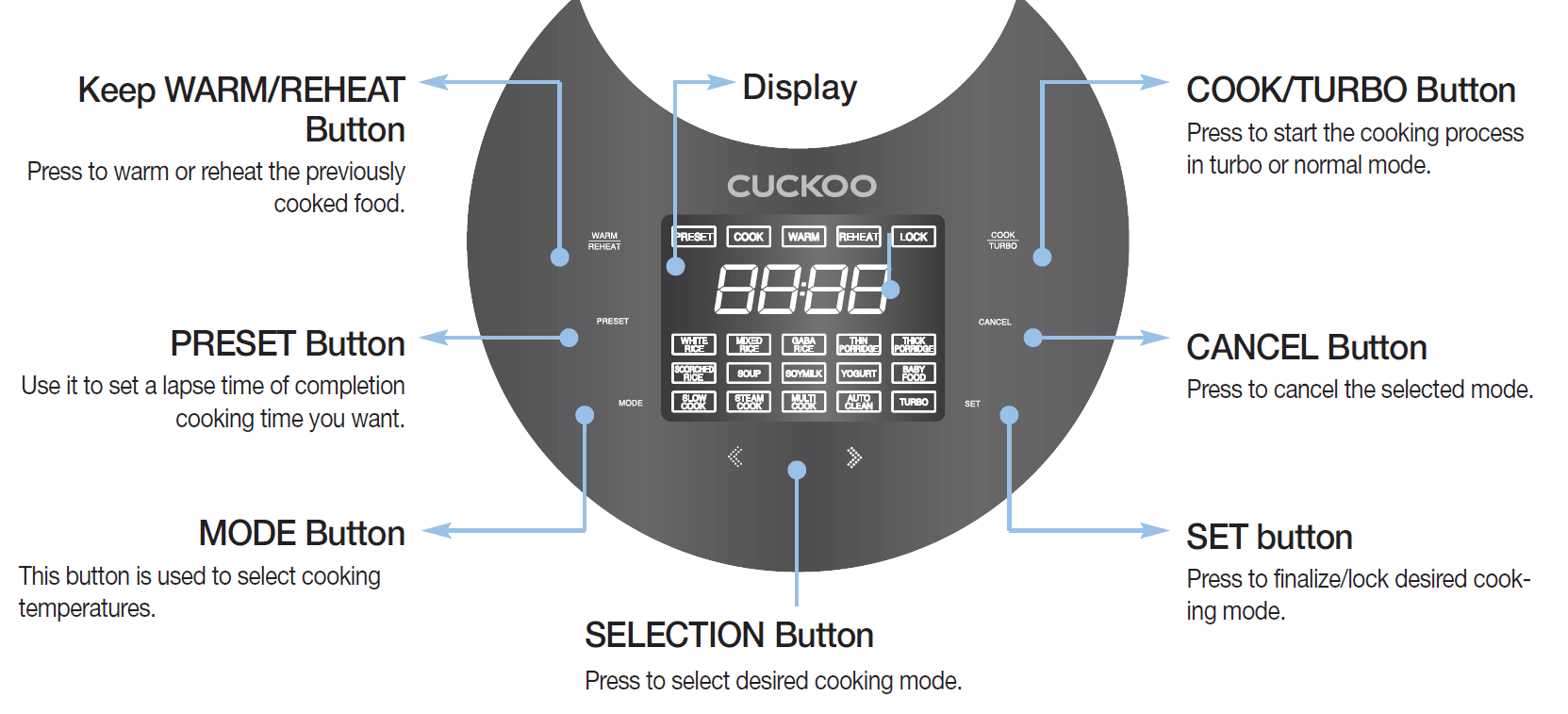

Panel Display

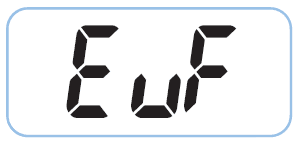

Error Notifications

Error notifications may appear if the product is not working properly.

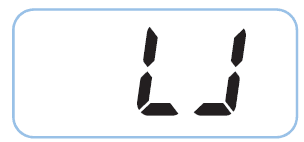

When the inner pot is not correctly placed into the unit.

Temperature sensor issue. (Consult the service center and dealer)

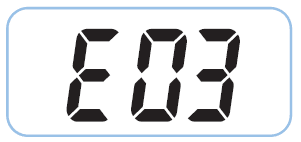

When the cooking mode has not finished for a long time. (Contact our service center and dealer)

Problem on micom memory.

This indicates that the memory is not working correctly. (Contact Customer Service).

This indicates that the environmental sensor failed to work. (Contact our Customer Service).

BEFORE COOKING RICE

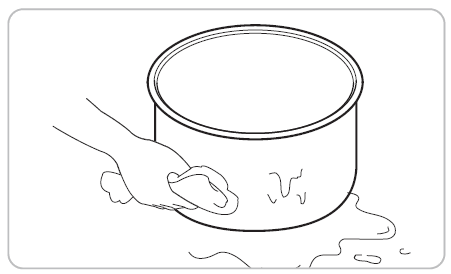

Clean the inner pot and remove any moisture.
- Clean the inner pot with a dishcloth.
- Using a rough sponge may cause damage to the surface of the inner pot.
Measure the rice correctly with a measuring cup.
- Recommended serving: 1 full cup of rice equals one person. (Example: 2 persons for 2 cups, 4 persons for 4 cups)
Clean the rice in a separate container until the water becomes clear.
Put 4 rinsed rice into the inner pot.
Pour water into the inner pot until you reach the proper rice to water ratio.
- Place the inner pot on a flat surface and adjust the water amount to the water level line.
- The water level line is marked in the inner pot.
- Adjustment of water height
  - WHITERICE, TURBO WHITE RICE, SCORCHED RICE: Adjust water based on ‘WHITE RICE` water level line.
  - Max.10 persons for WHITER RICE.
  - Max.6 persons for TURBO WHITE RICE.
  - Max.4 persons for SCORCHED RICE
  - MIXED RICE: Adjust water based on the ‘MIXED RICE` water level line. Max.8 persons for MIXED RICE.
  - GABA RICE: Adjust water based on ‘GABA RICE`.
  - Max.6 persons for GABA RICE.
  - THICK PORRIDGE: Adjust water based on ‘THICK PORRIDGE` water level line, Max.2 cups for THICK PORRIDGE
  - THIN PORRIDGE: Adjust water based on the ‘THIN PORRIDGE` water level line. Max.1.5 cups for THIN PORRIDGE.
Put the inner pot into the main body and cover the inner lid.
- Make sure the inner pot is completely inserted.
  - If there is any food materials or objects at the bottom of the rice cooker, the pot will not work properly

FOR TASTIER RICE

How to Cook Tastier Rice

Observe the following instructions for tasty rice:

Measure rice with a measuring cup. Pour water up to

• Pour the rice according to the measuring cup. (The rice amount measured by a commercial rice container may vary depending on the product.)

If the amount of water is incorrect for the rice amount, the rice

may be undercooked or overcooked.

the water level line

of the inner pot.

• Adjust the water amount to the water level line After placing the inner pot on a flat surface.

Storing the rice correctly.

• Purchase rice in small quantities to ensure freshness.

• For dried rice unpacked for a long time, it is better to cook with more water (about half water level line).

If the rice is extra dry, add more water to increase the likelihood of better-tasting rice.

It is better to make the timer cooking short.

• For dried-up rice, avoid timer cooking if at all possible and add water (about half water

level line).

Timer cooking over 10 hours or with dried rice may cause rice to be undercooked, scorched, or cooked unevenly.

Do not exceed 12 hours in “Keep warm mode”

• Exceeding 12 hours in “Keep warm mode” may decrease the quality of your cooked rice.

Exceeding the “Keep warm” time limit of 12 hours may cause discoloration of the rice.

Keep your cooker clean at all times

• Clean your cooker frequently

Wipe foreign materials from the lid frequently.

By not cleaning your cooker, you can compromise the quality of your rice.

Cooking Time by Menu

Detailed Settings for each Cooking Option

WHITE RICE	For short-grain white rice.	MIxED RICE	When cooking long rice or brown rice.
GAbA RICE	This function will be used for germi nated brown rice.	SCORCHED RICE	For SCORCHED RICE.
STEAM COOK	For steaming food. *Set time manually	THICK PORRIDGE	For THICK PORRIDGE.
SLOW COOK	For porridge, soup, tea, etc. *For optimal usage, set to low temperature	THIN PORRIDGE	For THIN PORRIDGE.
SLOW COOK		bAbY FOOD	For BABY FOOD.
MULTI COOK	Manual settings are required for thermal power, temperature, and cooking time.	SOUP	For making/boiling soup
SOYMILK	For boiling soy beans.	YOGURT	For starting the fermentation process of yogurt.
TURbO FUNCTION	Press “COOK/TURBO” twice after choosing “WHITE RICE,” and it will switch to “quick cook.” It will take about 31~33 minutes (For 2 people) *TURBO WHITE RICE mode, the preset function is not available.

Be sure to empty the dew dish located on the back side of the cooker.

Keep Warm Precautions

Stiring the cooked rice evenly after cooking is recommended. (For a small quantity of rice, pile the rice in the center area of the inner pot to keep warm)

Keeping rice warm for a long time may cause it to become discolored or develop an odor. Therefore, it is recommended that it be kept warm for less than 12 hours.

24 hours after keeping the cooked rice warm, the passed time blinks on the display.

Do not keep a rice scooper or a wooden scooper in the inner pot while keeping the cooked rice warm. This may cause bacteria to form.

The warming status of mixed/brown rice is worse than plain rice. Do not keep it warm if at all possible.

The rice on the edge of the inner pot or the bottom of the steam outlet may turn plain and swollen. In this case, stir and mix the rice.

Do not mix too small a quantity of rice or leftovers with the rice under keeping warm. Doing so may develop an odor.

(Use a microwave oven for the cold rice.)
