Cuisinart CBJ-450XA Compact Blender-Juicer Combo User Manual

Cuisinart CBJ-450XA Compact Blender-Juicer Combo

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USING

When using any electrical appliance, especially when children are present, basic safety precautions should always be taken to reduce the risk of fire, electric shock, and/or injury, including the following:

• This appliance is intended for HOUSEHOLD USE ONLY and similar applications such as:
  • staff kitchen areas in shops, offices & other working environments;
  • clients in hotels, motels, and other residential-type environments;
  • bed and breakfast settings
• Always make sure the juice extractor cover is clamped securely in place before the motor is turned on. Do not unfasten clamps while the juicer is in operation. Be sure to turn the switch to the OFF position after each use of your juice extractor. Make sure the motor stops completely before disassembling.
• Do not put fingers or other objects into the juice extractor opening while it is in operation. If food becomes stuck in the opening, use the food pusher or another piece of fruit or vegetable to push it down, or turn the motor off and disassemble the unit to remove the remaining food.
• If the mesh filter basket blade is damaged, do not use it.
• Do not operate without the pulp container in place.
• Turn the appliance off, then unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning or removing contents from the blending cup or juice extractor. Never put your hands into the blending cup or juice extractor, or handle the blades with the appliance plugged in. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
• To protect against the risk of electrical shock, do not put the motor base in water or other liquids.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Avoid contact with moving parts.
• Do not operate this appliance if it has been dropped or damaged (including the cord) in any manner or is not operating correctly.
• The use of attachments not recommended by Cuisinart may be hazardous.
• Not designed for outdoor use.
• Do not allow the power cord to come into contact with any hot surfaces, including a stove, or hang over the table edge or counter.
• Keep hands, hair, clothing, as well as spatulas and other utensils, away from the blending cup during operation to reduce the risk of injury to persons, and/or damage to the appliance. A spatula may be used, but it must be used only when the unit is not operating.
• Do not touch the cutting assembly, interfere with blade movement, or remove the juice extractor cover.
• BLADES ARE SHARP. HANDLE CAREFULLY.
• To reduce the risk of injury, never place the cutting assembly on the base unless the blending cup is properly attached.
• Never leave your Kick Start Blender unattended while running.
• When using the blender, twist the blending cup on firmly. Injury can result if the moving blades accidentally become exposed.
• Do not use an extension cord with this unit. Doing so may result in fire, electric shock, or personal injury.
• Risk of thermal burn injury due to excessive pressure in the container. Do not blend hot liquids.
• CAUTION! NEVER USE carbonated beverages in the blending cup.
• Be certain the blade assembly is securely locked in place before operating the blender.
• Do not attempt to bypass the interlock system that powers the unit on.
• To avoid a possible malfunction of the appliance switch, never store the juice extractor attachment assembly with the cover on in the locked position.
• WARNING: TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE, DO NOT REMOVE THE BASE PANEL. NO USERSERVICEABLE PARTS ARE INSIDE. REPAIRS SHOULD BE DONE ONLY BY AUTHORIZED PERSONNEL.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAVE THESE INSTRUCTIONS.

UNPACKING INSTRUCTIONS

1. Place the gift box containing your Cuisinart® Kick Start Personal Juicer & Blender on a flat, sturdy surface before unpacking.
2. Open the box and remove any other literature.
3.  Remove the Kick Start Personal Juicer & Blender base as well as all other parts. Be sure to check all packing materials for all parts listed in the Parts & Features section on page 4 before discarding.
4. Remove any protective or promotional labels from your Juicer and other parts.
5.  Wash the blending cup, blade assemblies, juice jug, and other accessories in warm, soapy water before first use.
6. To assemble the Kick Start Personal Juicer & Blender, follows the Assembly instructions on page 5 of this instruction booklet.
   CAUTION: ALL CUTTING TOOLS HAVE VERY SHARP EDGES. To avoid injury when unpacking the parts, never touch the cutting edges of blades or the filter basket.

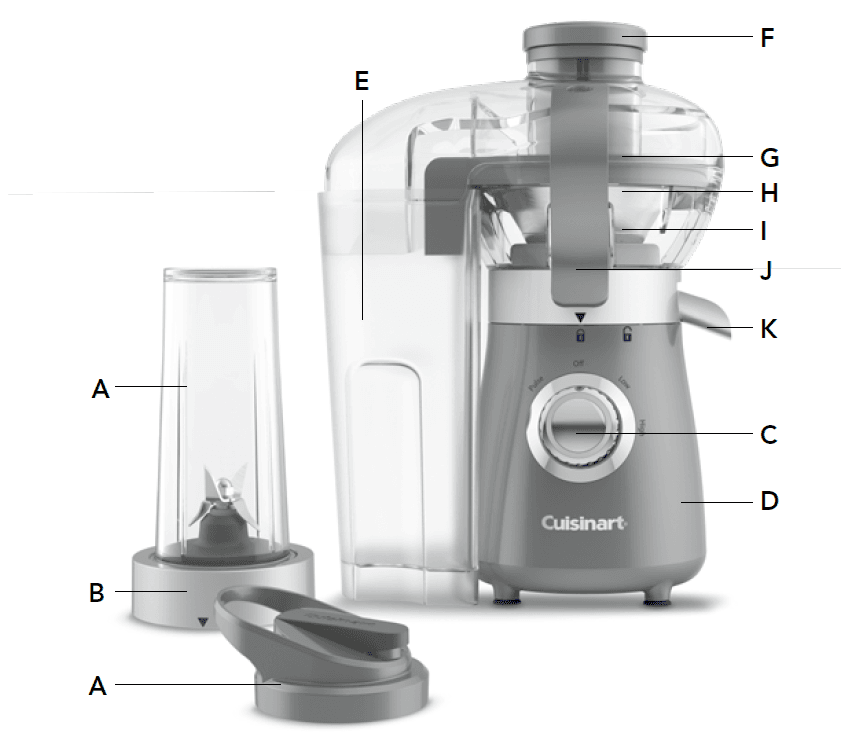

PARTS AND FEATURES

• A. 480ml BPA-Free Blending Cup (top rack dishwasher safe)
  Comes with flip-top lid to take on the go or to save for later.
• B. Stainless Vortex Blades
  High-efficiency 4-way blades are designed to create rapid circulation.
• C. 3-Function Rotary Dial
  Easy-to-use Low, High, and Pulse settings.
• D. Heavy-Duty Motor Base
  Compact yet strong, sturdy, and stable for both blending and juicing with a Heavy-Duty motor and safety shutoff. Juice Extractor Attachment:
• E. Pulp Container
  Collects pulp from juicing for easy cleaning
• F. Feed Tube Pusher (top rack dishwasher safe)
• G. Cover with Feed Tube (top rack dishwasher safe)
• H. Filter Housing (top rack dishwasher safe)
• I. Stainless Steel Micro Mesh Filter Basket (top rack dishwasher safe)
• J. Safety Locking Arms
  Locking arms must be secured to allow the juicer to operate.
• K. Drip Stop Flow Spout
  Push the spout down to release juice and up to stop any drips after juicing

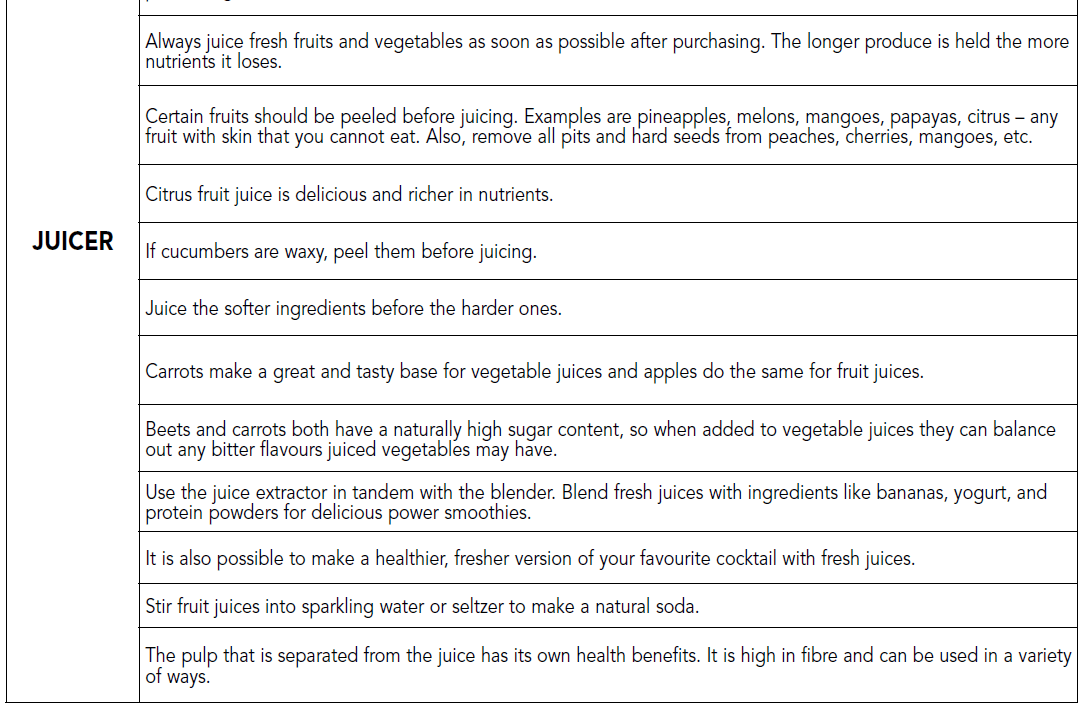

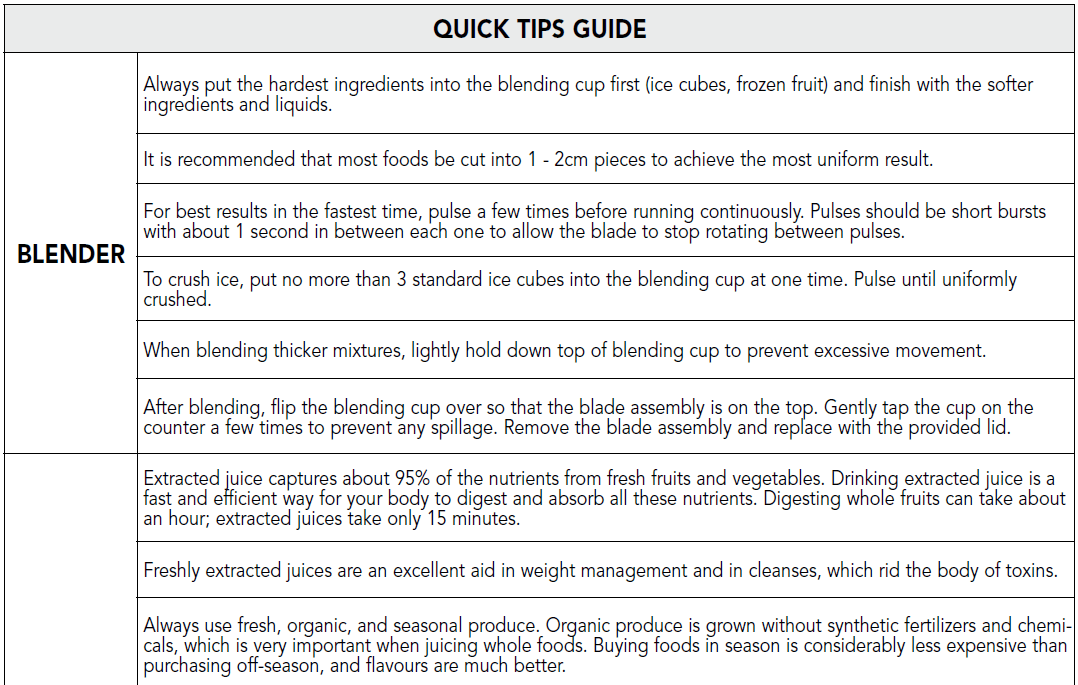

QUICK TIPS GUIDE

BLENDER ASSEMBLY

Wash the blending cup, lid, and blade assembly in warm soapy water, rinse, and dry. All parts (except the motor base) are TOP RACK only dishwasher safe.

NOTE: Be careful when handling the blades as they are extremely sharp.

1. Place the motor base on a flat, level surface.
2. Remove blades and position the cup with the opening facing up.
3. Add ingredients, avoiding filling past the MAX line indicated on the cup.
4. Secure the blade assembly onto the cup by turning clockwise until tightened.
5. Ensure the blade assembly collar is securely in place before inverting the cup to blend.

BLENDER OPERATION

The blender will only operate when the blades and cup are correctly assembled. This engages the safety interlock switch and allows the blender
to operate. With liquids inside, invert the cup, and place it onto the motor base using the alignment graphics and turn clockwise to lock into place. A blue light ring will blink on the power dial to indicate the unit is ready to operate. Select the LOW or HIGH speed to commence blending. Use PULSE for short speed bursts ( hold and release the power dial for short bursts of power). This can be used to break up larger pieces of food or when making smoothies with frozen fruits or crushing ice. Blend until ingredients are combined.
The blender has an auto-stop feature after 60 seconds.
Turn the blender off, wait a few seconds, then unlock the blender cup from the base. Invert the cup and turn the blade assembly collar anti-clockwise to remove. Attach the travel cup lid.
NEVER TOUCH THE BLADES
Turn off the power and unplug when finished blending.

BLENDER OPERATING AND SAFETY TIPS

• Make sure the electrical outlet is rated at the same voltage as that stated on the bottom of the blender motor base.
• Don’t remove the blending cup while the unit is running.
• Don’t place the blade assembly onto the motor base without the blending cup attached.
• Make sure the blade assembly is tightly attached when utilizing the blending cup.
• Always remove the blade assembly before cleaning.
• Never use metal utensils, as damage may occur to the blending cup or cutting assembly.
• Don’t overload the blending cup. If the motor stalls, turn the blender off immediately, unplug the unit and let it cool for at least 15 minutes. Then, remove a portion of the food and continue.
• CAUTION: Never use carbonated beverages in the blending cup.
• Don’t blend hot liquids in the blending cup.
• Do not attempt to mash white potatoes or knead bread dough in the blending cup.
• Don’t use any container or accessories not recommended by Cuisinart. Doing so may result in injury.
• To remove the blending cup, turn slightly counterclockwise before lifting.
• The blending cup is not recommended for microwave use.
  NOTE: THE BLENDER WILL NOT TURN ON IF IT IS NOT LOCKED INTO PLACE CORRECTLY.

JUICE EXTRACTOR ASSEMBLY

1. Place the motor base on a clean, flat surface. Make sure the motor base is unplugged from the power outlet.

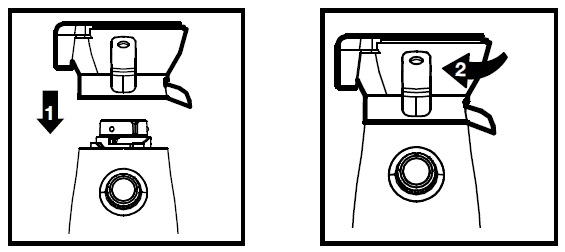

2. Place the filter housing on top of the motor base using the alignment graphics and turn clockwise to lock into place. Do not lock locking clamps into place until you’ve completed assembling the juice extractor.
3. Insert the mesh filter basket/blade firmly into the filter housing by pressing down on the rim of the filter so it locks securely in place. Be careful not to touch the blades at the bottom of the basket, and be sure this part is inserted before every use.
4. Insert the pulp container onto the side of the unit by tilting the unit slightly. Then, place the cover on top of the filter housing. Be sure to align the feed tube over the mesh filter basket.

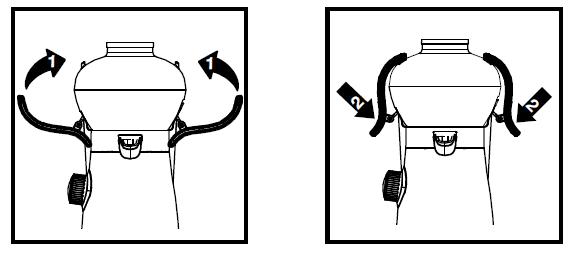

5. Move the safety locking arms upwards to the lid cover and engage by pushing them down until they lock into place on both sides.
6. Place a glass or juice jug beneath the spout at the front of the unit.
7. Insert the food pusher inside the feed tube.

JUICE EXTRACTOR OPERATION

1. Make sure your Juice Extractor Attachment is properly assembled and attached to the motor base.
2. Plug the power cord into the electrical outlet.
3. Wash all selected fruits or vegetables.
4. While many fruits and vegetables will not need cutting, any item with a diameter larger than 5cm will need to be cut.
5. Turn the dial from the OFF position to HIGH. A blue light ring will blink on the power dial to indicate the unit is ready to operate.
6. Push the juice spout down to the open position before juicing.
7. Lift the food pusher out of the feed tube and drop your food into the opening. Push through by inserting the food pusher and pressing firmly. Do not pack the feed tube too full of food. Be sure that the food has been processed through the filter basket/blade before adding more items. When using the pusher, use gentle pressure to guide food through the feed tube. Do not press too hard or use too much force.
8. The juice will flow into your glass, and the pulp will accumulate in the pulp container.
9. When finished juicing, turn the dial to the OFF position to stop the motor.

JUICE EXTRACTOR DISASSEMBLY

1. Unplug the Juice Extractor.
2. Unlock the locking clamps and cover, then remove the pusher.
3. Lift and remove the cover from the filter housing.
4. Carefully remove the mesh filter basket/blade from the filter housing by pulling up on the sides of the rim. Be careful not to touch the blades in the bottom of the basket.
5. Remove the pulp container from the side of the motor base and empty.

CLEANING AND MAINTENANCE

Always unplug your Cuisinart® Kick Start Personal Juicer & Blender from the electrical outlet before cleaning. The base and parts are made of corrosion-resistant materials that are easy to clean. After every use, clean each part thoroughly. Periodically check all parts before reassembly. DO NOT USE IF ANY PART IS DAMAGED, OR IF THE BLENDER CUP IS CHIPPED OR CRACKED. To remove the blade assembly, twist off by turning
counterclockwise. NEVER TOUCH THE BLADE.

CAUTION: Handle the blade assembly carefully. Blades are SHARP and may cause injury. DO NOT attempt to remove blades from the cutting assembly. do not attempt to detach the blade assembly from the Blade collar.

Wash all parts in warm, soapy water. Rinse and dry thoroughly. All parts (except the motor base and filter housing) are top rack dishwasher safe.

Blender Cleaning Tips: You may wish to clean your blade assembly as follows: squirt a small amount of dishwashing liquid into the blending cup and fill halfway with warm (not hot) water. Attach the blade assembly and run on Low or Pulse for 15 seconds. Repeat, using clean tap water. Carefully disassemble parts and empty the blending cup. Rinse and dry all parts thoroughly.

Juicer Cleaning Tips: To ensure consistent juicing results, always clean the filter basket thoroughly immediately after use. If pulp is left to dry, it may clog the fine pores of the filter mesh, which can affect juicing performance. The filter basket can be soaked in hot soapy water for a few minutes if necessary. The filter basket can be washed in the top rack of the dishwasher.

CAUTION: The center of the filter basket has an array of small, sharp blades. Do not touch these blades when handling the filter basket.

Base Cleaning Tips: Wipe the motor base clean with a damp cloth to remove any residue, and dry thoroughly. Never submerge the motor base in water or other liquids, or place in a dishwasher. Any other servicing should be performed by an authorized service representative.

Pulp Container Cleaning Tips: The pulp container is easier to clean if lined with a plastic bag. This may also prevent staining of the pulp container over time with use.

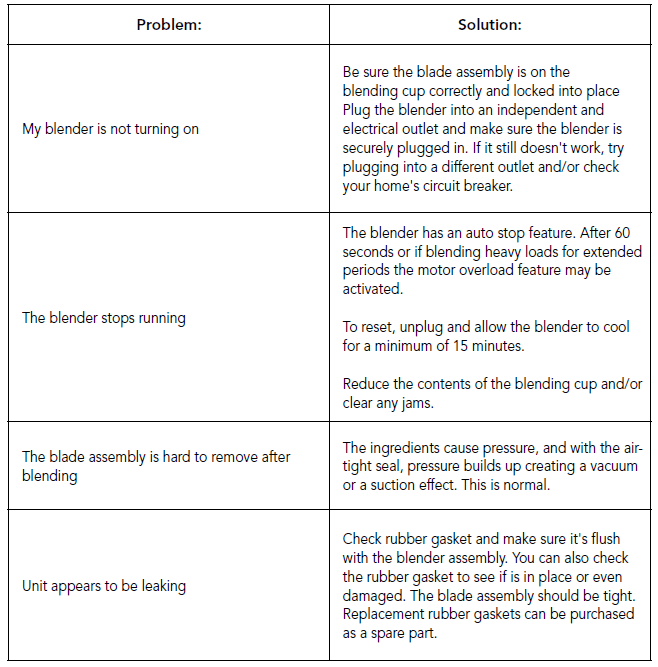

BLENDER TROUBLESHOOTING

JUICE EXTRACTOR TROUBLESHOOTING

SPEED SELECTOR GUIDE
