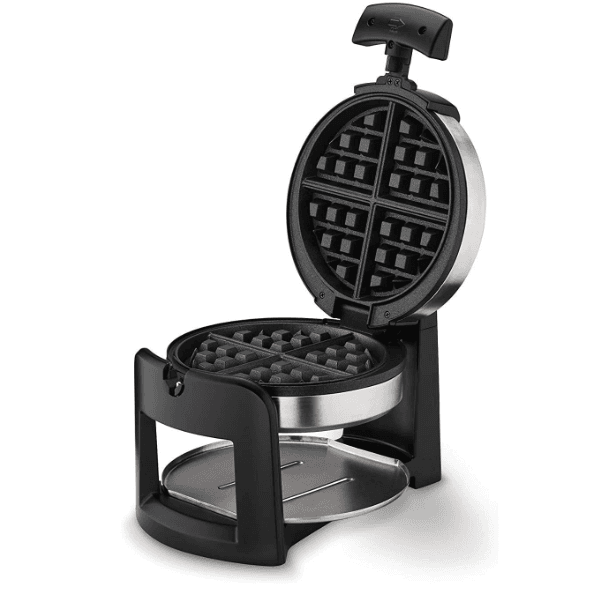

Cuisinart WAF-F30 Round Flip Belgian Waffle Maker
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be taken, including the following:
- READ ALL INSTRUCTIONS.
- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not touch hot surfaces. Use handles and knobs.
- To protect against fire, electrical shock, and injury to persons, DO NOT IMMERSE CORD, PLUG, OR UNIT in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children or individuals with certain disabilities.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest Cuisinart Authorized Service Facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by Cuisinart may result in fire, electrical shock, or injury to persons.
- Do not use outdoors, or use for other than its intended use.
- Do not let the power cord hang over the edge of the table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Unplug the unit when finished baking waffles.
- Always begin by plugging an appliance into a wall outlet. To disconnect, turn control to setting #1, then remove the plug from the wall outlet.
- WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REPAIR SHOULD BE DONE ONLY BY AUTHORIZED PERSONNEL. DO NOT REMOVE THE BASE PANEL. NO
USER-SERVICEABLE PARTS ARE INSIDE. - Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Do not operate your appliance in an appliance garage or under a wall cabinet. When storing
in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.
SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

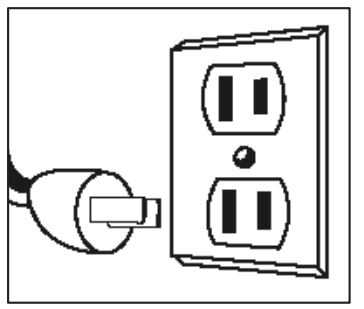

POLARIZATION INSTRUCTIONS
For your protection, the Cuisinart® Double Belgian Waffle Maker is supplied with a polarized plug (one
blade is wider than the other). To reduce the risk of fire, this plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician for assistance. Do not modify the plug in any way.
SPECIAL CORD SET INSTRUCTIONS
A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or animals, or tripped over. The extension cord should be for a polarized plug and outlet. This appliance is for 120 volts only and should not be used with a converter.

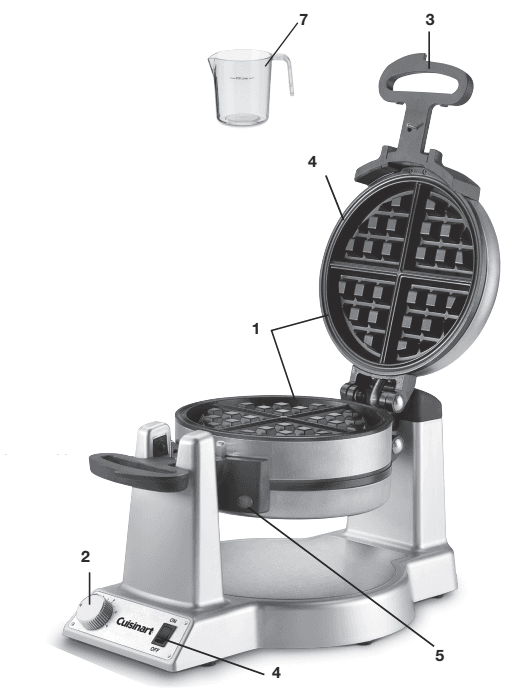

Parts and Features
- Waffle Plates – Makes extra thick 1-inch Belgian waffles.
- Browning Control Knob – Adjustable for different batters and customized baking.
- Handle – Rotates for even baking.
- On/Off Switch
- Indicator Lights
The indicator lights for the upper and lower plates will illuminate when the unit is ready and when each waffle is done. - Indicator Beeps (not shown)
- Six beeps indicate the unit is ready to bake. When the waffle maker is first plugged into an electrical outlet and turned to the ON position, it will beep six times, indicating it has reached baking temperature. Please note: This will only occur for the first waffle of each baking session.
- Three beeps indicate waffle is done.
- Measuring Cup
- BPA Free (not shown)
All materials that come in contact with food or liquid are BPA-free.
BEFORE FIRST USE
Remove all packaging and any promotional labels or stickers from your waffle maker. Be sure that all parts (listed in Part and Features) of your new waffle maker have been included before discarding any packaging materials. You may want to keep the box and packing materials for use at a later date. Before using your Cuisinart® Double Belgian Waffle Maker for the first time, remove any dust from shipping by wiping the plates with a damp cloth.
NOTE: The first time you use your Cuisinart® Double Belgian Waffle Maker it may have a slight odor and may smoke a bit. This is normal and common to heating appliances.
NOTE: This Cuisinart® Double Belgian Waffle Maker has been treated with a special nonstick coating. Before each use, we suggest you season the waffle grids by spraying or brushing with cooking spray or flavorless vegetable oil to thoroughly coat the grids. Wipe with a paper towel or pastry brush.
OPERATING INSTRUCTIONS
MAKING ONE WAFFLE
- Place the Double Belgian Waffle Maker on a clean flat surface.
- Plug cord into 120V AC wall or outlet.
- Turn the rocker switch to the ON position. Adjust the control knob to a desired setting. Your Cuisinart® Double Belgian Waffle Maker will now begin preheating.
- Once preheated, the indicator lights will be illuminated and the waffle maker will beep 6 times.
- After the waffle maker is preheated, season waffle plates with cooking spray or brush with a flavorless oil to thoroughly coat all surfaces. It’s important that you preheat the waffle maker before seasoning with cooking spray or oil. Your waffle maker is now ready to bake.
IMPORTANT NOTICE!
TO FACILITATE OPENING AND CLOSING THE DOUBLE WAFFLE MAKER, PLEASE NOTE THE FOLLOWING INSTRUCTIONS.
TO OPEN: Place the thumb on top of the lip of the lower handle and the index finger under the lip of the upper handle. Push open.
TO CLOSE: Place the thumb on the top handle and fingers under the bottom handle and pull together until shut.
NOTE: Please note that top and bottom grid covers may separate slightly during use. This is normal. Should this occur, do not close the handles to rotate until the unit beeps, indicating that the baking cycle is completed. To reduce grid separation and overflow during cooking, you may want to reduce the quantity of batter.
- After the waffle maker is preheated and ready for baking, open the waffle maker lid. Pour waffle batter evenly on the waffle grid. Use a heatproof spatula to spread the batter evenly over the plate.
- Close the top cover and rotate the waffle maker plates 180º.
- When the waffle is baked to the desired doneness, the unit will beep three times and the indicator light will illuminate.
- Rotate the waffle grid with the lit indicator light to the top position. Raise the top cover and remove the baked waffle with a heatproof spatula.
- Repeat for additional waffles.
MAKING TWO WAFFLES AT ONE TIME
- Raise the top cover and pour the waffle batter evenly on the waffle grid. Use a heatproof spatula to spread the batter evenly over the plate.
- Close the top cover and rotate the waffle grid 180°. The Ready indicator light will turn off.
- Raise the cover that is now on top and pour the waffle batter evenly onto the waffle plate. Use a heatproof spatula to spread the batter evenly over the plate. Close the cover and rotate the waffle maker plates 180°.
- When one of the waffles is done, the unit will beep three times and the indicator light located on the waffle maker cover will illuminate.
- Rotate the waffle plates with the lit indicator to the top position. Raise the top cover and remove the baked waffle.
- If making additional waffles, pour waffle batter evenly on the waffle plate. Use a heatproof spatula to spread the batter evenly over the plate. Close top cover and rotate the waffle maker plates 180°.
- When the second waffle is baked to the preferred setting, the unit will beep three times and a light located on the waffle grid cover will illuminate.
- Rotate the waffle maker with the lit indicator to the top position. Raise the top cover and remove the baked waffle.
- If making additional waffles, repeat the instructions above.
- When you are finished baking, turn the unit switch to the OFF position, unplug the unit, and allow the waffle maker to cool before handling.
CLEANING, CARE AND MAINTENANCE
Once you have finished baking, turn the unit to the OFF position; remove the plug from the electrical outlet. Leave the top lid open and allow the grids to cool down completely before cleaning. Brush crumbs from grooves, and absorb any excess cooking oil by wiping with a dry cloth or paper towel. You may clean the grids by wiping them with a damp cloth to prevent staining and sticking from batter or oil buildup. Never take your waffle maker apart for cleaning. Be certain that grids have cooled completely before cleaning. If the batter adheres to plates, simply pour a little cooking oil onto the baked batter and let stand for approximately five minutes, allowing the batter to soften for easy removal. To clean the exterior, wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad. NEVER IMMERSE THE CORD, PLUG, OR UNIT IN WATER OR OTHER LIQUIDS. Any other servicing should be provided by an Authorized Service Representative.
TIPS AND HINTS
- Setting #1 will produce the lightest color waffles. Setting #6 will produce the darkest color waffles. Experiment to determine your preferred setting.
- Packaged Belgian waffle mixes found in most supermarkets may be used with this unit.
- For best results, we recommend filling the supplied measuring cup to the top so it will fill the waffle grids.
- For evenly filled waffles, pour the batter into the center of the lower grid and spread out evenly to the edges. The entire waffle grid should be filled.
- We recommend turning the browning control dial to setting #4 when using commercial pancake/waffle mixes and for the included recipes. If you prefer a crisper, darker Belgian waffles, set the browning control higher. If you prefer lighter waffles, turn the browning control dial down.
- If waffles tend to stick to waffle grids, add slightly more oil or butter to the batter.
- Belgian waffles taste best when made to order, but baked Belgian waffles may be kept warm in a 200°F oven. Place them in a baking pan or wrap them in foil while in the oven. Waffles wrapped in foil may lose their crispness.
- Baked waffles may be frozen. Allow them to cool completely, and then place them in a plastic food storage bag. Use waxed paper to keep waffles separated. Reheat in an oven, toaster or toaster oven when ready to serve.
For more manuals by Cuisinart, visit ManualsLibraryy
Cuisinart WAF-F30 Round Flip Belgian Waffle Maker-FAQs
Can I submerge my waffle maker in water?
No, submerging an electric waffle maker in water can cause electrical shorts and pose a risk of fire or shock. Clean only with a damp cloth once it has cooled.
What temperature setting should I use for my Cuisinart waffle maker?
Start with a griddle setting of 300–325°F for even cooking. If the waffles aren’t browning enough, increase the setting toward 350°F gradually.
How do I know when my waffle is ready?
The green indicator light turns on when the waffle maker is preheated and again when the waffle is cooked. The lid is weighted to prevent it from rising during cooking.
Are waffles done when the steam stops?
Yes, when the steam significantly reduces or stops, it’s a good sign the waffle is done. Wipe off condensation near the handle before opening to prevent water from dripping onto the waffle.
Can I wash my waffle maker in the sink?
No, do not wash the entire unit in water. If the plates are removable, they can be washed separately in the sink. Otherwise, wipe the plates with a damp cloth.
Do I need to flip waffles while cooking?
Yes, flipping ensures even cooking by allowing the batter to distribute evenly across both heating plates, resulting in a well-cooked waffle.
Is a vertical waffle maker better?
Vertical waffle makers take up less counter space and help prevent spills with a top-mounted fill spout, making them more convenient and easier to use.
How long should I cook waffles?
Waffles typically take 3–5 minutes to cook. Once steam stops coming out, they are usually done.
