Cuisinart EM-25 Espresso-Cappuccino and Latte Machine User Manual

Cuisinart EM-25 Espresso-Cappuccino and Latte Machine

Table of Contents

IMPORTANT SAFEGUARDS

We at Cuisinart are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. When using electrical appliances, basic safety precautions should always be taken, including the following:

CAREFULLY READ ALL INSTRUCTIONS BEFORE OPERATING APPLIANCE, AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
To protect against fire, electric shock, and injury to persons, do not immerse the appliance, cord or plug in water or any other liquids.
This appliance is for household use only.
Do not operate the unit with the brewing head open. Scalding may occur if the brewing head is opened during the brewing cycle.
Do not use this appliance for anything other than its intended use.
This appliance should not be used by or near children or individuals with specific disabilities.
Do not leave the appliance unattended when in use.
Do not touch hot surfaces. Use handles or knobs.
Always use the appliance on a dry, level surface.
To disconnect, turn all controls off, then remove the plug from the power outlet.
Do not place this appliance on or near a hot gas or electric burner, or where it could touch a heated oven.
Do not let the cord hang over the edge of a table or counter or touch hot surfaces or become knotted.
The use of accessory attachments not recommended by Cuisinart may cause a risk of injury to persons, fire or electric shock.
Strictly follow cleaning and care instructions.
Do not use outdoors.
Do not use in moving vehicles or boats.
Always switch the appliance off, and then remove the plug from the power outlet when the appliance is not being used and before cleaning.
An extension cord is not recommended. However, if one is needed, the extension cord should be a grounded type and its electrical rating must be the same as or higher than the appliance.
Regularly inspect the supply cord, plug and actual appliance for any damage. If found damaged in any way, immediately cease use of the appliance and call Cuisinart Consumer Service at 1-800-726-
0190.
For any maintenance other than cleaning, call Cuisinart Consumer Service at 1-800-726-0190.
Refer servicing to qualified personnel.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been dropped or damaged or dropped into water. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

UNPACKING INSTRUCTIONS

Place the box on a large, sturdy, flat surface.
Remove the instruction book and any other literature.
Remove side inserts from the box and take the espresso maker out directly from the top.
After the espresso maker has been removed, place the box and the side pulp-molded inserts out of the way.
Remove all packing materials, tape, etc.

We suggest you save all packing materials if future shipping of the machine is needed. Keep all plastic bags away from children.

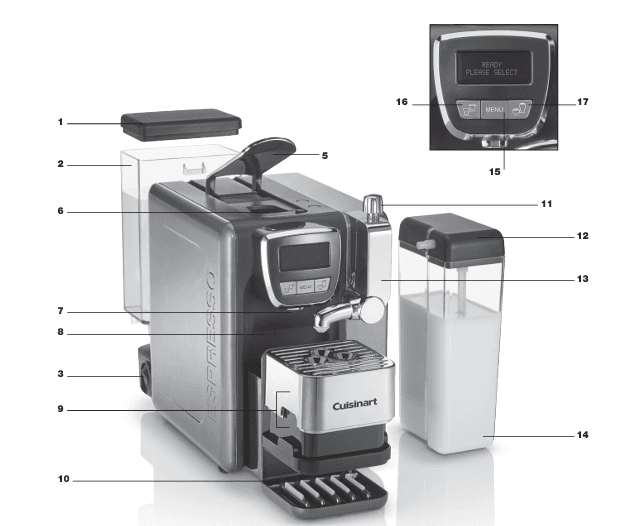

FEATURES AND BENEFITS

Water Reservoir Lid
Removable 24-ounce Water Reservoir
Power Switch
19-Bar Pump (not shown)
Brew Head Lever
Use the die-cast metal lever to open and close the brew head.
Brew Head holds capsules.
NOTE: Nespresso® OriginalLine compatible system
Brew Spout
Strategically positioned for optimal results.
Used-Capsule Container
Holds approximately 12 capsules. Also contains some residual liquid left after brewing.
Espresso Cup/Drip Tray
Can be removed when taller mugs need to be used.
Latte and Cappuccino Cup Tray (Removable)
Milk Frothing Pin
Milk Tank Cover, Lid and Tube
Milk Tank Connector with Removable Parts, i.e., Steam/Frothing Wand and Sleeve
Removable 24-ounce Milk Tank
Can be stored in the refrigerator.
Menu Button
To navigate the MENU options, brew temp, brew volume, milk volume, and standby time.
Single/Double Espresso Button
Cappuccino/Latte Button
Auto-Off Mode (not shown)
Shuts off after 30 minutes of nonuse.
Detachable Power Cord (not shown)
BPA Free (not shown)
All materials that come in contact with liquid are BPA-free.

PREPARING YOUR ESPRESSO MACHINE

Place the espresso machine on a dry, stable countertop or other flat, sturdy surface where you will be using the machine.
IMPORTANT: For first-time use or if the machine has not been used for some time, it is important that it is rinsed as follows:
- Remove the lid of the water reservoir. Lift the water reservoir off the base and fill with bottled or filtered water. Replace the water reservoir on the base, and cover with the lid. Using the tracks as a guide, making sure top is “latched” to the unit, slide the water reservoir back into position and push down firmly to engage.
  NOTE: The unit will not function unless the water reservoir is properly in place.
Make sure the plug is inserted into the unit, then insert the plug into a power outlet. Flip the power switch to the ON “I” position. The LCD will say CUISINART PRE-HEATING. Once preheat is complete, the LCD will say READY, PLEASE SELECT, indicating the unit is ready to use ( after approximately 2.5 minutes)
Make sure the drip tray is in place.
Place a mug on the drip tray.
Without inserting a capsule, pressonce, and hot water will release into mug. The LCD will say BEVERAGE READY, ENJOY. The rinse cycle is now complete.
If you desire, navigate through the MENU and set your brew options. See programming instructions and default settings on page 7.
The machine is now ready to use.

USING YOUR ESPRESSO MACHINE

Always make sure you have water in the reservoir, a capsule in the brew head, and that the appropriate cup tray is being used.

NOTE: This machine is compatible with Nespresso® OriginalLine style capsules. Preprogrammed Single
or Double Espresso

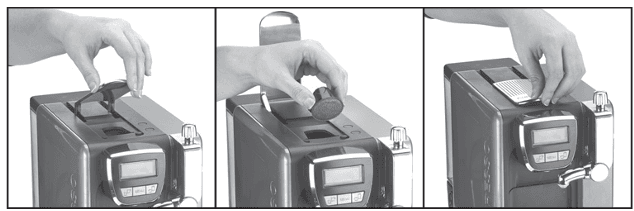

Using the lever, open the brew head, insert an espresso capsule, and close the brew head.

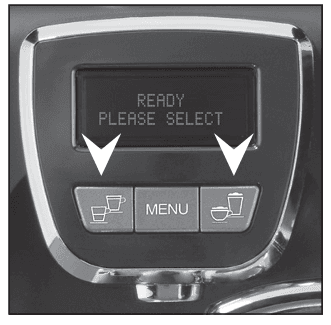

With an espresso cup on the cup tray, pushonce for a single espresso (1.4 ounces) or pushtwice for a double espresso (3.2 ounces). The LCD will say ESPRESSO BREWING or DOUBLE ESPRESSO BREWING, respectively.
NOTE: For optimal results, we recommend using the double espresso button with a lungo or more bold espresso capsule. Using this setting with lighter or less bold varieties will alter the taste.
CAUTION: Scalding may occur if the brewing head is opened during the brewing cycle.
Once brewing is complete, the LCD will say BEVERAGE READY, ENJOY.

PREPROGRAMMED CAPPUCCINO OR LATTE

Using the lever, open the brew head, insert an espresso capsule, and close the brew head.
With a cappuccino or latte mug on the cup tray, pushonce for cappuccino or pushtwice for latte. The LCD will say CAPPUCCINO BREWING or LATTE BREWING, respectively.
NOTE: If you adjust your espresso to a higher volume for your cappuccino or latte, we recommend using a lungo or more bold espresso capsule. Adjusting your espresso to a higher volume while using a lighter or less bold capsule will alter the taste.
CAUTION: Scalding may occur if the brewing head is opened during the brewing cycle.
Once brewing is complete, the LCD will say BEVERAGE READY, ENJOY.

PROGRAMMING YOUR ESPRESSO DEFINED™ ESPRESSO/CAPPUCCINO/LATTE MACHINE

Select the MENU button to program your preferred settings:

A. STEAM MILK: Select to manually steam milk.
NOTE: Max time to steam is 45 seconds.
B. ESPRESSO VOLUME: Select to adjust your espresso volume from 18–45ml. Default: 40ml
NOTE: Larger coffee volume may alter your espresso’s taste. We recommend using a bolder capsule to compensate for the additional water.
C. DOUBLE ESPRESSO VOLUME: Select to adjust your espresso volume from 70–100ml. Default: 90ml
NOTE: Larger coffee volume may alter your espresso’s taste. We recommend using a lungo or bolder capsule to compensate for the additional water.
D. CAPPUCCINO COFFEE VOLUME: Select to adjust your cappuccino volume from 18–45ml. Default: 40ml
E. CAPPUCCINO MILK VOLUME: Select to adjust your cappuccino milk volume from 16–25 seconds. Default brew time: 22 seconds
NOTE: Milk volume is determined in seconds. Less seconds = less milk. More seconds = more milk.
F. LATTE COFFEE VOLUME: Select to adjust your latte volume from 18–45ml. Default: 40ml
G. LATTE MILK VOLUME: Select to adjust your cappuccino milk volume from 28–40 seconds. Default brew time: 32 seconds
NOTE: Milk volume is determined in seconds. Less seconds = less milk. More seconds = more milk.
H. BREW TEMPERATURE: Raise or lower the brew temperature from 195˚F – 205˚F in 1-degree increments. Default: 200˚F
I. STANDBY TIME: Select the amount of time your unit will remain on before going into standby mode, from 15 minutes to 4 hours. Standby options: 15 min., 30 min., 1 hr., 1.5 hr., 2 hr., 2.5 hr., 3 hr., 4 hr., 5 hr., Default: 30 min.
J. EMPTY BIN ALERT: Choose ON to be alerted by a beep when the capsule bin is full. Choose OFF to turn this beep off. Default: ON
NOTE: Screen will continue to alert you when the bin is full, whether the alert tone is ON or OFF.
K. FACTORY SETTINGS: Select OK to restore unit to default settings. Default Settings:
- Espresso: 40ml
- Double Espresso: 90ml
- Cappuccino: 40ml espresso, 22 seconds milk
- Latte: 40ml espresso, 32 seconds milk
- Brew Temperature: 200˚F
- Standby Time: 30 minutes
- Empty Bin Alert: ON
L. SERIAL NUMBER: Displays serial number of your machine.

STEAM/FROTHING MILK

Remove the milk tank by holding the milk tank and cover, and pulling away from the machine.
Remove cover. Pour milk into the tank.
Replace the cover, align the milk tank to the connector on the side of the machine, and push in to install.
Press MENU and select STEAM MILK, then EDIT.
Select START and your steamed milk will start to dispense. Select STOP when your preferred amount of milk is achieved.

NOTE: If STOP is not selected, the unit will dispense steamed milk for 45 seconds.

NOTES:

To remove the milk tank, pull straight out. To replace, push into the connection on the unit.
It is not recommended to leave milk unrefrigerated for longer than 1 hour. Be sure to clean the milk frother part every time after use and clean the milk tank regularly. See Cleaning the Milk Tank on the next page.

LITTLE OR NO FROTH?

If you experience little to no froth on your cappuccino or latte, simply remove the milk pin from the frothing mechanism, rinse or wipe it clean, and replace it. Ensure the milk pin is properly in place by aligning the arrow on the milk pin with the arrow on the unit. Resume use. If the problem remains, follow full cleaning instructions for cleaning the milk tank on page 9.

Tips for creating a perfect froth:
Milk frothing is the steaming of milk. The steam does two things: It heats milk and it mixes in air to form a foamy texture. As with anything, perfecting the art of milk texturing takes practice, but the results are well worth it! Use cold, refrigerated milk in the milk tank. Any type of milk may be used, but for best results, whole milk is recommended. Keep in mind that the milk volume will increase during
frothing, so use a large enough cup.

STANDBY/ENERGYSAVING MODE

Following the preset Standby/Energy Saving Mode time (30 min.), if there is an additional 30 minutes of nonuse, the espresso machine will turn off. Open and close the brew head, or switch unit off and on again to start preheat mode.

CLEANING AND MAINTENANCE

Cleaning Used-Capsule Container

The container holds approximately 12 capsules and some residual liquid after brewing. After 12 brew cycles, your unit will alert you to EMPTY BIN. Dispose of used capsules, replace the bin, and continue to use as desired. Be sure to empty the container of any used capsules when prompted. Wash the container with warm, soapy water.

Cleaning External Parts

We recommend regular cleaning of the espresso maker’s external components.

Cleaning the Housing

Never immerse the machine in water or other liquids. The housing may be cleaned with a soapy, damp, nonabrasive cloth.

Cleaning the Drip Tray
To remove the drip tray, simply lift it up off the unit, keeping it level at all times to prevent spills. Clean the drip tray with a soapy, damp, nonabrasive cloth. Do not clean the drip tray with cleansers, steel wool pads, or other abrasive materials.

Cleaning the Water Reservoir

Wash the water reservoir with warm, soapy water. It is normal over time for discoloration, spotting or staining to appear in the water reservoir. This will vary depending on the mineral content of the bottled or filtered water used, but will not affect the operation of the machine. However, be sure to clean the water reservoir regularly to minimize buildup.

Cleaning the Milk Tank/Frother

Remove the milk tank by holding the tank and cover and pulling them away from the machine. Remove the cover and any excess milk, rinse out tank, then pour water into the tank. Replace the cover, align the milk tank to the connector on the side of the machine, and push to install. Place a cup on the drip tray. Press MENU and select the STEAM option. Select GO, then START to initiate steaming. Press the STOP option if your cup becomes full.

NOTE: If you are storing the milk container in the refrigerator, you may clean the frothing mechanism by ensuring there is no capsule in the brew head, placing a cup on the drip tray, and pressingonce. The steam produced during the brew cycle will clean the frothing mechanism.

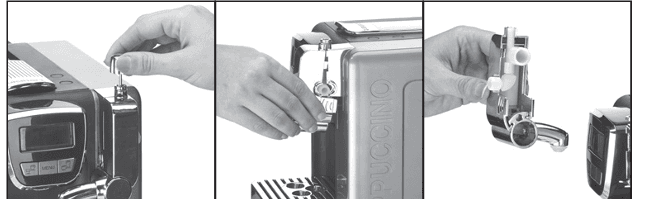

To remove the steam/frothing wand

Remove the silver pin on the top by pulling upward. Then, locate the ridges on either side of the mechanism, gently squeeze, and pull toward you. Once removed, run hot water through the internal channels, or the tubing can be removed and soaked in warm, soapy water. Replace the tubing and gently push the frothing mechanism into the housing. Gently squeeze either side of the mechanism to ensure it is engaged in the unit. Replace the silver pin by aligning the arrow on the pin with the arrow on the unit housing.

NOTE: For optimal cleaning, we recommend that you periodically disassemble all removable parts, place them in warm, soapy water, and soak for at least 15 minutes. Rinse well, dry and assemble the parts as per the above instructions.

TROUBLESHOOTING

Problem: The Machine does not have power.

Solution:

Make sure the cord is securely plugged into the unit and outlet.
Reset your home’s circuit breaker.
Confirm the power has been turned on and the controls and LCD are illuminated.

Problem: The Machine will not brew.

Solution:

Turn off and unplug the machine for 30 seconds or more. When you plug the machine back in, be sure to turn the power back on.
Make sure there is water in the reservoir.
Make sure the reservoir is properly installed.
Make sure the brew head is completely closed.

Problem: Chlorine or mineral taste in coffee.

Solution:

Consider using bottled or filtered water.

Problem: Doesn’t brew a full cup.

Solution:

Turn off and unplug the machine for 30 seconds or more. When you plug the machine back in, be sure to turn the power back on.
Decalcify the machine (refer to page 9).

Problem: The used capsule will not fall into the capsule container.

Solution:

Check to see if the capsule container is full. Empty the capsule container and then try again. (You may need to manually remove the used capsule from the brew head.)

Problem: I want to reset the Espresso/Cappuccino/Latte programming.

Solution:

See page 7 for instructions.

Problem: The Machine turned off.

Solution:

The machine’s energy-saving mode puts the unit to sleep after 30 minutes of nonuse. Simply lift the brew head lever up to “wake up” the unit, or switch the unit off and on again.

Problem: Espresso is too hot or not hot enough.

Solution:

See page 7 for setting your brew temperature.

Problem: Milk does not froth.

First, try removing the silver pin from the top of the frothing mechanism. Wipe or rinse pin and replace in the unit.
If the problem still persists, clean the steam/frothing wand. See page 9 for instructions.

Problem: Espresso is not hot enough.

Solution:

Heat your cup prior to use by filling with hot tap water. Let it rest for 10 seconds and then empty prior to making coffee.

Problem: The indicator light will illuminate, but espresso does not flow.

Solution:

The espresso dispensing nozzle is clogged. The loaded espresso capsule can be damaged. Wait for a short period of time before opening the lever and then try with a new capsule. Make sure, that the lever is closed.

Problem: Produced little or no crema.

Solution:

Coffee has naturally occurring oils which may log the espresso nozzle. To clean, regularly run a brew cycle with water only.

Problem: The water does not flow through the espresso dispensing nozzle.

Solution:

Coffee has natural-occurring oils that may clog the espresso nozzle. To clean, regularly run a brew cycle with water only.

Problem: The brew button flashes for a long time. When is the espresso machine ready or use?

Solution:

The espresso machine takes approximately 2.5 minutes to heat up.
