Delta Q Qosy Espresso Machine Instruction Manual

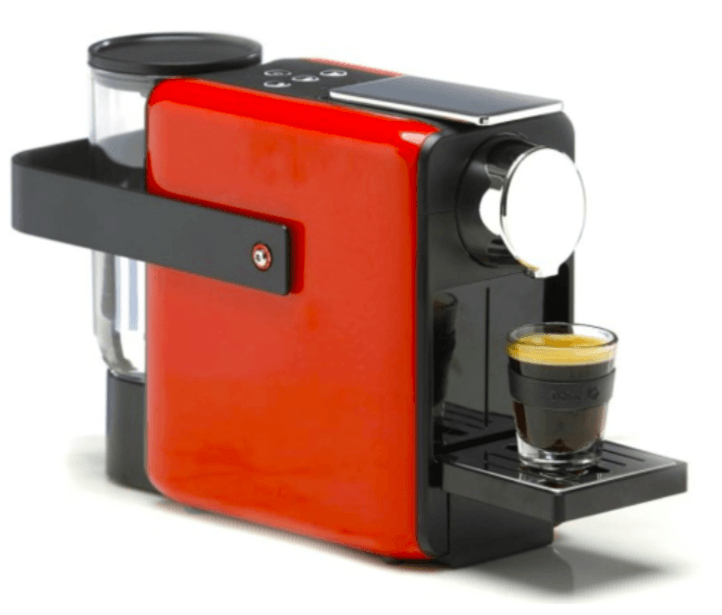

Delta Q Qosy Espresso Machine

GETTING TO KNOW YOUR COFFEE MACHINE

1. On/Off General button
2. Equipment body
3. Handle
4. Control panel
5. Water tank
6. Adapter for mineral water plastic bottles
7. Water tank cover
8. Capsule holder housing
9. Capsule holder housing opening lever
10. Capsule collection tank
11. Cup tray
12. Drip basin
13. Extraction nozzle
14. Electrical plug
15. Electrical cable

Control Panel

• A. Stand by button
• B. Espresso extraction button/water button
• C. Coffee extraction button/water button
• D. Tea extraction button/water button

Water tank/Adapter for mineral water plastic bottles

• This coffee machine is fitted with a water tank with a maximum capacity of 0.75 L.

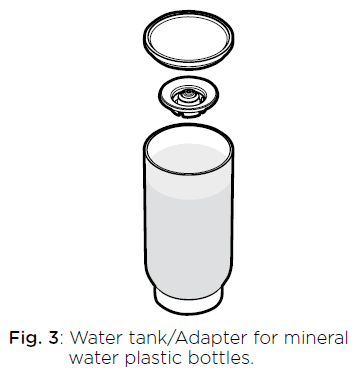

• On the tank cover there is an adapter for mineral water plastic bottles (see Fig. 3).

USING YOUR COFFEE MACHINE

Using your coffee machine for the first time

Confirm whether any accessories are missing and that the equipment is not damaged. Then clean the inner parts following the steps below:

• Remove all the protective materials and storage adhesives from the machine components.

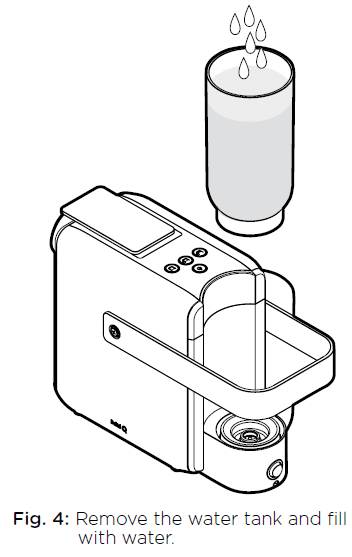

• Either lift the lid of the water tank, or remove it and open the cover and fill with 0.75 L of water (see Fig. 4).
• Once the water tank has been filled replace it in the correct position (see Fig. 5).
• Connect the electrical plug to the respective earthed socket.

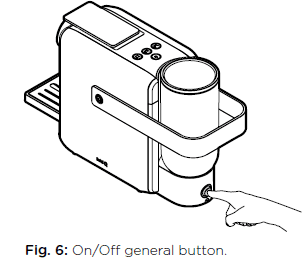

• Switch the On/Off general button which is located at the back of the equipment, to the ON position (see Fig. 6). The buttons on the control panel will flash (orange), and pre-heating of the equipment will start (around 90’’).
• As soon as the control panel buttons stop flashing and alternate their orange colour to green, this means that pre-heating has finished and the equipment is ready for drink extraction (see Fig. 7 and see Fig. 8).

Extracting an espresso coffee

• Check whether the water tank is filled with water. If there is no water in the tank, fill with around 0.75 L of water (see Fig. 4).
  • Note: The maximum capacity of the water tank is 0.75 L (Max.). The water tank must be filled up to the maximum level so as to reduce the frequency of this operation. The machine alerts if there is not enough water in the tank by means of a luminous alert message on the control panel buttons.

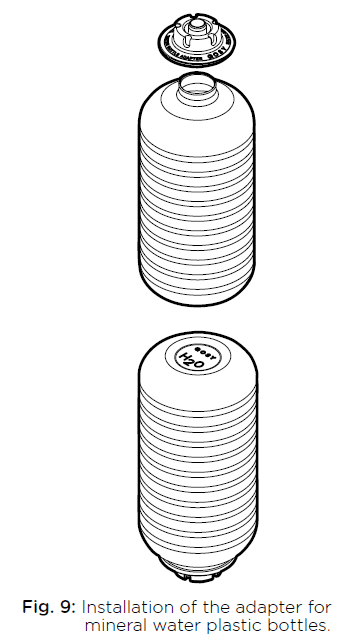

• For further information about the meaning of the alerts and the luminous alarms, consult the “Alerts and Alarms” chapter (see Page 101). This machine may use water directly sourced from a plastic mineral water bottle. To this end, you must place the adapter for mineral water plastic bottles in the bottleneck which will serve as the tank. Then turn the bottle upside down and fit the adapter in to the tank base (see Fig. 9).
  • Note: The adapter for mineral water plastic bottles supports bottles with a capacity up to 1.0 L. Imperfect compliance with this action may damage the equipment.
• Once the water tank has been filled and if it has been removed, replace it in the initial position and confirm that it has been correctly fitted (see Fig. 5).
  • Connect the electrical plug to an earthed socket. Switch the On/Off general button which is located at the back of the equipment. The water tank indicators, the extraction buttons and the control panel remain lit up (see Fig. 6).

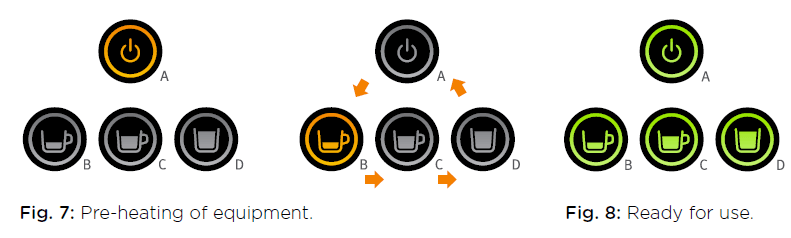

  • The equipment then begins pre-heating. The buttons on the control panel will flash (orange), indicating that the equipment is pre-heating (see Fig. 7).
  • As soon as the control panel buttons stop flashing and alternate their orange colour to green, this means that pre-heating has finished and the equipment is ready for drink extraction (see Fig. 8).

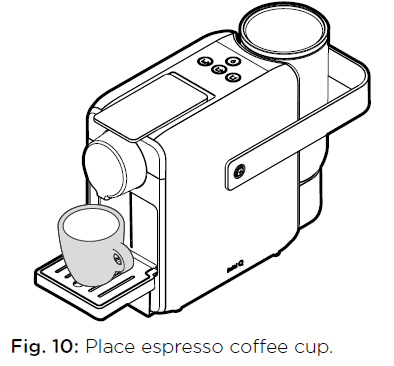

• Put an espresso coffee cup on the cup tray under the extraction nozzle (see Fig. 10).

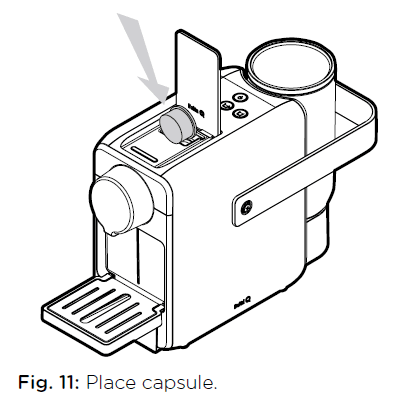

• Raise the lever to its full extent and insert a Delta Q coffee capsule in the capsule holder housing hole, in accordance with the housing silhouette. Completely lower the lever (see Fig. 11).

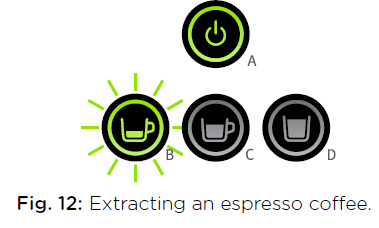

• Press the espresso coffee extraction button. The luminous indicators of the coffee and tea extraction buttons go out. The luminous indicators of the espresso coffee and Standby extraction buttons will remain on (see Fig. 12).
• The luminous indicator of the espresso coffee extraction button flashes (green) and the extraction operation starts.
• During drink extraction the corresponding extraction button may be pressed in order to stop the operation. If you wish to extract more of the drink, press the button again.
• After extracting the amount of coffee selected, the equipment stops automatically. You are recommended to lift the lever again at the end of the extraction process to release the capsule into the used capsule tank. Lower the lever into its resting position (see Fig. 11)

Extracting coffee

• Follow the first five steps in accordance with Extracting an espresso coffee.
• Put a coffee cup on the cup tray under the extraction nozzle (see Fig. 10).
• Raise the lever to its full extent and insert a Delta Q coffee capsule in the capsule holder housing hole, in accordance with the housing silhouette. Completey lower the lever (see Fig. 11).

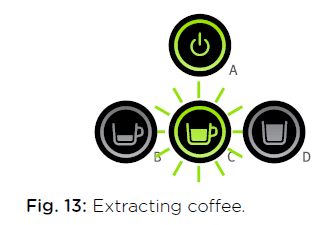

• Press the coffee extraction button. The luminous indicators of the espresso coffee and tea extraction buttons go out. The luminous indicators of the coffee and Standby extraction buttons will remain on (see Fig. 13).
• The luminous indicator of the coffee extraction button flashes (green) and the extraction operation starts.
• During drink extraction the corresponding extraction button may be pressed in order to stop the operation. If you wish to extract more of the drink, press the button again.
• After extracting the amount of coffee selected, the equipment stops automatically. You are recommended to lift the lever again at the end of the extraction process to release the capsule into the used capsule tank. Lower the lever into its resting position (see Fig. 11).

Extracting a drink in a tall glass

• If you wish to extract a drink (espresso coffee, coffee or tea) into a receptacle whose height is greater than the distance between the cup tray and theextraction nozzle in its initial position, please follow these instructions

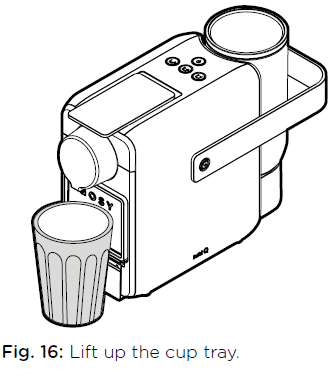

• Lift up the cup tray (see Fig. 16).
• Place a tall glass on the surface which supports the coffee machine under the extraction nozzle.
• Press the control panel button corresponding to the drink desired.
• Follow the steps relating to extracting the selected drink in accordance with the paragraphs above
• For further information about the meaning and definition of the alerts and the luminous alarms, consult the “Alerts and Alarms” chapter (see Page 101).
• The equipment returns to the “Ready to use” mode and all the luminous indicators of the control panel buttons are illuminated green (see Fig. 8).
• Empty the used capsule tank and the drip basin frequently.
• Always turn off the coffee machine by pressing/switching the On/Off general button. Remove the electrical plug from the respective socket when never the equipment is not being used.

PERSONALISED SETTINGS

The control panel buttons can also be used to personalise the dosages of the different drinks. Programming the espresso coffee extraction button.

Note: The pre-defined factory volume for the espresso coffee extraction button is around 30cc.

• To alter the volume of your short drink, ensure the machine is ON (see Fig. 6), check whether there is any water in the water tank and wait until the control panel buttons indicate “Ready to use” (see Fig. 8).

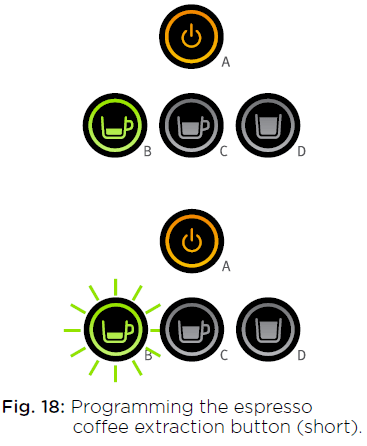

• Then press the espresso coffee extraction button for 3”. The luminous indicator of the Standby button changes from green to orange and the luminous indicators of the coffee and tea extraction buttons go off. Press the espresso coffee extraction button which starts flashing (green) and sets extraction in motion (see Fig. 18).
• As soon as extraction has reached the desired dosage, press the espresso coffee extraction button again and the operation is complete.
  The equipment memorises this volume and will start extracting it until new programming has been defined.
• After completing extraction, the equipment returns to “Ready to use” mode (see Fig. 8).
  • Note: If the user fails to press the extraction button to complete the operation, the equipment will automatically assume the maximum volume of 65cc.

Programming the coffee extraction button

Note: The pre-defined factory volume for the coffee extraction button is around 45cc.

• To alter the volume of your short drink, ensure the machine is ON (see Fig. 6), check whether there is any water in the water tank and wait until the control panel buttons indicate “Ready to use” (see Fig. 8).

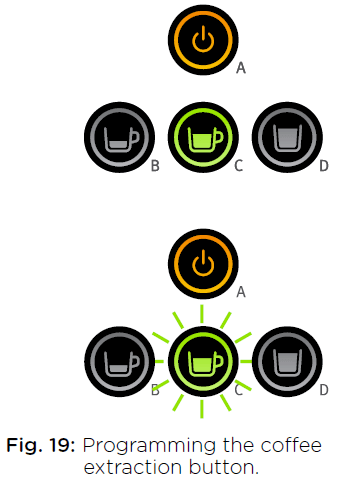

• Then press the coffee extraction button for 3 seconds. The luminous indicator of the Standby button changes from green to orange and the luminous indicators of the espresso coffee and tea extraction buttons go off. Press the coffee extraction button again which starts flashing and sets extraction in motion (see Fig. 19).
• As soon as extraction has reached the desired dosage, press the coffee extraction button again and the operation is complete. The equipment memorises this volume and will start extracting it until new programming has been defined.
• After completing extraction, the equipment returns to “Ready to use” mode (see Fig. 8).
  • Note: If the user fails to press the extraction button to complete the operation, the equipment will automatically assume the maximum volume of 65cc.

Programming the original settings

• Note: The predefined factory volumes for extraction buttons are approximately:
• Espresso coffee: 30cc
• Coffee: 45cc
• Tea: 180cc (non-programmable button)

To return the equipment to original factory settings, ensure the machine is ON(see Fig. 6), check whether there is any water in the water tank and wait until the control panel buttons indicate “Ready to use” (see Fig. 8).

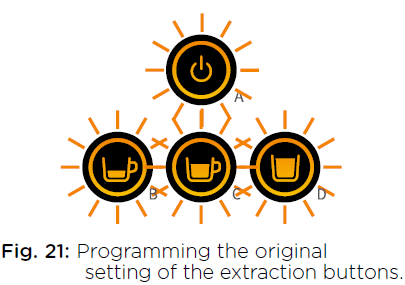

• Then press the espresso coffee and tea extraction buttons simultaneously for 3 seconds. All the buttons on the control panel illuminate orange andflash three times (see Fig. 21).
• As soon as the buttons stop flashing factory settings have been reset. After attaining the correct temperature, the equipment returns to the “Ready to use” mode (see Fig. 8).

Water level malfunction

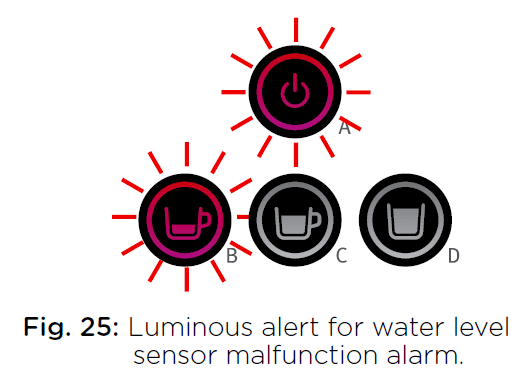

• When the “Water level malfunction” luminous alarm appears (see Fig. 25), the Stand by and espresso coffee extraction buttons flash (red), indicating that there is a breakdown in the water level sensor. Please turn the equipmentoff, wait for 2 minutes and the turn it back on again. If the problem persists, contact Customer Service and Support (00 800 20 50 20 50).

CLEANING AND MAINTENANCE

Warning: Confirm that the equipment has been switched off from the electrical socket before cleaning. To avoid electric shocks, do not immerse the cable, plug or equipment in water, or any other liquid. After each use always confirm whether the plug has been removed from the electrical socket. You are recommended to periodically follow the steps below:

• Whenever possible, purge the equipment. Frequent use of the “Purge” operation ensures improved drink quality and proper equipment maintenance. Consult “Purge” chapter (see Page 96).
• Use a dry cloth to clean the water tank.
• The used capsule collection tank, the cup tray and the drip basin may be washed in water and dried with a soft cloth.
• Clean the outer surfaces of the equipment with a damp cloth.
• You must never immerse the equipment in water or any other liquid.

DESCALING

• In order to keep your coffee machine working efficiently you must regularly clean the mineral deposits (scale) produced by the water. You must bear inmind the water quality (hard or soft water) in your usage area and howfrequently the equipment is used.
• You are recommended to carry out equipment descaling every three months, or after approximately 200 Delta Q capsule extractions.
  Follow the safety instructions shown on the Delta Q descaling kit packaging. Avoid contact of the descaling solution with eyes, skin, machine and surrounding surfaces.

Environment

Help us protect the environment. Please remember to respect the local regulations:

• The machine is produced with components which are easily separable into recyclable raw material types. These components may be recovered or recycled; if the electrical equipment doesn’t work, hand it in to a repair workshop or appropriate waste treatment plant.
• Delta Q is committed to recycling used capsules.Consult our website: www.mydeltaq.com to obtain further information about how to recycle Delta Q used capsules or contact the Customer Service and Support (00 800 20 50 20 50).
