Cuisinart ICE-21P1 Ice Cream Maker Machine User Manual

Cuisinart ICE-21P1 Ice Cream Maker Machine

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING.
2. To protect against the risk of electric shock, do not place the cord, plug, or base of the appliance in water or any other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Always unplug from the outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away during operation to reduce the risk of injury and/or damage to the appliance.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped, or is damaged in any manner. Return the appliance to the nearest Cuisinart Repair Center for examination, repair, or electrical or mechanical adjustment.
7. The use of attachments not recommended by Cuisinart may cause fire, electric shock, or risk of injury.
8. Do not use outdoors.
9. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
10. Keep hands and utensils out of the freezer bowl while in use to reduce the risk of injury to persons or to the appliance itself. DO NOT USE SHARP OBJECTS OR UTENSILS INSIDE THE FREEZER BOWL! Sharp objects will scratch and damage the inside of the freezer bowl. A rubber spatula or wooden spoon may be used when the appliance is in the OFF position.
11. This appliance is for household use. Any servicing other than cleaning and user maintenance should be done only by authorized Cuisinart Repair Personnel.
12. Do not use the freezer bowl on flames, hot plates, or stoves. Do not expose Toto to a source. Do not wash in dishwasher; doing so may cause risk of fire, electric shock, or injury.
13. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

NOTICE

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Longer extension cords may be used if care is exercised in their use.

If a long, polarized extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop, where it can be pulled on by children or animals, or tripped over.

CAUTION

• Do not immerse the base in water.
• To reduce the risk of fire or electric shock, do not disassemble the base. Note: The base does not contain any user-serviceable parts.
• Repairs should be made only by authorized personnel.
• Check the voltage to be sure that the voltage indicated on the name plate agrees with your voltage.
• Never clean with scouring powders or hard implements.

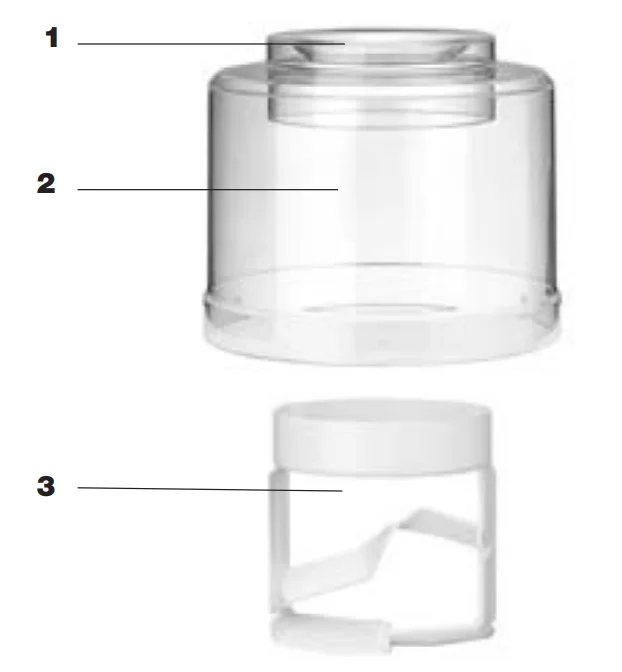

FEATURES AND BENEFITS

1. Ingredient Spout
   Pour recipe ingredients through the spout. Also, use it to add ingredients like chips or nuts, without interrupting the freezing cycle.
2. Easy-Lock Lid
   Transparent to let you watch the freezing process as it progresses.. The lid is designed to easily lock to the base.
3. NEW
   Mixing Paddle Mixes and aerates ingredients in the freezer bowl to create frozen desserts or drinks.

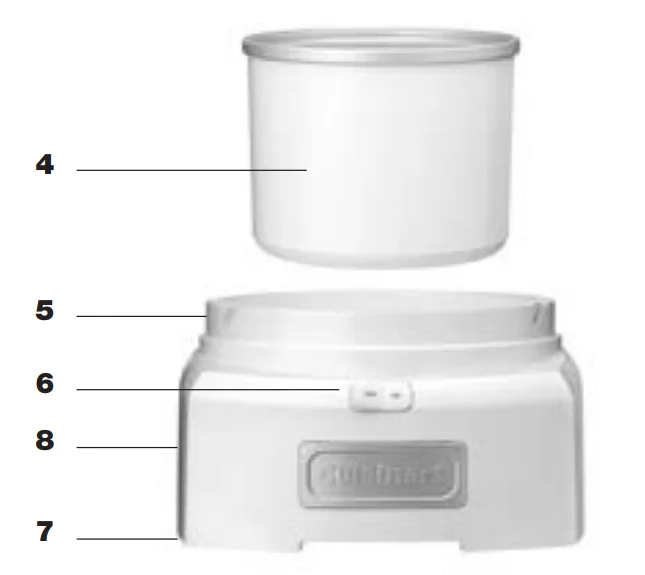

4. Freezer Bowl
   Contains cooling liquid between a double-insulated wall to create fast and even freezing. The double wall keeps the bowl cool and at an even temperature.
5. Base
   Contains a heavy-duty motor strong enough to handle ice cream, frozen yogurt, sherbet, sorbet, and frozen drinks.
6. On/Off Switch
7. Rubber Feet
   (not shown)
   Non-slip feet keep the base stationary during use.
8. Cord Storage (not shown)
   The unused cord is easily pushed into the base to keep counters neat and safe.
9. BPA-Free (not shown)
   All materials that come in contact with food are BPA-free.

BEFORE USING FOR THE FIRST TIME

DO NOT immerse the motor base in water. Wipe it with a moist cloth. Wash the lid, freezer bowl, and mixing arm in warm soapy water to remove any dust or residue from the manufacturing and shipping process. DO NOT clean any of the parts with abrasive cleaners or hard implements.

FREEZING TIME AND BOWL PREPARATION

The freezer bowl must be completely frozen before you begin your recipe. Before freezing, wash and dry the bowl. The length of time needed to reach the frozen state depends on how cold your freezer is. It is recommended that you place the freezer bowl in the back of your freezer where it is coldest. Be sure to place the freezer bowl on a flat surface in its upright position for even freezing.

Generally, freezing time is between 16 and 24 hours. Shake the bowl to determine whether it is completely frozen. If you do not hear the liquid within the bowl moving, the cooling liquid is therefore frozen. For the most convenient frozen desserts and drinks, leave your freezer bowl in the freezer at all times. Use the bowl immediately after removing it from the freezer. It will begin to quickly defrost once it has been removed from the freezer.

Reminder: Your freezer should be set to 0°F to ensure proper freezing of all foods.

MAKING FROZEN DESSERTS

1. Prepare recipe ingredients from the pages that follow or from your own recipe. Flip the booklet over for Cuisinart recipes. If you use your own recipe, be sure it yields 1½ quarts or less.
2. Remove the freezer bowl from the freezer. Place the freezer bowl in the center of the base.
   NOTE: Bowl will begin to defrost quickly once it has been removed from the freezer. Use it immediately after removing from the freezer.
3. Place the mixing paddle in the freezer bowl. It just rests in the center of the bowl, with the circular side facing up.
4. Place the lid on the base and rotate clockwise until the tabs on the lid lock in place on the base.
5. Press the On/Off switch to the ON position. The freezer bowl will begin to turn.
6. Immediately pour ingredients through the ingredient spout.
   NOTE: Ingredients must be added to the freezer bowl after the unit is turned on.
7. Frozen desserts will be done in less than 20 minutes. The time will depend on the recipe and volume of the dessert you are making. When the mixture has thickened to your liking, it is done. If you desire a firmer consistency, transfer the dessert to an airtight container and store it in the freezer for two or more hours.

NOTE: Do not store frozen desserts in the freezer bowl. Desserts will stick to the sides of the freezer bowl and may damage the bowl. Store only in a freezer-safe airtight container.

ADDING INGREDIENTS

Ingredients such as chips and nuts should be added about 5 minutes before the recipe is complete. Once the dessert has begun to thicken, add the ingredients through the ingredient spout. Nuts and other ingredients should be no larger than a chocolate chip.

SAFETY FEATURE

The Cuisinart® Automatic Frozen Yogurt–Ice Cream & Sorbet Maker is equipped with a safety feature that automatically stops the unit if the motor overheats. This may occur if the dessert is extremely thick, if the unit has been running for an excessively long period of time, or if added ingredients (nuts, etc.) are in extremely large pieces.

To reset the unit, put the On/Off switch in the OFF position and unplug the unit. Let the unit cool off. After a few minutes, you may turn the unit on again and continue making the dessert.

CLEANING, STORAGE, AND MAINTENANCE

Cleaning

Clean the freezer bowl, mixing paddle, and lid in warm soapy water. DO NOT PUT FREEZER BOWL IN THE DISHWASHER. DO NOT CLEAN WITH ABRASIVE CLEANSERS OR IMPLEMENTS. Wipe the tor base clean with a damp cloth. Dry all parts thoroughly.

Storage

DO NOT put a freezer bowl in the freezer if the bowl is wet. DO NOT store lid, mixing paddle, or base in freezer. You may store the freezer bowl in the freezer for convenient, immediate use. Do not store frozen desserts in the freezer bowl in the freezer for more than 30 minutes at a time. Transfer frozen desserts to a freezer-safe, airtight container for longer storage in the freezer.

Maintenance

Any other servicing should be performed by an authorized service representative.

LIMITED THREE-YEAR WARRANTY

(U.S. and CANADA only)

This warranty is available to consumers only. You are a consumer if you own a Cuisinart® Automatic Frozen Yogurt–Ice Cream & Sorbet Maker that was purchased at retail for personal, family household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.

We warrant that your Cuisinart® Automatic Frozen Yogurt–Ice Cream & Sorbet Maker will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase. We recommend that you visit our website, www.cuisinart. , a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase to obtain the warranty benefiIfthat you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

If your Cuisinart® Automatic Frozen Yogurt–Ice Cream & Sorbet Maker should prove to be defective within the warranty period, we will repair it, or if we think it necessary, replace it. To obtain warranty service, simply call our toll-free number, 1-800-726-0190, for additional information from our Customer Service Representatives or send the defective product to Customer Service at Cuisinart, 7475 North Glen Harbor Blvd., Glendale, AZ 85307.

To facilitate the speed and accuracy of your return, please enclose $10.00 for shipping and handling of the product. Please pay by check or money order (California residents need only supply proof of purchase and should call 1-800-726-0190 for shipping instructions).

NOTE: For added protection and secure handling of any Cuisinart product that is being returned, we recommend you use a traceable, insured delivery service. Cuisinart cannot be held responsible for in-transit damage or for packages that are not delivered to us. Lost and/or damaged products are not covered under warranty.

Please be sure to include your return address, daytime phone number, description of the product defect, product model number (located on the bottom of the product), original date of purchase, and any other information pertinent to the product’s return.

CALIFORNIA RESIDENTS ONLY

California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming product (A) to the store where it was purchased or (B) to another retail store that sells Cuisinart products of the same type. The retail store shall then, at its discretion, either repair the product, refer the consumer to an independent repair facility, replace the product, or refund the purchase price less the amount directly attributable to the consumer’s prior usage of the product. If the above two options do not result in the appropriate relief to the consumer, the consumer may then take the product to an independent repair facility if service or repair can be economically accomplished.

Cuisinart and not the consumer will be responsible for the reasonable cost of such service, repair, replacement, or refund for nonconforming products under warranty. California residents may also, according to their preference, return nonconforming products directly to Cuisinart for repair, or if necessary, replacement, by calling our
Consumer Service Center toll-free at 1-800-726-0190. Cuisinart will be responsible for the cost of the repair, replacement, and shipping and handling for such products under warranty.

BEFORE RETURNING YOUR CUISINART PRODUCT

If you are experiencing problems with your Cuisinart product, we suggest that you call our Consumer Service Center at 1-800-726-0190 before returning the product to be serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

Your Cuisinart® Automatic Frozen Yogurt–Ice Cream & Sorbet Maker has been manufactured to the strictest specifications and has been designed for use only in 120-volt outlets and only with authorized accessories and replacement parts. This warranty expressly excludes any defects or damages caused by attempted use of this unit with a converter, as well as use with accessories, replacement parts, or repair service other than those authorized by Cuisinart. This warranty does not cover any damage caused by accident, misuse, shipment,  or other than ordinary household use. This warranty excludes all incidental or consequential damages. Some states do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. You may also have other rights, which vary from state to state.

Important: If the nonconforming product is to be serviced by someone other than Cuisinart’s Authorized Service Center, please remind the servicer to call our Consumer Service Center at 1-800-726-0190 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and the product is still under warranty.

RECIPE TIPS

The recipes that follow offer you a variety of options for delicious frozen desserts. You may create or use recipes of your own, as long as they yield no more than 1½ quarts.

• Frozen desserts from the Cuisinart® Automatic Frozen Yogurt–Ice Cream & Sorbet Maker use pure, fresh ingredients. Because of this, the desserts and drinks do not have the same characteristics as commercially prepared frozen desserts and drinks. Most store-bought versions use gums and preservatives to make them firmer.
  If you desire a firmer consistency, transfer the dessert to an airtight container and store in the freezer untithe l the desired consistency is reached, usually two or more hours.
• Some recipes use precooked ingredients. For best results, the mixture should be chilled overnight before using. Or, chill the recipe over an ice bath until it is completely cooled, foruse.
• Foruse anas ce bath, fill a large container with ice and water. Place the saucepan or other container into the ice bath. Cool precooked ingredients completely.
• Prior to freezing, most recipes may be stored in the refrigerator for up to 3 days.
• You may substitute lower-fat creams (e.g., half and half), milk (reduced-fat or low-fat as well as non-dairy milks (soy, rice) for heavy cream and whole milk used in many recipes. However, keep in mind that the higher the fat content, the richer and creamier the result. Using lower-fat substitutes may change the taste, consistency, and texture of the dessert. When substituting, be sure to use the same volume of the substitute as you would have used of the original item. For example, if the recipe calls for two cups of cream, use a total of two cups of the substitute (such as 1 cup cream, 1 cup whole milk).
• You may substitute artificial sweeteners for sugar. If the recipe is to be precooked, add the sweetener after the heating process is complete and the ingredients have cooked. Stir the mixture thoroughly to dissolve the sweetener.
• In recipes that use alcohol, add the alcohol during the last two minutes of the freezing process. Otherwise, the alcohol may impede the freezing process.
• When making sorbet, be sure to test the ripeness and sweetness of the fruit before you use it. The freezing process reduces the sweetness of the fruit so that it will taste less sweet than the recipe mixture. If the fruit tastes tart, add sugar to the recipe. If the fruit is very ripe or sweet, reduce the amount of sugar in the recipe.
• The Cuisinart recipes listed below will yield up to 1½ quarts of dessert. When pouring ingredients in through the ingredient spout, DO NOT fill the freezer bowl higher than ¼-inch from the top of the freezer bowl. The ingredients will increase in volume during the freezing process.
• When making more than one recipe at a time, be sure the freezer bowl is completely frozen before each use. Additional freezer bowls may be purchased on the Cuisinart website (www.cuisinart.com).
• Make sure the mixing paddle and lid are in place before turning on the machine.

Simple Ice Creams

Simple Vanilla Ice Cream

This ice cream can easily be dressed up by adding your favorite chopped candies or sprinkles at the end of churning.

Makes about 5 cups (ten ½-cup servings)

• 1 cup whole milk
• ¾ cup granulated sugar
• pinch salt
• 2 cups heavy cream
• 1 tablespoon pure vanilla extract

1. In a medium bowl, use a hand mixer on low speed or a whisk to combine the milk, sugar, and salt until the sugar is dissolved. Stir in the heavy cream and vanilla. Cover and refrigerate 1 to 2 hours, or overnight.
2. Turn on the Cuisinart® ice cream maker; pour the mixture into the frozen freezer bowl, let it mix until thickened, about 15 to 20 minutes. The ice cream will have a soft, creamy texture. If a firmer consistency is desired, transfer the ice cream to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.

Nutritional information per serving (based on ½ cup):

Calories 222 (73% from fat) • carb. 13g • pro. 2g • fat 18g • sat. fat 11g • chol. 69mg • sod. 45mg • calc. 61mg • fiber 0g

Simple Chocolate Ice Cream

For a real treat, serve this with our Chocolate Sauce on page 12.

Makes about 5 cups (ten ½-cup servings)

• ¾ cup cocoa powder, sifted
• ½ cup granulated sugar
• ¹∕³ cup packed dark brown sugar
• pinch salt
• 1 cup whole milk
• 2 cups heavy cream
• ½ tablespoon pure vanilla extract

1. In a medium bowl, whisk together the cocoa, sugars, and salt. Add the milk and, using a hand mixer on low speed or a whisk, beat to combine until the cocoa, sugar, and salt are dissolved. Stir in the heavy cream and vanilla. Cover and refrigerate 1 to 2 hours, or overnight.
2. Turn the Cuisinart® ice cream maker on; pour the mixture into the frozen freezer bowl and let it mix for about 15 to 20 minutes. The ice cream will have a soft, creamy texture. If a firmer consistency is desired, transfer the ice cream to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.

Nutritional information per serving (based on ½ cup):

Calories 268 (62% from fat) • carb. 23g • pro. 3g • fat 19g • sat. fat 11g • chol. 69mg • sod. 44mg • calc. 61mg • fiber 1g

Butter Pecan Ice Cream

The butter used to toast the pecans can be saved and used over pancakes or waffles.

Makes about 5 cups (ten ½-cup servings)

• 4 tablespoons unsalted butter
• 1 cup pecans
• 1 teaspoon salt
• 1 cup whole milk
• ¾ cup granulated sugar
• pinch salt
• 2 cups heavy cream
• 1 tablespoon pure vanilla extract

1. Melt the butter in a medium skillet. Add the pecans and 1 teaspoon of salt. Cook over medium-low heat until pecans are toasted and golden, stirring frequently, about 6 to 8 minutes. Remove from the heat, strain and reserve the pecans, allowing them to chill. The butter can be used for another use – delicious over pancakes or waffles.
2. In a medium bowl, use a hand mixer on low speed or a whisk to combine the milk, sugar, and salt until the sugar is dissolved. Stir in the heavy cream and vanilla. Cover and refrigerate 1 to 2 hours, or overnight.
3. Turn the Cuisinart® ice cream maker on; pour the mixture into the frozen freezer bowl and let it mix until thickened, about 15 to 20 minutes. Five minutes before mixing is completed, add the reserved pecans and let them mix in completely. The ice cream will have a soft, creamy texture. If a firmer consistency is desired, transfer the ice cream to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.

Nutritional information per serving (based on ½ cup):

Calories 330 (79% from fat) • carb. 14g • pro. 3g • fat 30g • sat. fat 15g • chol. 81mg • sod. 58mg • calc. 68mg • fiber 1g

Frozen Yogurts

Rich Vanilla Frozen Yogurt

While part-skim or fat-free yogurt can be substituted, to get the real flavor and richness of this frozen yogurt, it is best to use the whole milk variety.

Makes about 5 cups (ten ½-cup servings)

• 1½ tablespoons light corn syrup
• 1½ tablespoons honey
• 3 tablespoons water
• 2 vanilla beans, split and seeds scraped
• 5 cups whole milk plain yogurt, strained through a cheesecloth* for 2 to 4 hours
• 1 teaspoon pure vanilla extract
• ¾ cup granulated sugar
• pinch salt

1. Put the corn syrup, honey, water, nd vanilla beans into a medium saucepan. Over medium-low heat, bring the mixture to a boil, then simmer until reduced by about half. Strain (discarding vanilla pods); reserve.
2. In a large mixing bowl, whisk the strained yogurt, reserved honey/water/vanilla reduction, vanilla extract, sugar, and salt together. Whisk until the sugar has dissolved. Cover and refrigerate 2 to 3 hours, or overnight.
3. Turn on the Cuisinart® ice cream maker; pour the mixture into the frozen freezer bowl and let it mix until thickened, about 15 to 20 minutes. The frozen yogurt will have a soft, creamy texture. If a firmer consistency is desired, transfer the frozen yogurt to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.
   * If you do not have a cheesecloth, you can use a couple of layered paper towels.

Nutritional information per serving (based on ½ cup):

Calories 161 (22% from fat) • carb. 25g • pro. 7g • fat 4g • sat. fat 3g • chol. 15mg • sod. 67mg • calc. 176mg • fiber 0g

Mango Frozen Yogurt

Be sure to use fresh, ripe mangoes. The better the mango, the better the frozen yogurt.

Makes about 5 cups (ten ½-cup servings)

• 5 cups low-fat plain yogurt, strained through a cheesecloth* for 2 to 4 hours
• ½ cup granulated sugar
• 2 mangoes, peeled, pitted, and roughly chopped (about ½ to 1-inch pieces)
• 1 teaspoon fresh lime juice, about ½ lime

1. In a large mixing bowl, whisk the strained yogurt and sugar together; reserve.
2. Using a blender, purée the mangoes with the lime juice and 1 cup of the yogurt mixture. Combine with the remaining yogurt/sugar mixture. Cover and refrigerate 1 to 2 hours, or overnight.
3. Turn on the Cuisinart® ice cream maker; pour the mixture into the frozen freezer bowl and let it mix until thickened, about 15 to 20 minutes. The frozen yogurt will have a soft, creamy texture. If a firmer consistency is desired, transfer the frozen yogurt to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.
   * If you do not have a cheesecloth, you can use a couple of layered paper towels.

Nutritional information per serving (based on ½ cup):

Calories 126 (8% from fat) • carb. 26g • pro. 5g • fat 1g • sat. fat 1g • chol. 3mg • sod. 74mg • calc. 204mg • fiber 2g

Sorbets

Coconut Sorbet

Delicious when topped with toasted coconut or our Chocolate Sauce (page 12).

Makes about 6 cups (twelve ½-cup servings)

1½ cups water
11⁄3 cups granulated sugar
1 whole vanilla bean, halved and seeds scraped
pinch salt
2 cans (13.5 ounces each) unsweetened coconut milk

1. Combine the water, sugar, vanilla bean (including the pod) a,,  nd salt in a medium saucepan set over medium-low heat. Bring the mixture just to a boil and then remove from the heat. Let mixture steep for 1 hour; strain (discarding pod).
2. Add the coconut milk to the strained mixture. Cover and refrigerate overnight.
3. Turn on the Cuisinart® ice cream maker; pour the mixture into the frozen freezer bowl and let it mix until thickened, about 15 to 20 minutes. The sorbet will have a soft, creamy texture. If a firmer consistency is desired, transfer the sorbet to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.

Nutritional information per serving (based on ½ cup):

Calories 199 (51% from fat) • carb. 25g • pro. 1g • fat 12g • sat. fat 11g • chol. 0mg • sod. 28mg • calc. 1mg • fiber 0g

Dark Chocolate Sorbet

A step away from the ordinary sorbets, our Dark Chocolate Sorbet is a real treat.

Makes about 5 cups (ten ½-cup servings)

• 3 cups water
• 12⁄3 cups granulated sugar
• pinch salt
• 12⁄3 cups cocoa powder, sifted
• 1 teaspoon pure vanilla extract

1. Prepare a simple syrup with the water, sugar, and salt by combining all three in a medium saucepan set over medium-low heat. Cool the mixture until the sugar is fully dissolved.
2. Gradually add the cocoa powder to the simple syrup by whisking constantly until smooth. Add the vanilla and stir to combine. Cover and refrigerate 2 to 3 hours, or overnight.
3. Turn on the Cuisinart® ice cream maker; pour the mixture into the frozen freezer bowl and let it mix until thickened, about 15 to 20 minutes. The sorbet will have a soft, creamy texture. If a firmer consistency is desired, transfer the sorbet to an airtight container and place it in the freezer for about 2 hours. Remove from freezer about 15 minutes before serving.

Nutritional information per serving (based on ½ cup):

Calories 183 (6% from fat) • carb. 41g • pro. 3g • fat 1g • sat. fat 0g • chol. 0mg • sod. 15mg • calc. 2mg • fiber 3g
