Cuisinart TOB-1010 Toaster Oven Broiler Instruction Booklet

Cuisinart TOB-1010 Toaster Oven Broiler

IMPORTANT SAFEGUARDS

When using an electrical appliance, especially when children are present, basic safety precautions should always be taken, including the following:

1. Read all instructions.
2. UNPLUG FROM THE OUTLET WHEN NOT IN USE AND BEFORE CLEANING. Allow to cool before cleaning or handling.
3. Do not touch hot surfaces. Use handles or knobs.
4. To protect against electric shock, do not place any part of the Toaster Oven Broiler in water or other liquids. See instructions for cleaning on page 6.
5. Close supervision is necessary when any appliance is used by or near children or individuals with certain disabilities.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance has malfunctioned, or has been dropped or damaged in any way, or is not operating properly. Return the Toaster Oven Broiler to the nearest Cuisinart Repair Center for examination, repair, or mechanical or electrical adjustment.
7. The use of accessory attachments not recommended by Cuisinart may cause injury.
8. Do not use outdoors.
9. Do not let the cord hang over the edge of the table or countertop where it could be pulled on inadvertently by children or pets, or touch hot surfaces, which could damage the cord.
10. Do not place the Toaster Oven Broiler on or near a hot gas or electric burner or in a heated oven.
11. Do not use this Toaster Oven Broiler for anything other than its intended purpose.
12. Extreme caution should be exercised when using containers constructed of materials other than metal or glass in the Toaster Oven Broiler.
13. To avoid burns, use extreme caution when removing the tray or disposing of hot grease.
14. When not in use, always unplug the unit. Do not store any materials other than the manufacturer’s recommended accessories in this oven.
15. Do not place any of the following materials in the oven: paper, cardboard, plastic, and similar products.
16. Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
    Caution: Aluminum foil is not recommended for covering the crumb tray. Grease will accumulate on the foil surface and may catch fire. If you choose to use foil to cover the baking pan/drip tray, be sure the foil is cut to neatly fit into the pan and does not touch the wall or heating elements.
17. Oversized foods, metal foil packages, and utensils must not be inserted in the Toaster Oven Broiler, as they may pose a risk of fire or electric shock.
18. A fire may occur if the Toaster Oven Broiler is covered or touches flammable materials such as curtains, draperies, and walls when in operation. Do not store any items on top of the appliance when in operation. Do not operate under wall cabinets.
19. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, posing a risk of electric shock.
20. Do not attempt to dislodge food when the Toaster Oven Broiler is plugged into an electrical outlet.
21. Warning: To avoid the possibility of fire, NEVER leave the Toaster Oven Broiler unattended during use
22. Do not rest cooking utensils or baking dishes on the glass door.
23. Turn the function dial to the OFF position to turn off the Toaster Oven Broiler.
24. Where applicable, always attach the plug to the appliance and check that the function dial is off before plugging the cord into the wall outlet. To disconnect, turn the function dial to OFF, then remove the plug from the wall outlet.
25. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

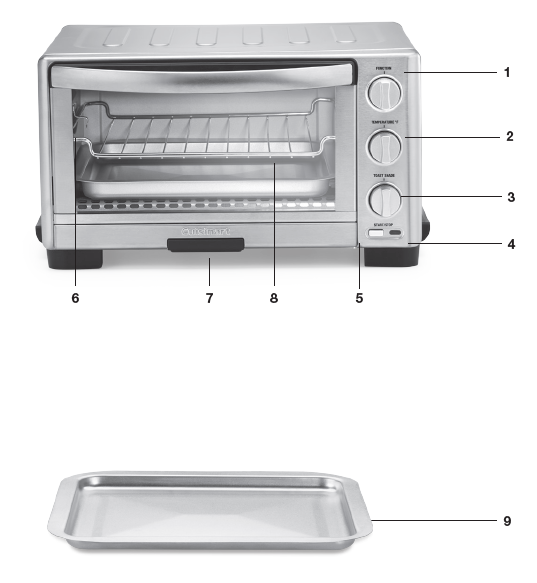

FEATURES AND BENEFITS

1. Function Dial
   Select cooking method – Toast, Bagel, Bake, Pizza, Broil, or Warm.
2. Temperature Dial
   Select the desired temperature for the Baking, Pizza, Broiling, or Warm functions.
3. Toast Shade Dial
   Select the desired toast shade for the Toast and Bagel functions – Light, Medium, or Dark.
4. Oven ON Indicator
   The indicator light will remain lit when the oven is in use.
5. START/STOP Button
   Push the button to start the function. Push again stop function again in mid-cycle and shut off the oven.
6. Oven Rack
   The oven rack slides out automatically when the door is opened.
   (When the rack is in the upper position)
7. Slide-Out Crumb Tray
   The slide-out crumb tray comes already positioned in your oven. The crumb tray slides out from the bottom front of the Toaster Oven Broiler for easy cleaning. Do not cover the crumb tray with metal foil.
8. Easy-Clean Interior
   The sides of the oven are coated, providing an easy-to-clean surface.
9. Baking Pan/Drip Pan
   Slides directly into the upper or lower positions.
10. Cord Storage (not shown)
    Takes up excess cord and keeps the countertop neat.

BEFORE THE FIRST USE

Place your oven on a flat surface. Remove any packaging and promotional labels from the oven. Unwind the power cord. Check that the crumb tray is in place and that there is nothing inside or on top of the oven. Plug the power cord into the wall outlet. Before first use, thoroughly wash the baking pan and oven rack with soap and water, and dry them thoroughly. Before using your Toaster Oven Broiler, make sure it is 2 to 4 inches away from the wall or from any objects on the countertop. Do not use on heat-sensitive surfaces. DO NOT STORE OBJECTS ON THE TOP OF THE TOASTER OVEN BROILER. IF YOU DO, REMOVE ALL OBJECTS BEFORE YOU TURN ON YOUR TOASTER OVEN BROILER. THE EXTERIOR WALLS GET VERY HOT WHEN IN USE. KEEP OUT OF REACH OF CHILDREN.

COOKING FUNCTIONS

Toast/Bagel: Always have the rack in the upper position, as indicated in the diagram on page 6, for even toasting. Always center your item/s in the middle of the rack.

1. Make sure the oven rack is in the upper position, as indicated in the diagram on page 6. If toasting two items, center them in the middle of the rack. Four items should be evenly spaced – two in front, two in back. Six items should be evenly spaced – three in front, three in back.
2. Close the glass door. Set dial to desired function (Toast or Bagel).
3. Turn the shade dial to the desired browning setting. Press the START/STOP button to begin the cycle.
4. When the toasting cycle is finished, the oven will beep 5 times and turn off. If you wish to stop the toasting cycle before it is finished, simply press the START/STOP button.

Bake: The Baking function can be used as you would normally use your large kitchen oven for roasting meats, including chicken, or baking cakes, cookies and more.

1. Turn the function dial to Bake and the temperature dial to the desired temperature.
2. Press the START/STOP button to begin the bake cycle. Allow the oven to preheat for at least five minutes before putting some foods in the oven to bake, such as cakes and other baked goods.
3. To cancel/end the cycle, press the START/STOP button.

Pizza:

1. Place the rack or pan in the lower position if pre-baking the crust. Place the rack or pan in the upper position for top melting cheese.
2. Set the function dial to Pizza, set the temperature dial accordingly, and press the START/STOP button to begin the cycle.
3. To cancel/end the cycle, press the START/STOP button.

Broil: The Broiling function can be used for beef, chicken, pork, fish, and more. It can also be used to top-brown casseroles and gratins.
Caution: Aluminum foil is not recommended for covering the crumb tray. Foil is extremely dangerous when broiling fatty foods. Grease will accumulate and may catch fire. If foil is used to cover the baking pan, be sure the foil is tucked neatly around the pan and does not touch the walls or heating rods. Never cover the crumb tray.

1. Turn the FUNCTION dial to Broil and turn the TEMPERATURE dial to Broil.
2. Press the START/STOP button to begin. Allow the oven to preheat for at least five minutes before putting food in the Toaster Oven Broiler to broil.
3. To cancel/end the cycle, press the START/STOP button.
   NOTE: When broiling, the rack should be in the upper position with the baking pan placed in the lower position.
   NOTE: Never use glass oven dishes to broil.
   Turning off the Toaster Oven Broiler: Press the START/STOP button. The indicator light will turn off.

Warm:

1. Turn the function and temperature dials to Warm.
2. Press the START/STOP button. To cancel/end the cycle, press the START/STOP button.

CLEANING AND MAINTENANCE

Always allow the oven to cool completely before cleaning.

1. Always unplug the oven from the electrical outlet.
2. Do not use abrasive cleaners, as they will damage the finish. Simply wipe the exterior with a clean, damp cloth and dry thoroughly. If using a cleaning agent, apply it to the cloth, not to the Toaster Oven Broiler, before cleaning.
3. To clean interior walls, use a damp cloth and a mild liquid soap solution or a spray solution on a sponge. Never use harsh abrasives or corrosive products. These could damage the oven surface. Never use scouring soap pads on the interior of the oven.
4. To remove crumbs, slide out the crumb tray and discard crumbs. Wipe clean and replace. To remove baked-on grease, soak the tray in hot, sudsy water or use nonabrasive cleaners. Never operate the Toaster Oven Broiler without the crumb tray in place.
5. Wire rack, pan, and crumb tray should be hand-washed in hot, sudsy water or use a nylon scouring pad or nylon brush.
6. Never wrap the cord around the outside of the oven. Use the cord storage cleats on the back of the oven.
7. Any other servicing should be performed by an authorized service representative.
   IMPORTANT: After cooking greasy foods and after your oven has cooled, always clean the interior of the Toaster Oven Broiler. If this is done on a regular basis, your Toaster Oven Broiler will perform like new. Removing the grease will help to keep toasting consistent, cycle after cycle.

OVEN RACK AND PAN POSITION DIAGRAMS

Each recipe gives you step-by-step directions and will even tell you where the oven rack and pan should be positioned for best results. Please refer to the diagram below for oven rack positions.

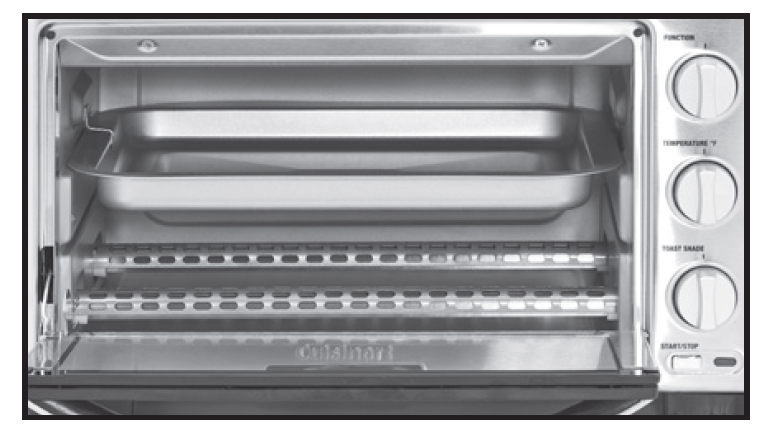

UPPER POSITION FOR BAKING/PIZZA

NOTE: For chicken or other large items, the pan can be in the lower position.

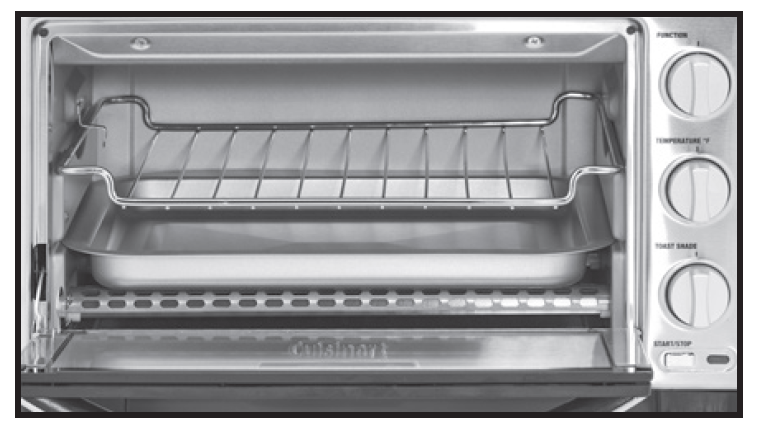

UPPER POSITION FOR BROILING

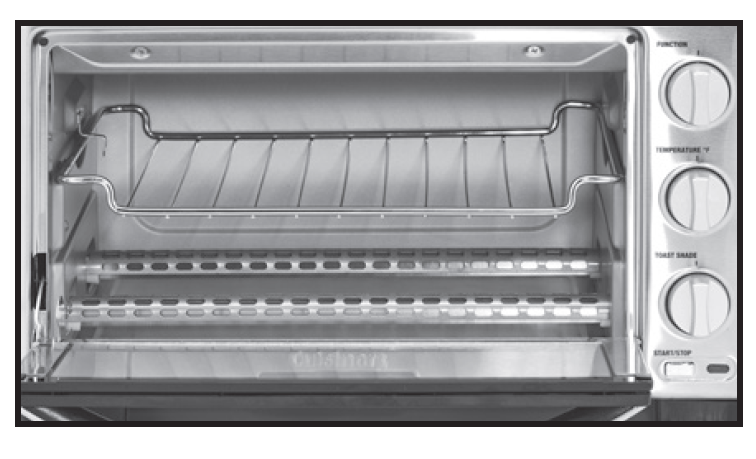

UPPER POSITION FOR TOASTING

WARNING: Placing the rack in the bottom position or in the top position with the rack upward while toasting may result in a fire. Refer to the rack position diagram for proper use.

WARRANTY

Limited Three-Year Warranty (U.S. and Canada ONLY)

This warranty is available to consumers only. You are a consumer if you own a Cuisinart® Toaster Oven Broiler that was purchased at retail for personal, family, or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners. We warrant that your Cuisinart® Toaster Oven Broiler will be free of defects in materials and workmanship under normal home use for 3 years from the date of original purchase. We recommend that you visit our website, www.cuisinart.com, for a fast, efficient way to complete your product registration. However, product registration does not eliminate the need for the consumer to maintain the original proof of purchase in order to obtain the warranty benefits. In the event that you do not have proof of purchase date, the purchase date for purposes of this warranty will be the date of manufacture.

CALIFORNIA RESIDENTS ONLY

California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming product (A) to the store where it was purchased or (B) to another retail store that sells Cuisinart products of the same type. The retail store shall then, according to its preference, either repair the product, refer the consumer to an independent repair facility, replace the product, or refund the purchase price less the amount directly attributable to the consumer’s prior usage of the product. If neither of the above two options results in the appropriate relief to the consumer, the consumer may then take the product to an independent repair facility, if service or repair can be economically accomplished. Cuisinart and not the consumer will be responsible for the reasonable cost of such service, repair, replacement, or refund of nonconforming products under warranty. California residents may also, according to their preference, return nonconforming products directly to Cuisinart for repair or, if necessary, replacement by calling our Consumer Service Center toll-free at 1-800-726-0190. Cuisinart will be responsible for the cost of the repair, replacement, and shipping and handling of such nonconforming products under warranty.

BEFORE RETURNING YOUR CUISINART® PRODUCT

If your Cuisinart® Toaster Oven Broiler should prove to be defective within the warranty period, we will repair or, if we think necessary, replace it. To obtain warranty service, please call our Consumer Service Center toll-free at 1-800-726-0190 or write to: Cuisinart, 7475 North Glen Harbor Blvd., Glendale, AZ 85307. To facilitate the speed and accuracy of your return, enclose $10.00 for shipping and handling. (California residents need only supply proof of purchase and should call 1-800-726-0190 for shipping instructions.) Please be sure to include your return address, description of the product’s defect, product serial number, and any other information pertinent to the return. Please pay by check or money order made payable to Cuisinart. NOTE: For added protection and secure handling of any Cuisinart product that is being returned, we recommend you use a traceable, insured delivery service. Cuisinart cannot be held responsible for in-transit damage or for packages that are not delivered to us. Lost and/or damaged products are not covered under warranty. Your Cuisinart® Toaster Oven Broiler has been manufactured to the strictest specifications and has been designed for use only in 120-volt outlets and only with authorized accessories and replacement parts. This warranty expressly excludes any defects or damages caused by the attempted use of this unit with a converter, accessories, replacement parts, or repair service other than those authorized by Cuisinart. This warranty does not cover any damage caused by accident, misuse, shipment, or anything other than ordinary household use. This warranty excludes all incidental or consequential damages. Some states do not allow the exclusion or limitation of these damages, so these exclusions may not apply to you. You may also have other rights, which vary from state to state.
Important: If the nonconforming product is to be serviced by someone other than Cuisinart’s Authorized Service Center, please remind the servicer to call our Consumer Service Center at 1-800-726-0190 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and to ensure that the product is still under warranty.

RECIPES

French Toast Strata

Give your family a new twist on French toast this weekend. To save time, prepare the night before and then bake in the morning.

Makes 8 servings

Nonstick cooking spray

• 4 large eggs
• 2 cups whole milk
• 1 cup heavy cream
• 1 tablespoon pure vanilla extract
• ¹∕³ cup pure maple syrup
• 2 teaspoons ground cinnamon
• 1 teaspoon ground nutmeg
• ¼ teaspoon salt
• 1 loaf (1 pound) challah bread, cut into ½-inch x 9-inch strips
• 2 tablespoons packed light brown sugar, divided
• 2 tablespoons unsalted butter, cut into ½-inch pieces

1. Lightly coat a 9-inch square baking pan with nonstick cooking spray; reserve.
2. Put the eggs, milk, cream, vanilla extract, maple syrup, spices, and salt into a medium mixing bowl. Whisk until completely combined, and reserve.
3. Tightly fit half of the challah bread strips into the bottom of the prepared pan. Pour half of the egg mixture on top and evenly sprinkle with half of the brown sugar. Repeat with the remaining bread, placing it in the opposite direction of the first layer of bread. Pour the remaining egg mixture on top,and  sprinkle with the remaining brown sugar. Cover and chill in the refrigerator for at least 2 hours, or overnight.
4. Remove the strata from the refrigerator and bring to room temperature. Preheat the Toaster Oven Broiler to 350°F on the Bake setting with the rack in the bottom position. Dot the top of the strata with the butter and loosely cover with aluminum foil. Bake in preheated oven for about 15 minutes; remove foil and bake for an additional 10 minutes, or until the internal temperature of the strata reaches 160°F.
5. Remove and serve immediately.

Nutritional information per serving:

• Calories 420 (47% from fat)
• carb. 44g
• pro. 11g
• fat 22g
• sat. fat 12g
• chol. 190mg
• sod. 430mg
• calc. 177mg
• fiber 2g

Blueberry Corn Muffins

A perfect combination of two old-time favorite muffins.

Makes six muffins

Nonstick cooking spray

• ¹∕³ cup cornmeal
• ²∕³ cup unbleached, all-purpose flour
• ¼ teaspoon kosher salt
• ¼ teaspoon baking soda
• ¾ teaspoon baking powder
• ¼ cup granulated sugar
• ¼ teaspoon lemon zest
• 1 large egg, lightly beaten
• ¼ cup whole milk
• 3 tablespoons unsalted butter, melted and cooled to room temperature
• ¼ cup plain yogurt or sour cream, room temperature
• ½ cup fresh or frozen (thawed) blueberries

1. Preheat the Toaster Oven Broiler to 400°F on the Bake setting with the rack in the bottom position.
2. Lightly coat a six-cup muffin pan with nonstick cooking spray; reserve.
3. Put the cornmeal, flour, salt, baking soda and powder, sugar, and zest into a large mixing bowl. Whisk to combine.
4. Mix the egg, milk, butter, and yogurt/sour cream. Add to the dry ingredients and mix until just combined. Gently fold in the blueberries – you want to be sure not to over-mix the batter.
5. Divide the batter among the prepared muffin cups.
6. Bake in the preheated oven for about 16 to 18 minutes, or until a cake tester comes out clean and the tops of the muffins spring back to the touch.

Nutritional information per muffin:

• Calories 182 (35% from fat)
• carb. 426g
• pro. 4g
• fat 7g
• sat. fat 4g
• chol. 53mg
• sod. 225mg
• calc. 45mg
• fiber 1g
