Dartwood Children Digital Camera

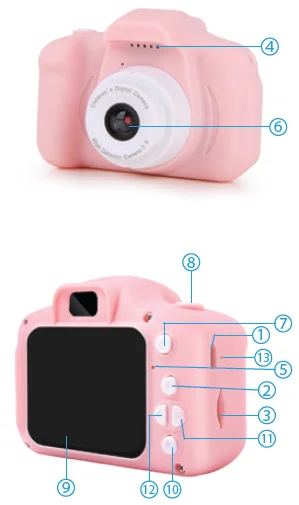

Product Overview
- Micro-USB Port
- Up Button
- SD Card Slot
- Speaker
- Indicator Light
- Lens
- Power On/Off Button
- Capture/Record Button
- Display
- Down Button
- Mode Button
- Menu Button
- Reset
Package Contents
- 1 x Kid Digital Camera
- 1 x 32GB SD Card
- 1 x USB Charging Cable
- 1 x Hand Strap
- 1 x User Manual
Operational Instructions
Power On/Off
- To power on, press and hold the “ ” button. The blue light will light up when it is turned on.
- To power off, press the “ ” button. The blue light will turn off.
Recording Mode
- Press the “Mode Button” short to change to Recording Mode, the resolution of your video and the recording icon will be displayed on the screen of the device.
- Press the “Capture/Record” button to start recording your video. The indicator light will start flashing.
Photo Mode
- Press the “Mode Button” to change to Photo Mode. The resolution of your photo and the camera icon will be displayed on the screen of the device.
- Press the “Capture/Record” button to take a photo. The indicator light will flash once when the photo is taken.
Video/Photo Playback
- Press the “Mode Button” to change to Video/Photo Playback Mode; the playback icon and your recent photos and videos will be displayed on the screen.
- Press the “Up” or “Down” button to cycle up or down.
- Press the “Capture/Record” button to open your photo or video.
Menu Settings
- Press the “Menu Button” to open the Menu Page.
- Press the “Up” or “Down” button to choose a setting.
- Short-press the “Capture/Record” button to select it.
- Short-press the “Power On/Off Button” to exit the Menu Page.
USB Mode
- To view your photos or videos on the computer, simply connect the camera to the computer using the Micro-USB port.
- Once connected, the computer will automatically recognize the camera.
Charging
- Battery Indicator
The red light indicator will be ON when charging. The light will turn off when the device is fully charged.

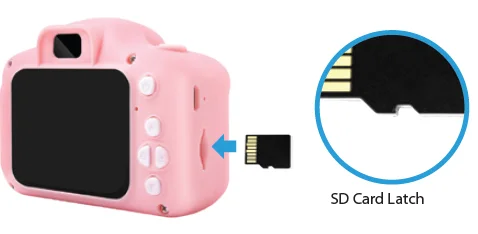

Installing the SD Card
- Insert the SD card into the SD card slot located on the side of the camera.
- Make sure the latch of the SD card is facing down to prevent damage.
- Push the SD card into the slot until you hear a click.
- To remove the SD card, simply push the SD card until you hear a click and pull it out the card.
Specification
- Image Sensor: GC0308
- Display : Colored Display
- Lens : Fixed Lens, 100 degree angle
- Image Format: JPG, JPEG
- Camera Resolution : 1080P: 1440 x 1080 720P: 1280 x 720 VGA: 640 x 480
- TFT Display: 2.0-inch screen (720 x 320)
- Photo Resolution : 3M, 2M, 1.3M, VGA
- Charging Voltage: DC – 5V
For more information and inquiries, please reach out to: [email protected]
For more Manuals by Dartwood, visit ManualsLibraryy
Dartwood Children Digital Camera-FAQs
How do I connect the children’s digital camera to a laptop?
Use the provided USB cable. Plug one end into the camera and the other into your computer’s USB port. Turn on the camera, and it should appear as a storage device so you can access and transfer photos.
How does a children’s digital camera work?
Light enters through the camera lens and hits the sensor, which captures the image and converts it into a digital file. The image is then processed and stored on the camera’s memory card.
How do I charge the Dartwood digital camera?
Connect the small end of the USB cable to the camera and the other end to a power adapter or computer. Make sure to fully charge the battery before first use, and only use the supplied charger and cable.
How do I know when the camera is fully charged?
When charging, the indicator light will turn on. Once the light goes off or changes color, it means the battery is fully charged.
Why is my camera not charging?
Check that the cable and adapter are properly connected. Clean any dirt from the charging contacts and ensure the power source is working. If the charging light doesn’t turn on, try a different cable or USB port.
How do I transfer photos from the camera to a computer?
Connect the camera to your computer using the USB cable, turn it on, and select “Mass Storage” mode if prompted. Then, open the camera folder on your computer and copy the pictures to your desired location.
Can I transfer photos from the kids’ camera to a phone?
Yes. You can either connect the camera to your phone using an OTG (USB adapter) cable or transfer the photos to your computer first, then move them to your phone.
What should I do if my laptop doesn’t recognize the camera?
Ensure the USB cable is securely plugged in and try a different USB port. Restart both the camera and computer
