DEEBOT T30 OMNI Robot Vacuum
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic precautions should always be followed, including the following:
Important Safety Instructions:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS
- This Appliance can be used by children aged 8 years and above and by persons with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, if they have been given supervision or instruction concerning the safe use of the Appliance and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
- If there is a drop-off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
- Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
- Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.
- For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial, or industrial environments.
- Use only the original rechargeable battery and Docking station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.
- Do not use without a dust bin and/or filters in place.
- Do not operate the Appliance in an area where there are lit candles or fragile objects.
- Do not use in extremely hot or cold environments (below -5°C/23°F or above 40°C/104°F).
- Keep hair, loose clothing, fingers, and all parts of the body away from any openings and moving parts.
- Do not operate the Appliance in a room where an infant or child is sleeping.
- Do not use the appliance on wet surfaces or surfaces with standing water.
- Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
- Do not use an appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
- Do not use the appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
- Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
- Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking station by the power cord, use the power cord as a handle, close a door on the power cord, or pull the power cord around sharp edges or corners. Do not run the appliance over the power cord. Keep the power cord away from hot surfaces.
- If the power cord is damaged, it must be replaced by the manufacturer or its service agent to avoid a hazard.
- Do not use the Docking Station if it is damaged. The power supply is not to be repaired or used any longer if it is damaged or defective.
- Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking station if it is not working properly, has been dropped, damaged, left outdoors, or comes in contact with water. It
- must be repaired by the manufacturer or its service agent to avoid a hazard.
- Turn OFF the power switch before cleaning or maintaining the Appliance.
- The plug must be removed from the receptacle before cleaning or maintaining the Docking station.
- Remove the Appliance from the Docking station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
- The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
- Please dispose of used batteries according to local laws and regulations.
- Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
- When not using the Docking station for a long period of time, please unplug it.
- The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.
- The robot contains batteries that are only replaceable by skilled persons. To replace the robot’s battery, please contact Customer Service.
- If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking station.
- WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH2229 provided with the Appliance. The lithium battery type suitable for CH2229 is Max 8 cells, max. nominal voltage DC14.4V, rated capacity 5,900mAh.The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance. To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.
To ensure compliance, operations closer than this distance are not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.
CAUTION: USE ONLY AS DIRECTED. KEEP OUT OF REACH OF CHILDREN AND PETS. EYE IRRITANT. Avoid contact with eyes, skin, and clothing. In case of contact with skin or eyes, wash immediately with plenty of water for 15 minutes. If eye irritation persists, consult a physician. Do not ingest. IF SWALLOWED, do not induce vomiting; call a physician or poison control center immediately. DO NOT PLACE NEAR HEAT OR OPEN FLAME. The product is not to be used by persons with reduced physical, sensory, or mental capabilities. Used on DEEBOT and for indoor air deodorization only. Do not disassemble the capsule. Wash your hands after handling. Keep away from foodstuffs, beverages, and feed. Keep in a dry and well-ventilated place. ispose in accordance with local regulation.
WARNING: May cause an allergic skin reaction. Toxic to aquatic life with long-lasting effects. Harmful to aquatic life with long-lasting effects.

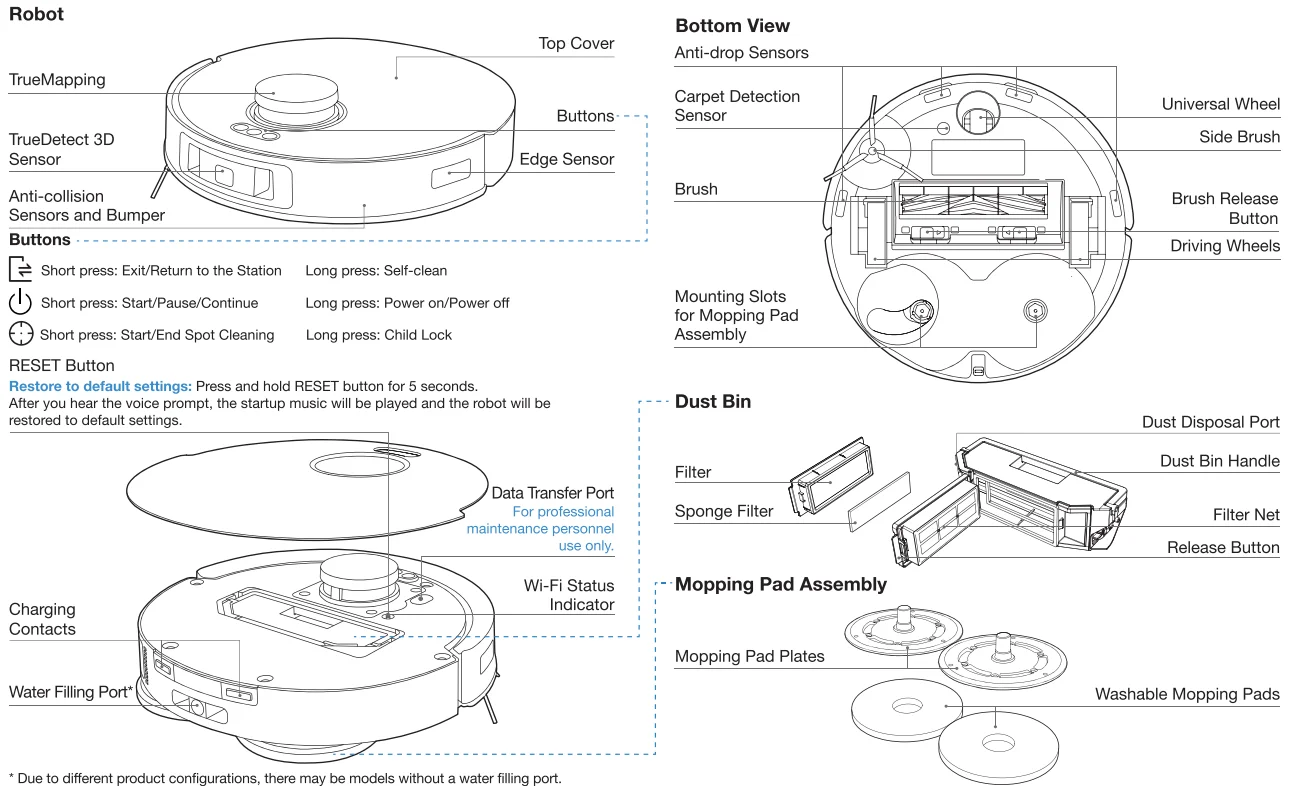

PRODUCT DIAGRAM
Robot
OMNI Station
Note:
- If the Light Strip is flashing red, please check the reason in the ECOVACS HOME App.
- If DEEBOT fails to charge, please wipe Charging Contacts with a clean and dry cloth.

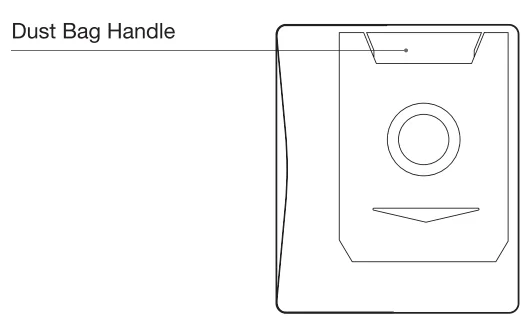

Dust Bag
Dust Bag

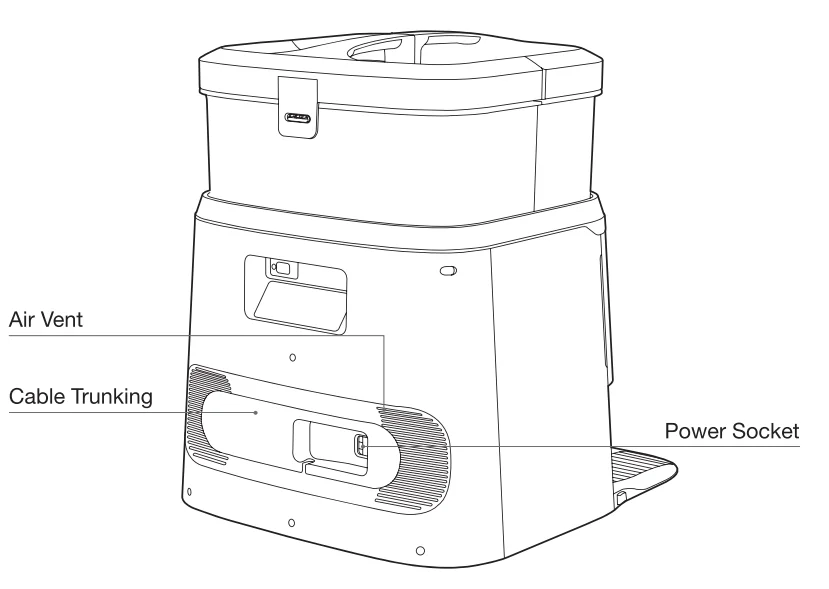

OMNI Station(Back)

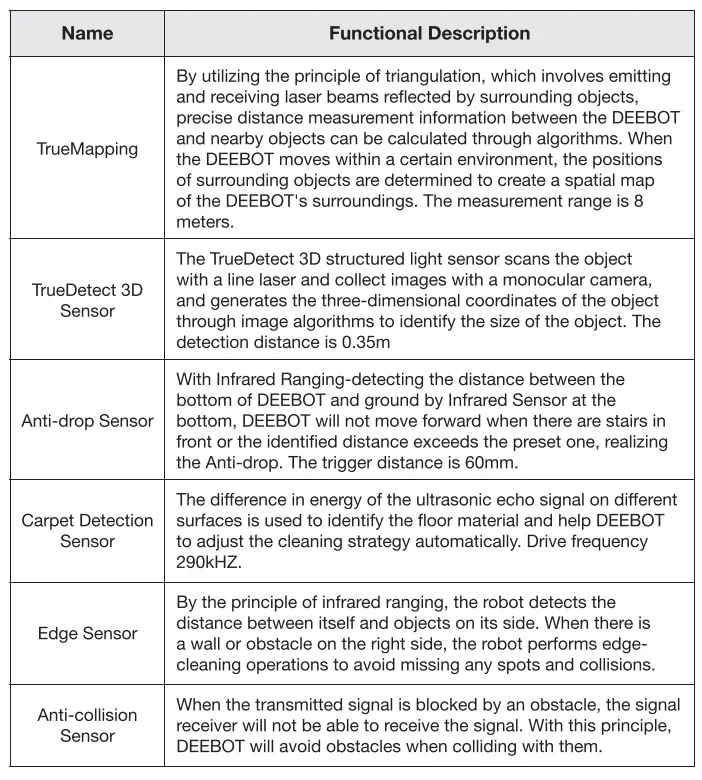

SENSORS
NOTES BEFORE CLEANING

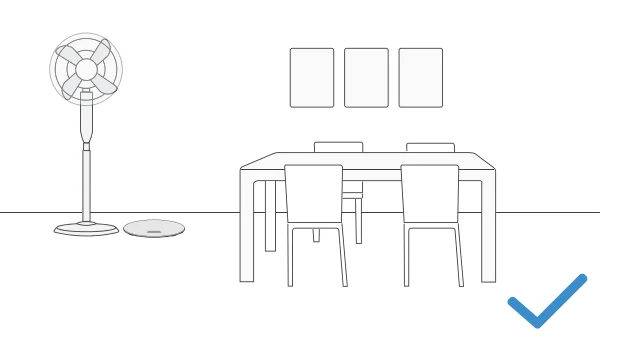

- Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

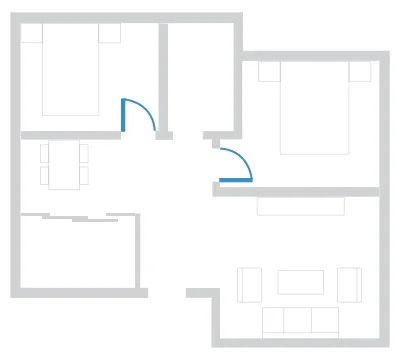

- During the first use, make sure each room door is open to help DEEBOT fully explore your house.
- It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.
Put away objects, including cables, cloths, and slippers, etc., on the floor to improve the cleaning efficiency.
Before using the product on a rug with tasseled edges, please fold the rug edges under.
Please do not stand in narrow spaces, such as hallways, and make sure not to block the TrueMapping Distance Sensor.
Put away objects, including cables, cloths, and slippers, etc., on the floor to improve the cleaning efficiency.
Before using the product on a rug with tasseled edges, please fold the rug edges under.
Please do not stand in narrow spaces, such as hallways, and make sure not to block the TrueMapping Distance Sensor.DOWNLOAD THE ECOVACS HOME APP
To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME App.
- Scan the QR Code under the Top Cover to download the App.
- Search the ECOVACS HOME to download the App.
CONNECT DEEBOT WITH APP
- Via Bluetooth:
Turn on the DEEBOT and the mobile phone Bluetooth. Allow the App to obtain mobile phone Bluetooth permission. Tap
to scan the QR Code on DEEBOT or tap Add in the App to find nearby DEEBOT. - Via Wi-Fi:
You can connect DEEBOT with the App via Wi-Fi by ignoring Bluetooth in the App.
Note: Please select the appropriate connecting method.
Wi-Fi Network Requirements:- You are using a 2.4GHz or 2.4/5 GHz mixed network.
- Your router supports 802.11 b/g/n and the IPv4 protocol.
- Do not use a VPN (Virtual Private Network) or Proxy Server.
- Do not use a hidden network.
- WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
- WEP EAP (Enterprise Authentication Protocol) is not supported.
- Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
- If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
- Please enable WPA2 on your router.
to scan the QR Code on DEEBOT or tap Add in the App to find nearby DEEBOT.Wi-Fi Indicator Light
Please be aware that the realization of intelligent functions such as remote startup, voice interaction, 2D/3D map display, and control settings, and personalized cleaning (depending on different products) requires users to download and use the ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic and necessary information and enable you to operate the product.If you do not agree with our Privacy Policy and User Agreement, some of the aforementioned intelligent functions cannot be realized through the ECOVACS HOME App, but you can still use the basic functions of this product for manual operation.
Power ON and Charge DEEBOT

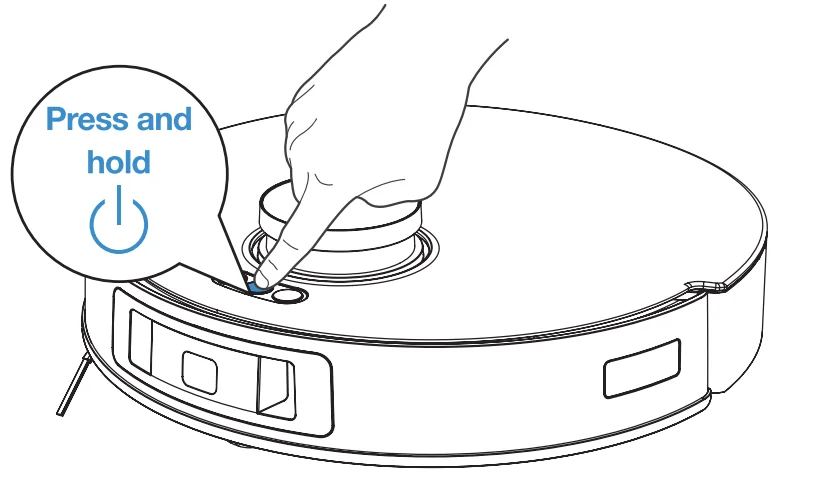

- Press and hold
for 3 seconds, wait for the startup music to play, indicating that the DEEBOT has powered on.

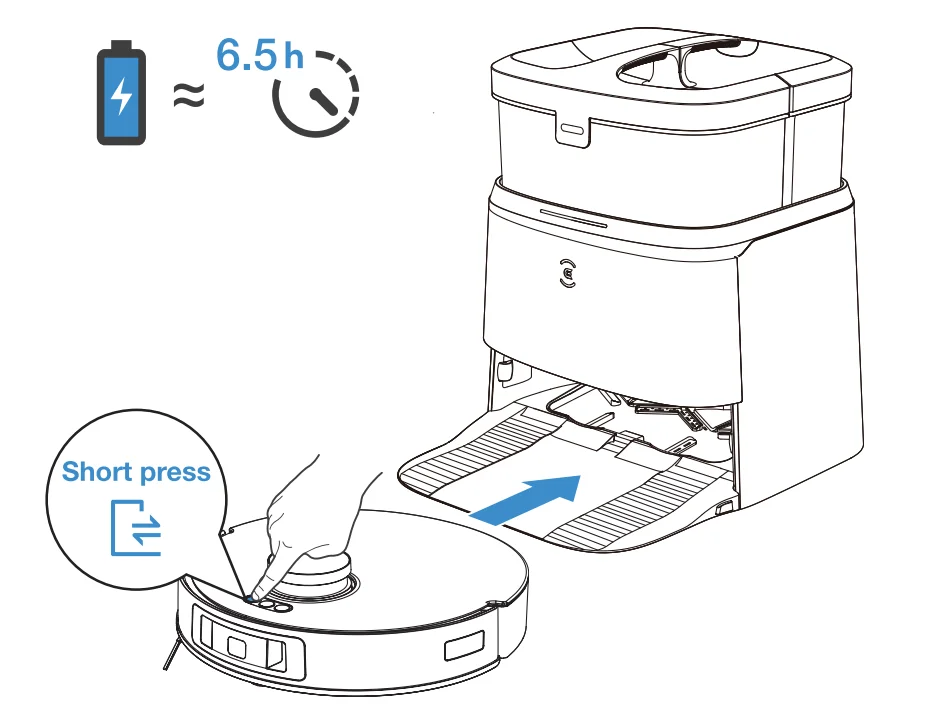

- Short press
to recall DEEBOT to enter the Station to charge.
Note: After DEEBOT enters the Station, wait for about 5 seconds, and you will hear the voice prompt “Pairing Successful”.
to recall DEEBOT to enter the Station to charge.
Note: After DEEBOT enters the Station, wait for about 5 seconds, and you will hear the voice prompt “Pairing Successful”.OPERATE DEEBOT
DEEBOT will create a map during the first-time cleaning. When creating a map for the first time, please follow DEEBOT to help eliminate some minor issues.
For example, DEEBOT may get stuck under the furniture. Please refer to the following solutions:
- Raise the low-sitting furniture if possible.
- Cover the bottom of the furniture.
- Set up Virtual Boundary via the App.
Short press
to start. For the first-time cleaning, please ensure that DEEBOT is fully charged.
Note: When DEEBOT is not working, it is recommended to keep it powered ON and charging.
TECHNICAL SPECIFICATIONS
Output power of the wireless module is less than 1 00mW.
Note: Technical and design specifications may be changed for continuous product improvement. Explore more accessories at https://www.ecovacs.com/global.
For more manuals by ECOVACS, visit ManualsLibraryy
DEEBOT T30 OMNI Robot Vacuum-FAQs
How do I set up the DEEBOT T30 OMNI for the first time?
Start by placing the OMNI station on a flat surface near a power outlet. Plug it in, remove all packaging from the robot, and charge it fully. Download the ECOVACS HOME app, connect the robot to Wi-Fi, and follow the in-app instructions to complete mapping and customization. Once mapped, the robot is ready for scheduled or manual cleaning.
Can I use the DEEBOT T30 without the app or Wi-Fi?
Yes. After the initial setup, you can start cleaning using the physical button on the robot. However, without Wi-Fi or the app, you won’t have access to advanced features like scheduling, cleaning customization, or map editing. Basic cleaning functions will still operate normally.
How do I switch between vacuum and mop modes?
Open the ECOVACS HOME app and go to “Smart Cleaning.” Select your preferred cleaning option: Vacuum, Mop, Vacuum & Mop, or Mop After Vacuum. The T30 OMNI automatically adjusts settings based on your chosen mode for optimal floor care.
Does the DEEBOT T30 OMNI vacuum and mop at the same time?
Yes, it supports simultaneous vacuuming and mopping. It can also lift its mop pads when detecting carpets, helping to avoid wetting rugs while maintaining strong suction performance on hard floors.
Can I add cleaning solution or vinegar to the water tank?
It’s recommended to use only official ECOVACS cleaning solutions designed for compatible models. Avoid vinegar, Dettol, or household detergents, as they may damage internal components or leave residue on floors.
Does the DEEBOT T30 OMNI have a camera?
Yes, the T30 series includes advanced navigation with 3D mapping technology and visual recognition. This helps the robot avoid obstacles and create accurate maps of your home.
How often should I run my robot vacuum?
For homes with pets, kids, or heavy foot traffic, daily cleaning is ideal. In lighter-use households, running it 2–3 times a week is usually sufficient to maintain clean floors.
Why is my DEEBOT not vacuuming properly?
Check if the dustbin is full, filters are clogged, or brushes are tangled with hair. Regular maintenance—such as cleaning sensors, filters, and brushes—ensures strong suction and efficient cleaning performance.
How do I clean and maintain the DEEBOT T30 OMNI?
Empty the dustbin regularly (or let the OMNI station auto-empty it), rinse mop pads, clean the main brush, and wipe sensors gently with a dry cloth. Routine maintenance extends the robot’s lifespan and keeps cleaning performance consistent.
