Delupet DT-66 Dog Training Shock Collar User Manual

Delupet DT-66 Dog Training Shock Collar

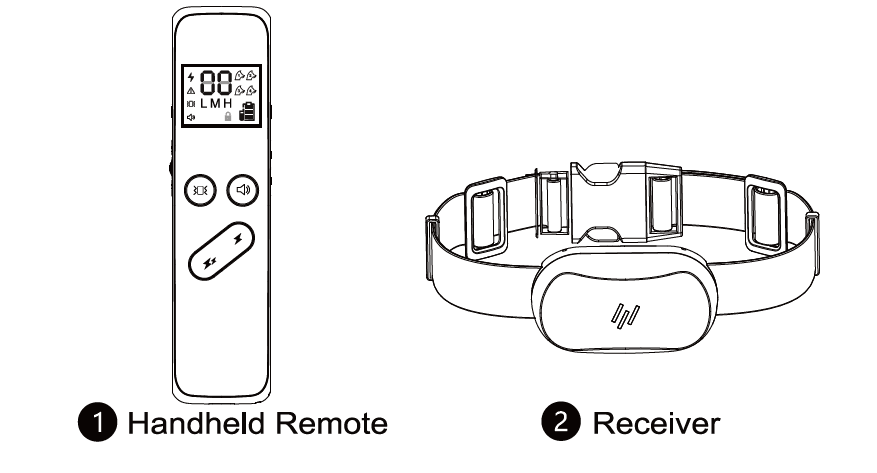

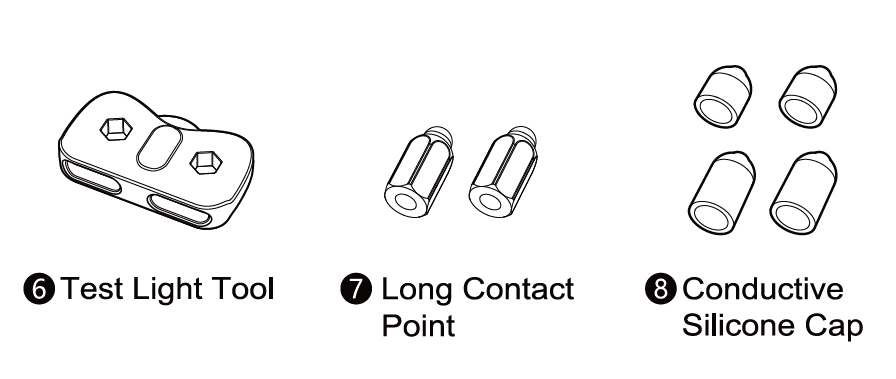

Components

Product Description

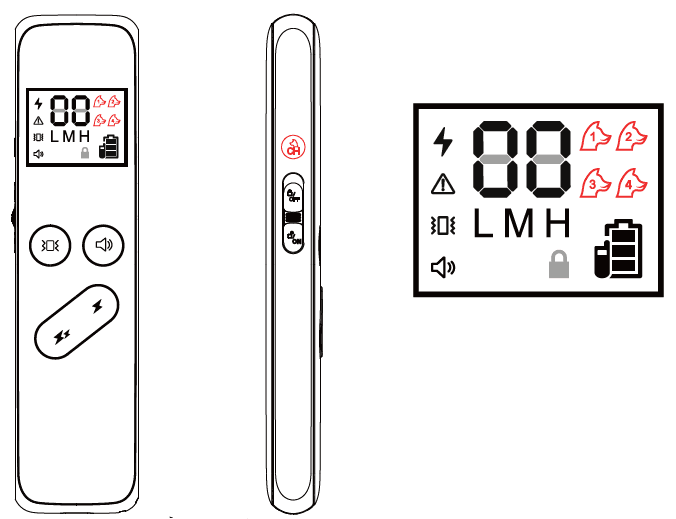

Handheld Remote

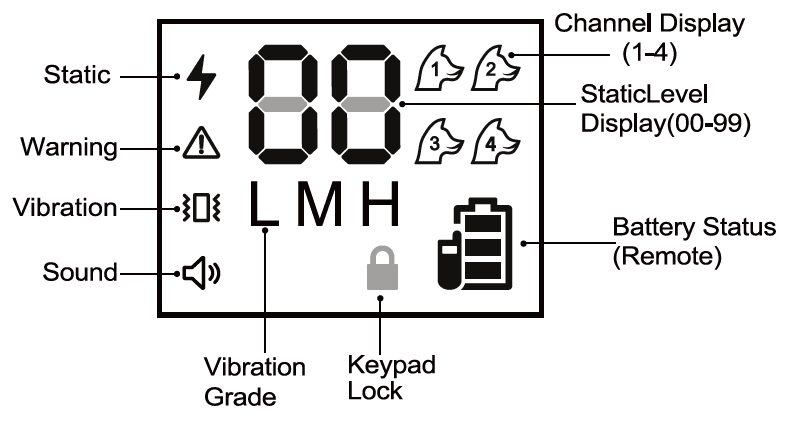

Screen Content

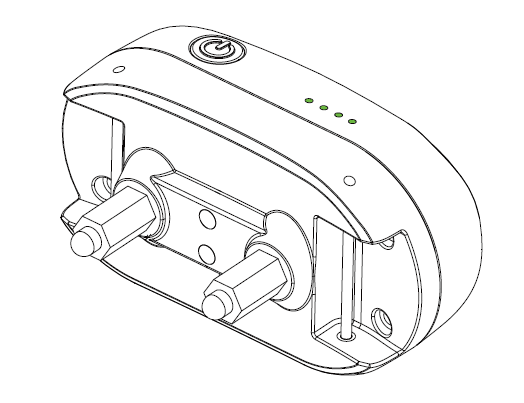

Receiver

Important Safety Information

WARNING

Not for aggressive dogs. Do not use this Product if your dog is aggressive, or if your dog is prone to aggressive behavior. Aggressive dogs can cause severe injury and even death to their owner and others.lf you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer.

CAUTION

Please read users manual carefully before using to avoid injury caused by improper use. Proper fit of the collar is important.A collar worn for too long or made too tight on the pet’s neck may cause skin damage. Ranging from redness to pressure ulcers, which is commonly known as bed sores.

• Avoid leaving the receiver on the dog for more than 12 hours per day.
• When possible Reposition the receiver on your dog’s neck every 1-2h.
• Check the fit to prevent excessive pressure; follow the instructions in this manual.
• Never connect a leash to the electronic collar; it will cause excessive pressure on the contacts.
• When using a separate collar for a leash, don’t put pressure on the electronic collar.
• Wash the dog’s neck area and the contacts of the collar weekly with a damp cloth.
• Check the contact area daily for signs of a rash or a sore. • If a rash or sore is found, discontinue the use of the collar until the skin has healed.
• Don’t use an Adapter with an output greater than 5V1A to charge. • Avoid contact with other metals while charging, as it may cause a short circuit.
• Safety during on-leash training. It is vitally important that you and your dog remain safe while learning during on-leash training. Your dog should be on a strong leash, long enough for him to attempt to chase an object, but short enough for him not to reach a road or other unsafe area. You must also be physically strong enough to restrain your dog when he tries to chase.
• This pet training device is not a toy, keep it away from children.

Operating Guide

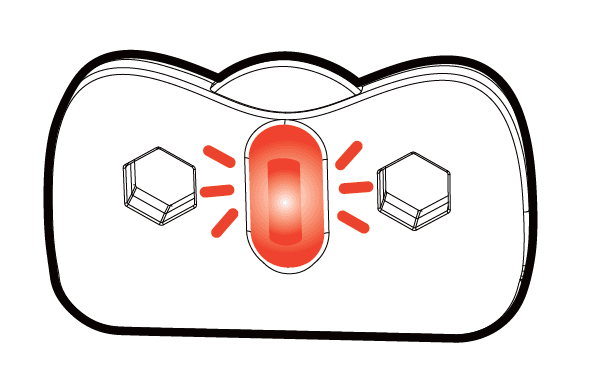

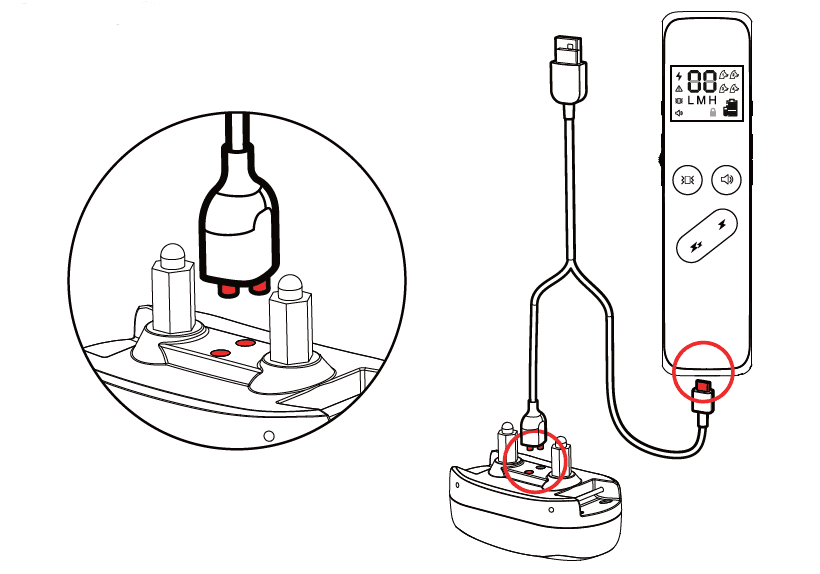

1. Charging instructions(2h charging time): When charging is completed, the green light will appear. The charger takes two hours respectively.
2. Wearing Instructions: Note: The Contact Points must have direct contact with the Dog’s skin on the underside of the neck. Check the tightness of the Collar by inserting one finger snugly between the collar and neck.
3. Switch description of transmitter and Receiver:

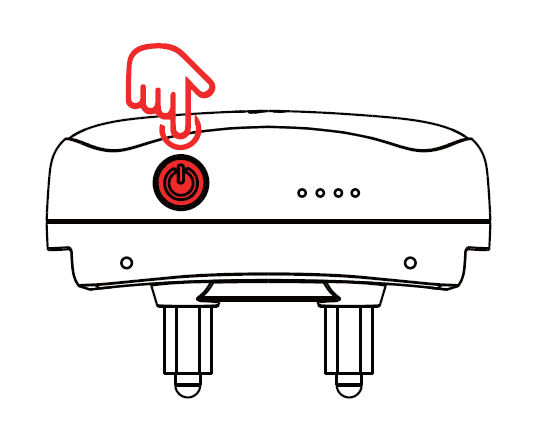

   • Turn ON the Receiver: Hold the ON button for 1 second.
   • Turn OFF the Receiver: Hold the ON button for 3 seconds.

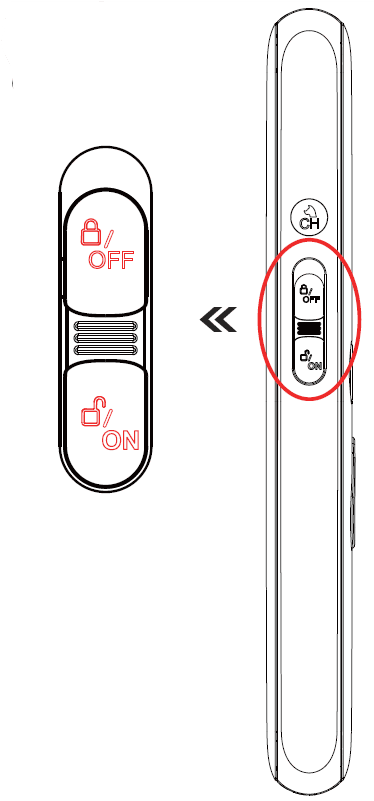

4. Switch lock description: Security Keypad: Lock or unlock.
5. Explanation of voice commands: Beep command: Delivers a beep tone with non-adjustable volume to the collar.

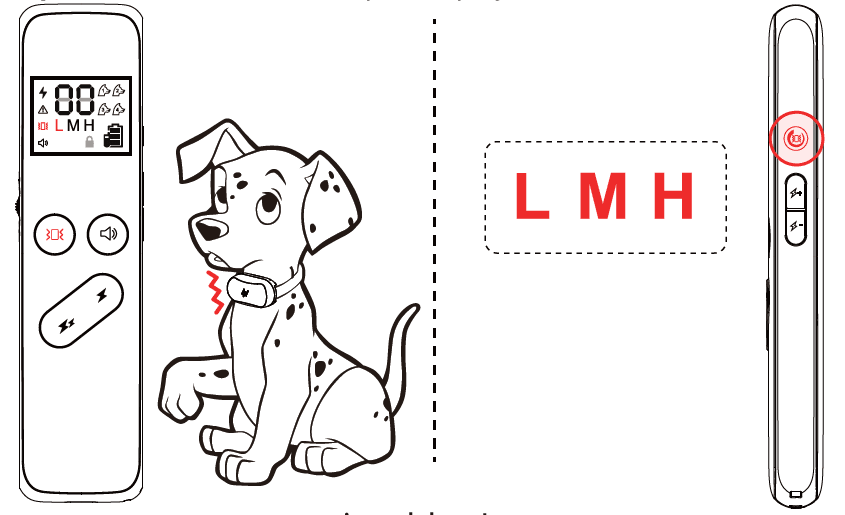

6. Description of the vibration command (How to adjust the level, level description):
   • Vibration command: Press the vibration key, and the receiver Vibrates once.
   • Intensity adjustment: After pressing the side vibration button, adjust the vibration level (L/M/H) by the side vibration button.
7. Instructions for the electric shock order (How to adjust the level, level instructions):
   • Static button: Delivers currently selected level Static stimulation to the collar.
   • Static + button: That is 10% higher than the currently selected level.
   • Static Intensity adjustment: After pressing the static button, adjust the static level by “+” “-“.
8. Channel switching instructions:
   • Channel switching: It is possible to train 4 dogs at the same time. Press the channel button briefly to select the dog to train.

Main Features

• : 3 Training Modes (Vibration, Tone and Shock).
• : Three-speed vibration adjustable and 0-99 shock adjustable.
• : Receiver Collar IPX7 Waterproof, Remote IP X4 Waterproof.
• : Remote Range 1000-1600 Ft.
• : 2-Hour Rapid Charging Lithium Polymer Battery.
• : Big Digital Display Shows Intensity Level, Battery and Dog.
• : Support 4 Receiver Collars with One Remote.
• : Magnetic Charging Port.

Use of the Test Light Tool

• Electric shock test
  1. Make sure the Remote and Receiver Collar is on.
  2. Hold the Test Light tool contacts to the Contact Points.
  3. Press a Static button on the Remote Transmitter. The Test Light will be lighted.
• As a tool to tighten or loosen the contact points
  • For dogs with shorter coats, use 2pcs shorter contact points.
  • For dogs with thicker coats, use 2pcs longer contact points.
  • Install the conductive Silicone onto the contact point to make it softer. It may be better for your dog’s skin.

Training Tips

1. Rewarding your dog with food/treats will usually help to achieve the best training result.
2. Do not use the device on dogs aged below 6 months, old, pregnant, easily frightened, aggressive, in heat, and in inferior health conditions.
3. Use verbal commands first, and supplement with a corrective stimulus only as needed. Be consistent with your verbal commands, and use the same words every time. Work with your pet on one behavior at a time to avoid confusion and frustration.
4. Use as little stimulus as possible and only reinforce verbal commands when necessary. Do not overcorrect your dog.
5. For example, use the beep sound as a warning by pressing the beep button. The dog will become conditioned to the beep preceding the corrective stimulus and will soon learn to recognize the beep as a warning along with your verbal command.
6. Do not rely on this product solely to train your dog. Some dogs will not respond to this product. We cannot guarantee the effectiveness of this or any trainer on your dog. If your dog shows signs of growling, biting, or aggression while using the collar, discontinue use immediately and contact a professional trainer for advice.
7. It is recommended to train one dog at a time in a distraction-free environment, both to increase efficiency and to avoid temptation or distraction from other dogs.

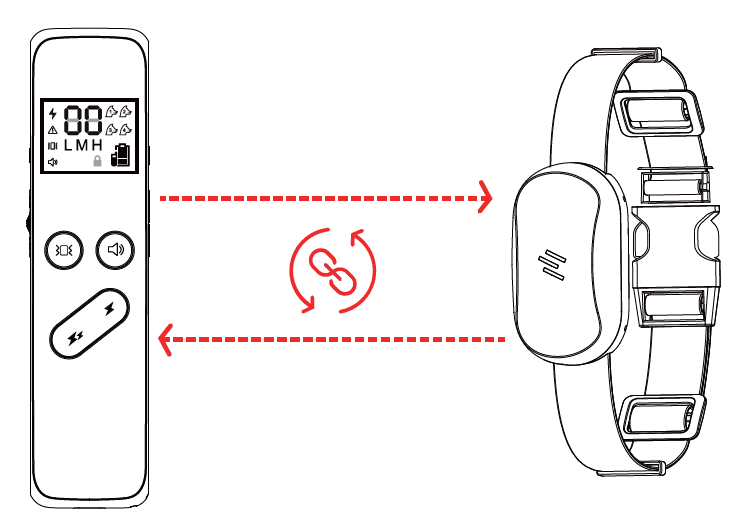

Pairing Instructions

(Note: You can skip this step as the device is factory-paired.)

Match the remote to the receiver

1. Make sure the receiver is turned off.
2. Press and hold the receiver switch for 5 seconds until the green light flashes quickly.
3. Press the remote control pairing button to pair the receiver.
4. Pairing is successful: the receiver will beep and the green light will flash.

(Note: If you are only using one receiver, skip this step. The following settings apply to multiple receivers with one remote.)

Part I: Pairing a 2nd, 3rd or 4th Receiver.

Pairing multiple receivers

1. Make sure the receiver is turned off.
2. Press and hold the receiver switch for 5 seconds until the green light flashes quickly.
3. Press the channel key, select the channel in advance, and select the number you want.
4. Pairing is successful: the receiver will beep and the green light will flash.

Troubleshooting

1. My pet is not responding when I press a beep vibration or static button.
   • Check the Receiver Collar if it is On.
   • • Please check if the battery is low in either the Remote Transmitter or Receiver Collar.
   • Test the Receiver with the Test Light to confirm if the shock functions normally.
   • Increase the correction level. Refer to “Find the Best Stimulation Level For Your Dog”.
   • Make sure the Receiver Collar’s Contact Points are placed snugly against your pet’s skin.
2. Fail to match receiver with remote.
   • Ensure the receiver is connected to a power source (charging mode can only be activated while charging). Must hold the channel switch for more than 5 seconds, if not, matching will fail. If the problem persists after attempting as above, please contact us to confirm whether the receiver and the remote are of the same version.
3. The remote/receiver does not respond.
   • Verify if the Receiver Collar is on.
   • Verify if the battery of the Transmitter is fully charged.
   • Verify if the training collar has been paired.

Operating Environment & Maintenance

Do not use the product in the circumstances as follow

1. Do not operate the devices under temperatures of 104°F and above, doing so in such high temperatures will decrease the performance of the batteries.
2. Do not use the set in places with strong electromagnetic interference. This will greatly compromise the performance of the product.
3. Avoid dropping the devices on hard surface or inflict excessive force on them.
4. Avoid using the devices in environment flooded with corrosive chemical, this may lead to color degrading, deforming, or cracking of exterior of the devices.

Maintenance

1. When not in use, please wipe clean both the Remote and Receiver with mild detergent. Turn off the Remote, lock the keypad put on the rubber lid on the Receiver’s charging port, and store the set in a cool dry place. e clean
2. During cleaning, wipe with a soft cloth and mild detergent. Do not use hard brushes which may scratch the surface of the device.
3. If the Receiver has gotten dirty, wipe it clean with a damp cloth. Note: Do not submerge the Receiver into water for a long period of time, even though it is waterproof.
4. If residues around the charging port’s rubber lid, you should wipe it clean to prevent water from sipping in. c
5. If the Remote falls into the water, pick it up quickly and turn off the power. Dry it with cloth as much as you can and let it out to dry. It should resume function normally once the moisture is dried out.

Regarding you and the product

1. It is strictly prohibited to open the receiver in any situation. Doing so will likely compromise the waterproof function thus voiding the product warranty.
2. Please use the remote control and the receiver from the complete set. Do not use other product to match with the receiver.
3. If you want to test the product, please use a professional testing apparatus. Do not test with hands, so as to avoid accidental injury.
4. If find water at the charging port, please wipe it dry before charging.
5. Beware of the interference from the environment, it can cause the product not to work properly. For examples, places with high voltage facilities, communication towers, thunderstorm, large buildings, and strong electromagnetic interference.
6. The receiver will be turned off if idling for 8 hours.
7. The included collar is a basic accessory and is not necessarily suitable for all types of dog breeds. Any collar not wider than 24mm and not thicker than 5mm, made of soft material, can be a replacement for the current collar.

Regarding the well-being of your dog

1. The Receiver collar is not a regular collar and not recommended to put on a leash to walk your dog. (Doing so during pulling may hurt the dog due to protruding electrodes on the Receiver.)
2. Do not put the collar on for over 12 hours, it may cause rashes or discomfort to your dog’s skin.
3. Do not allow children, or anyone who has little or no experience with training dogs, to handle this training kit.
4. In order to guarantee normal diving function, please insert the waterproof rubber lid over the charging port.
5. Static stimulation is not a pleasant experience for any dog. Punishment is a harsh way to train a dog. Always, praise could encourage your dog for good behavior.

Terms of Use & Limitation of Liability

1. Use of this product means you accept all the terms and conditions.
2. This product is a professional dog training device. You are not recommended to use this product if your dog is clever and less than 15 lbs in weight. If you’re not sure whether the product is suitable for your pet dog, please consult a professional handler or contact us.
3. This product is a professional dog training device and should not be used for other purposes. Please do not violate local laws by using this product.
4. We bear no liability for any direct or indirect losses caused by the use or misuse of this product; all risks in using this product shall be borne by the user.
5. Please contact the dealer for parts warranty, goods return, or exchange. We provide only technical support.
6. We reserve the right to alter the terms, conditions,,s and notices of this product offered.

Reference Weight for Dogs

• Large Dog (Body height above 24 inches, Weight above 88 lbs)
• Medium Dog (Height 16-24 inches, Weight 24.2-66 lbs)
• Small Dog (Height 10-16 inches, Weight 8.8-22 lbs)
• Mini Dog (Height under 10 inches, Weight under 8.8 lbs)

Warranty and repair information

1-Year Warranty The original purchaser of this unit is provided with a 1-YEAR WARRANTY.

The warranty begins from the date of purchase. For the first year, coverage is for both Parts and Labor on warranty repair services, but the return postage is for the buyer’s account. Accessories such as chargers, straps, and batteries are covered for the first year only. When the warranty expires, customers will need parts and repairs at their own expense.

Won’t Qualify for 1-Year Warranty

• We do not offer a warranty for products that have been bought secondhand or as a resold product.
• Manual damage or loss is not covered by the warranty.
• Any water damage on the Water Resistant Transmitters and the Water Resistant Receivers of our product series will not be covered.
• The warranty is void if the unit has been altered or an unauthorized person who attempts to repair work has damaged the unit.
• Replacement of batteries is not recommended during the warranty period. If the customer chooses to replace the batteries, any damage to the unit during the change-out by the owner will make the warranty void.

To activate the warranty

If there is a problem with your product, please send the below info to service@delupet.com for after-sale service.

1. Your original order page.
2. Your current shipping address After confirming the info, we will send you the replacement within 5 business days.
3. After confirming the info, we will send you the replacement within 5 business days.
