Dimplex DCEVP40M 40L Evaporative Cooler
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY.
Please read the operating instructions carefully before using your evaporative cooler for the first time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate surroundings of a bath, a shower, or a swimming pool.
- Never immerse the appliance in water or other liquids.
- Operate this unit only on a firm, flat surface to avoid the risk of water leakage. Ensure that the unit is kept upright at all times.
- Do not place on soft, unstable, or non-horizontal/angled surfaces.
- Never operate the appliance if a cable or connector has been damaged, after an appliance malfunction, or if the appliance was dropped or is otherwise damaged.
- If the mains lead is damaged, it must only be replaced by the manufacturer’s service agent or a similarly qualified person to avoid a hazard.
- Please ask a professional service agent to repair the product. Improper repair may cause danger to users.
- Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning.
- Operate the appliance only at the voltage specified on the rating label.
- Only connect the unit to a properly installed and easily accessible socket so that you can quickly disconnect the plug if necessary.
- Do not connect this product to the mains using an extension lead.
- This evaporative cooler is only intended for INDOOR RESIDENTIAL applications. This evaporative cooler should not be used for commercial, industrial, or leisure applications or in small enclosed spaces.
- Never use the mains lead as a carrying strap or pulling lead.
- To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiators, stoves, or heaters.
- DO NOT cover the cord with carpeting, throw rugs, runners, or similar coverings.
- DO NOT route cord under furniture or appliances. Take care to position the cord away from traffic areas and where it will not be a tripping hazard.
- DO NOT use the unit near windows or where water collects. Rain and water collection may lead to a risk of fire or electric shock.
- Only operate this appliance with a minimum of 50 cm clearance all around, i.e., away from walls, furniture, and overhanging objects such as curtains or a shelf.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure they do not play with the appliance.
- To prevent spillage, empty the water tank before lifting or relocating the appliance.
- WARNING: To avoid the danger of suffocation, please remove all packaging materials, particularly plastic and EPS, and keep these away from vulnerable people, children, and babies.
- NEVER drop or insert any object or fingers into any openings.
- Do not use the appliance in locations where paint, petrol, or other flammable liquids are used or stored.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Do not use bug sprays or other flammable cleansers/vapour sprays on or around the unit.
- Always switch off the unit and take the plug out of the socket:
- If you are not using the unit
- Before you clean or carry out maintenance on the unit
- If a fault occurs
- In the event of an electrical storm.
- Avoid electromagnetic interference. Keep the unit at least 1 metre away from electrical appliances such as televisions & radios.
- DO NOT use this appliance with an extension lead or power cord.
- UNPLUG the device when filling the water tank and cleaning the unit.

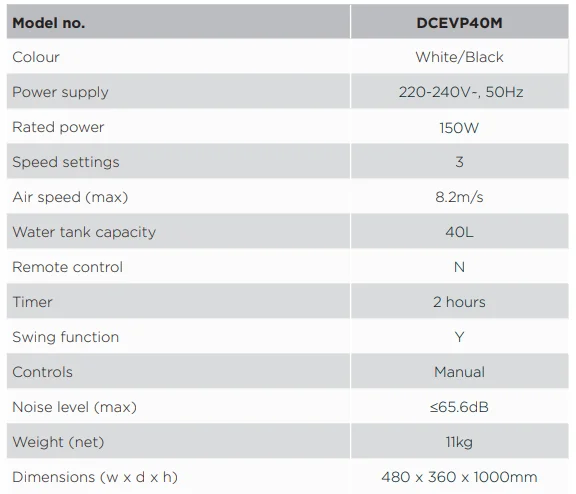

Specification
- For greater precision, please always refer to the rating label placed on the product.

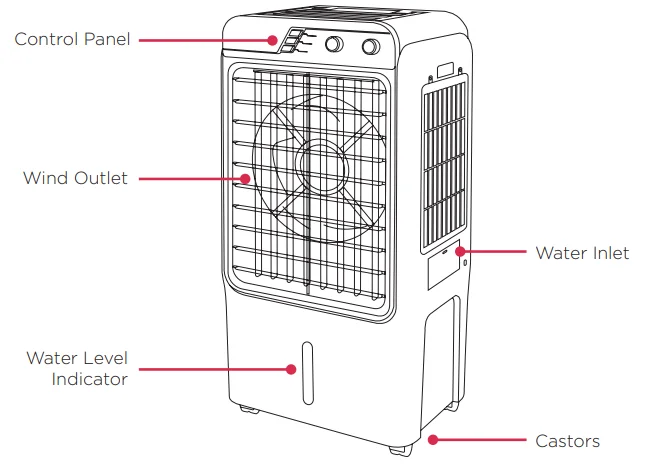

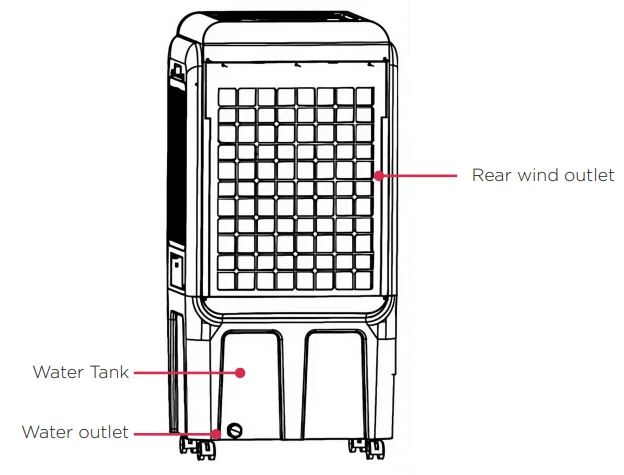

Parts

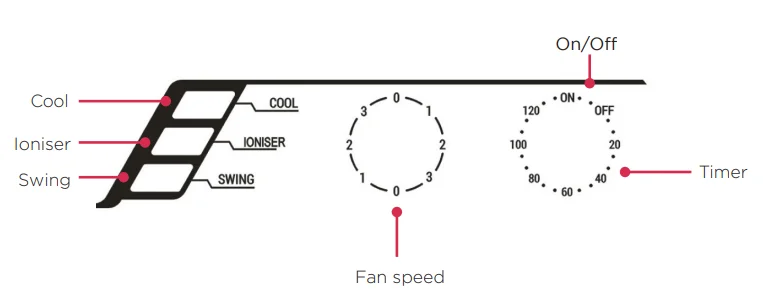

Control Panel
Assembly
ASSEMBLING CASTORS
- Place the unit on a flat surface.
- Take the supplied screws and fasten them to the castors to the base of the unit.
Note: There are two castors with a brake and two castors without. The castors with a brake are intended to be installed as rear castors.
FILLING THE WATER TANK
- Open the water inlet on the side of the unit.
- Add clean water to the water tank.
- Note:
- a) Pay attention to the level of the water tank when filling the unit.
- b) The level of the water tank should not exceed the MAX level indicator.
- c) The level of the water tank should not fall below the MIN level indicator during operation.
- d) Ice may be placed into the water tank to strengthen the cooling efficiency. Be careful not to exceed the MAX water level when doing so.
Functions
ON/OFF
Rotate the right knob to the ON position to turn the unit ON.
FAN SPEED
The FAN SPEED can be selected by rotating the left knob in the following sequence: Off (0) > Low (1) > Medium (2) > High (3).
SWING FUNCTION
Press this button to turn on the SWING function; the louvres will move left to right, and the SWING LED indicator light will illuminate. Press the button again to turn off the swing function. The horizontal fins can be manually adjusted to direct air up and down.
IONISER FUNCTION
Press the IONISER function to start ionisation. Press the button again to disable the ioniser function.
TIMER
The TIMER can be set by rotating the right knob clockwise. The steps on the knob indicate the set time in minutes, up to 120 minutes (2 hours). Once the selected time has elapsed, the unit will cease functioning until it is turned on once again.
COOL
Press the COOL button to start the cool function. Ice can be added to the water tank to strengthen the efficiency of this function. Press the button again to disable the cool function.
Operation
Filling the water tank
Unplug the appliance before filling the water tank. In order to use the cooling function, you need to fill the water tank. For your convenience, the water tank can be filled from the side of the unit without removing the water tank.
Filling from the side

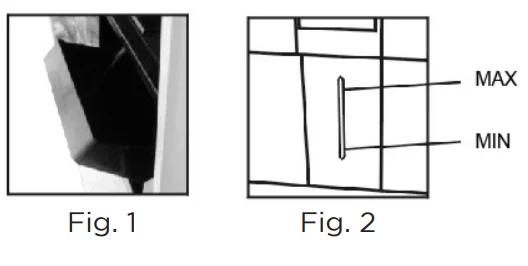

Unplug the appliance before filling the water tank. Open the water cover, and slowly pour filtered/clean water into the compartment (Fig. 1) with a jug, and then close the water cover. Ensure the total level of the water tank is filled to the MIN level and does not exceed the MAX level indicated at the front of the unit (Fig. 2).
Draining the water tank
If storing the unit for an extended period of time, the water tank will need to be drained. Unplug the appliance before draining the water tank. Loosen the cap on the water outlet located at the rear of the unit (Fig. 3), and let the water inside the tank drain. The unit may need to be tilted at an angle in order to completely drain the water tank. Replace the cap before use.
Cleaning
Outside Cabinet
- Turn the unit OFF and disconnect the appliance from the power supply.
- Remove any dust build-up with a soft brush.
- Wipe the surface of the unit with a soft, damp cloth. Mild detergent can be used for any stubborn marks. Do not use abrasive sponges, scouring pads, or a stiff brush to clean the unit.
IMPORTANT: The control panel and other parts must not come into contact with water or any other liquids.
Storage
If not using the unit for an extended period of time, after cleaning, please:
- Turn the unit off, unplug, and take care of the mains lead & plug.
- Cover the unit and store it upright in a location where it will not receive direct sunlight. NB – Prolonged exposure to direct sunlight will discolour the enclosure.
Maintenance
If the unit fails to operate efficiently, is broken, or other problems arise, unplug and do not operate. Ask for advice by calling your local after-sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
Warranty
Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relevant Customer Care Centre below.
Glen Dimplex Australia Pty Ltd
8 Lakeview Drive, Scoresby 3179, Victoria, Australia
Ph: 1300 556 816
Glen Dimplex New Zealand Ltd
38 Harris Road, East Tamaki, Auckland 2013, New Zealand
Ph: 0800 666 2824
Customer Care: 1300 556 816
[email protected]
www.dimplex.com.au
