Directed DB3 All in One Door Lock Module Installation Manual

Directed DB3 All in One Door Lock Module

Warning! Safety first

following safety warnings must be observed at all times:

• Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer.
• When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never operate the system in an area that does not have adequate ventilation.

The following precautions are the sole responsibility of the user; however, authorized Directed dealers should:

• Never use a test light or logic probe when installing this unit. Always use a multimeter.
• Never operate the system in an enclosed or partially enclosed area without ventilation (such as a garage).
• When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote start system must be disabled using the installed toggle switch. It is the user’s sole responsibility to properly handle and keep out of reach from children all remote controls to ensure that the system does not unintentionally remote start the vehicle.
• USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE AREA MUST REMAIN CLOSED AT ALL TIMES.

Use of this product in a manner contrary to its intended mode of operation may result in property damage, personal injury, or death. Except when performing the Safety Check outlined in this installation guide, (1) Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user is responsible for having the neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear.

This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in this product installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the user to fix the problem immediately.

OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. IMMEDIATELY CEASE THE USE OF THE UNIT AND REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.

Remote starters for manual transmission pose significant risks if not properly installed and operated. When testing to ensure the installation is working properly, only remote start the vehicle in neutral gear, on a flat surface, and with a functional, fully engaged parking brake. Do not allow anyone to stand in front of or behind the vehicle. This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation in such vehicles may pose certain risks.

Introduction

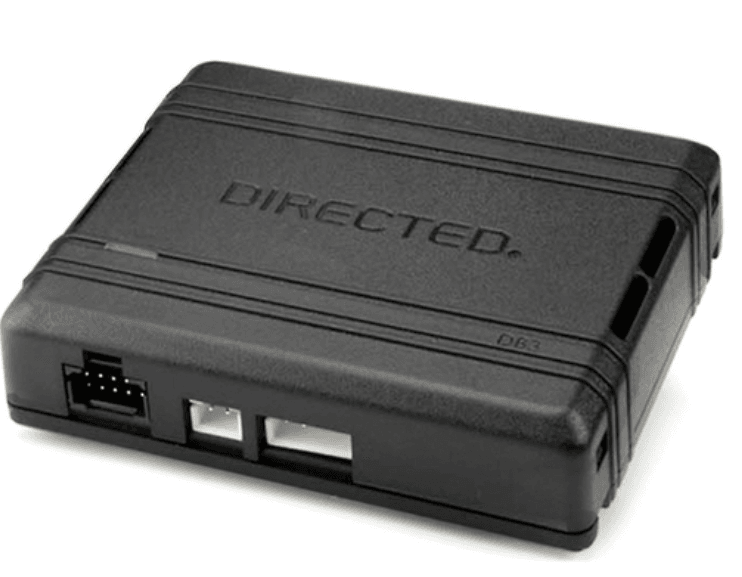

DB3 is an all-in-one door lock and override module. This guide supports the installation of a DB3 in Remote Start Ready (RSR) mode. This solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF System, or SmartStart (all sold separately).

This solution is compatible with the 2016 Volkswagen Golf (Smart Key) and offers the following features:

• AV-Parking Lights Control
• DL-Arm Factory Security
• DL-Disarm Factory Security
• DL-Door Lock Control
• DL-Door Unlock
• DL-Driver Priority Unlock
• DL-Trunk / Hatch Release
• FOB-Control of aftermarket alarm with OEM remote
• PK-Universal RF Bypass- Key Req’d
• RS-3x LOCK START (Start control using OEM Remote)
• RS-3x LOCK STOP (Stop control using OEM Remote)
• RS-RAP Shut Down (Retained ACC Power)
• RS-Remote Start Ready
• RS-SmartStart
• RS-Tach / RPM Output
• SS-Entry Monitoring ALL Door Pins
• SS-Entry Monitoring Hood Pin
• SS-Entry Monitoring Trunk/Hatch Pin
• SS-Factory Alarm Trigger Monitoring
• ST-Brake Status (foot brake)
• ST-Door Locks Status
• ST-E-Brake Status
• ST-Ignition Status

Pre-installation and application warnings

Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.

• Important! RSR installations are NOT compatible with vehicles equipped with a manual transmission.
• Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely on its own. Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.
• SmartStart Compatible: SmartStart is equipped with D2D, which means it can be connected to an interface module and used in Remote Start Ready (RSR) mode without the use of a remote starter. See “Module programming” for more information.
• Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic connector.
• Important! This firmware does NOT support Immobilizer bypass. One (1) programmed OEM key must be wired into the vehicle to complete the installation of a remote starter.
• Refer to “Vehicle connections” following the wiring diagram.

General notes: This section highlights important information for this specific firmware.

[1] For Key Wrap instructions, refer to “Immobilizer interface with OEM immobilizer receiver”.

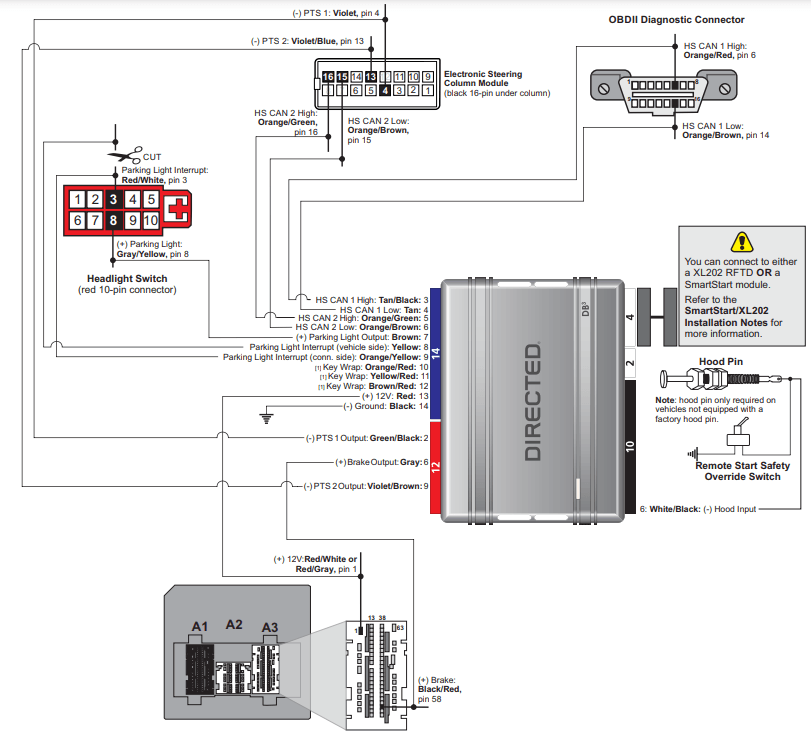

Wiring diagram

Important!
The Hood Pin and Remote Start Safety Override Switch are mandatory safety devices but are NOT supplied with the DBALL.

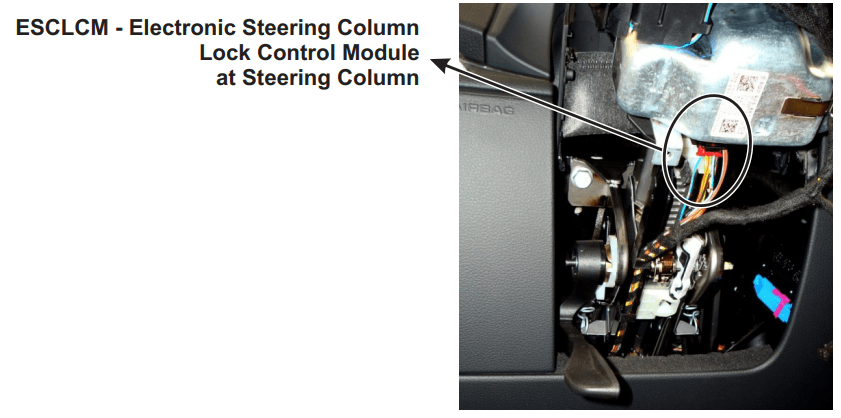

Locating components in the vehicle

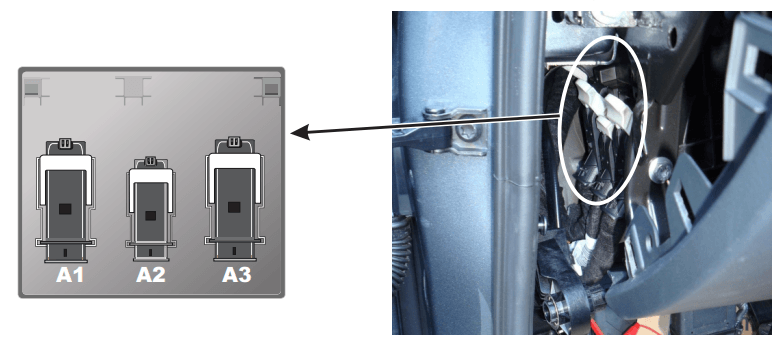

VESCM – Vehicle Electrical System Control Module at Driver’s Side under the dash, above the Driver Kick Panel

Method 1: Immobilizer interface with OEM immobilizer receiver (PTS)

NOTE:

• Your OEM remote may differ from the model shown in the illustrations.
• Remove the Battery from OEM FOB prior to performing the Key Wrap.
• Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
• Test and secure the mounted loop before reassembling the vehicle.

Method 2: Immobilizer interface with 556U (PTS)

IMPORTANT!: Not all OEM keys can be inserted in 556U because of their size. Make sure the key will fit, otherwise, it is recommended to use a different method.

Method 3: Key wrap for Push-to-Start (PTS) using OEM immobilizer ring

• Make 4-6 loops and place them around the front of the plastic body of the vehicle’s coded key as shown above.
• Connect with OEM Immobilier Ring as shown in the above diagram.
• When possible, use the valet key for the key wrap. if the blade key is used, the battery must be removed.

Vehicle connections

The connection information listed below is specific to the 2016 Volkswagen Golf (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes.

Data 14-pin blue connector (H1)

Output 12-pin red connector (H2)

Input 10-pin black connector (H3)

D2D 4-pin white connector (H4)

RF 2-pin white connector (H5)

SmartStart/XL202 installation notes

The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202.

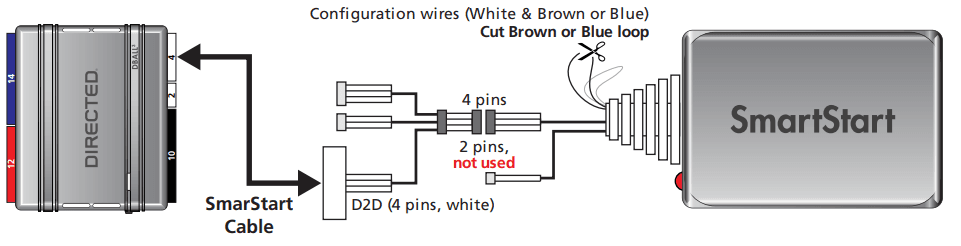

SmartStart revision A

SmartStart is optional and not included. It MUST be purchased separately.

WARNING: The modules must be connected in a specific order. Refer to “Module programming” for more information.

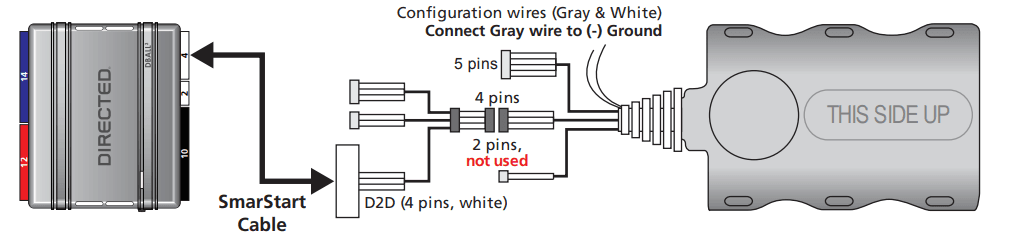

SmartStart revision B

SmartStart is optional and not included. It MUST be purchased separately.

WARNING:

1. Use the D2D Crossover (XOVER) cable that is provided with XL202, and NOT the one in the DB3 package.
2. The modules must be connected in a specific order. Refer to “Module programming” for more information.

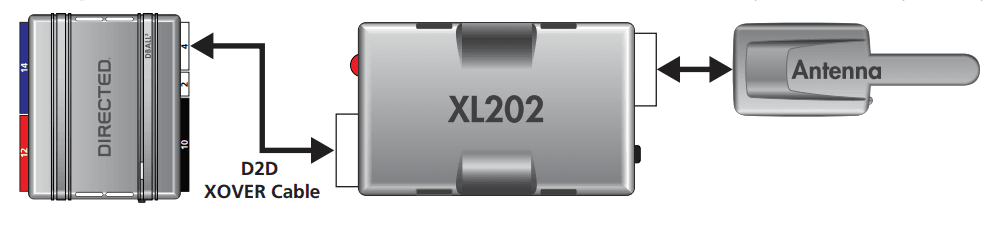

RF System

The optional XL202 and antenna are not included and MUST be purchased separately.

WARNING: The modules must be connected in a specific order. Refer to “Module programming” for more information.

RF System & PKE combination

Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.

RF System, PKE & SmartStart BT combination

Refer to the Passive Keyless Entry (PKE) Installation Guide (N2102T) for detailed wiring information.

Connecting the module

Important!
Make all the required connections to the vehicle, as described in this guide, and double-check to ensure everything is correct prior to moving on to programming.

Note: Before connecting either the XL202 or SmartStart module to DB3, it is important to ensure that the proper feature and function programming is selected using DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application.

Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application.

Flashing a module using your computer:

1. Connect the interface module to your computer using the XKLoader2.
2. Go to www.directechs.com using Internet Explorer, and select the Flash Module button.
3. Follow the instructions to select your vehicle, and installation type, and configure your options.
4. Once you have configured the firmware options, click on the FLASH button.

Flashing a module using your smartphone or tablet:

1. Connect the interface module to your XKLoader3.
2. Launch the Directechs Mobile app on your smartphone or tablet.
3. Select FLASH YOUR MODULE and follow the on-screen instructions.

When the flashing operation is successful, you can proceed with the instructions below.

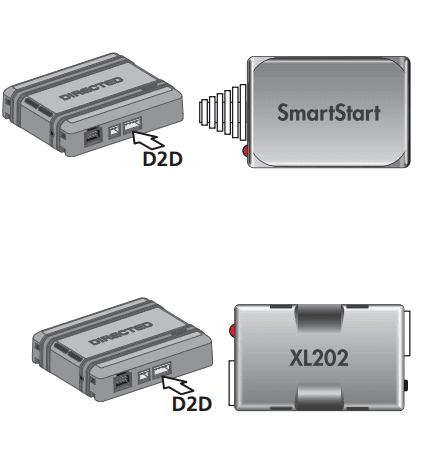

SmartStart installation

WARNING: The DB3 module must be disconnected from any power source before SmartStart can be connected to it. Failing to do so could damage DB3.

1. To ensure that the D2D communication between SmartStart and DB3 works properly, connect the Gray wire to a ground source (Rev B SmartStart), and cut the Brown or Blue loop (Rev A SmartStart).
2. Do NOT connect the 2-pin harness (on SmartStart). Power and ground will be provided by the DB3 D2D connector.
3. Connect SmartStart to DB3 using the D2D port.

OR
XL202 installation
Connect XL202 to DB3 using the D2D port.

Module programming

WARNING: Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.

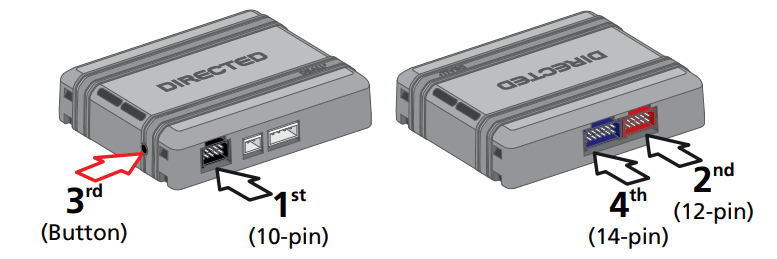

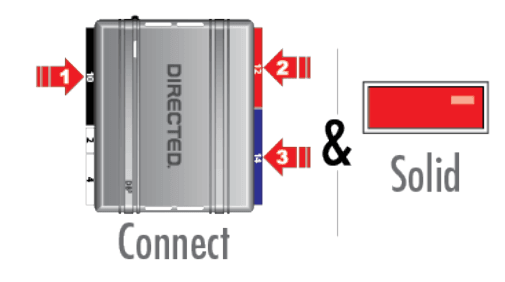

1. Connect the 10-pin, 12-pin and 14-pin harnesses to DB3, then wait until the LED turns ON solid red.
2. Press the Push-to-Start (PTS) button once to turn the ignition ON. The LED flashes orange, then flashes green.

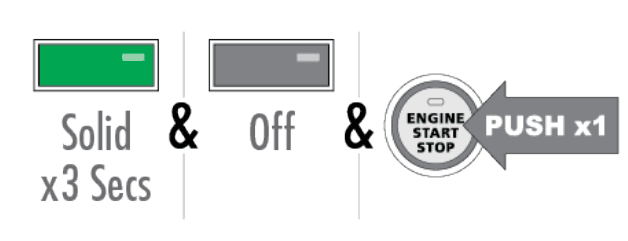

3. The LED turns ON solid green for 3 seconds, then turns OFF. Press the PTS button once more to turn the ignition OFF.

You have successfully completed the module programming sequence.

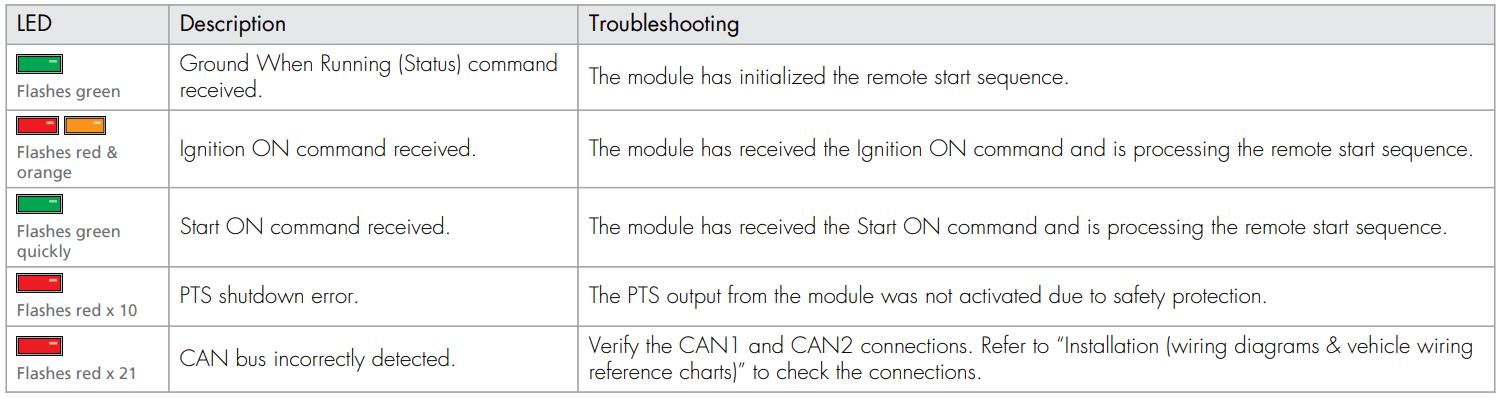

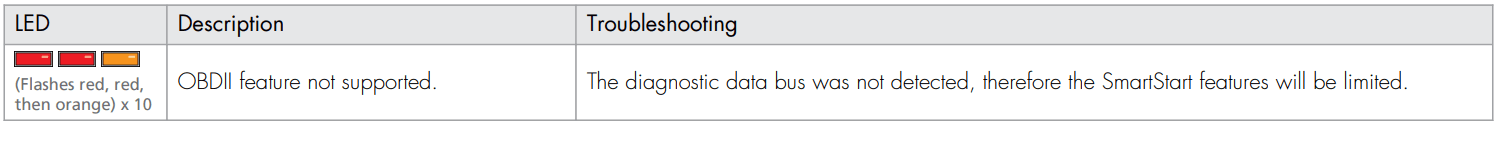

LED diagnostics and troubleshooting

This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.

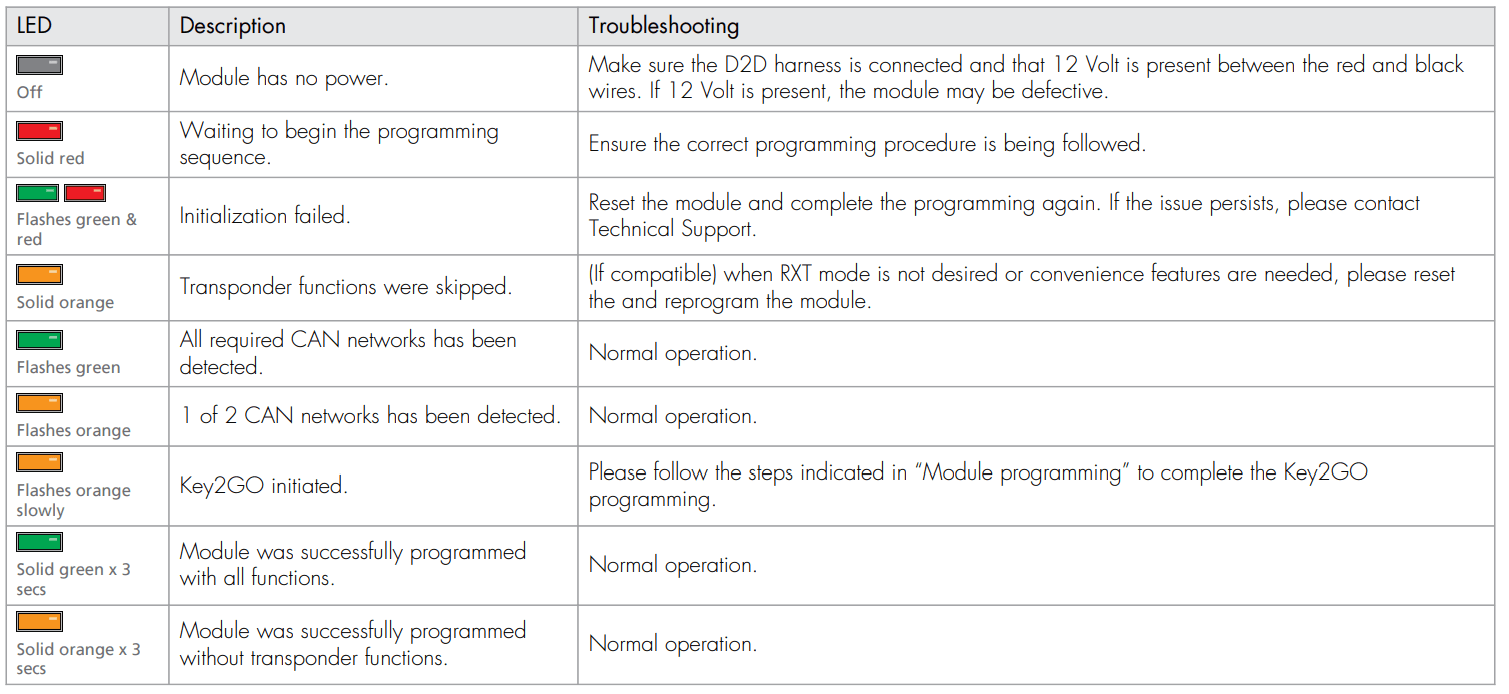

Module Programming

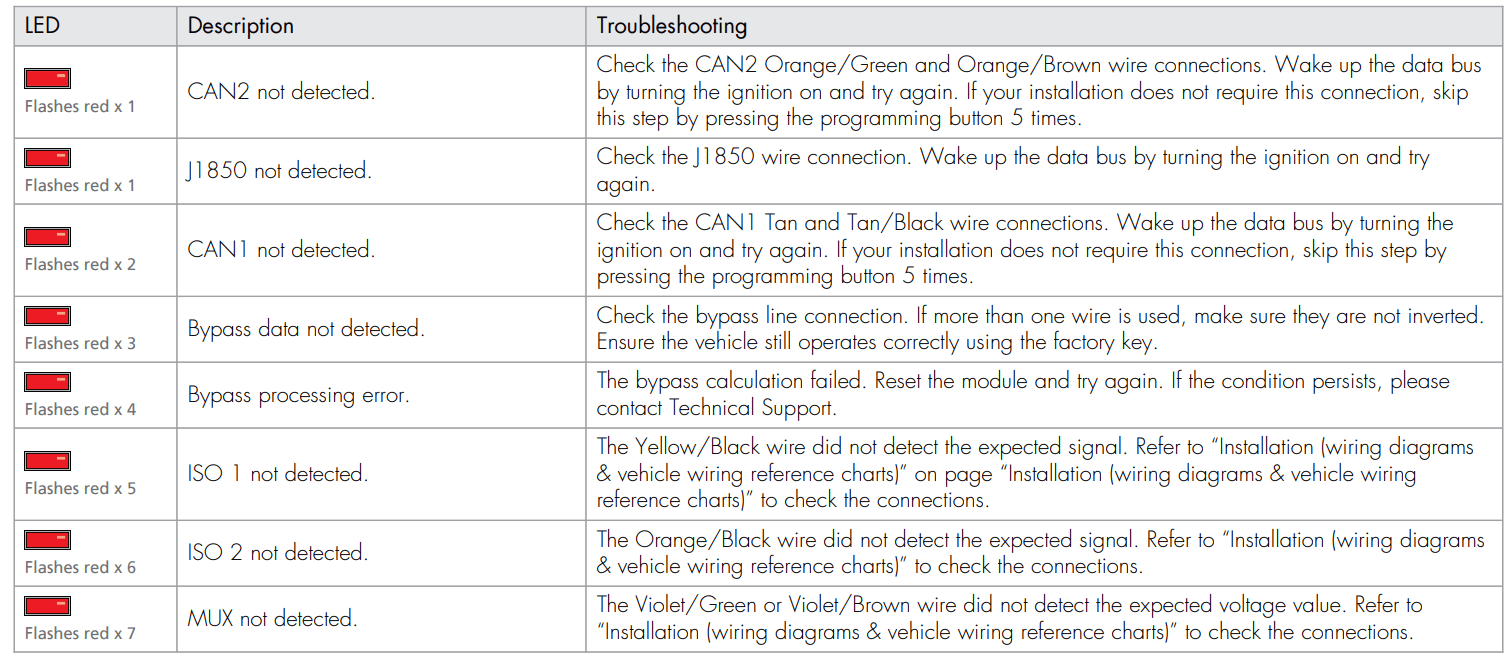

Module Programming – Error codes

External Module Synchronization

Active Ground When Running (Status)

Commands

Shutdown Codes

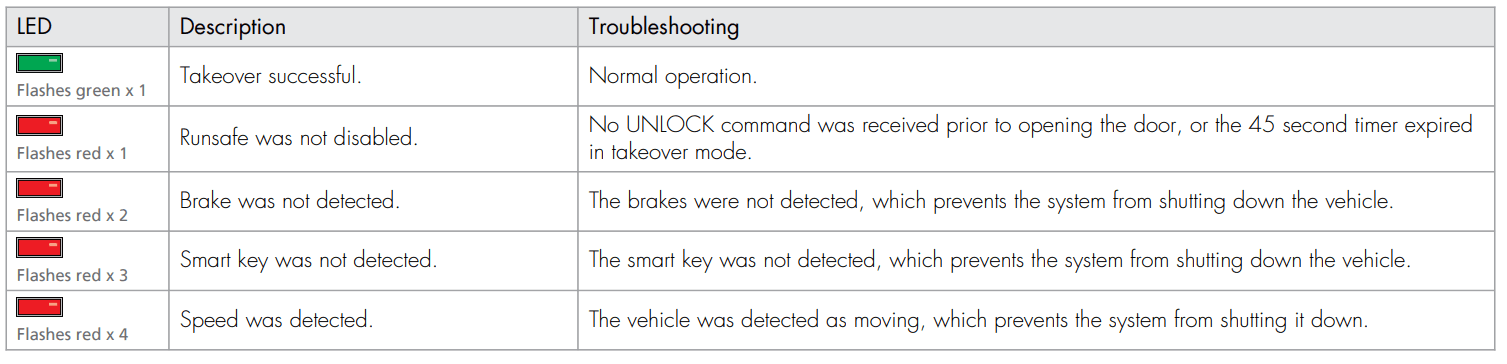

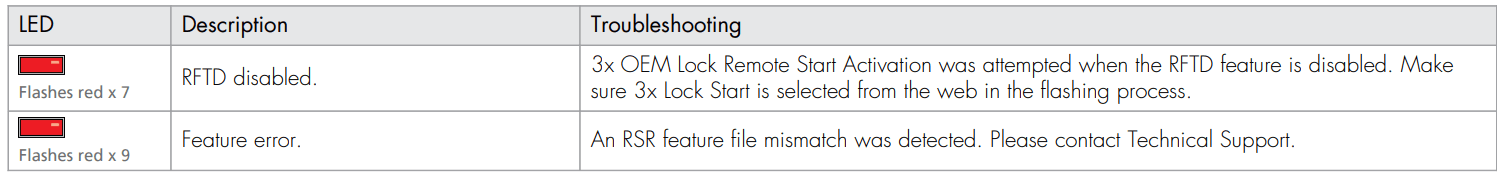

RSR Error Codes

Parking light error codes

The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern is described below.

* If the vehicle hood status is supported through data, the safety override switch input will report 7 flashes.

Soft reset

A module reset will only erase the steps performed in “Module programming”. The firmware and settings flashed to the module will not be affected.

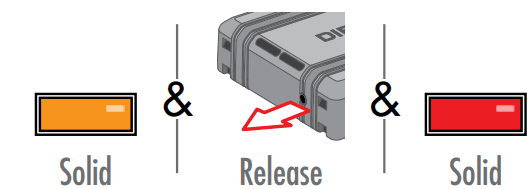

1. Connect the 10-pin & 12-pin harnesses to the module. Press and hold the programming button, then connect the 14-pin harness to the module.
2. Wait 3 seconds until the LED turns ON solid orange then release the programming button. The LED turns ON solid red.

Hard reset

Warning Against Executing a Hard Reset!

A hard reset will revert the flashed firmware back to its default factory settings. Depending on the installation, some settings (such as RFTD and D2D options) may have to be reconfigured. Refer to “Feature and option list”.

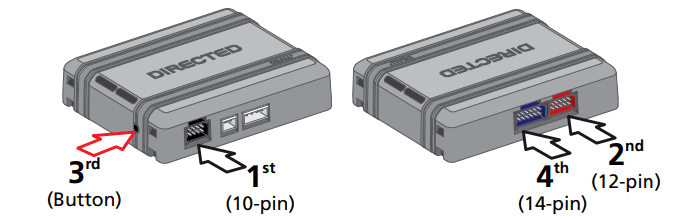

1. Connect the 10-pin & 12-pin harnesses to the module. Press and hold the programming button, then connect the 14-pin harness to the module.
2. Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the LED starts to flash orange and red.
3. Release the programming button. The LED turns ON solid red.

Feature programming

To enter the feature programming routine:

1. Turn the ignition ON, then OFF.
2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds).
3. Release the Programming button.
4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g. 1 x green followed by 1 x red indicates feature 1 is set to option 1). The flashing sequence will repeat until a new command is entered.

Changing feature options:

1. Press the lock/arm or unlock/disarm button on the aftermarket transmitter to change the option of the selected feature. When installing the DB3 in RSR using 3x OEM Lock Remote Start Activation only, there is no aftermarket transmitter on which to press lock/unlock to change the options of the selected feature. Tapping the green or blue lock/unlock wires on the black 10-pin harness to the ground will change the option for the selected feature.
2. The LED flashes red rapidly the number of times equal to the current option number. After a short delay, the LED flashes green slowly a number of times to indicate the current feature. The flashing sequence will repeat until a new command is entered.

Accessing another feature:

1. Press and release the programming button a number of times to advance from the current feature to the next desired feature.
2. The LED flashes green slowly the number of times equal to the feature number. After a short delay, the LED flashes red rapidly to indicate the current option of the current feature. The flashing sequence will repeat until a new command is entered.

When the maximum number of features or options is reached, the LED will start flashing again from the first feature or option.

Exiting feature programming:

To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence.

Feature and option list

It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

* Default option

Limited one-year consumer warranty

For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material under normal use, provided the following conditions are met: the Part was purchased from an authorized DIRECTED dealer; and the Part is returned to DIRECTED, postage prepaid, along with a clear, legible copy of the receipt or bill of sale bearing the following information: consumer’s name, address, telephone number, the authorized licensed dealer’s name and complete product and Part description. This warranty is non-transferable and is automatically void if the Part has been modified or used in a manner contrary to its intended purpose or the Part has been damaged by accident, unreasonable use, neglect, improper service, installation or other causes not arising out of defect in materials or construction.

TO THE MAXIMUM EXTENT ALLOWED BY LAW, EXCEPT AS STATED ABOVE, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND WARRANTY OF NONINFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED HEREBY DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING DEALERS OR INSTALLERS. DIRECTED IS NOT OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAMAGE, OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS, AND DIRECTED HEREBY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE, OR VANDALISM. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE PRICE OF THE PART. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY, AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR AT THE DESIRED OPTION THE PART AS DESCRIBED ABOVE.

This warranty only covers Parts sold within the United States of America and Canada. Parts sold outside of the United States of America or Canada are sold “AS-IS” and shall have NO WARRANTY, express or implied. Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights and you may also have other rights that vary from State to State. DIRECTED does not and has not authorized any person or entity to create for it any other obligation, promise, duty, or obligation in connection with this Part. For further details relating to warranty information of Directed products, please visit the support section of DIRECTED’s website at: www.directed.com

Quick Reference Guide

Parking Light Error Codes
The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown or failure to start. Each flashing pattern is described below.

* If the vehicle hood status is supported through data, it will also report a 7-flash safety override code.

Remote Start Ready (RSR)
Remote Start Ready (RSR) is a function that enables the interface module to remote start the vehicle completely on its own. Consequently, there is no need for an aftermarket or an OEM remote starter in order to start the vehicle from a distance.

3x OEM Lock Remote Start Activation

This solution includes the option to remote start your vehicle by pressing the Lock button 3 times consecutively. If your vehicle allows the OEM remote to remain active while the engine is running, you may shut down your remote starter by pressing the Lock button 3 times once more.
Note: The range offered by OEM remotes is limited and typically requires you to be within eyesight of the vehicle to control it.

List of Available Commands

Note that the information below is for Viper, Clifford and Python models. Icons and commands may differ depending on the remote brand and model purchased. Refer to your authorized installation center for more information.

* This output is configurable. see your authorized installation center for more information.

SmartStart Compatible
This system is compatible with Directed SmartStart 3.0. For a complete list of supported features, please visit www.mysmartstart.com.

What is SmartStart?
Now you can remotely start, lock, and unlock your car just by pushing a button on your smartphone; using the SmartStart App from Directed, the leader in vehicle security and remote start. The simple graphical interface gives you control over the following features of your installed remote start or security with the remote start system:

• Lock/Arm
• Unlock/Disar
• Remote Car Starter
• Trunk Release
• Panic
• Aux Channels

You can also control multiple vehicles – great for families – and assign more than one user to control a vehicle. It’s easy with SmartStart! But, this is only the beginning! SmartStart is loaded with additional features including GPS tracking, SmartSchedule, vehicle status, roadside assistance, home control, parked car finder, and more. 3.0 enables a “Cloud-Connected Car” like never before, providing an entirely new level of 2-way interaction with your vehicle. Connectivity is managed through the Directed Cloud Services (DCS) network linking cars, apps, end users, and the Internet.

For more information, visit www.mysmartstart.com.
