doBE DB400 Training Anti-Bark User Manual

doBE DB400 Training Anti-Bark

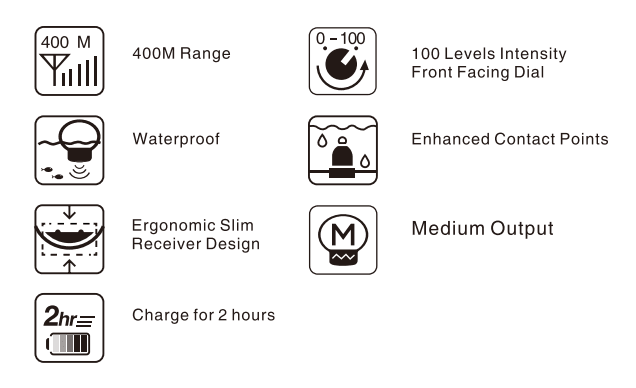

Main Features

Overview

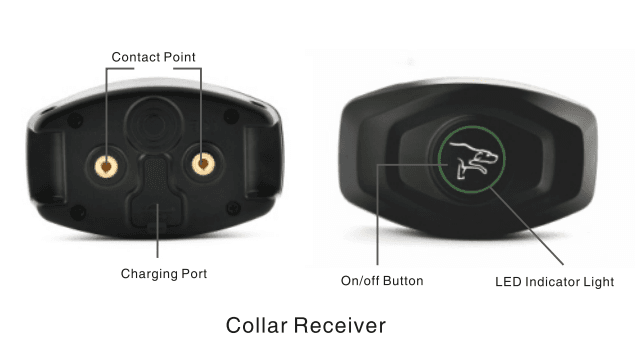

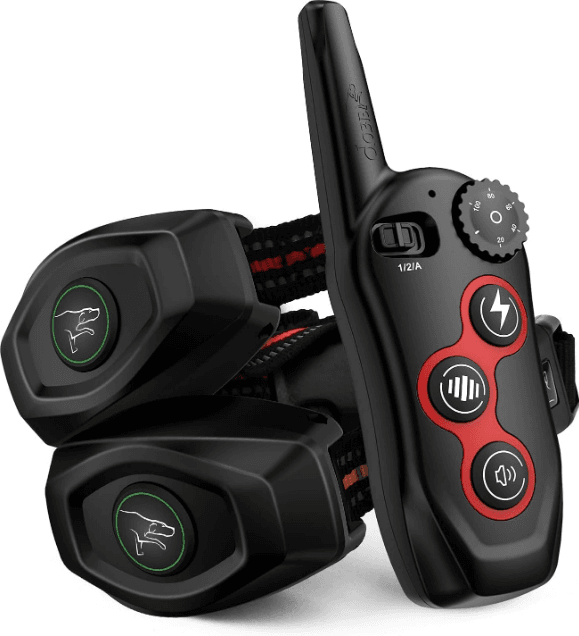

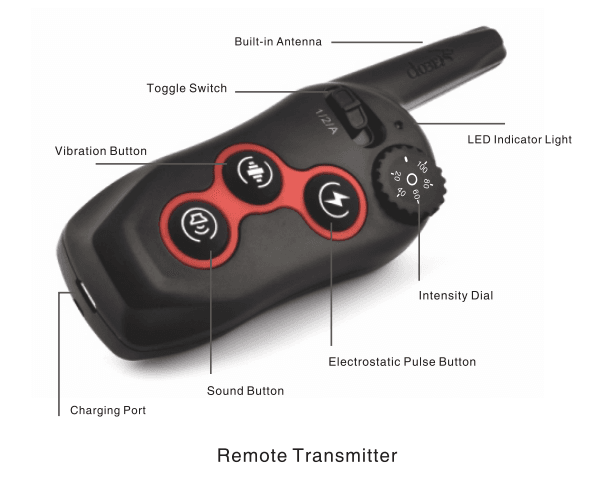

Understanding Your Training Device

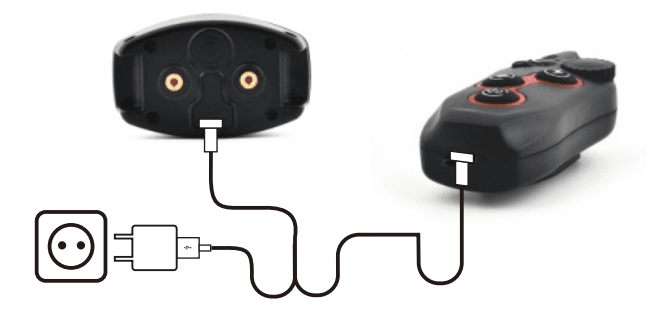

1. Charge the battery for 2 hours

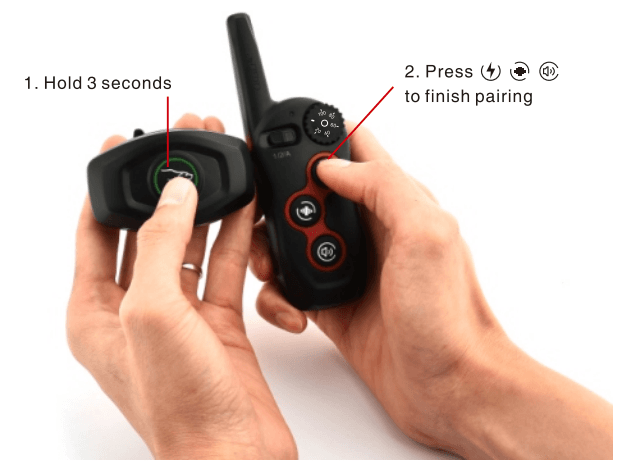

2. Pairing Collar Receiver to TransmitterNote:
   • Click to turn on the collar receiver ( short vibration)
   • Double-click to tum oll the collar receiver (long vibrate)
   • Pairing must be finished in 10 seconds. (See the collar receiver, the LED light flashing 10 seconds)
   • You will hear the 2nd “beep” from the collar receiver. tha1 means pairing is successfully
   • If needs to pairing 2nd collar receiver, fol low 1he same steps but needs to push the 1oggle switch to the 112 direction

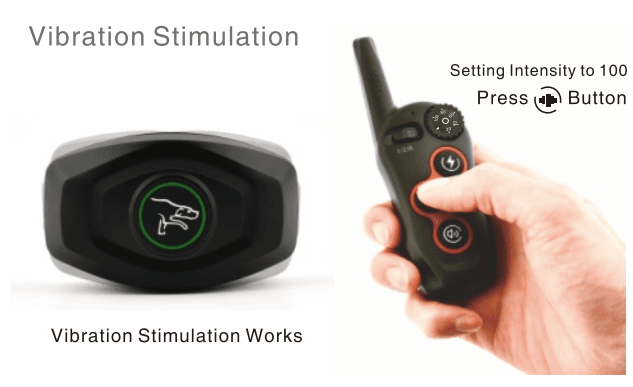

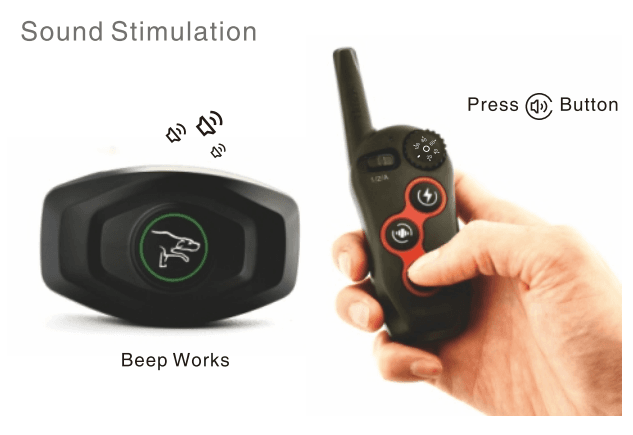

3. Test the Dog Training System Functions

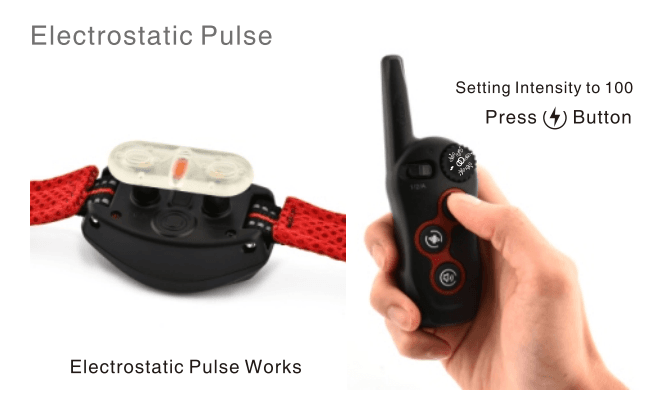

   • We suggest giving the dog vibration stimulation before following it with electrostatic pulse stimulation,
   • After training for a while using this method, the dog will be aware that after the vibration comes an electrostatic pulse.

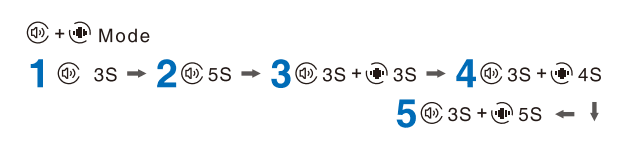

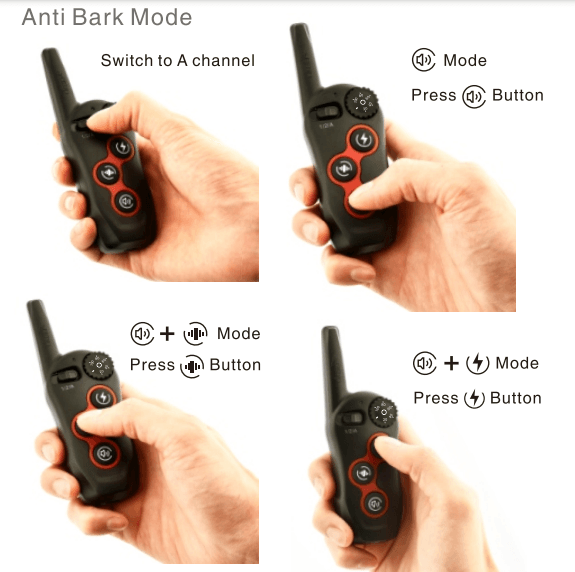

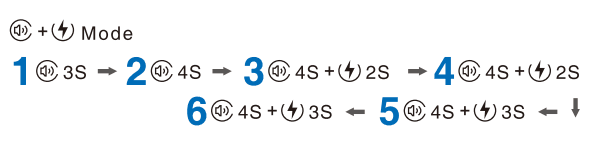

   • Vibration will act as a warning, and electroatatic pulse only acts u a menace that might be necessary sometimes.The more intense beeps are applied after each bark until your dog stops for 30 seconds, and then the anti-bark will automatically reset to the first “beep.”) level of correction still barking after 4 times, each time will keep working as the fourth working time until the dog stops barking for 30 seconds. The device automatically resets to the first time working levelA more intense beep and vibration are applied after each bark until your dog stops for 30 seconds, and then the anti-bark will automatically reset to the first “beep” only. level of correction Still barking after 5 times, each time will keep working as the fifth working time until the dog stops barking for 30 seconds. The device automatically resets to the first time working level (Beep Only)The more intense beep and shock are applied after each bark until your dog stops for 30 seconds, and then the anti-bark will automatically reset to the first “beep only) Level of correction If the anti-bark keeps activating 6 times, it will enter into auto-protection mode. The LED indicator will blink for 30 seconds to indicate that it is not working to protect the dog.Set the Sensitivity to 4 levels by pressing the ON/OFF Button

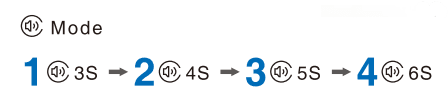

   • 1 “Beep”= Level 1
   • 2 “Beep”= Level 2
   • 3 “Beep” = Level 3
   • 4 “Beep•= Level 4
   • 1 “Long Beep”= Level 5

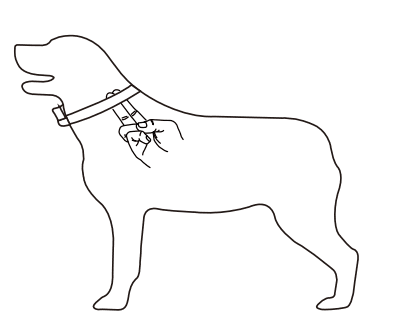

4. Collar Fitting
   The collar receiver should be fitted so that the contact points are pressed firmly against the dog’s skin. When properly fitted, you should be able to fit a flange r or two snugly in between the contact points and your dog’s skin.

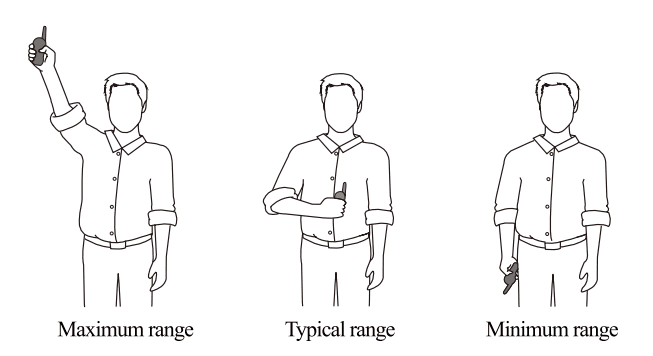

5. To Maximize the Distance
   The Training Dog Device has a 400M range. The range may vary depending on the way the transmitter is held. Hold the transmitter away from your body to receive the greatest range. For maximum signal strength, keep the Training Dog Device properly charged.Avoid touching the antenna, or the range may decrease substantially.
6. The LED Indicator

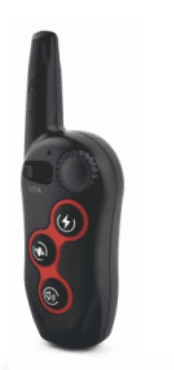

   Transmitter Indicator Light:
   Shows up when the transmitter is recharging. It will turn off when the battery is charged fully. It will flash when press mode button is pressed. It will blink when it standby within 20 minutes. Will 1 second blink twice when it power low.Collar Receiver Indicator Light:
   This shows up when any of the stimulations are pressed on the transmitter or the battery is fully charged. It will blink in standby within 20 minutes or the collar receiver recharging. Will Flash quickly when it into 10 seconds Pairing status. Will 1 second blink twice when the battery power is low? That means you need recharging for the collar receiver. ( Standbys 3 second blink once)

Troubleshooting

• My dog is not reacting to the collar.
  • Make sure the receiver/collar is turned on. And check the intensity levels of the vibrate, electrostatic pulse, and make sure it is not set to 0.
  • Be sure the strap is on the dog tight enough so that both contact points are touching the dog’s skin.
  • The contact points may be too short for your dog’s thick or long coat. If you are already using longer contact points, you may need to trim the hair on the dog’s neck so that both contact points are touching the dog’s skin.
  • If tested for all of the above and the dog is still not responding, please try repairing the Remote Transmitter and Collar Receiver.

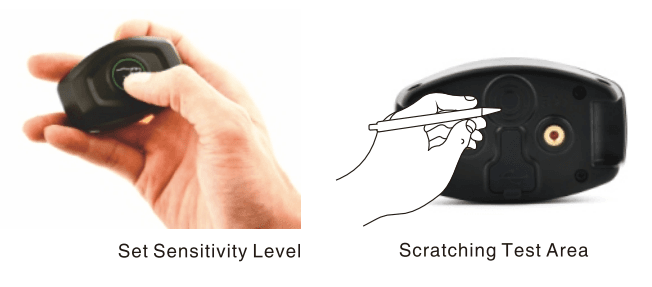

• I want to test the Collar Receiver myself, but it does not work.
  • When testing the collar with your hands, please touch the two electrodes simultaneously, as touching one electrode will not work.
• LED indicator light comes on, but I do not feel any stimulation.
  • Your tolerance may be higher than your dog’s. You may need to try the unit on your fingertips, where sensitivity is higher, and/or increase the stimulation level. Be sure both contact points are touching both of your fingertips.
  • The battery may be low; check the LED indicator light on the transmitter and receiver/collar for battery life.
  • If you have a full charge and you have done all of the above, your unit may need to be serviced
• The transmitter has no range, or the stimulation is weaker when my dog is farther away.
  • Check to see if your fingers are touching the antenna, as the range may decrease substantially.
  • The range indicated on the unit’s box is for flat terrain (line of sight). Heavy brush, trees, hills, buildings, and/or moisture will affect the range of your unit. For the best range, hold the transmitter vertically above your head and/or try moving to higher ground.
  • Any electrical conductors will affect the range, such as cars, chain-link dog runs, metal buildings, and radio towers. For the best results, operate away from these structures.

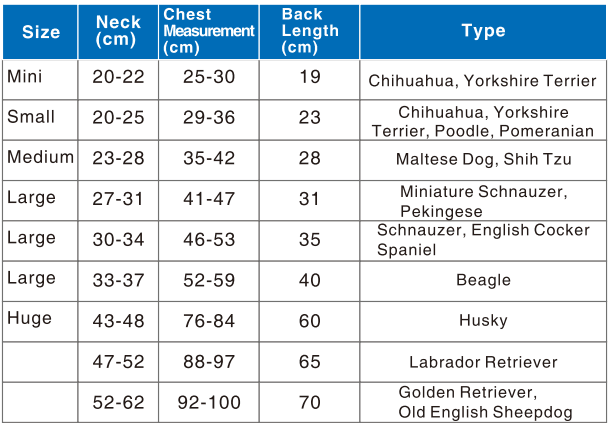

Common sizes of different dogs

Dobe Dog Training & Anti-bark Warranty

1 Year Warranty! Our Dobe 1 year free for repair, If you ever have any issue with your collars for dogs, just contact us! Dobe US Based Customer Service 1511-881-5413 (Phone & Email) 6 Days a Week.

General Training Tips

Follow these tips on how to get the best out of your Dobe Dog Training System

1. Make training sessions short and positive (between 10-15 minutes long for each session). This will enable the dog to keep its attention focused on the trainer.
2. Train one dog at a time.
3. During the initial training sessions, keep the dog in a familiar outdoor environment. Training in new locations may cause the dog to become distracted, causing you to reinforce commands with the Collar Receiver more than necessary.
4. Use a long leash fastened to a non-metallic collar to help the dog’s learning. Ensure the additional collar and leash do not interfere with the Contact Points on the Collar Receiver. Do not use the dog training system without a long leash until your dog is fully trained.
5. More success will occur by teaching the dog a command first before trying to reinforce the command with the Remote Transmitter.
6. For basic obedience training, vibration is more useful.
7. Issue one obedience command at a time; this will reduce confusion and allow the dog to remain focused. Do not use the training system for commands that the dog has not learned.
8. During training, look for all the positive changes in the dog’s behavior and remember to reinforce them promptly with ample praise and reward.
9. Avoid over-correcting your dog. Use as little remote correction as possible during the training process.
10. When the dog has become apparently perplexed, shift the focus of the training by drawing the dog’s attention to a command they have familiarity with. Example: Tell the dog to sit and give abundant praise and encouragement on the successful completion of the sit command.
11. Do not use the dog training system to correct or eliminate forms of aggression or biting behavior. When the dog is showing signs of aggressive behavior, immediately contact a professional dog trainer in your local area.
12. Please keep in mind that you should keep training sessions short and end every session on a high note. Stop training and play with the dog as soon the dog has accomplished a new level of proficiency.
