Dorel Home 8104885WC Side Storage Desk
Helpful Hints
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort, and count the parts before attempting assembly.
- The back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.

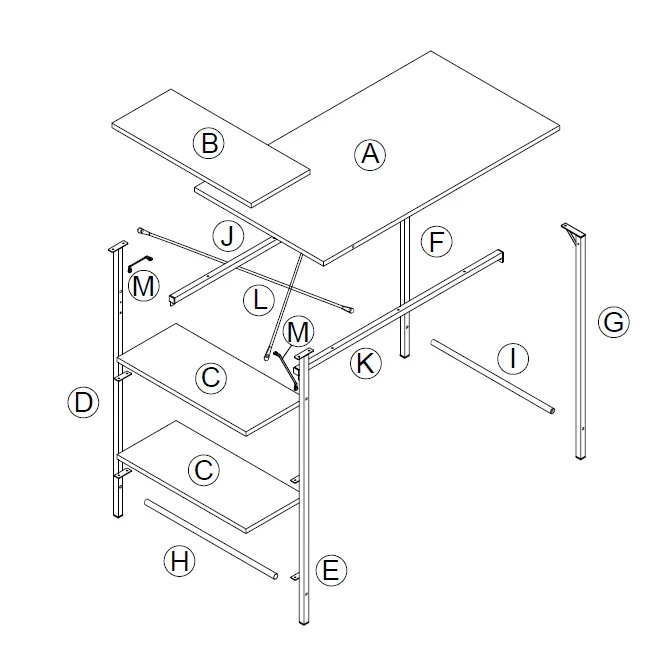

Board Identification

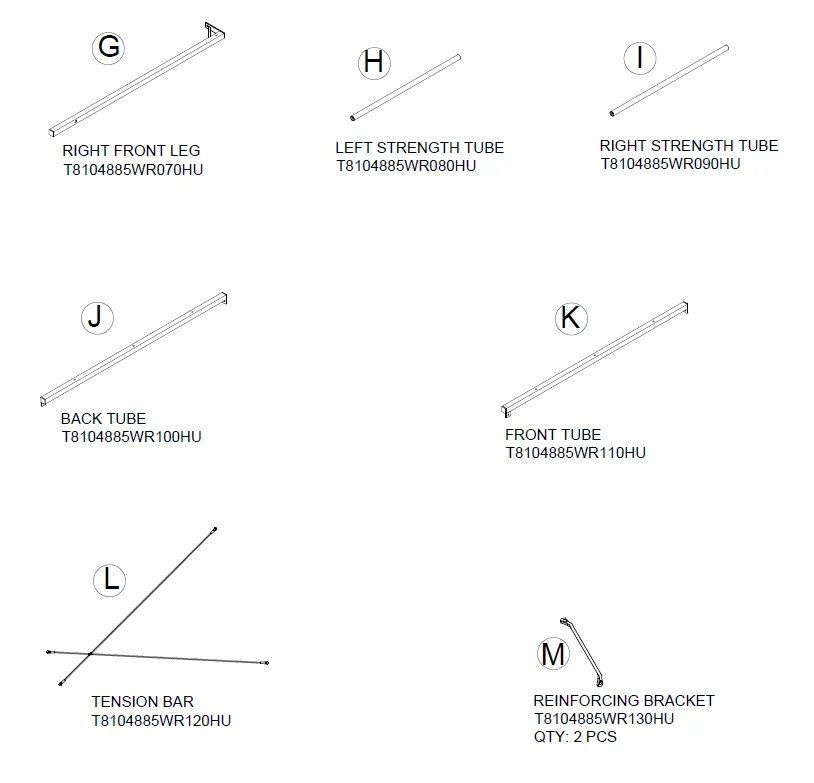

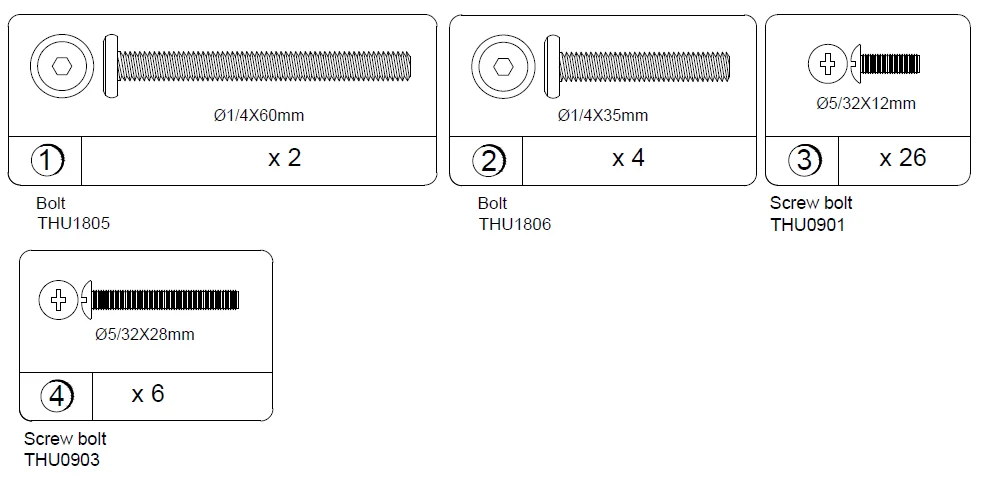

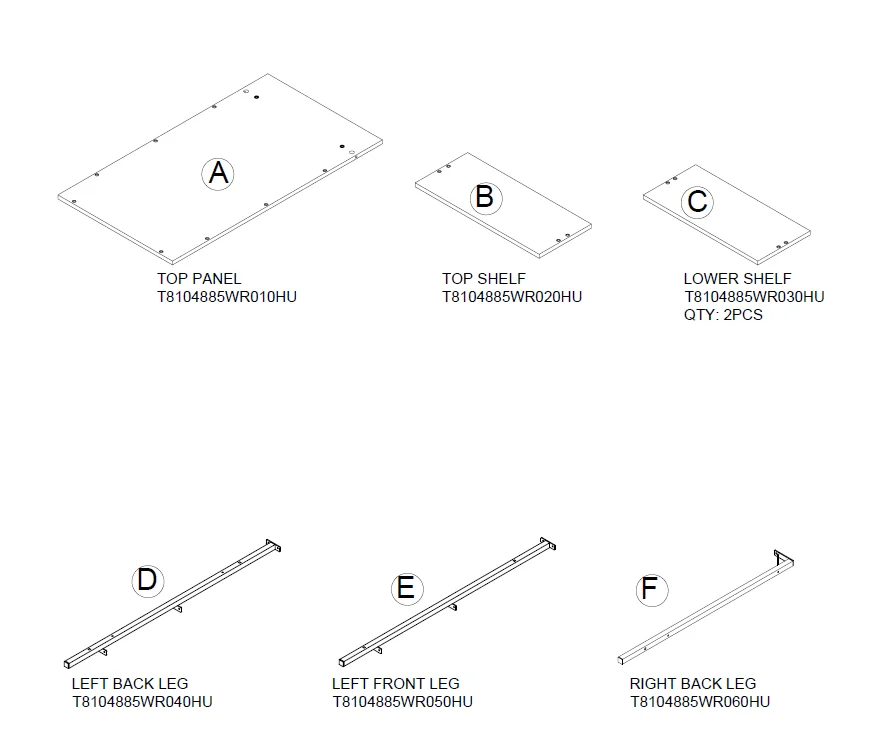

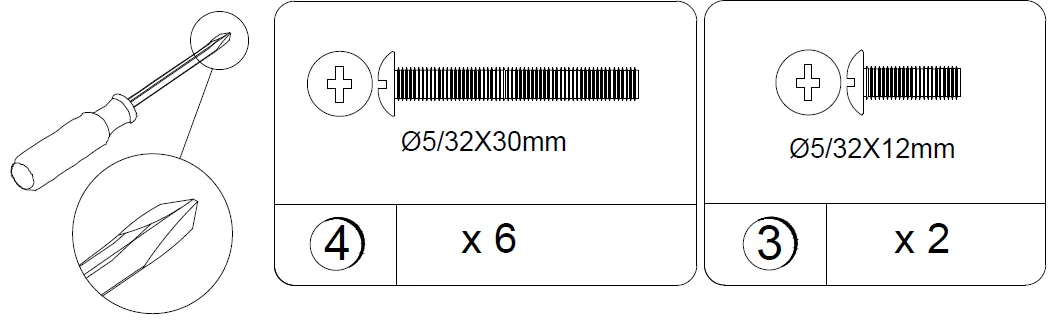

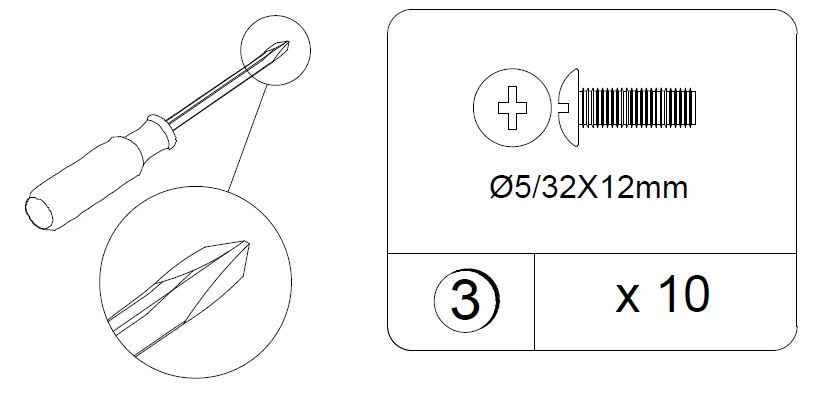

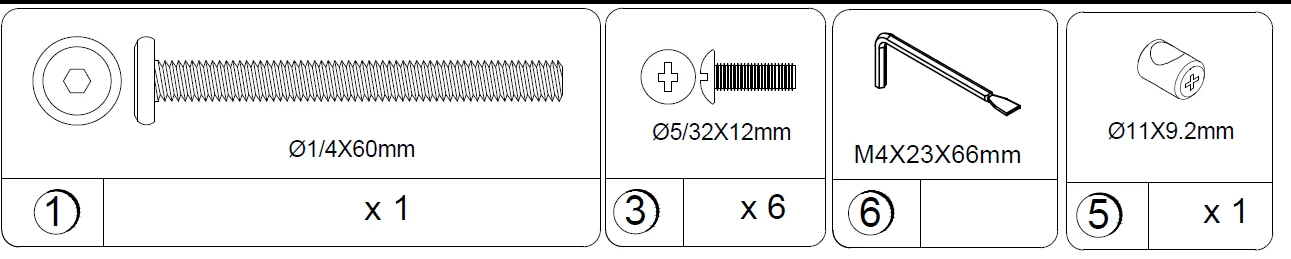

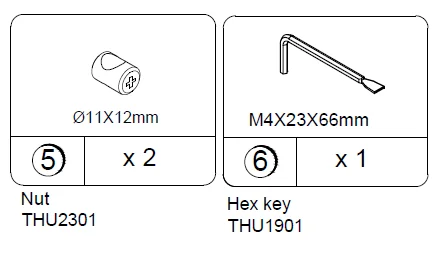

Part List
Actual Size
Not Actual Size

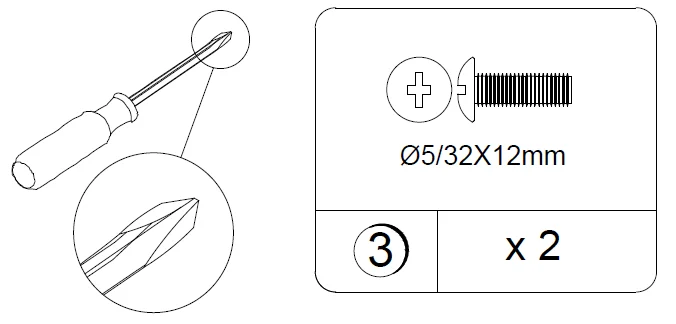

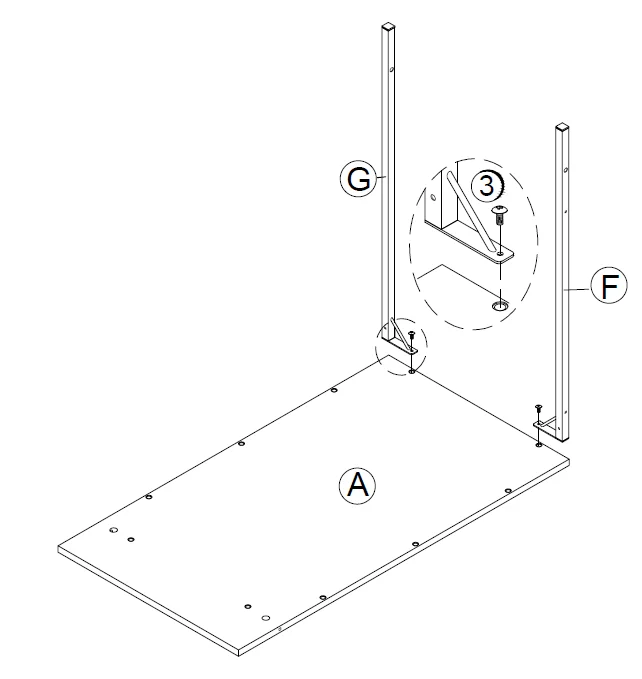

STEP 1
Attach the right back leg (F) and the right front leg (G) to the top panel (A) with bolts (3) as below shown.

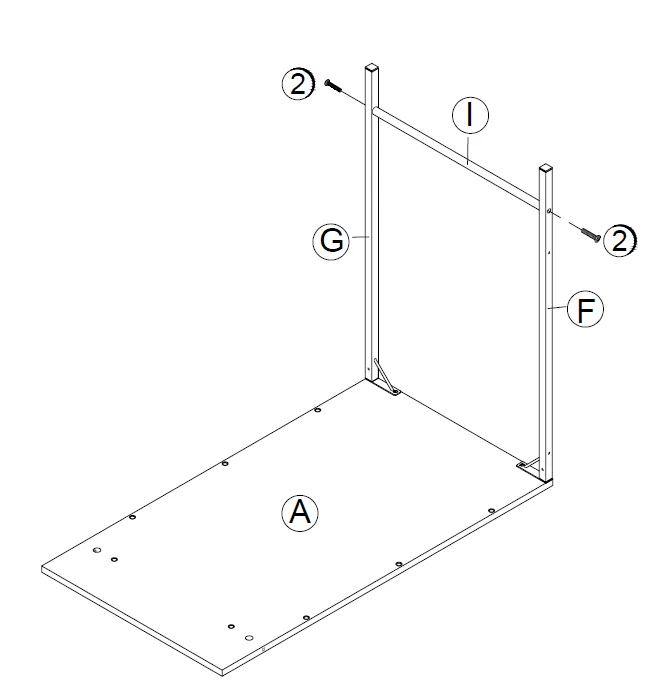

STEP 2
Attach the right strength tube (I) to the right back leg (F) and the right front leg (G) with bolts (2) as below shown.
STEP 3
- Attach the back tube (J) and the front tube (K) to the top panel (A) with bolts (4) as below shown.
- Attach the front tube (K) to the right front leg (G) with bolt (3) as shown.
- Attach the back tube (J) to the right back leg (F) with bolt (3) as shown.

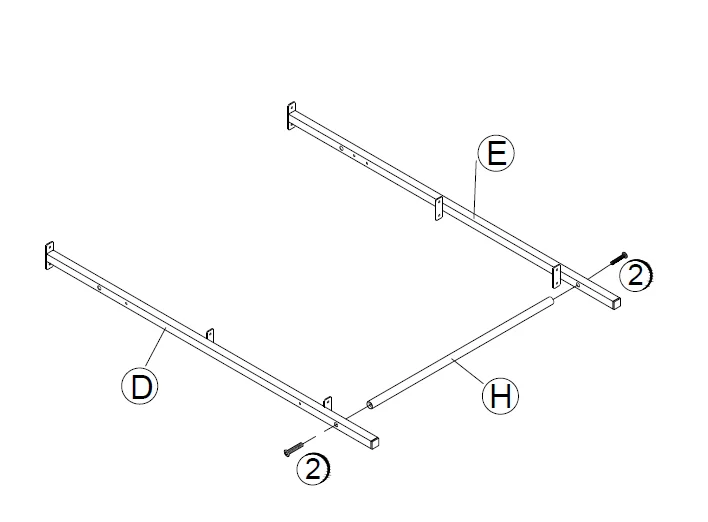

STEP 4
- Attach the left strength tube (H) to the left back leg (D) and the left front leg (E) with bolts (2) as below shown.
STEP 5
- Attach the left front leg (E) to the top panel (A) with bolts (1) and nuts (5) as below shown.
STEP 6
- –Attach the lower shelves (C) to the left back leg (D) and the left front leg (E) with bolts (3) as below shown.
- Attach the back tube (J) and the front tube (K) to the left back leg (D) and the left front leg (E) with bolts (3) as below shown.
STEP 7
- Attach the top shelf (B) to the left back leg (D) and the left front leg (E) with bolts (3) as below shown.
- Attach the reinforcing bracket (M) to the left back leg (D) and the top panel (A) with bolts (3) as below shown.

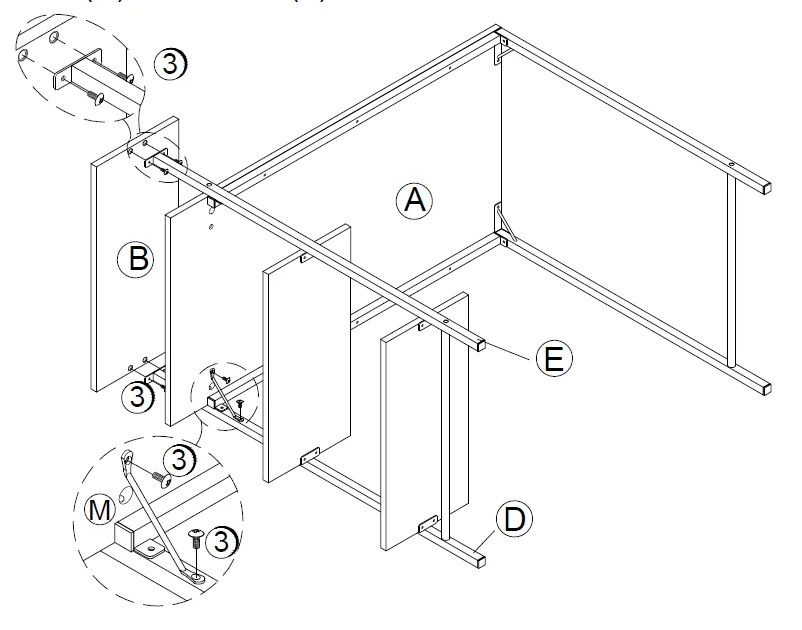

STEP 8
- Attach the left back leg (D) to the top panel (A) with bolts (1) and nuts (5) as below shown.
- Attach the tension bars (L) to the left back leg (D) and the right back leg (F) with bolts (3) as below shown.
- Attach the reinforcing bracket (M) to the left front leg (E) and the top panel (A) with bolts (3) as below shown.

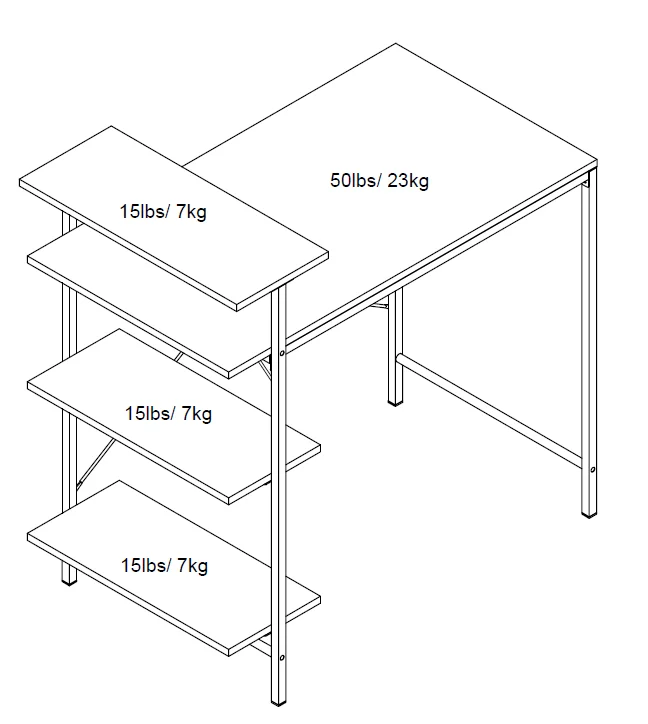

Maximum Loads
This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
Certificate of Conformity
- This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual.
- This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
- This product is distributed by: Dorel Home Furnishings, Inc. 410 East First Street South Wright City, MO 63390 636-745-3351
- Site of Manufacture: Bangkok, Thai I and
- See the front page of the instruction manual for the date of manufacture
Register your product to receive the following:
- New trend details – sneak peek on what’s new
- Surveys – have a voice within our community
- Exclusive deals and discount codes
- Quick and easy replacement part service
To register your product, visit ameriwoodhome.com
